What applications is a 3.3V, 15A compact supply like the RSP-75-3.3 suited for?

The RSP-75-3.3 provides 3.3V at 15A (49.5W), suitable for powering logic-level subsystems on embedded boards, FPGA I/O banks, and small industrial controllers where a regulated 3.3V rail is required in a confined space. Its 159.0 × 97.0 × 30.0 mm chassis enables use in tight enclosures.

What is the operating temperature range of the RSP-75-3.3?

The RSP-75-3.3 operates from -25°C to +70°C ambient. It carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and is rated for indoor enclosed use.

How does the RSP-75-3.3 compare to the RSP-75-5 and RSP-75-7.5?

All three use the same 159.0 × 97.0 × 30.0 mm chassis and 85-264VAC input. The RSP-75-3.3 provides 49.5W at 15A, the RSP-75-5 provides 75W at 15A, and the RSP-75-7.5 provides 75W at 10A. The RSP-75-3.3 produces the lowest total power of the group because the low output voltage limits wattage at the rated 15A.

What is the actual rated power of the RSP-75-3.3?

The RSP-75-3.3 is rated at 49.5W (3.3V × 15A). Despite the RSP-75 series designation, the low output voltage constrains total output power. It weighs 0.44 kg and includes a 3-year warranty.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

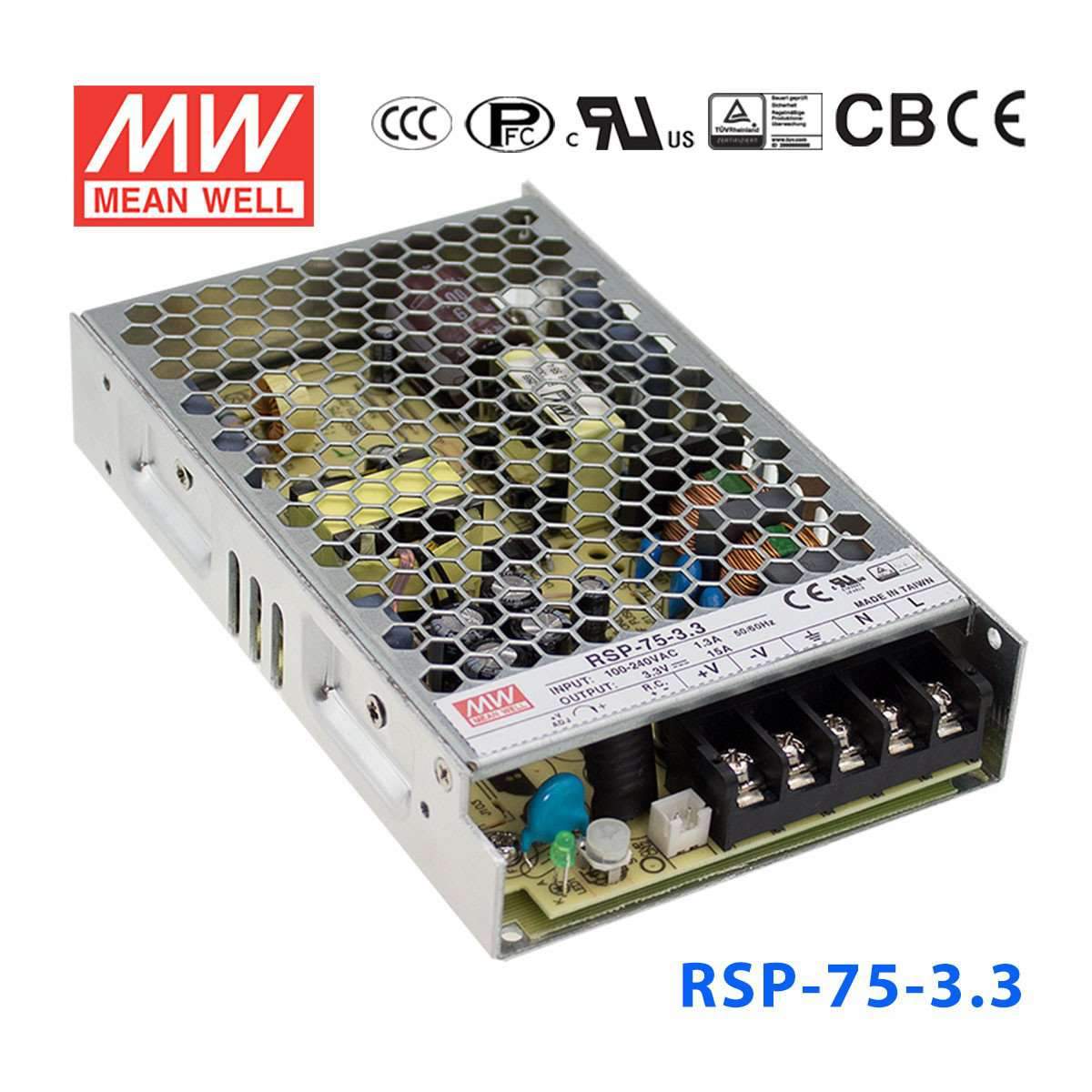

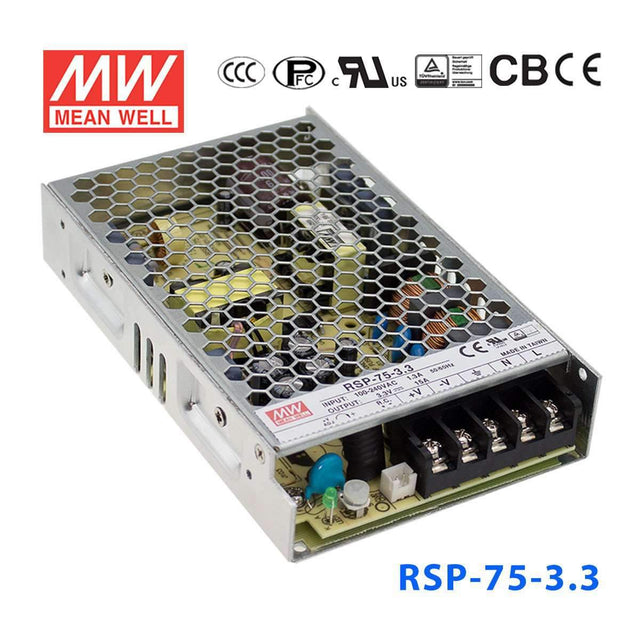

Mean Well RSP-75-3.3 Power Supply 49.5W 3.3V 15A

1U low profile with active PFChigh efficiency

SKU:

RSP-75-3.3

Log in to see price Trade pricing & online ordering for account holders

Select model — 6 in this family

RSP-75-3.3

RSP-75-3.3 75W 3.3V Backorder

RSP-100-3.3 100W 3.3V Backorder

RSP-150-3.3 150W 3.3V Backorder

RSP-200-3.3 200W 3.3V Backorder

RSP-320-3.3 320W 3.3V Backorder

RSP-500-3.3 500W 3.3V Backorder

Product variants

Notify me when it's back in stock

EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024

Key Features

✓Universal AC input / Full range
✓Built-in active PFC function
✓Built-in constant current limiting circuit
✓Protections:Short circuit/ Overload / Over voltage
✓Cooling by free air convection
✓1U low profile 30mm
✓Remote ON-OFF control
✓LED indicator for power on
✓100% full load burn-in test
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-75-12 Power Supply 75W 12V 6.3A	75.6W	12V	6.3A	View
Mean Well RSP-75-7.5 Power Supply 75W 7.5V 10A	75W	7.5V	10A	View
Mean Well RSP-75-5 Power Supply 75W 5V 15A	75W	5V	15A	View
Mean Well RSP-75-48 Power Supply 75W 48V 1.6A	76.8W	48V	1.6A	View
Mean Well RSP-75-27 Power Supply 75W 27V 2.8A	75.6W	27V	2.8A	View
Mean Well RSP-75-24 Power Supply 75W 24V 3.2A	76.8W	24V	3.2A	View
Mean Well RSP-75-15 Power Supply 75W 15V 5A	75W	15V	5A	View
Mean Well RSP-75-13.5 Power Supply 75W 13.5V 5.6A	75.6W	13.5V	5.6A	View
