What is the RSP-75-13.5 commonly used for?

The RSP-75-13.5 provides 13.5V at 5.6A (75.6W), a voltage used to charge 12V lead-acid batteries under float conditions and to power small automotive-grade electronics in enclosed test rigs. Its 159.0 × 97.0 × 30.0 mm form factor suits compact panel installations.

What is the minimum operating temperature of the RSP-75-13.5?

The RSP-75-13.5 operates down to -25°C, with an upper limit of +70°C. It is designed for indoor enclosed use and holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications.

How does the RSP-75-13.5 compare to the RSP-75-12 and RSP-75-15?

All three units share the 159.0 × 97.0 × 30.0 mm chassis and 85-264VAC input. The RSP-75-12 delivers 75.6W at 6.3A, the RSP-75-13.5 delivers 75.6W at 5.6A, and the RSP-75-15 delivers 75W at 5A. All three are rated at approximately 75W with current decreasing as voltage increases.

What certifications does the RSP-75-13.5 hold?

The RSP-75-13.5 carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and includes a 3-year warranty. It weighs 0.44 kg.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

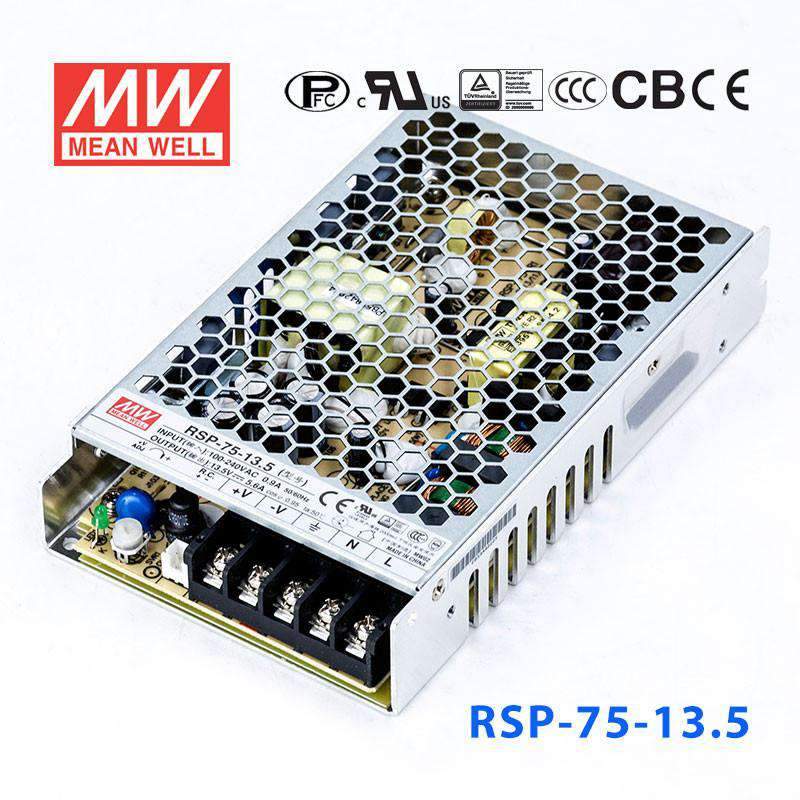

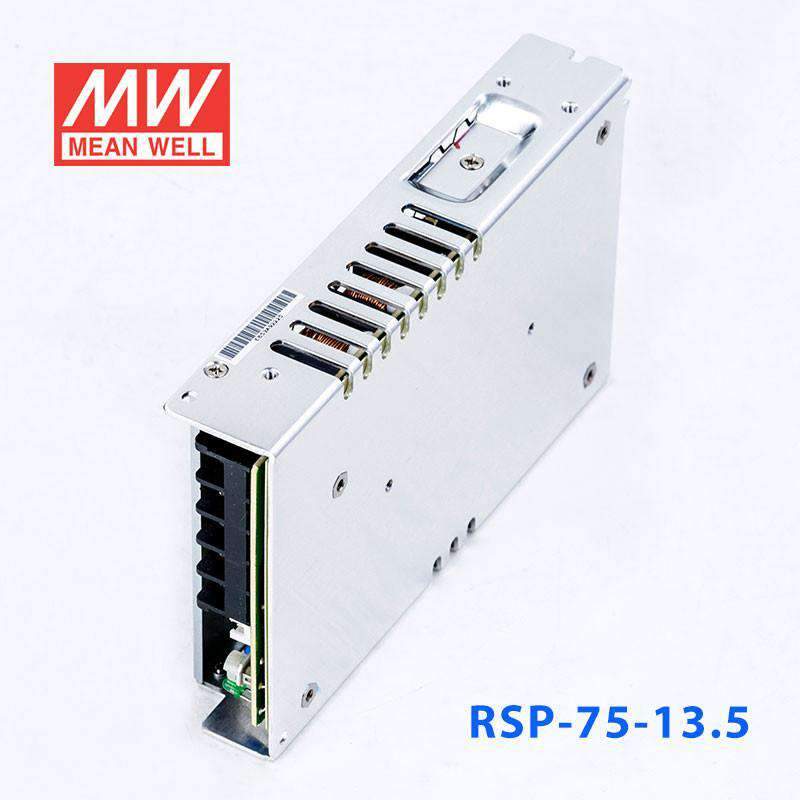

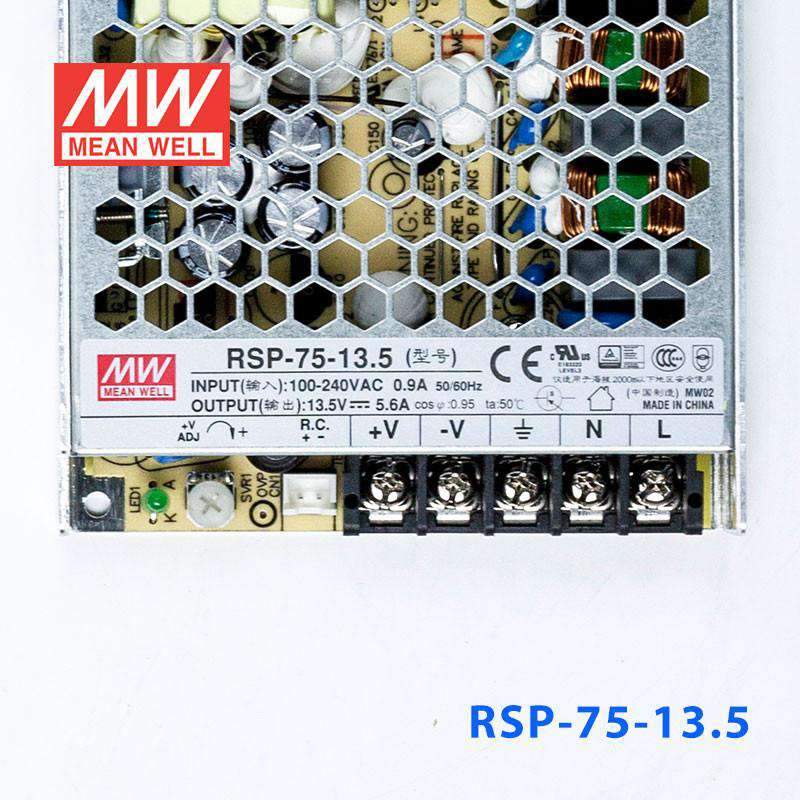

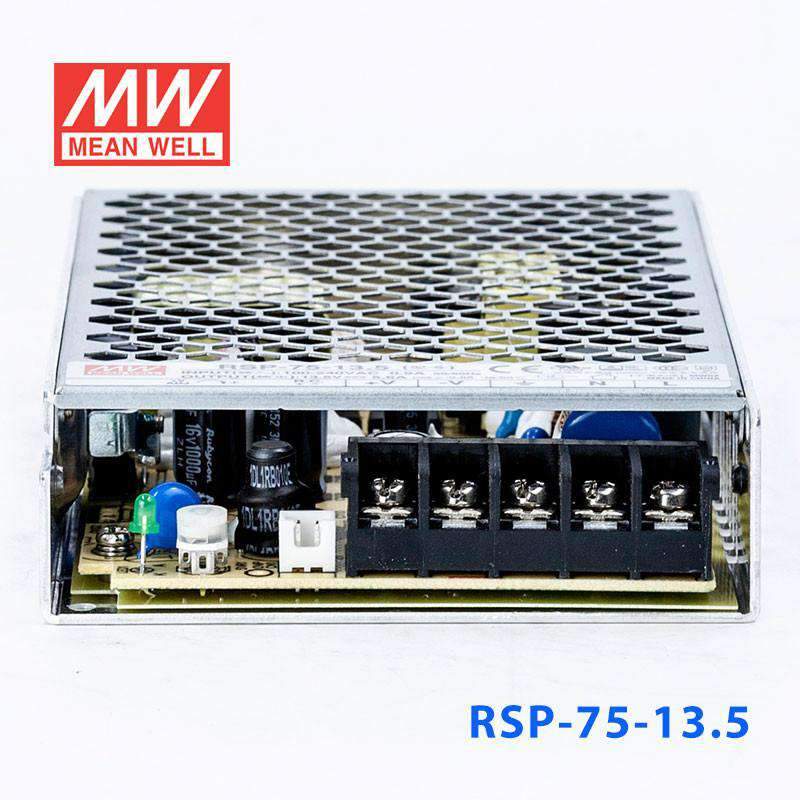

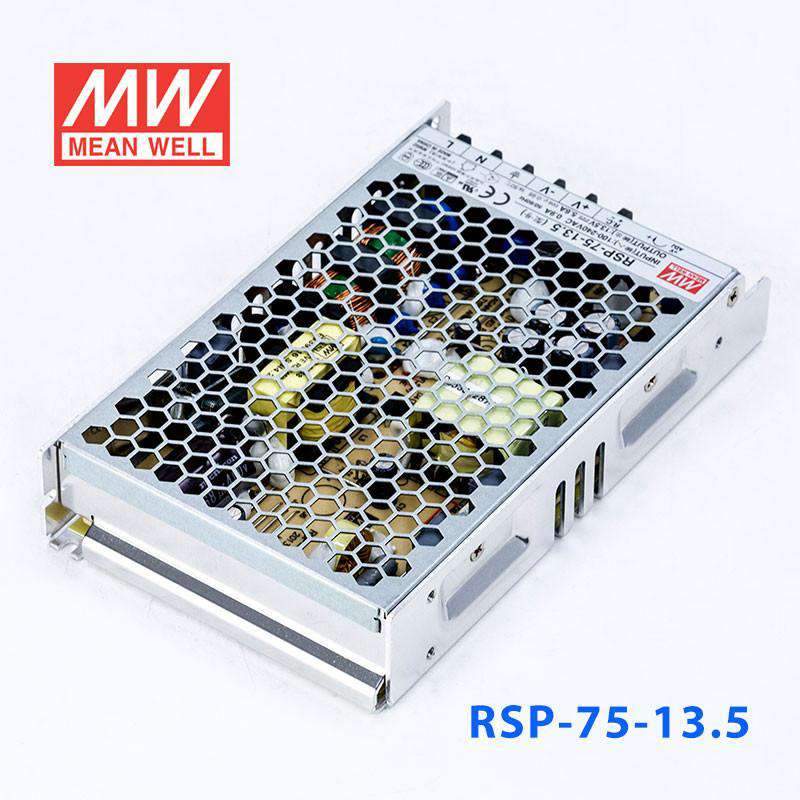

Mean Well RSP-75-13.5 Power Supply 75W 13.5V 5.6A

1U low profile with active PFChigh efficiency

SKU:

RSP-75-13.5

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

RSP-75-13.5

RSP-75-13.5 75W 13.5V Backorder

RSP-100-13.5 100W 13.5V Backorder

RSP-150-13.5 150W 13.5V Low stock

RSP-200-13.5 200W 13.5V Backorder

RSP-320-13.5 320W 13.5V Backorder

Product variants

Notify me when it's back in stock

EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024

Key Features

✓Universal AC input / Full range
✓Built-in active PFC function
✓Built-in constant current limiting circuit
✓Protections:Short circuit/ Overload / Over voltage
✓Cooling by free air convection
✓1U low profile 30mm
✓Remote ON-OFF control
✓LED indicator for power on
✓100% full load burn-in test
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-75-12 Power Supply 75W 12V 6.3A	75.6W	12V	6.3A	View
Mean Well RSP-75-7.5 Power Supply 75W 7.5V 10A	75W	7.5V	10A	View
Mean Well RSP-75-5 Power Supply 75W 5V 15A	75W	5V	15A	View
Mean Well RSP-75-48 Power Supply 75W 48V 1.6A	76.8W	48V	1.6A	View
Mean Well RSP-75-3.3 Power Supply 49.5W 3.3V 15A	49.5W	3.3V	15A	View
Mean Well RSP-75-27 Power Supply 75W 27V 2.8A	75.6W	27V	2.8A	View
Mean Well RSP-75-24 Power Supply 75W 24V 3.2A	76.8W	24V	3.2A	View
Mean Well RSP-75-15 Power Supply 75W 15V 5A	75W	15V	5A	View
