What applications use 48V at low wattage that the RSP-75-48 addresses?

The RSP-75-48 provides 48V at 1.6A (76.8W), appropriate for small PoE injectors, telecom auxiliary power rails, and single-channel 48V actuator control modules that require a compact, regulated 48V source.

What is the temperature range and indoor rating for the RSP-75-48?

The RSP-75-48 operates from -25°C to +70°C and is designed for indoor enclosed use. Certifications include BSMI, CB, CCC, CE, EAC, TÜV, and UL.

How does the RSP-75-48 compare to the RSP-75-24 and RSP-75-27 at higher voltages?

All three share the 159.0 × 97.0 × 30.0 mm chassis and 85-264VAC input. The RSP-75-24 provides 76.8W at 3.2A, the RSP-75-27 provides 75.6W at 2.8A, and the RSP-75-48 provides 76.8W at 1.6A. Total power is similar across the three; the RSP-75-48 has the highest voltage and lowest current.

What is the weight and warranty for the RSP-75-48?

The RSP-75-48 weighs 0.44 kg and includes a 3-year warranty. It accepts 85-264VAC universal input and includes built-in active PFC.

Mean Well RSP-75-48 Power Supply 75W 48V - Best Prices NZ

EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024

Key Features

✓Universal AC input / Full range
✓Built-in active PFC function
✓Built-in constant current limiting circuit
✓Protections:Short circuit/ Overload / Over voltage
✓Cooling by free air convection
✓1U low profile 30mm
✓Remote ON-OFF control
✓LED indicator for power on
✓100% full load burn-in test
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RSP-75-12 Power Supply 75W 12V 6.3A	75.6W	12V	6.3A	View
Mean Well RSP-75-7.5 Power Supply 75W 7.5V 10A	75W	7.5V	10A	View
Mean Well RSP-75-5 Power Supply 75W 5V 15A	75W	5V	15A	View
Mean Well RSP-75-3.3 Power Supply 49.5W 3.3V 15A	49.5W	3.3V	15A	View
Mean Well RSP-75-27 Power Supply 75W 27V 2.8A	75.6W	27V	2.8A	View
Mean Well RSP-75-24 Power Supply 75W 24V 3.2A	76.8W	24V	3.2A	View
Mean Well RSP-75-15 Power Supply 75W 15V 5A	75W	15V	5A	View
Mean Well RSP-75-13.5 Power Supply 75W 13.5V 5.6A	75.6W	13.5V	5.6A	View

Please log in to write a review.

{ "id":8343947051307, "variants" :[{ "context":"default", "variant_id": 45321566748971, "sku":"RSP-75-48", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓Universal AC input / Full range

✓Built-in active PFC function

✓Built-in constant current limiting circuit

✓Protections:Short circuit/ Overload / Over voltage

✓Cooling by free air convection

✓1U low profile 30mm

✓Remote ON-OFF control

✓LED indicator for power on

✓100% full load burn-in test

✓3 years warranty

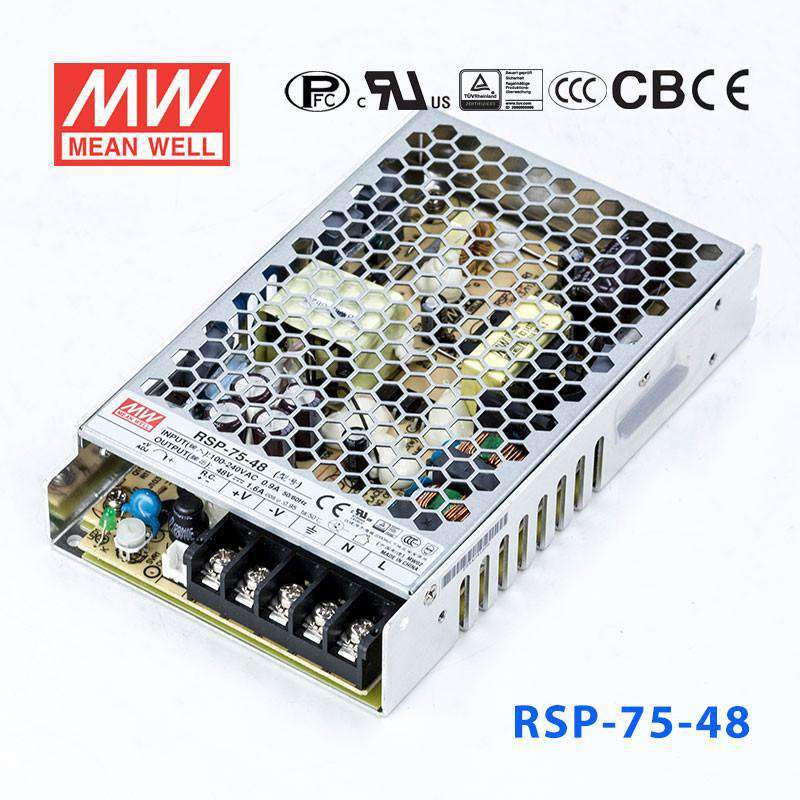

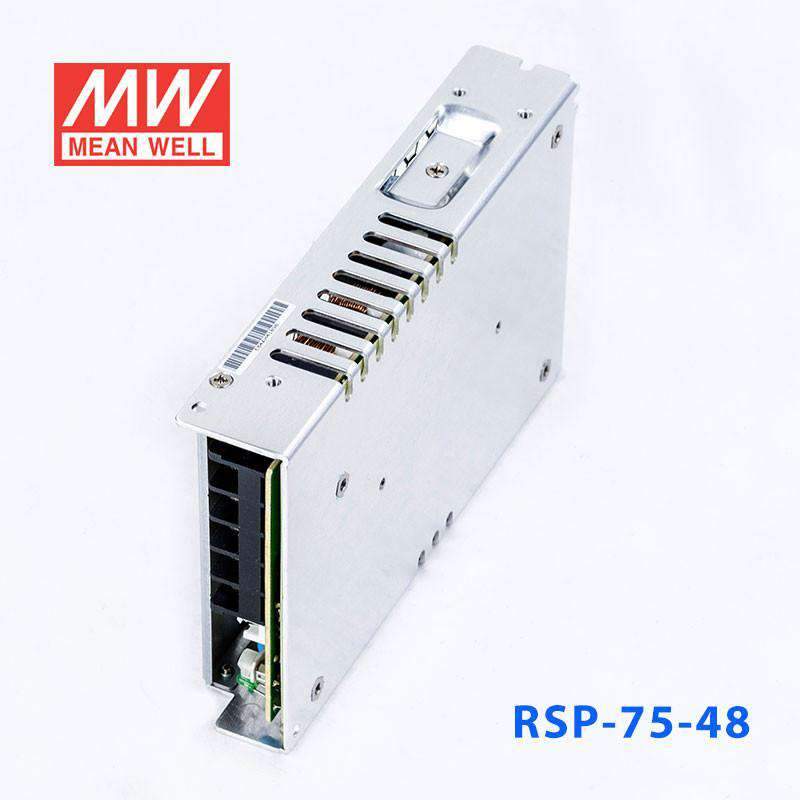

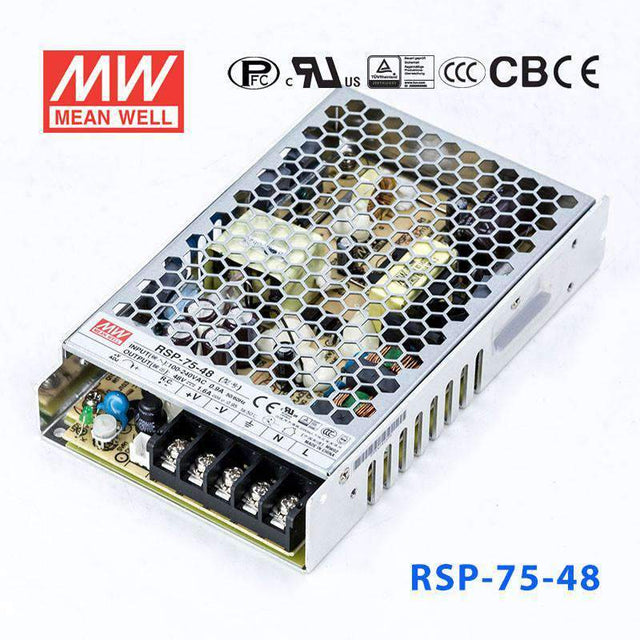

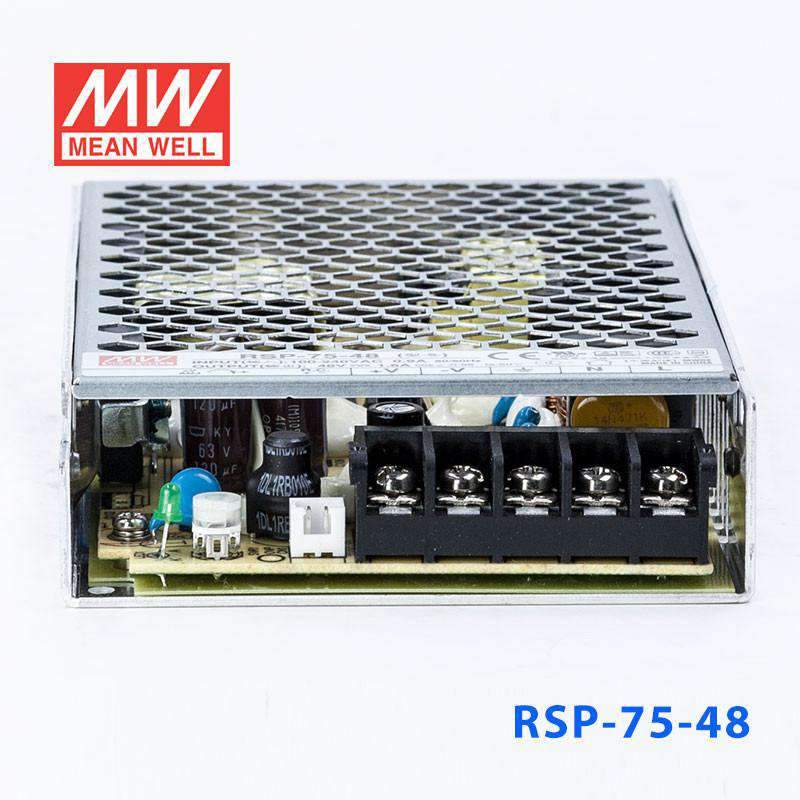

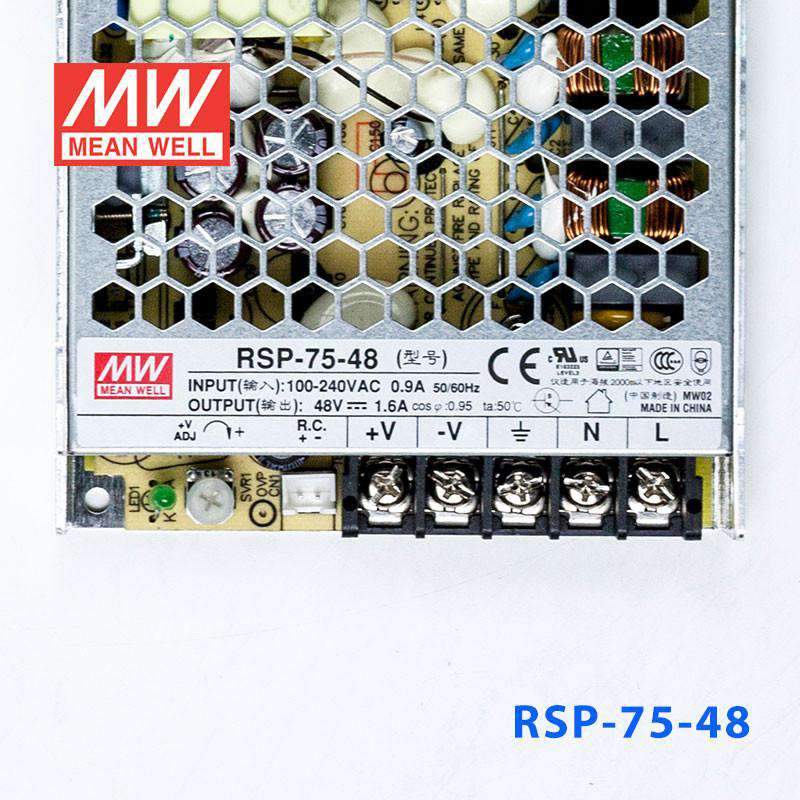

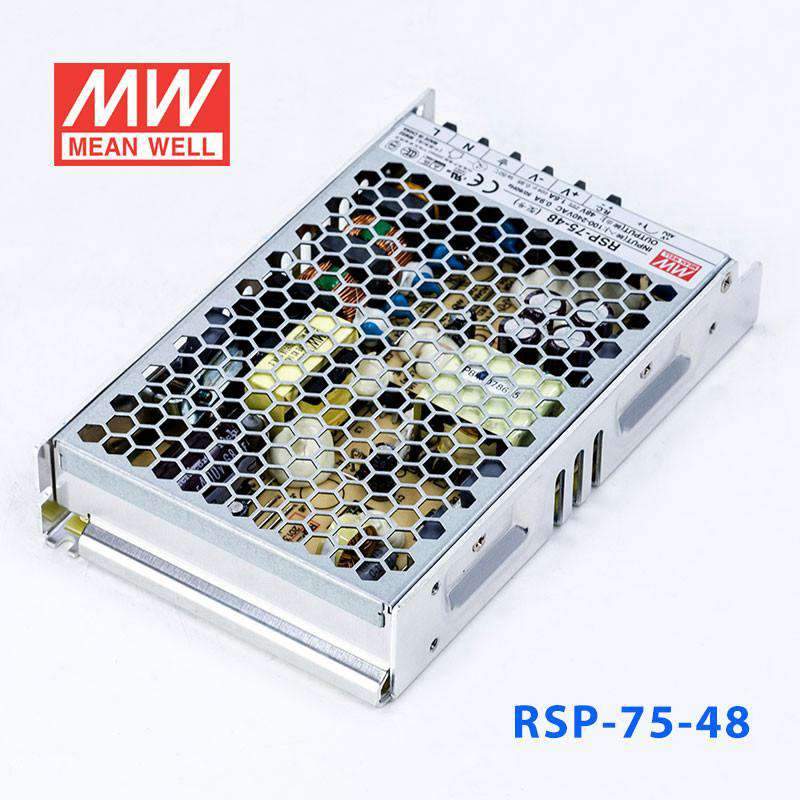

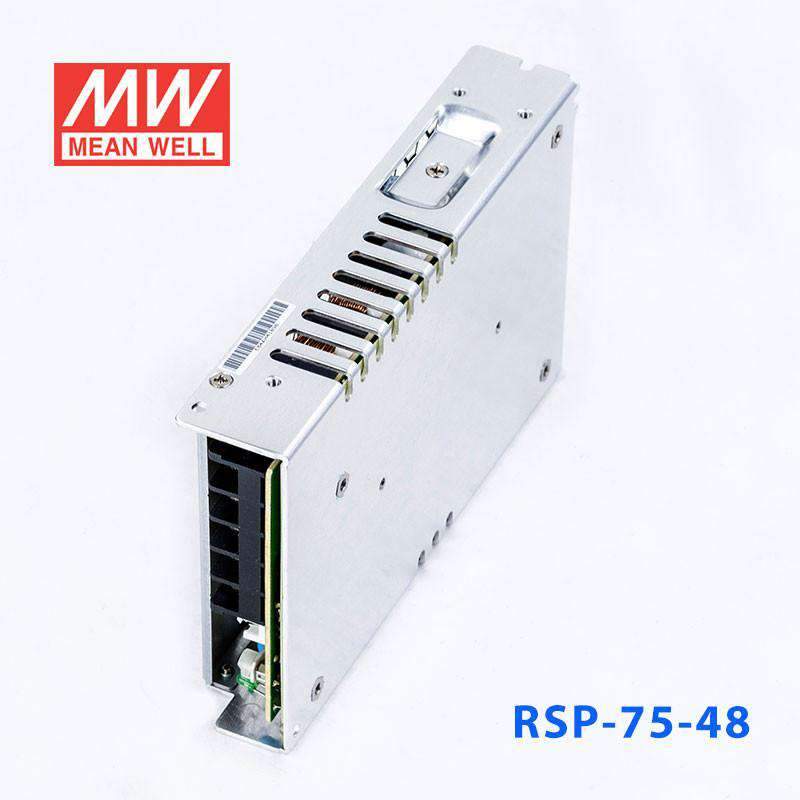

Mean Well RSP-75-48 Power Supply 75W 48V 1.6A
