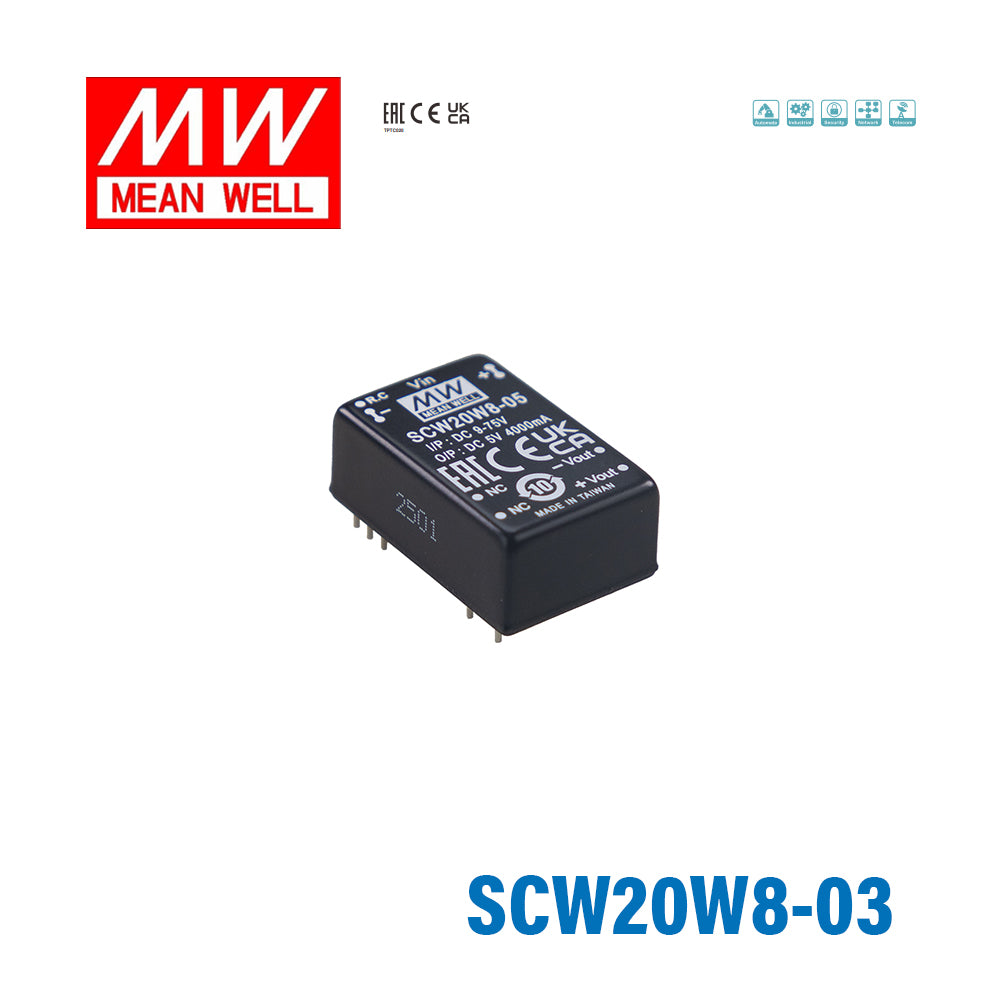

Mean Well SCW20W8-03 DC-DC Converter - 20W 9~75V DC in 3.3V out 10mA
Please Login for Pricing
Description
Description
Key Features
- ✓DIP24 package with industry standard pinout
- ✓8:1(9-75Vdc) ultra-wide input range
- ✓Operating temperature range -40 - +95℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 88%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating20 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
