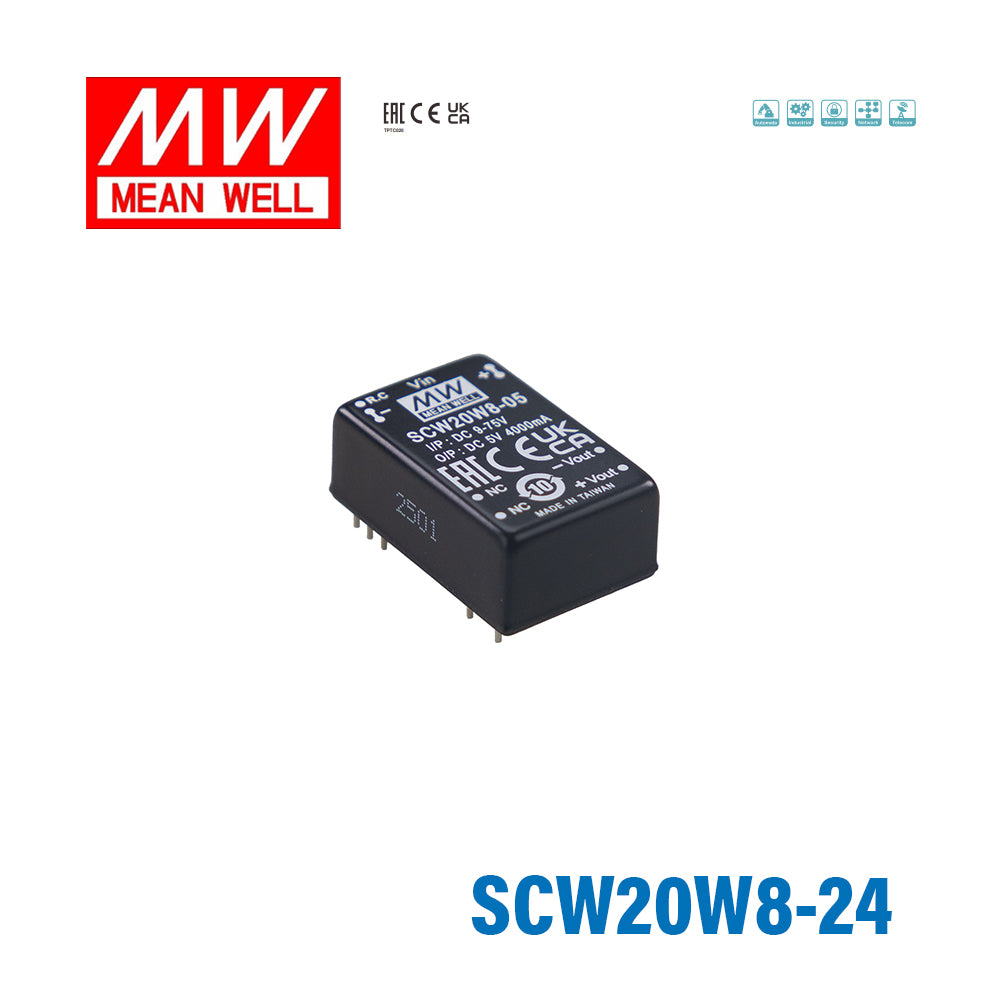

Mean Well SCW20W8-24 DC-DC Converter - 20W 9~75V DC in 24V out 10mA
Please Login for Pricing
Description
Description
Key Features
- ✓DIP24 package with industry standard pinout
- ✓8:1(9-75Vdc) ultra-wide input range
- ✓Operating temperature range -40 - +95℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 88%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating20 Watt
-
Output Voltage24 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the input and output range of the Mean Well SCW20W8-24?
The SCW20W8-24 is a 20W DC-DC converter with an ultra-wide 9 to 75V DC input range. It provides a regulated 24V DC output, which makes it suitable for systems that operate across multiple nominal DC bus voltages.
What types of applications is the SCW20W8-24 designed for?
This model is designed for DC-powered industrial and embedded equipment that needs regulated 24V output from a wide DC input range. Its compact DIP24 package and wide input window make it relevant for OEM, control, and modular power applications.
How does the SCW20W8-24 differ from narrower input DC-DC converters?
A key difference is its 8:1 ultra-wide input range of 9 to 75V DC, which gives it more flexibility than converters built for a narrow nominal input range. That can help buyers standardize on one model across equipment using different DC source voltages.
Is the Mean Well SCW20W8-24 suitable for harsh temperature environments?
Yes. The SCW20W8-24 has an operating temperature range of -40°C to +95°C, which supports use in demanding environmental conditions. Buyers should still confirm the full application environment and enclosure conditions against their system requirements.
What protection and isolation features does the SCW20W8-24 include?
This model includes protection for short circuit, overload, over voltage, and UVLO. It also provides 3KV DC input-to-output isolation, which is an important specification for systems that need electrical separation between input and output sides.
Does the SCW20W8-24 require a minimum load to operate properly?
No. Mean Well specifies that the SCW20W8-24 requires no minimum load, which can simplify use in applications with variable or light loading conditions. That can be useful in systems where demand changes during normal operation.
