Can I use the SKE10B-24 for a 24V PLC accessory or automation module?

Yes, it provides constant-voltage 24V output and is rated for 10W. It is a fit for PLC accessories or automation modules that require 24V and remain within the listed 10W rating.

Is the SKE10B-24 a good choice for 24V industrial relays or interface modules?

It can be used for 24V relays or interface modules that need a constant 24V supply. The key limit is the 10W power rating, so it is intended for lower-power loads rather than larger 24V devices.

Can this model power 24V embedded or control electronics from an 18-36VAC input range?

Yes, the listed input range is 18-36VAC and the output is constant 24V. That makes it suitable for embedded or control electronics designed for 24V operation within the 10W output capacity.

Can the SKE10B-24 be used in cold or warm indoor equipment spaces?

The operating temperature range is -25°C to +71°C, so the listed specs cover both cold and warm equipment environments within that range. No IP rating is shown, so enclosure or weather resistance is not defined in the provided data.

What is the difference between the SKE10B-24 and the other SKE10B versions?

The main difference is output rating within the same 10W family. The listed siblings are 5V at 2A for SKE10B-05, 12V at 840A for SKE10B-12, 15V at 666A for SKE10B-15, and 24V at 420A for SKE10B-24.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

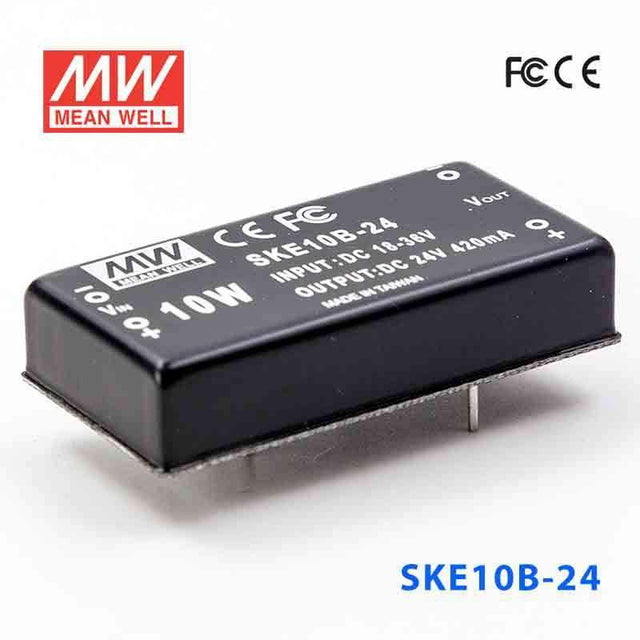

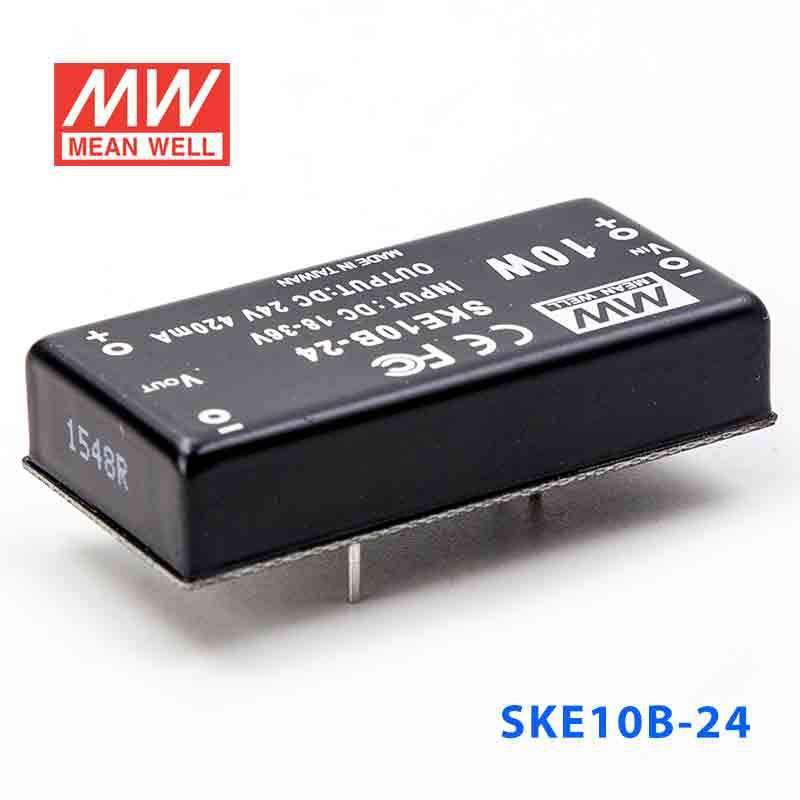

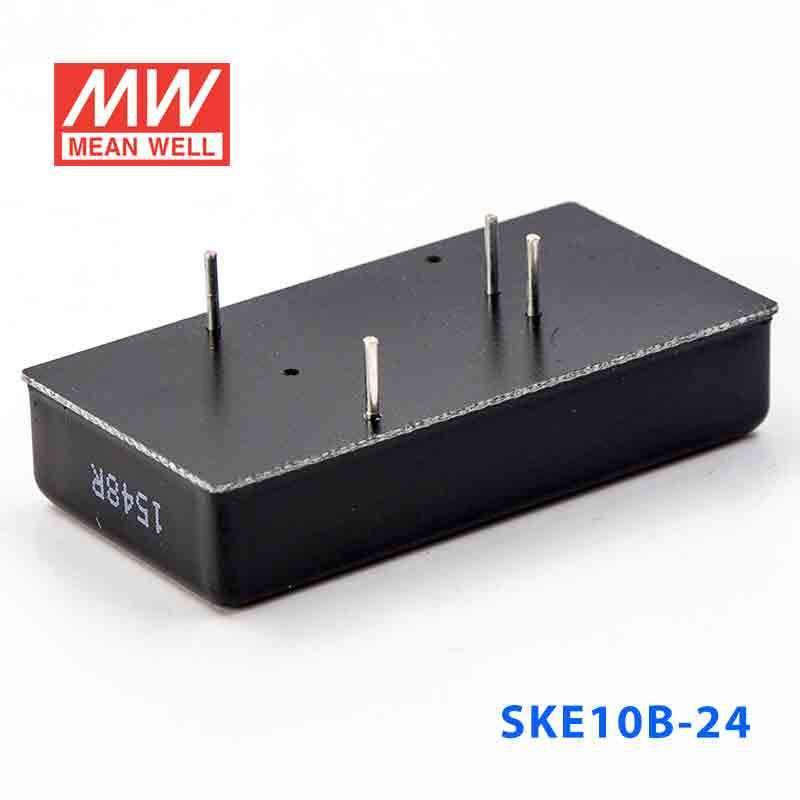

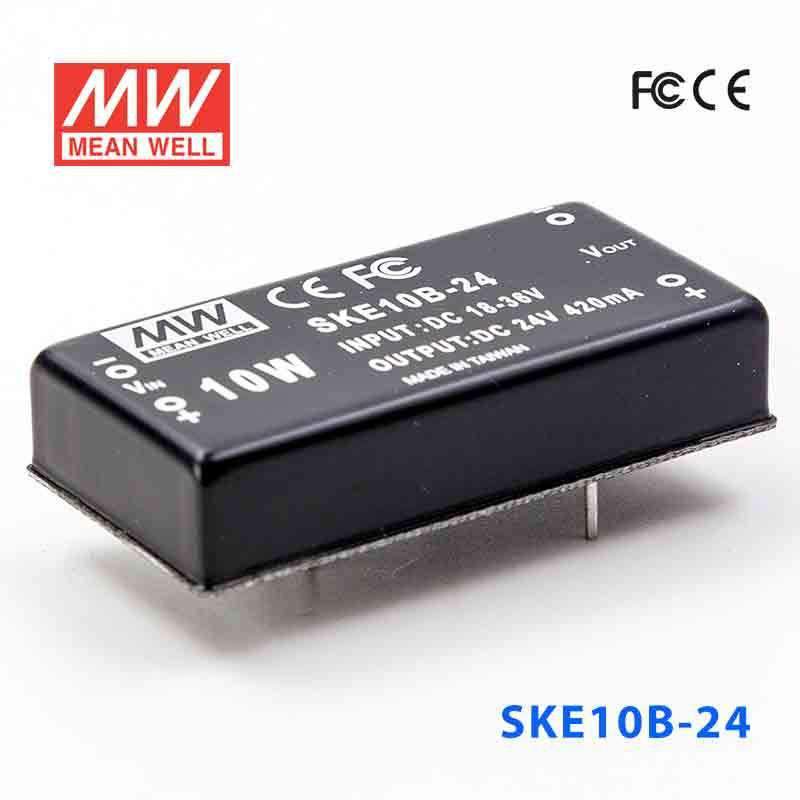

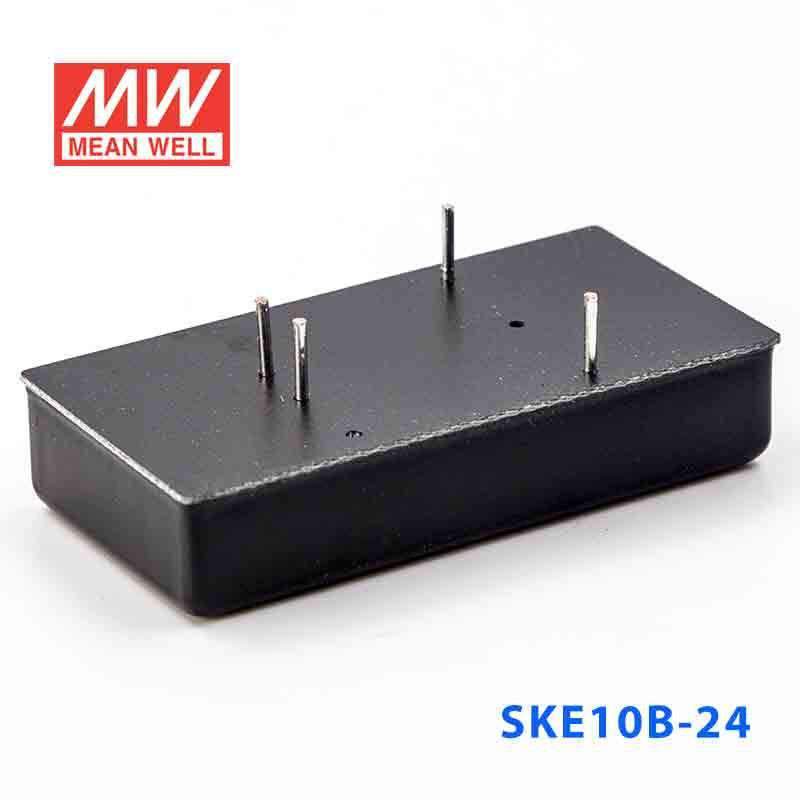

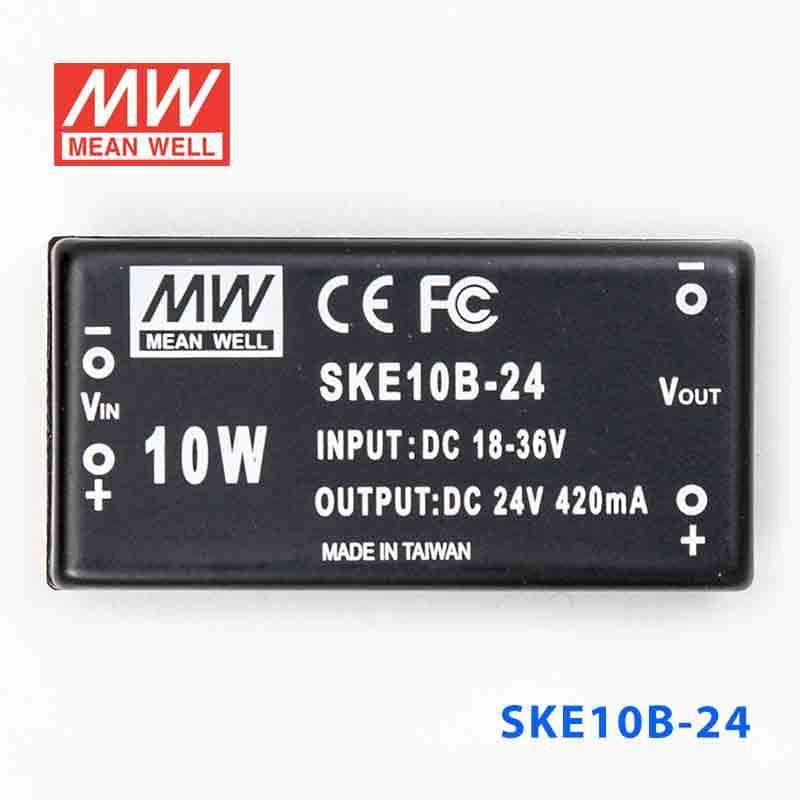

Mean Well SKE10B-24 DC-DC Converter - 10W - 18~36V in 24V out 420mA

SKU:

SKE10B-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SKE10B is a 10W Mean Well power converter (operating temperature: -25~+71℃).

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Wide operating temperature: -25~+71℃
✓ Protections: Short circuit
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SKE10W8-15 10W DC-DC Converter 15VDC 670mA	—	—	—	Indoor	View
Mean Well SKE10W8-12 10W DC-DC Converter 12VDC 830mA	—	—	—	Indoor	View
Mean Well SKE10W8-05 10W DC-DC Converter 5VDC 2A	—	—	—	Indoor	View
Mean Well SKE10C-24 DC-DC Converter - 10W - 36~72V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10C-15 DC-DC Converter - 10W - 36~72V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10C-12 DC-DC Converter - 10W - 36~72V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10C-05 DC-DC Converter - 10W - 36~72V in 5V out 2A	10W	5V	2A	Indoor	View
Mean Well SKE10B-15 DC-DC Converter - 10W - 18~36V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10B-12 DC-DC Converter - 10W - 18~36V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10B-05 DC-DC Converter - 10W - 18~36V in 5V out 2A	10W	5V	2A	Indoor	View
Mean Well SKE10A-24 DC-DC Converter - 10W - 9~18V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10A-15 DC-DC Converter - 10W - 9~18V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10A-12 DC-DC Converter - 10W - 9~18V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10A-05 DC-DC Converter - 10W - 9~18V in 5V out 2A	10W	5V	2A	Indoor	View
