Can I use the SKE10C-24 to power a 24V industrial sensor or transmitter from a 36~72V bus?

Yes, this model is designed for systems with a 36~72V input and a 24V constant-voltage output. Its 10W rating makes it a fit for lower-power 24V industrial electronics rather than larger 24V loads.

Is the SKE10C-24 suitable for embedded control boards that need isolated 24V auxiliary power?

It can be used where the equipment needs a regulated 24V output from a 36~72V input range. With a compact 50.8 × 25.4 × 11.2 mm body and 10W power level, it is better suited to compact embedded or control assemblies than high-demand subsystems.

Can this converter be used in telecom or automation equipment that runs on higher-voltage DC sources?

It is intended for applications that have a 36~72V input available and need a steady 24V output. The 10W capacity aligns better with auxiliary rails, monitoring devices, and small automation electronics than with larger 24V equipment.

How does the SKE10C-24 compare with other SKE10C models?

All SKE10C models in this group are rated at 10W, but they provide different outputs: SKE10C-05 is 5V at 2A, SKE10C-12 is 12V at 840A, SKE10C-15 is 15V at 666A, and SKE10C-24 is 24V at 420A. The main difference is the output voltage and corresponding output current for the same 10W class.

Is the SKE10C-24 suitable for outdoor or harsh-environment use?

The listed operating temperature is -25°C to +71°C, so the temperature range covers both cold and hot operating conditions. No IP rating is listed in the provided specifications, so this product should be treated as a converter for protected enclosures rather than exposed outdoor mounting.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

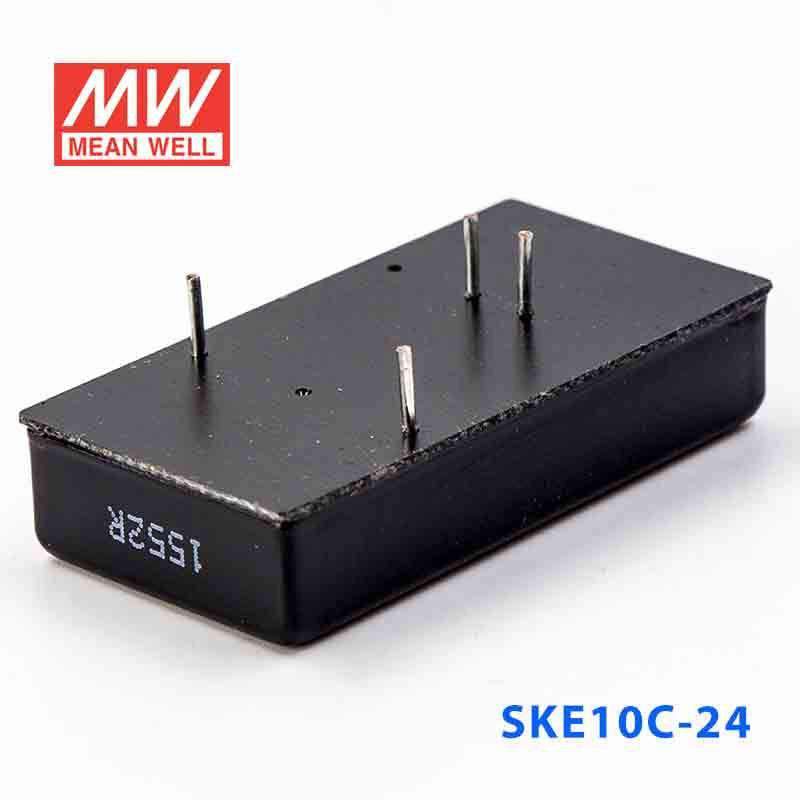

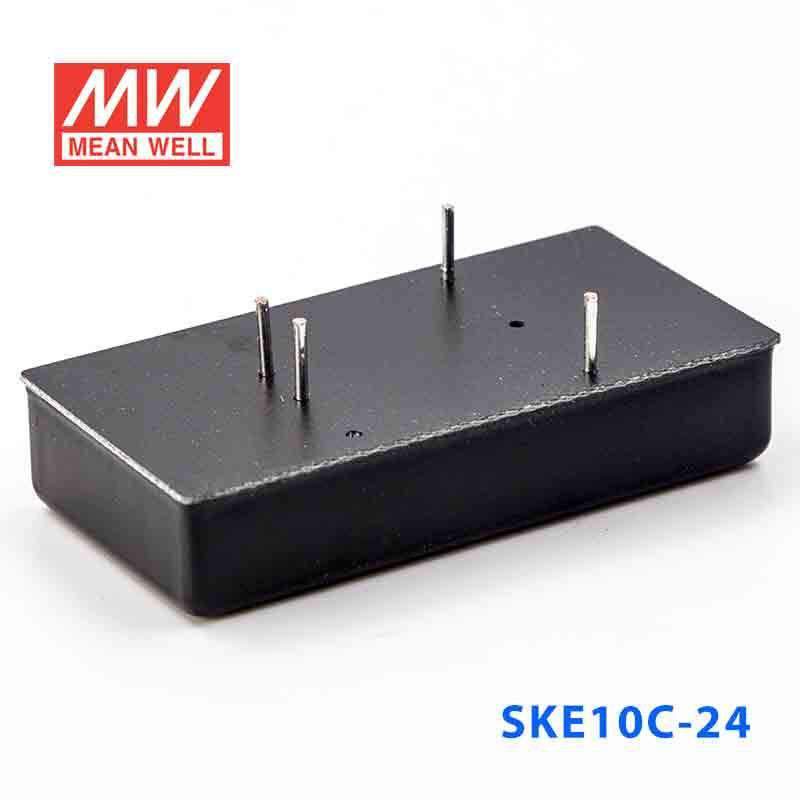

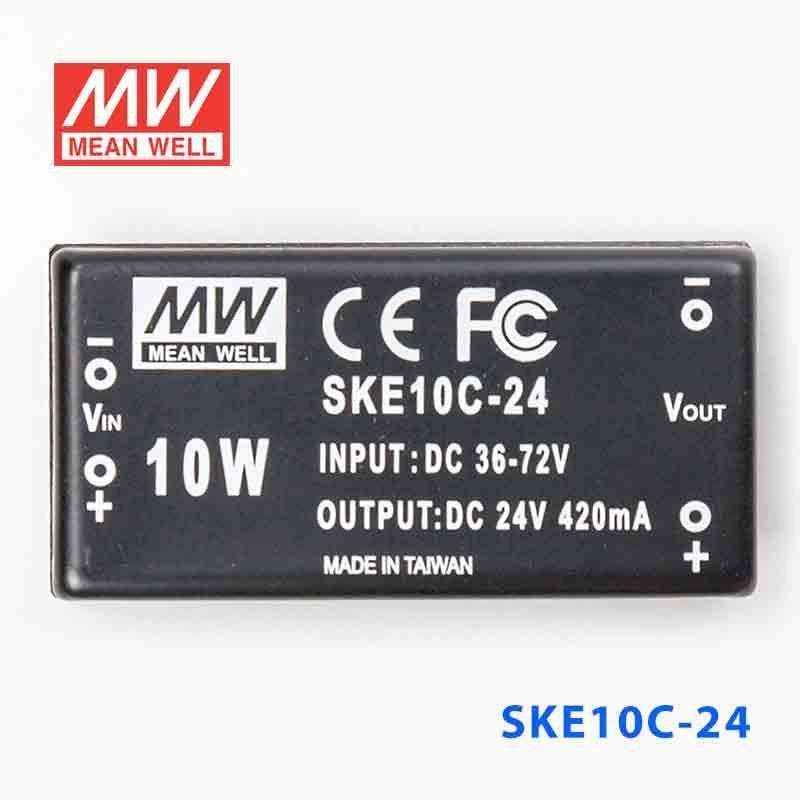

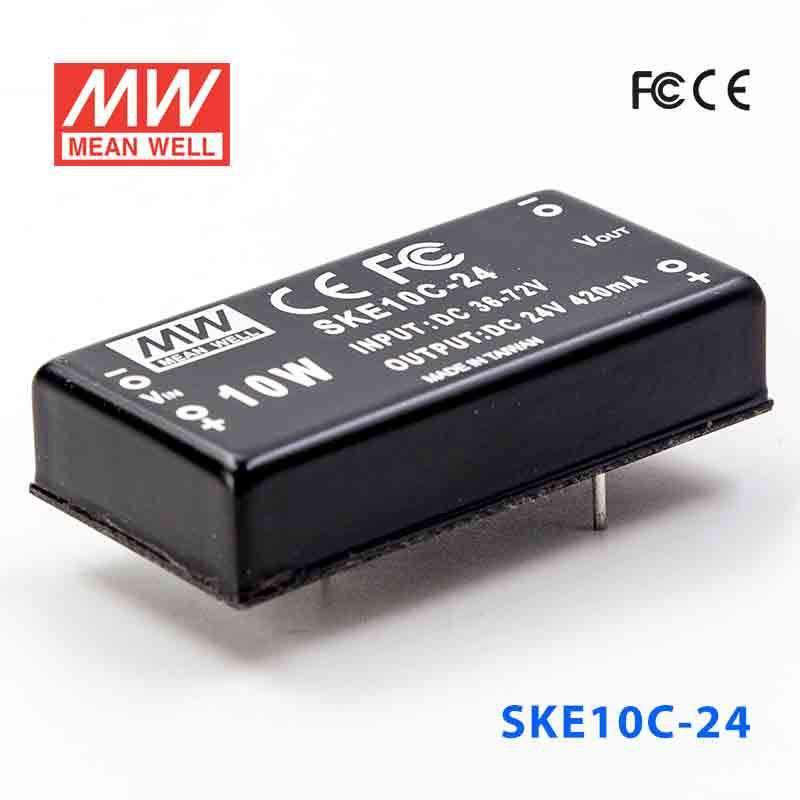

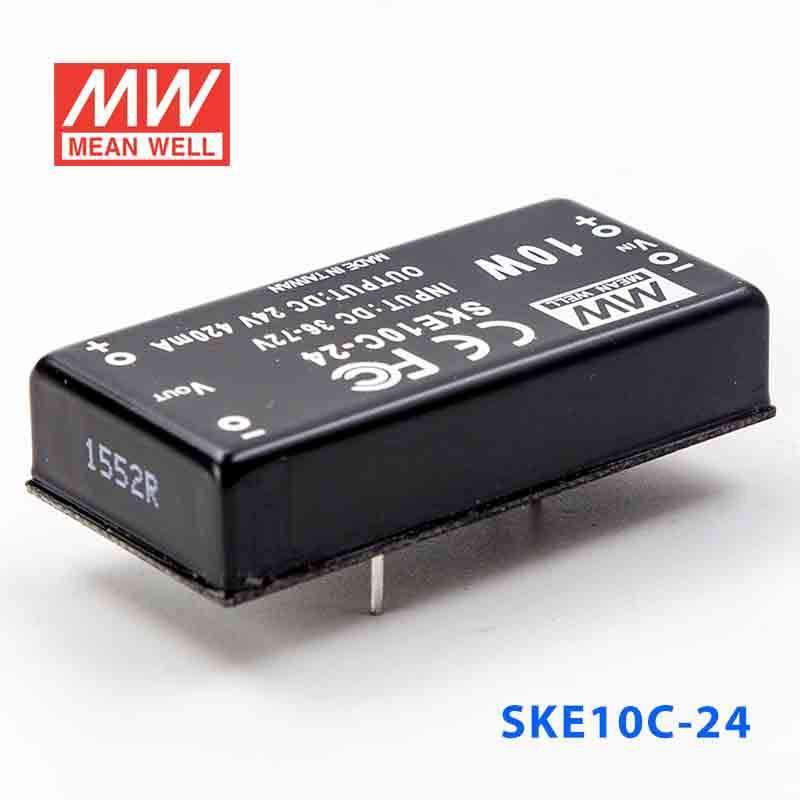

Mean Well SKE10C-24 DC-DC Converter - 10W - 36~72V in 24V out 420mA

SKU:

SKE10C-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SKE10C is a 10W Mean Well power converter (operating temperature: -25~+71℃).

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Wide operating temperature: -25~+71℃
✓ Protections: Short circuit
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SKE10W8-15 10W DC-DC Converter 15VDC 670mA	—	—	—	Indoor	View
Mean Well SKE10W8-12 10W DC-DC Converter 12VDC 830mA	—	—	—	Indoor	View
Mean Well SKE10W8-05 10W DC-DC Converter 5VDC 2A	—	—	—	Indoor	View
Mean Well SKE10C-15 DC-DC Converter - 10W - 36~72V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10C-12 DC-DC Converter - 10W - 36~72V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10C-05 DC-DC Converter - 10W - 36~72V in 5V out 2A	10W	5V	2A	Indoor	View
Mean Well SKE10B-24 DC-DC Converter - 10W - 18~36V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10B-15 DC-DC Converter - 10W - 18~36V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10B-12 DC-DC Converter - 10W - 18~36V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10B-05 DC-DC Converter - 10W - 18~36V in 5V out 2A	10W	5V	2A	Indoor	View
Mean Well SKE10A-24 DC-DC Converter - 10W - 9~18V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10A-15 DC-DC Converter - 10W - 9~18V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10A-12 DC-DC Converter - 10W - 9~18V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10A-05 DC-DC Converter - 10W - 9~18V in 5V out 2A	10W	5V	2A	Indoor	View
