Can I use the SKE10B-15 to power a 15V industrial sensor or control module?

Yes, it is a constant-voltage converter with a 15V output and 10W power rating. It fits industrial sensors or control modules that require 15V and stay within the listed 10W capacity.

Is the SKE10B-15 suitable for embedded electronics that need regulated 15V from an 18-36VAC source?

Yes, this model is designed for an 18-36VAC input range and provides a constant 15V output. That makes it appropriate for embedded electronics that need 15V and fit within the 10W output limit.

Can this converter be used in automation panels for low-power 15V loads?

It can be used for low-power automation loads that require constant 15V output. With a 10W rating, it is better suited to smaller panel devices than higher-draw equipment.

Is the SKE10B-15 appropriate for outdoor or harsh-environment use?

The provided specs list an operating temperature range of -25°C to +71°C, but no IP rating is provided. That means temperature capability is stated, while outdoor or water-exposure suitability is not established by the listed specs.

How does the SKE10B-15 compare with the other SKE10B models?

In the SKE10B series, all listed models are 10W units. The sibling outputs are 5V at 2A for the SKE10B-05, 12V at 840A for the SKE10B-12, 15V at 666A for the SKE10B-15, and 24V at 420A for the SKE10B-24.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

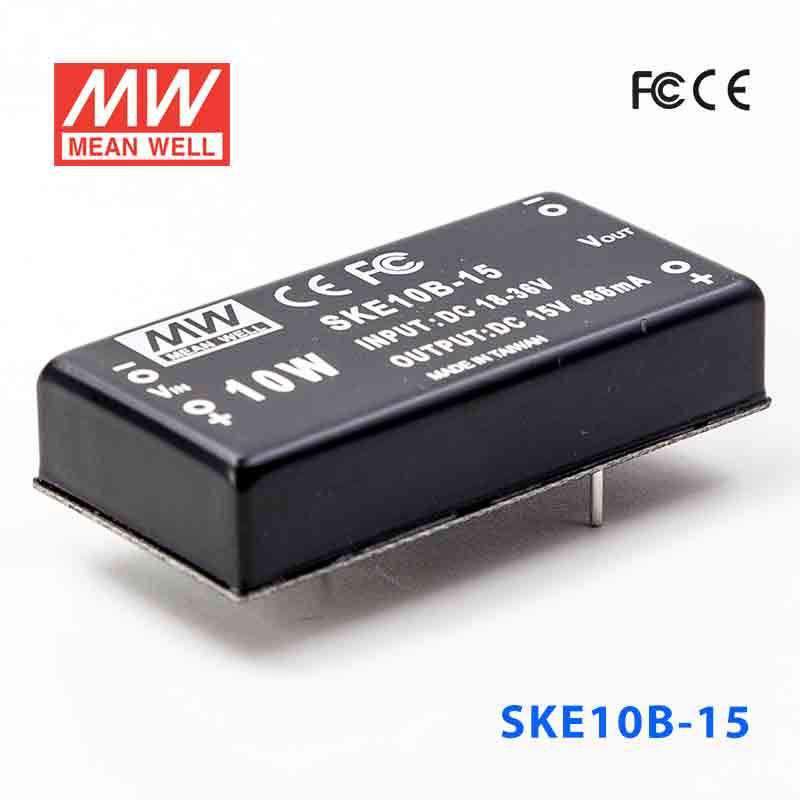

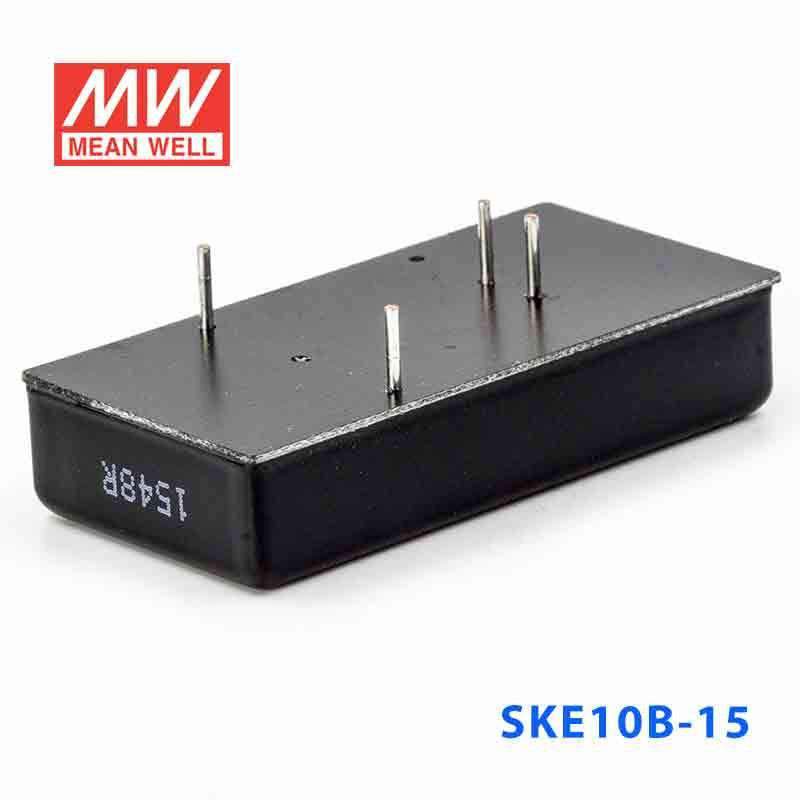

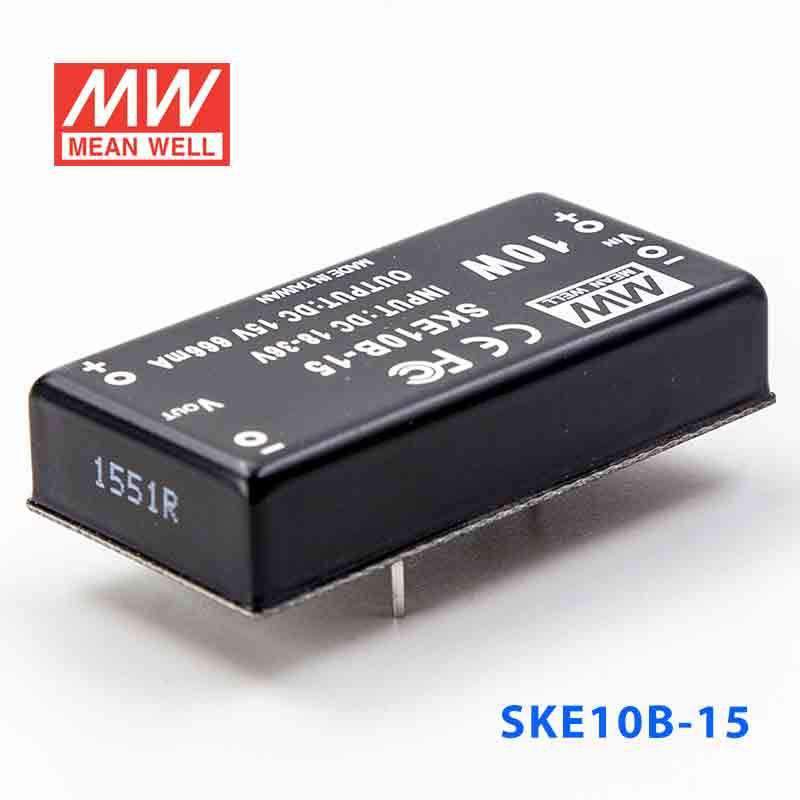

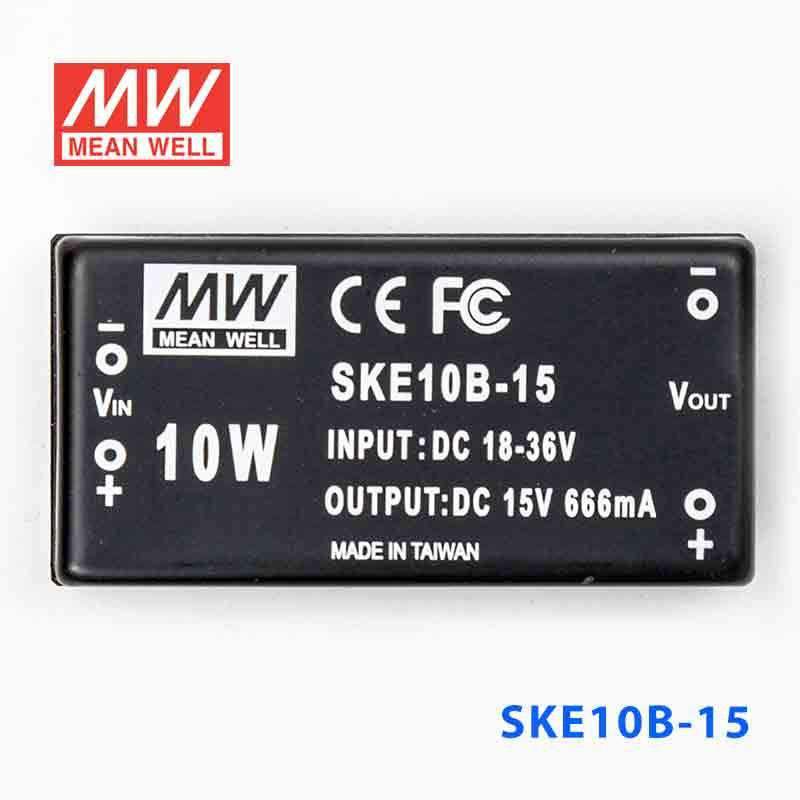

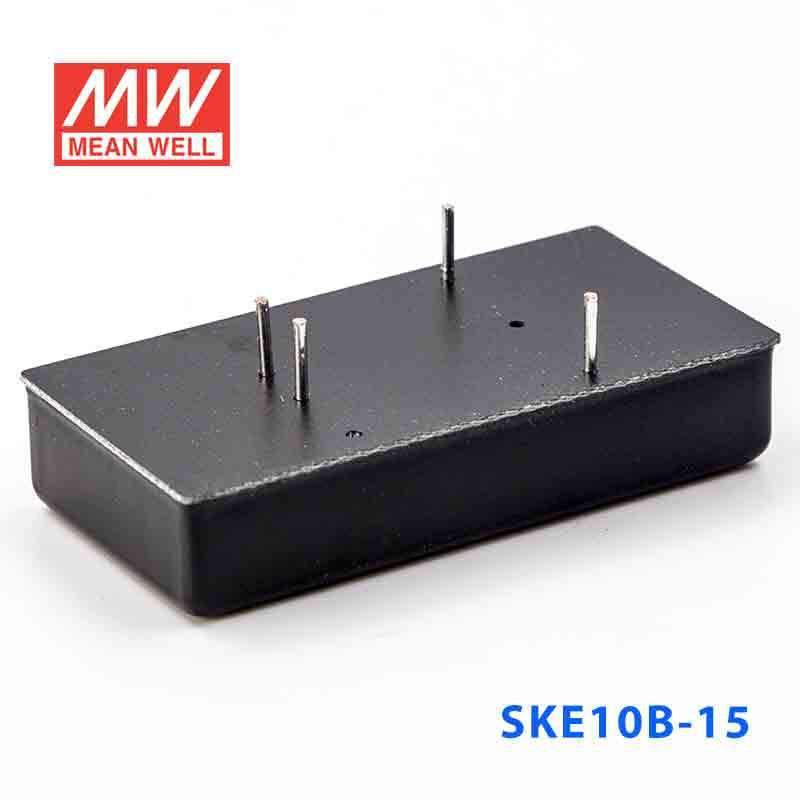

Mean Well SKE10B-15 DC-DC Converter - 10W - 18~36V in 15V out 666mA

SKU:

SKE10B-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SKE10B is a 10W Mean Well power converter (operating temperature: -25~+71℃).

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Wide operating temperature: -25~+71℃
✓ Protections: Short circuit
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SKE10W8-15 10W DC-DC Converter 15VDC 670mA	—	—	—	Indoor	View
Mean Well SKE10W8-12 10W DC-DC Converter 12VDC 830mA	—	—	—	Indoor	View
Mean Well SKE10W8-05 10W DC-DC Converter 5VDC 2A	—	—	—	Indoor	View
Mean Well SKE10C-24 DC-DC Converter - 10W - 36~72V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10C-15 DC-DC Converter - 10W - 36~72V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10C-12 DC-DC Converter - 10W - 36~72V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10C-05 DC-DC Converter - 10W - 36~72V in 5V out 2A	10W	5V	2A	Indoor	View
Mean Well SKE10B-24 DC-DC Converter - 10W - 18~36V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10B-12 DC-DC Converter - 10W - 18~36V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10B-05 DC-DC Converter - 10W - 18~36V in 5V out 2A	10W	5V	2A	Indoor	View
Mean Well SKE10A-24 DC-DC Converter - 10W - 9~18V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10A-15 DC-DC Converter - 10W - 9~18V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10A-12 DC-DC Converter - 10W - 9~18V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10A-05 DC-DC Converter - 10W - 9~18V in 5V out 2A	10W	5V	2A	Indoor	View
