Can I use the SKE10B-05 to power 5V logic or microcontroller circuits in industrial equipment?

It can fit 5V logic or microcontroller loads when the total output stays within 10W. This version is designed for 18-36VAC input and provides constant-voltage 5V output.

Is the SKE10B-05 suitable for 5V communication or interface electronics in a 24V-class control system?

It is a possible fit when the available source is within 18-36VAC and the downstream electronics need regulated 5V. The 10W rating makes it more appropriate for smaller 5V electronics than for larger 5V loads.

Can the SKE10B-05 be used for small embedded boards inside automation cabinets?

Yes, for embedded boards that require constant-voltage 5V and fall within the converter's 10W output class. Its compact dimensions of 50.8 × 25.4 × 11.2 mm are also helpful in tight cabinet layouts.

Is the SKE10B-05 rated for outdoor service?

The product data specifies operation from -25°C to +71°C, so it has a defined temperature range for environmental review. No IP rating is listed, which means the specs do not state outdoor, wet-location, or dust-exposed suitability.

What are the output differences across the SKE10B series?

The listed SKE10B family shares the same 10W power rating and 18-36VAC input range. The output choices shown are SKE10B-05 at 5V and 2A, SKE10B-12 at 12V and 840A, SKE10B-15 at 15V and 666A, and SKE10B-24 at 24V and 420A.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

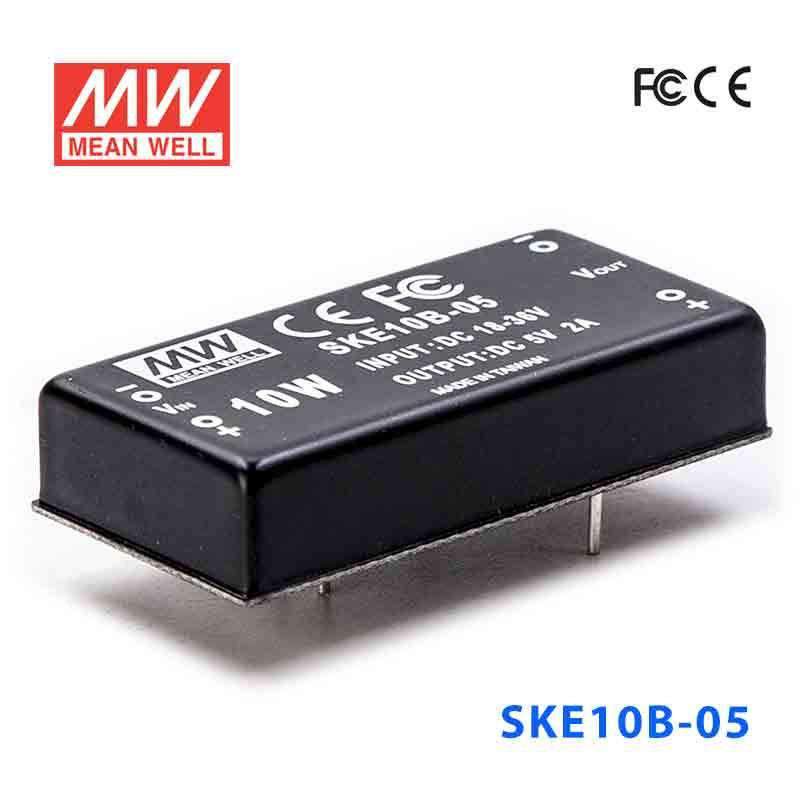

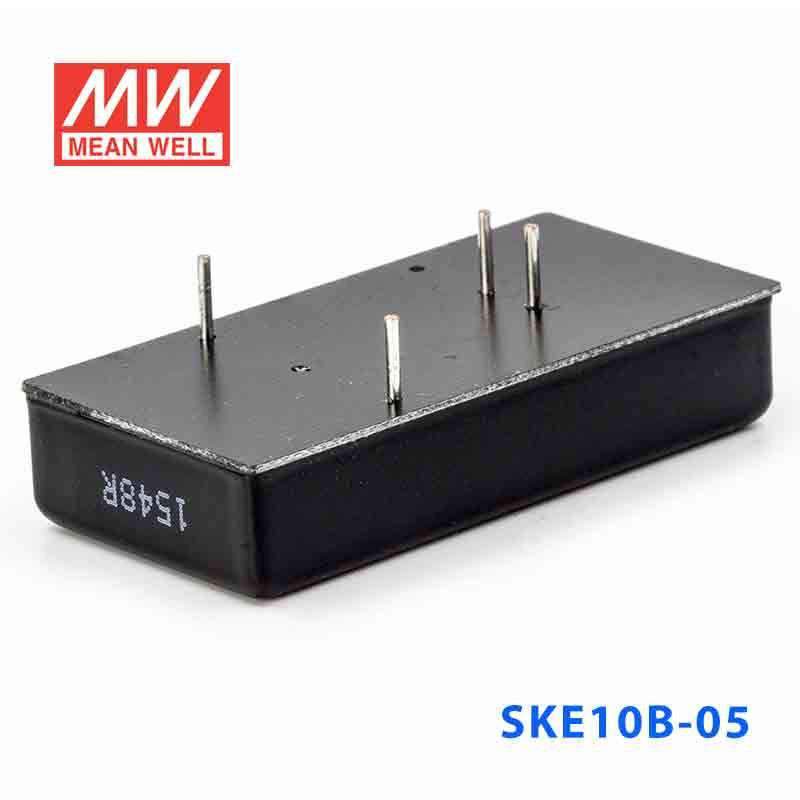

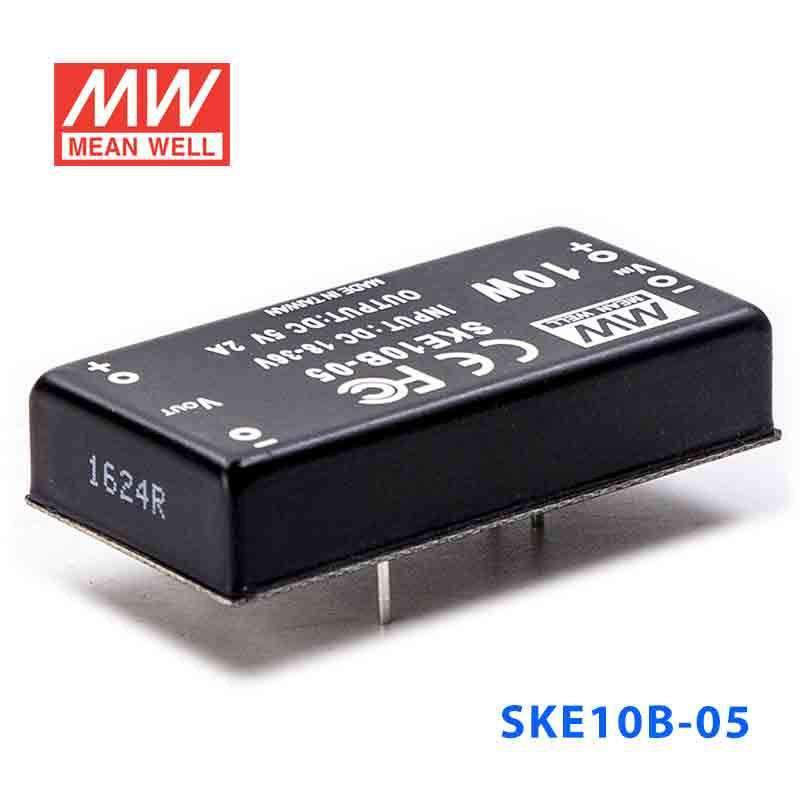

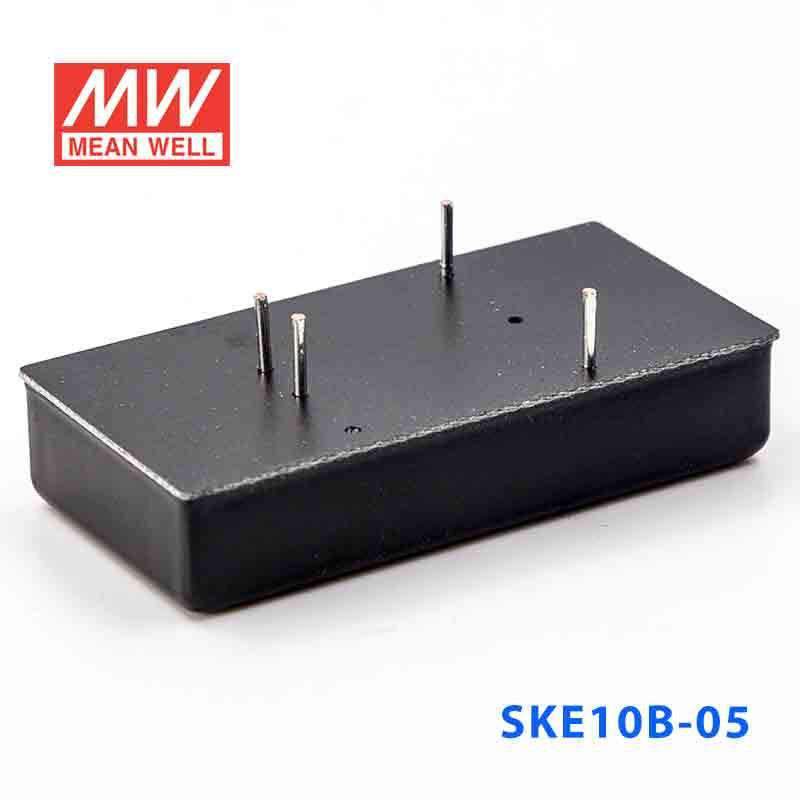

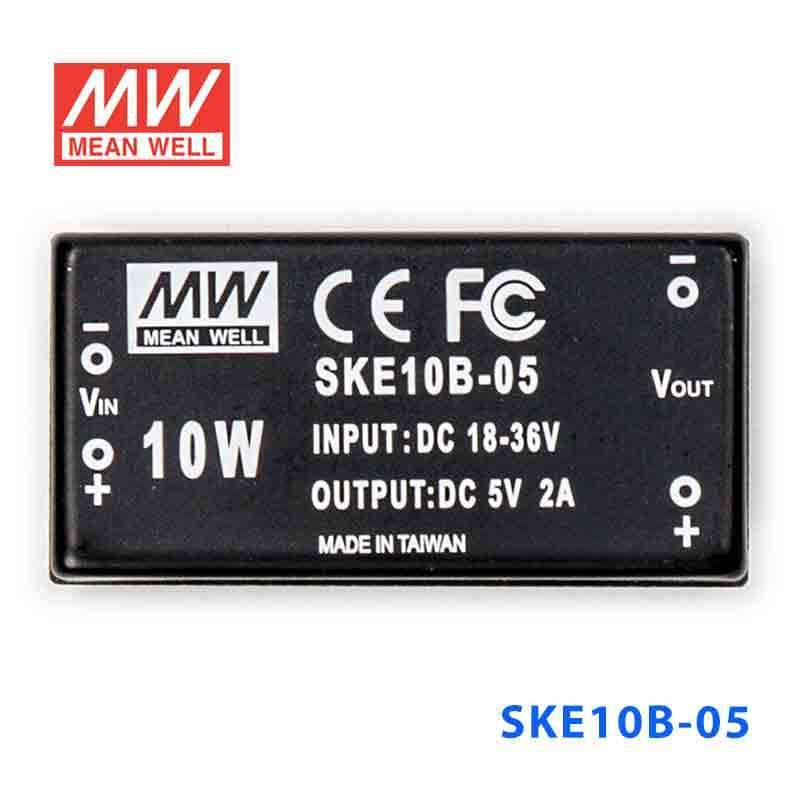

Mean Well SKE10B-05 DC-DC Converter - 10W - 18~36V in 5V out 2A

SKU:

SKE10B-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SKE10B is a 10W Mean Well power converter (operating temperature: -25~+71℃).

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Wide operating temperature: -25~+71℃
✓ Protections: Short circuit
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SKE10W8-15 10W DC-DC Converter 15VDC 670mA	—	—	—	Indoor	View
Mean Well SKE10W8-12 10W DC-DC Converter 12VDC 830mA	—	—	—	Indoor	View
Mean Well SKE10W8-05 10W DC-DC Converter 5VDC 2A	—	—	—	Indoor	View
Mean Well SKE10C-24 DC-DC Converter - 10W - 36~72V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10C-15 DC-DC Converter - 10W - 36~72V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10C-12 DC-DC Converter - 10W - 36~72V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10C-05 DC-DC Converter - 10W - 36~72V in 5V out 2A	10W	5V	2A	Indoor	View
Mean Well SKE10B-24 DC-DC Converter - 10W - 18~36V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10B-15 DC-DC Converter - 10W - 18~36V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10B-12 DC-DC Converter - 10W - 18~36V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10A-24 DC-DC Converter - 10W - 9~18V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10A-15 DC-DC Converter - 10W - 9~18V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10A-12 DC-DC Converter - 10W - 9~18V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10A-05 DC-DC Converter - 10W - 9~18V in 5V out 2A	10W	5V	2A	Indoor	View
