Can I use the SKE10A-15 for a 15V industrial control board or signal-processing module?

It can be used where the equipment needs constant-voltage 15V output and total demand stays within 10W. The input source also needs to be within the specified 9-18VAC range.

Is the SKE10A-15 a fit for embedded systems that run on 15V power rails?

This model is built for 15V constant-voltage output, so it can suit embedded hardware designed around a 15V rail. It is best matched to compact electronics because the converter itself measures 50.8 × 25.4 × 11.2 mm and is rated at 10W.

Can this model support a small 15V automation subsystem inside a machine enclosure?

It can fit a small 15V automation subsystem if the available source is 9-18VAC and the subsystem stays within the converter's 10W output rating. The specified operating range of -25°C to +71°C also gives a defined temperature window for enclosed equipment.

Is the SKE10A-15 meant for indoor-only use or can it handle wider temperature conditions?

The unit is specified for operation from -25°C to +71°C, so it has a defined temperature range broader than basic room conditions. However, no IP rating is listed, so the specs do not confirm outdoor or water-exposed use.

What is the difference between the SKE10A-15 and the other SKE10A versions?

The listed SKE10A family shares the same 10W power class and 9-18VAC input range. The difference is output rating: SKE10A-05 is 5V and 2A, SKE10A-12 is 12V and 840A, SKE10A-15 is 15V and 666A, and SKE10A-24 is 24V and 420A.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

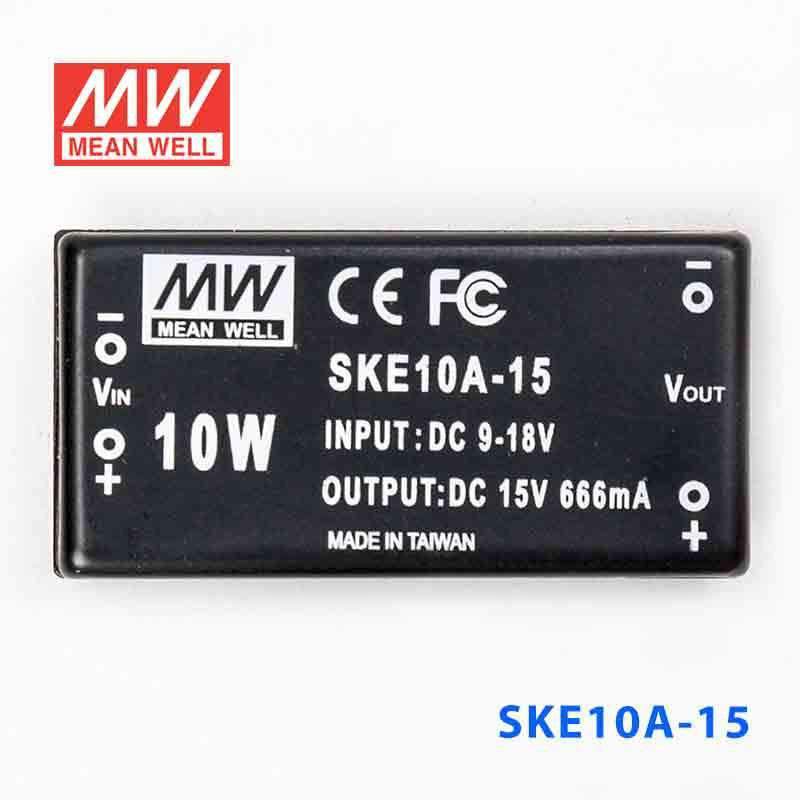

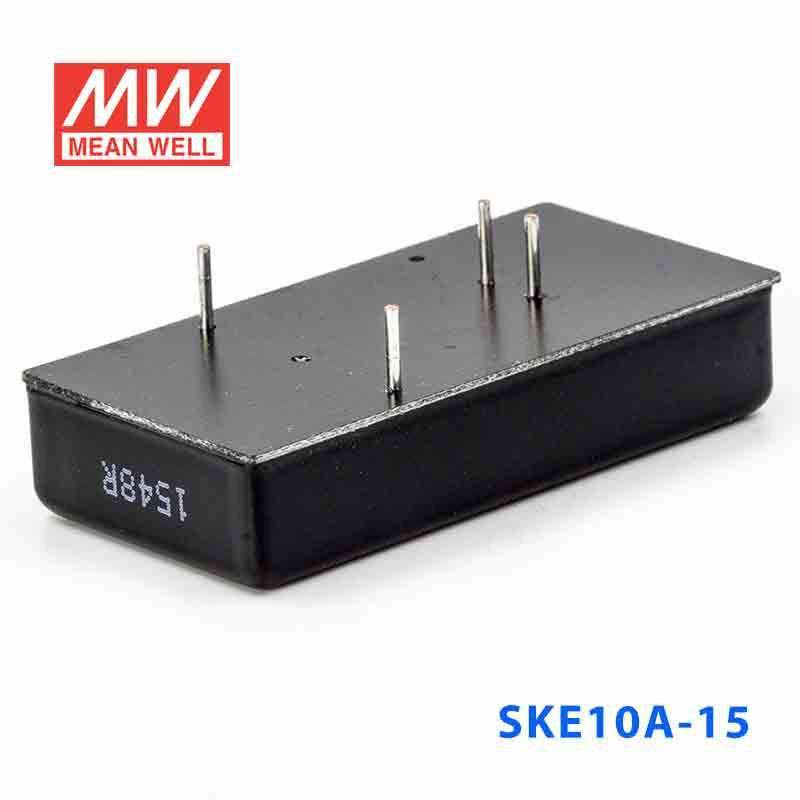

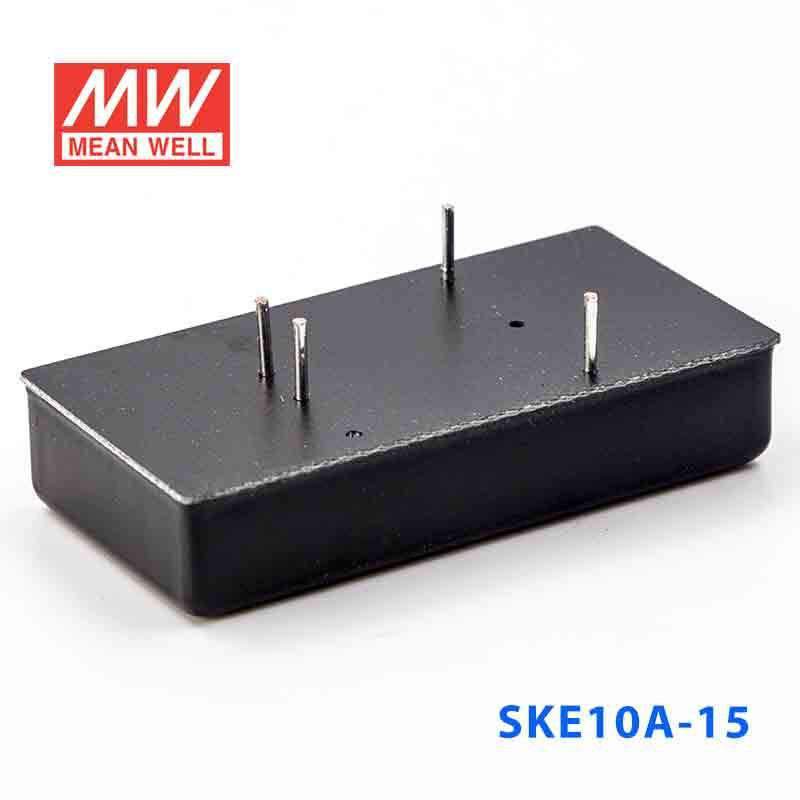

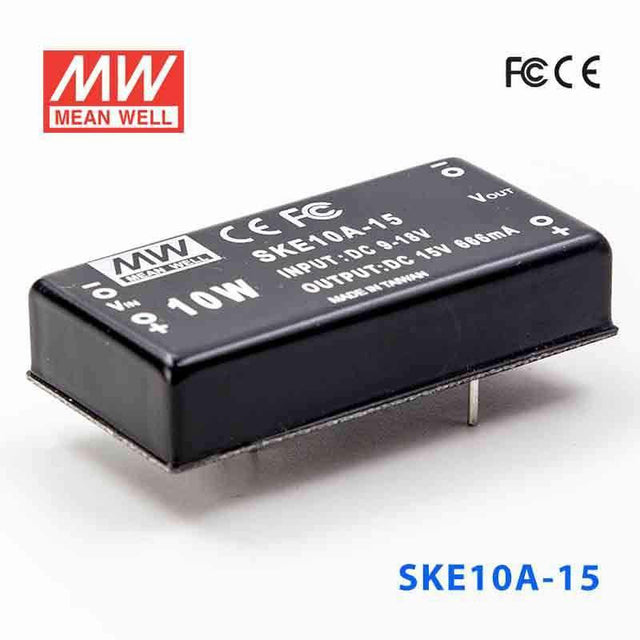

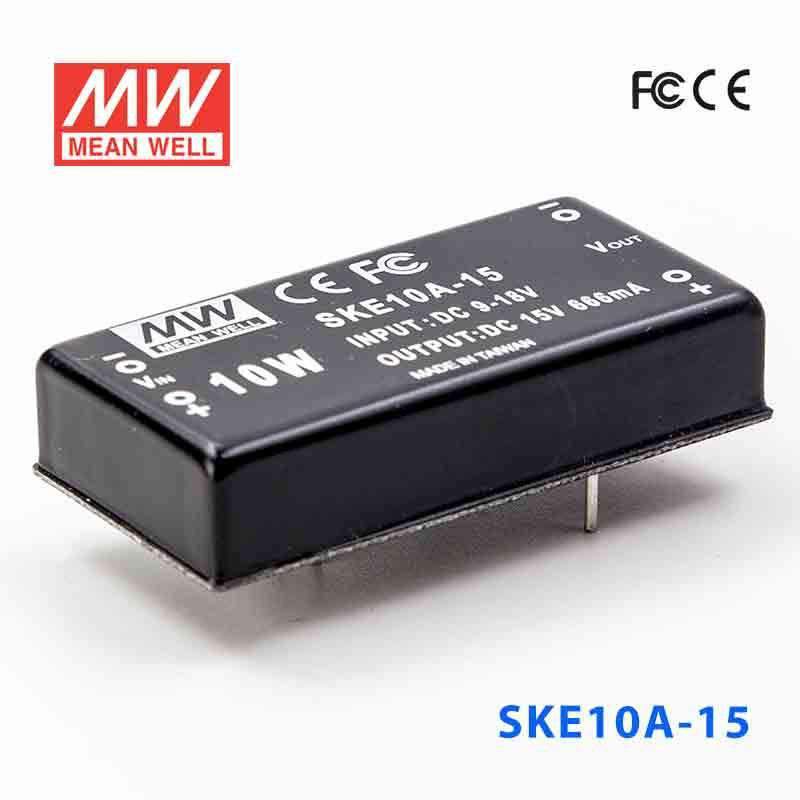

Mean Well SKE10A-15 DC-DC Converter - 10W - 9~18V in 15V out 666mA

SKU:

SKE10A-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SKE10A is a 10W Mean Well power converter (operating temperature: -25~+71℃).

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Wide operating temperature: -25~+71℃
✓ Protections: Short circuit
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SKE10W8-15 10W DC-DC Converter 15VDC 670mA	—	—	—	Indoor	View
Mean Well SKE10W8-12 10W DC-DC Converter 12VDC 830mA	—	—	—	Indoor	View
Mean Well SKE10W8-05 10W DC-DC Converter 5VDC 2A	—	—	—	Indoor	View
Mean Well SKE10C-24 DC-DC Converter - 10W - 36~72V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10C-15 DC-DC Converter - 10W - 36~72V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10C-12 DC-DC Converter - 10W - 36~72V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10C-05 DC-DC Converter - 10W - 36~72V in 5V out 2A	10W	5V	2A	Indoor	View
Mean Well SKE10B-24 DC-DC Converter - 10W - 18~36V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10B-15 DC-DC Converter - 10W - 18~36V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10B-12 DC-DC Converter - 10W - 18~36V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10B-05 DC-DC Converter - 10W - 18~36V in 5V out 2A	10W	5V	2A	Indoor	View
Mean Well SKE10A-24 DC-DC Converter - 10W - 9~18V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10A-12 DC-DC Converter - 10W - 9~18V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10A-05 DC-DC Converter - 10W - 9~18V in 5V out 2A	10W	5V	2A	Indoor	View
