Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

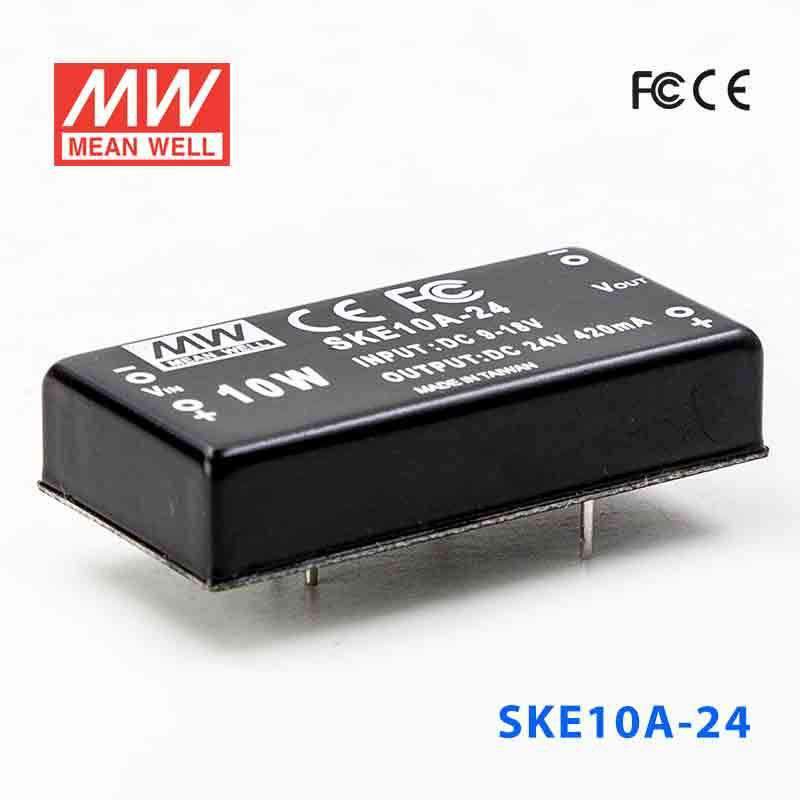

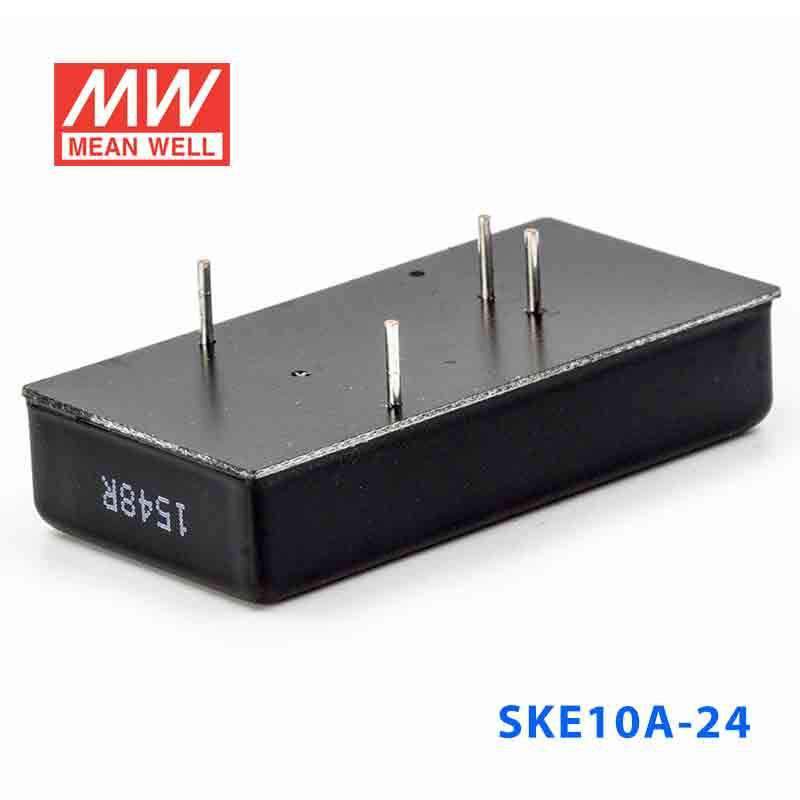

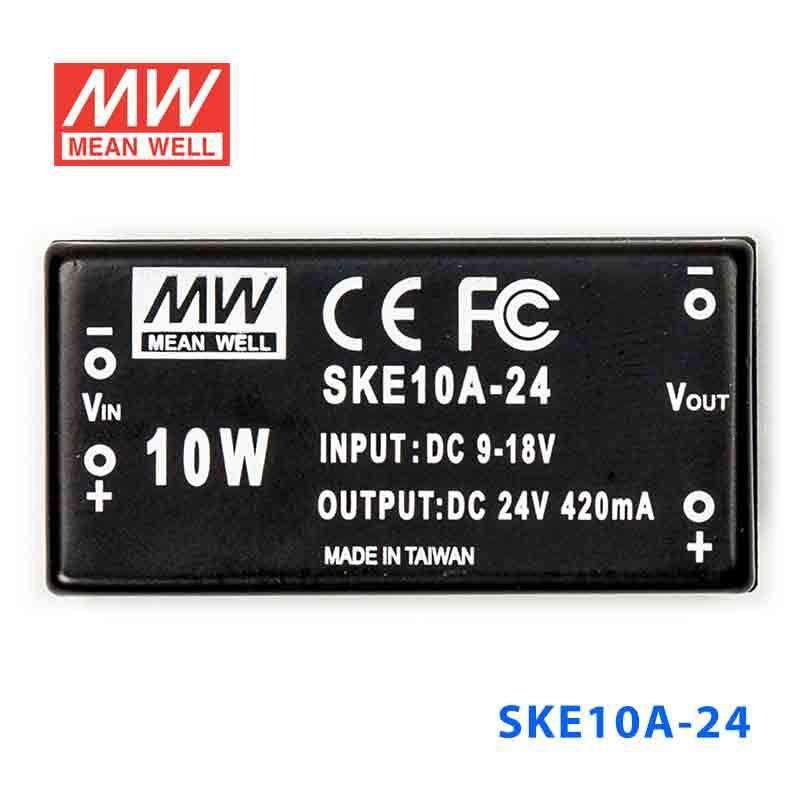

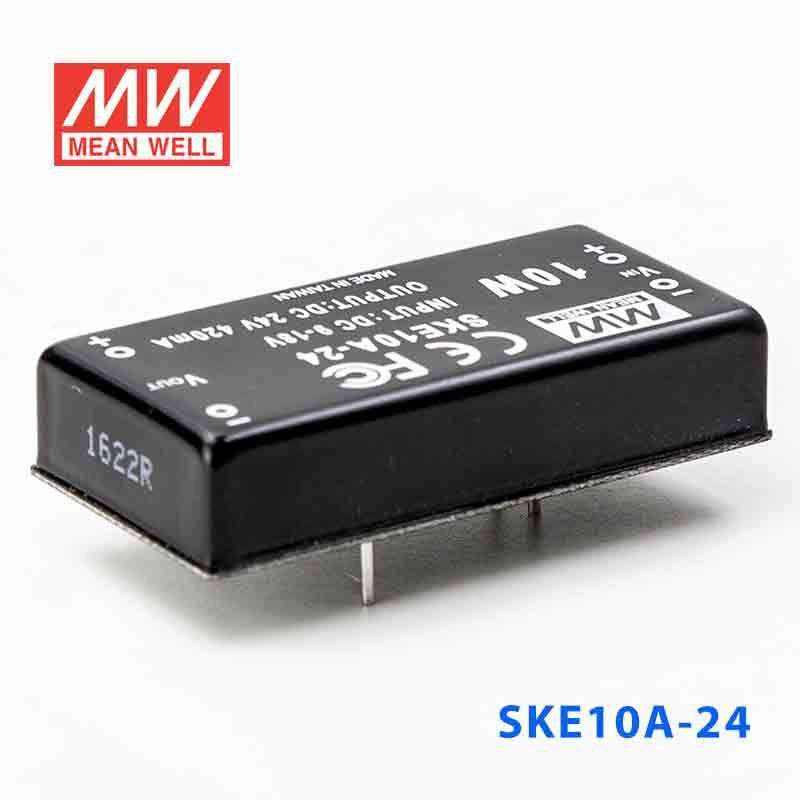

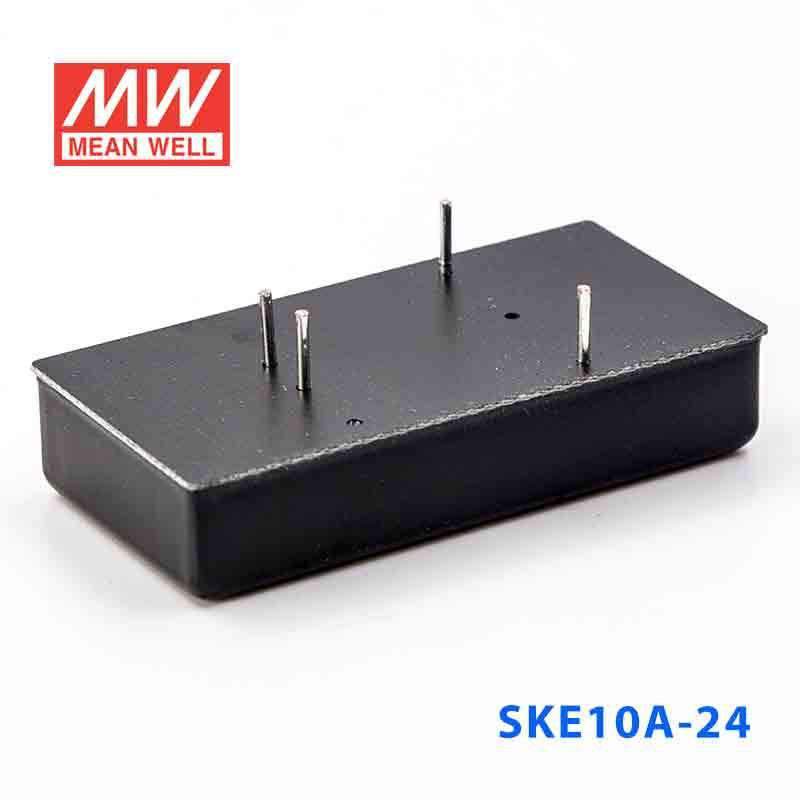

Mean Well SKE10A-24 DC-DC Converter - 10W - 9~18V in 24V out

SKU:

SKE10A-24

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1500VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

Approvals: FCC / EAC / CE / UKCA

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±0.3% (max.)
Load regulation	±0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	50.8 x 25.4 x 11.2mm or 2" x 1" x 0.44" inch
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKE Series
Power Rating

10 Watt
Output Voltage

24 Volt
Rated Current

0.42 Ampere
Input Voltage

9V~18V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.12 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKE10A-24 for a 24V PLC accessory or automation interface module?

It can work for 24V automation accessories that need constant-voltage output and stay within the 10W rating. The source side must also fall within the specified 9-18VAC input range.

Is the SKE10A-24 suitable for compact 24V embedded or industrial electronics?

This converter is intended for applications needing 24V constant-voltage output from a 9-18VAC input source. Its 50.8 × 25.4 × 11.2 mm body and 0.032 kg weight can make it practical where space and weight are limited.

Can the SKE10A-24 be used in a small control cabinet with 24V auxiliary loads?

Yes, if the auxiliary load requires 24V output and the total demand remains within 10W. It is aimed at small-load use cases rather than higher-power 24V distribution because the output class is only 10W.

Does the SKE10A-24 support outdoor environments or only protected installations?

The published environmental data gives an operating temperature range of -25°C to +71°C. Since no IP rating is shown, the specs support temperature evaluation but do not confirm outdoor or exposed-environment suitability.

How does SKE10A-24 differ from the other SKE10A converters?

All listed SKE10A siblings are 10W converters with 9-18VAC input. The outputs are SKE10A-05 at 5V and 2A, SKE10A-12 at 12V and 840A, SKE10A-15 at 15V and 666A, and SKE10A-24 at 24V and 420A.

Model	Power	Voltage	Current	IP Rating
Mean Well SKE10C-24 DC-DC Converter - 10W - 36~72V in 24V out	10W	24V	0.42A	Indoor	View
Mean Well SKE10C-15 DC-DC Converter - 10W - 36~72V in 15V out	10W	15V	0.66A	Indoor	View
Mean Well SKE10C-12 DC-DC Converter - 10W - 36~72V in 12V out	10W	12V	0.84A	Indoor	View
Mean Well SKE10C-05 DC-DC Converter - 10W - 36~72V in 5V out	10W	5V	2A	Indoor	View
Mean Well SKE10B-24 DC-DC Converter - 10W - 18~36V in 24V out	10W	24V	0.42A	Indoor	View
Mean Well SKE10B-15 DC-DC Converter - 10W - 18~36V in 15V out	10W	15V	0.66A	Indoor	View
Mean Well SKE10B-12 DC-DC Converter - 10W - 18~36V in 12V out	10W	12V	0.84A	Indoor	View
Mean Well SKE10B-05 DC-DC Converter - 10W - 18~36V in 5V out	10W	5V	2A	Indoor	View
Mean Well SKE10A-15 DC-DC Converter - 10W - 9~18V in 15V out	10W	15V	0.66A	Indoor	View
Mean Well SKE10A-12 DC-DC Converter - 10W - 9~18V in 12V out	10W	12V	0.84A	Indoor	View
Mean Well SKE10A-05 DC-DC Converter - 10W - 9~18V in 5V out	10W	5V	2A	Indoor	View
