Can I use the SKE10C-05 to power 5V embedded controllers or logic boards?

Yes, it provides a constant 5V output with a 10W rating. It is suited to embedded controllers or logic boards that require 5V and fit within the listed 2A output and 10W power limit.

Is the SKE10C-05 suitable for industrial communication or monitoring electronics that run on 5V?

Yes, this converter is intended for a 36-72VAC input range and delivers constant-voltage 5V output. It is appropriate for monitoring or communication electronics that operate on 5V and stay within 2A.

Can this converter be used for low-power automation devices that need 5V from a higher input range?

It can be used where a low-power automation device needs constant 5V and the available input is within 36-72VAC. The stated limits are 10W total power and 2A output current.

Is the SKE10C-05 rated for outdoor exposure or washdown areas?

The listed operating temperature range is -25°C to +71°C, but no IP rating is included in the provided specs. Because of that, temperature performance is specified while outdoor or washdown protection is not.

How does the SKE10C-05 compare with the other SKE10C output options?

All listed SKE10C siblings are 10W converters with the same series format. The outputs are 5V at 2A for SKE10C-05, 12V at 840A for SKE10C-12, 15V at 666A for SKE10C-15, and 24V at 420A for SKE10C-24.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

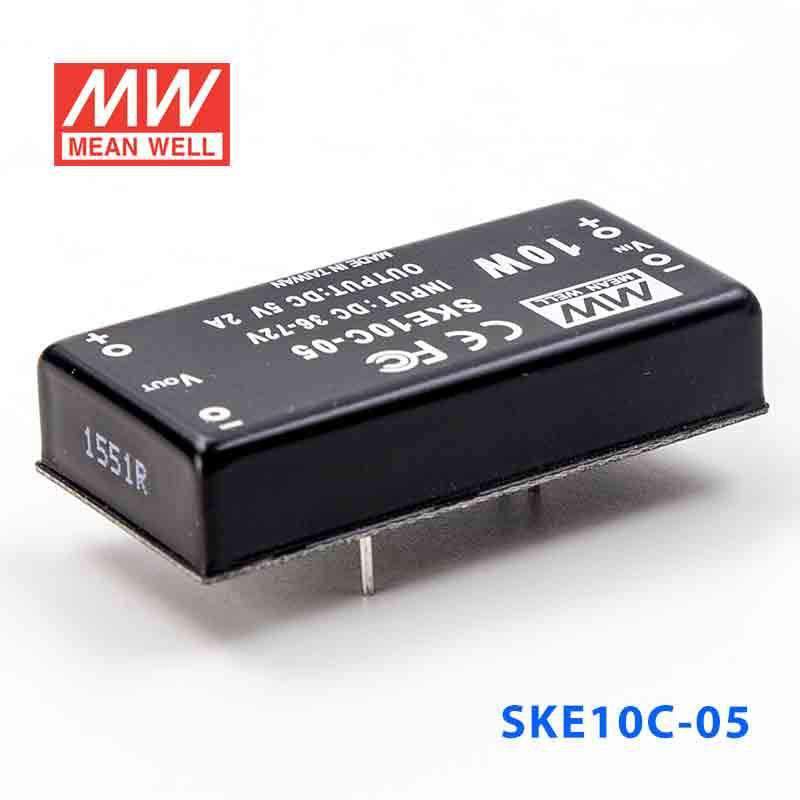

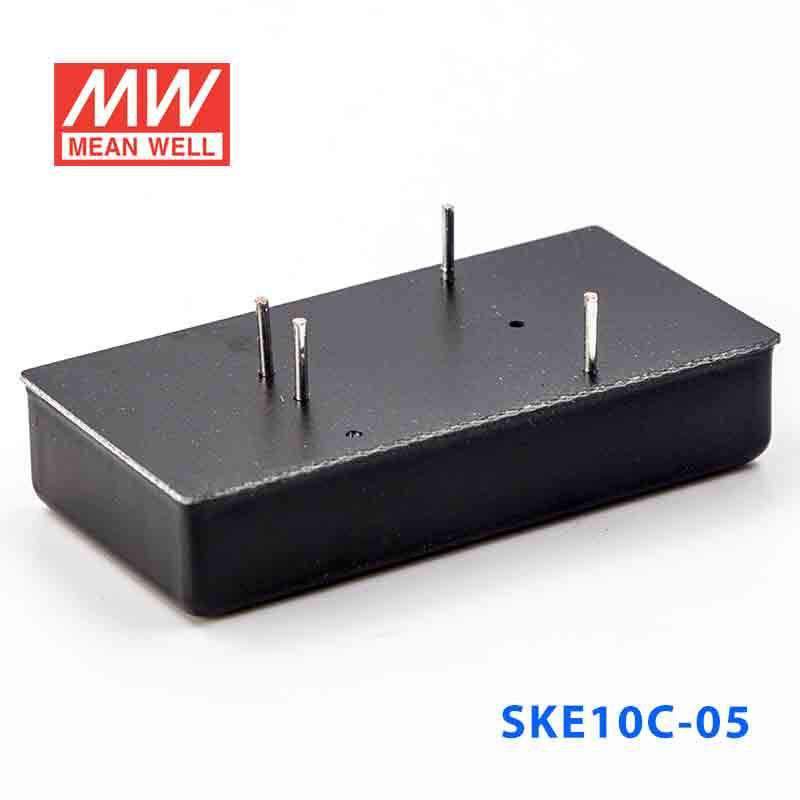

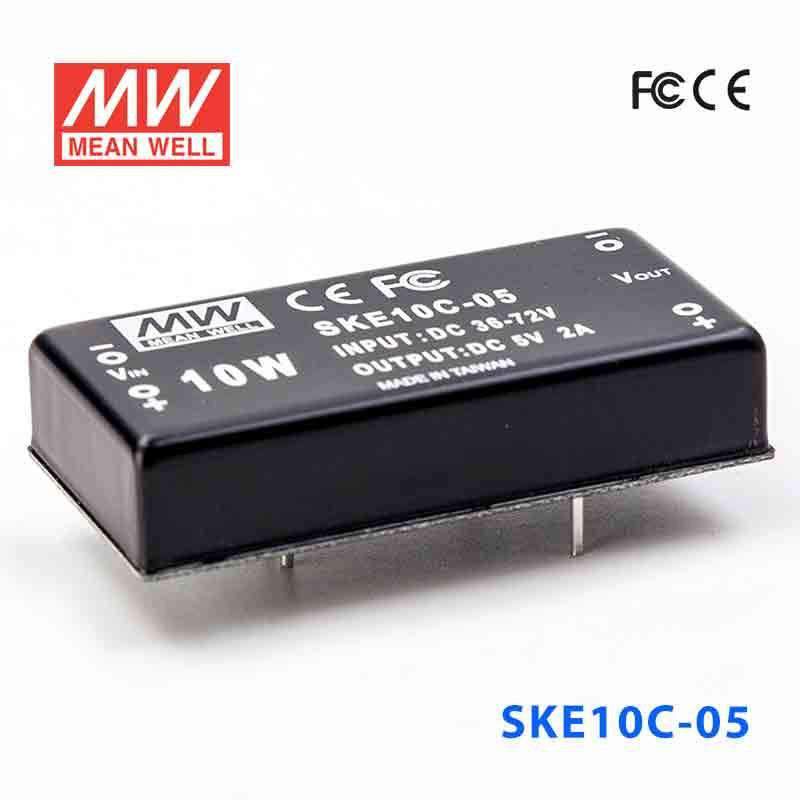

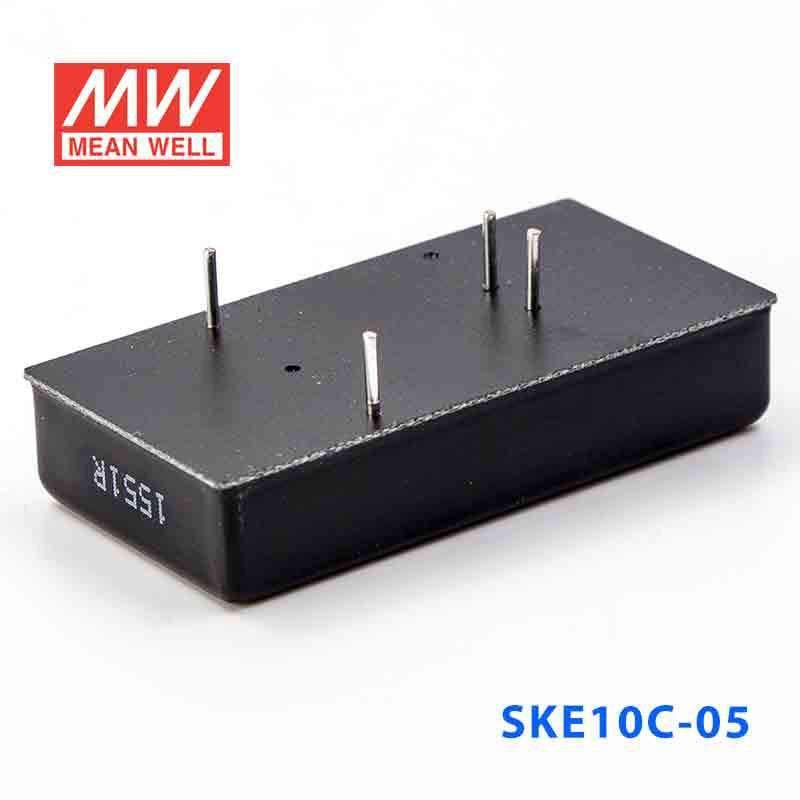

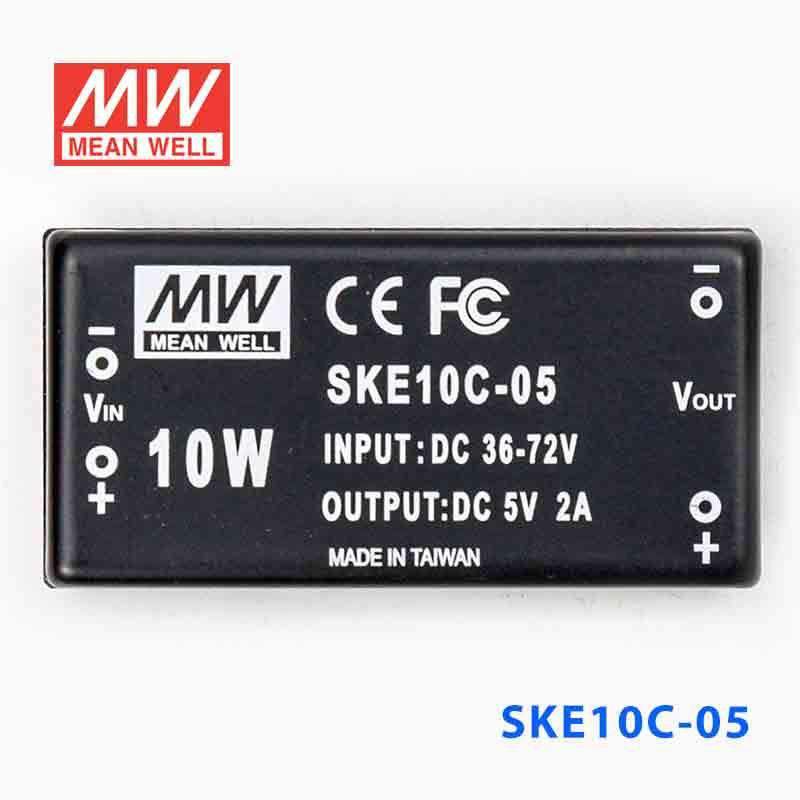

Mean Well SKE10C-05 DC-DC Converter - 10W - 36~72V in 5V out 2A

SKU:

SKE10C-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SKE10C is a 10W Mean Well power converter (operating temperature: -25~+71℃).

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Wide operating temperature: -25~+71℃
✓ Protections: Short circuit
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SKE10W8-15 10W DC-DC Converter 15VDC 670mA	—	—	—	Indoor	View
Mean Well SKE10W8-12 10W DC-DC Converter 12VDC 830mA	—	—	—	Indoor	View
Mean Well SKE10W8-05 10W DC-DC Converter 5VDC 2A	—	—	—	Indoor	View
Mean Well SKE10C-24 DC-DC Converter - 10W - 36~72V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10C-15 DC-DC Converter - 10W - 36~72V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10C-12 DC-DC Converter - 10W - 36~72V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10B-24 DC-DC Converter - 10W - 18~36V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10B-15 DC-DC Converter - 10W - 18~36V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10B-12 DC-DC Converter - 10W - 18~36V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10B-05 DC-DC Converter - 10W - 18~36V in 5V out 2A	10W	5V	2A	Indoor	View
Mean Well SKE10A-24 DC-DC Converter - 10W - 9~18V in 24V out 420mA	10W	24V	0.42A	Indoor	View
Mean Well SKE10A-15 DC-DC Converter - 10W - 9~18V in 15V out 666mA	10W	15V	0.66A	Indoor	View
Mean Well SKE10A-12 DC-DC Converter - 10W - 9~18V in 12V out 840mA	10W	12V	0.84A	Indoor	View
Mean Well SKE10A-05 DC-DC Converter - 10W - 9~18V in 5V out 2A	10W	5V	2A	Indoor	View
