Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

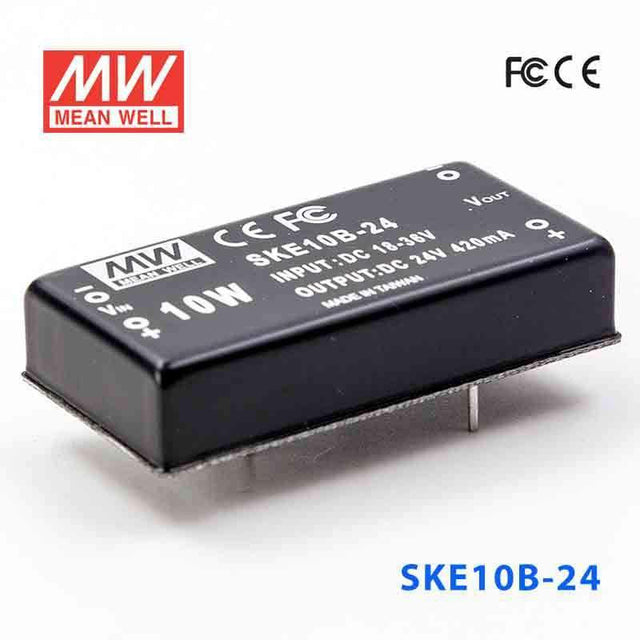

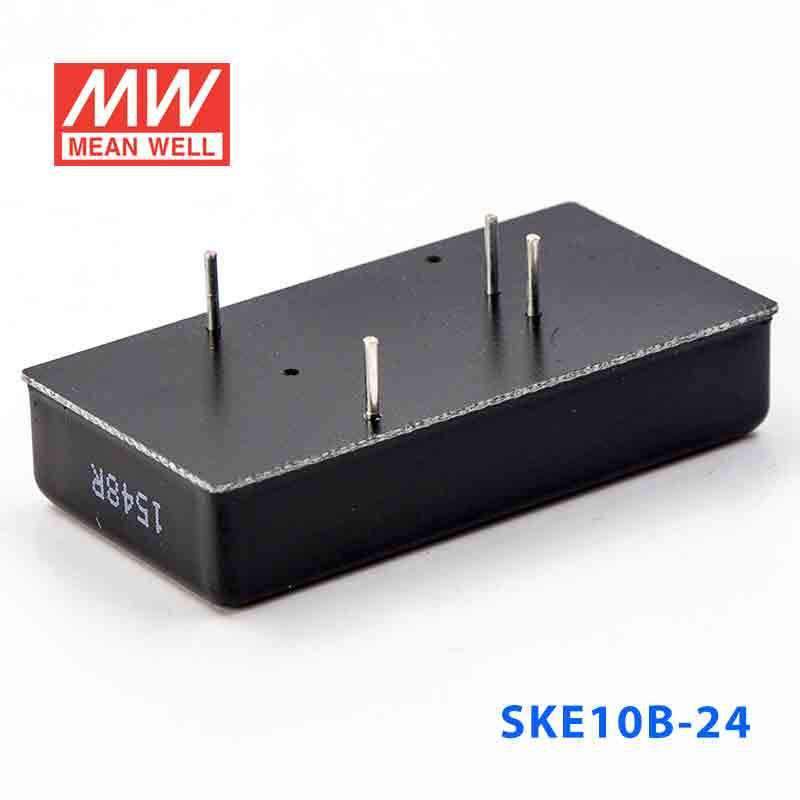

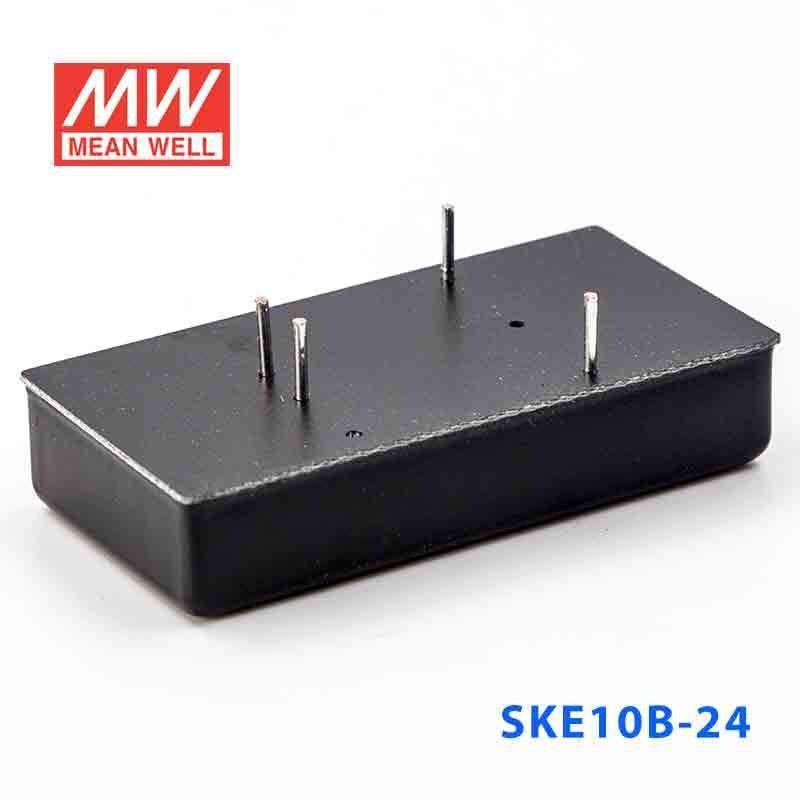

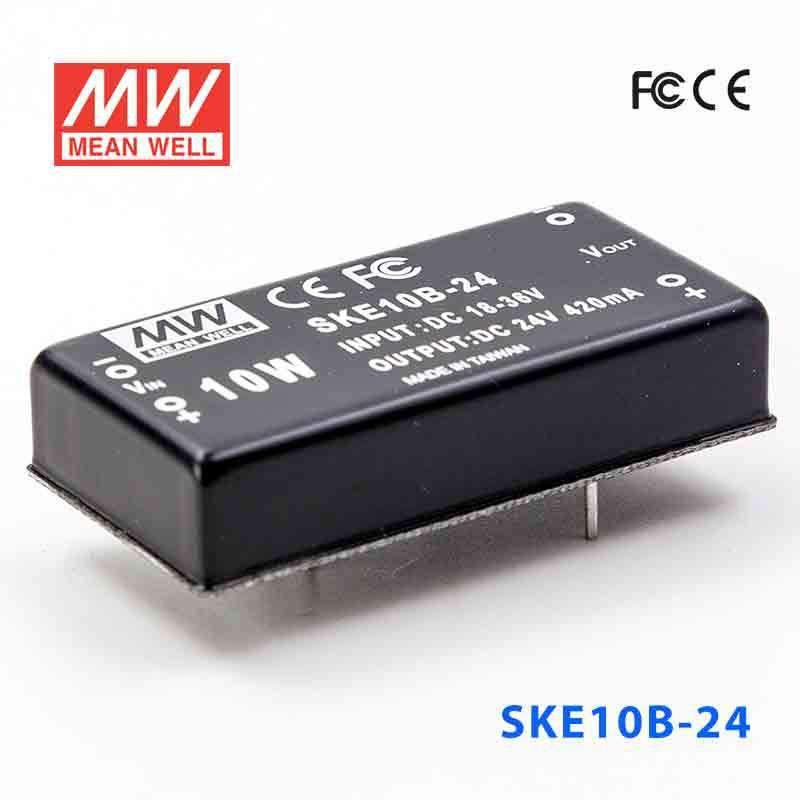

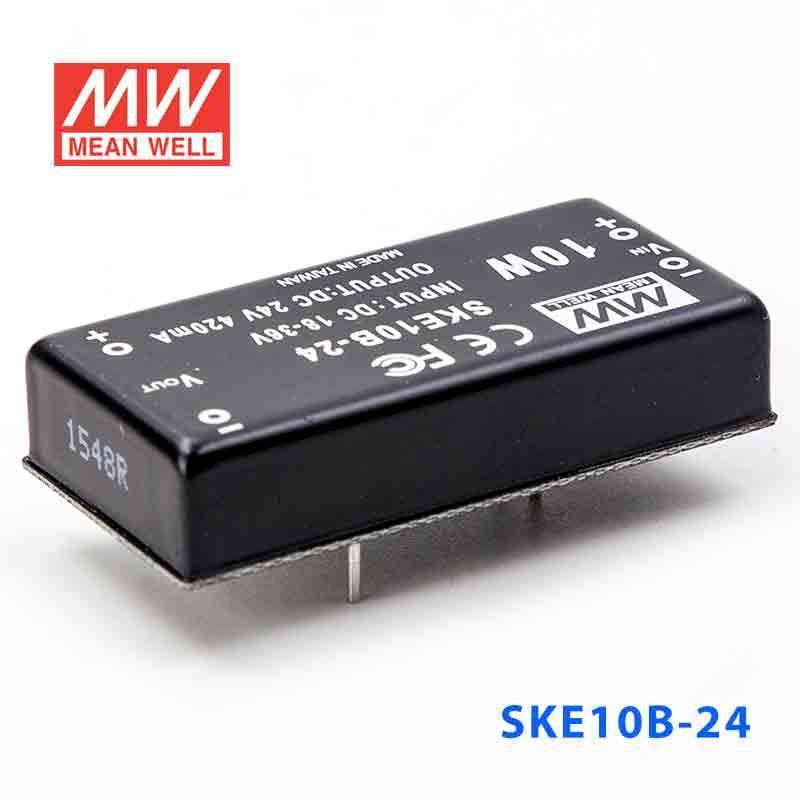

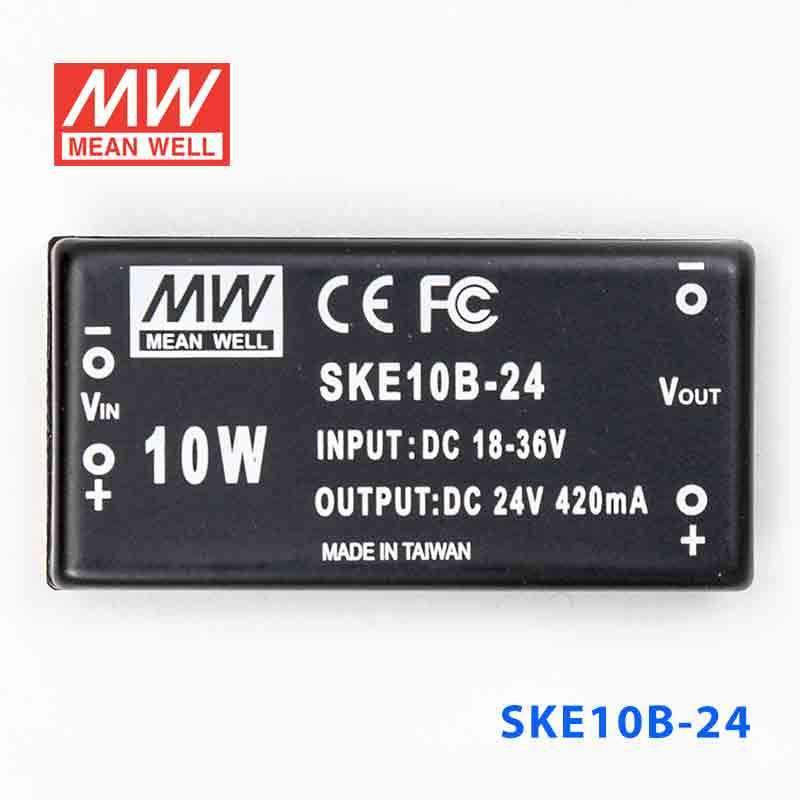

Mean Well SKE10B-24 DC-DC Converter - 10W - 18~36V in 24V out

SKU:

SKE10B-24

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1500VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

Approvals: FCC / EAC / CE / UKCA

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±0.3% (max.)
Load regulation	±0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	50.8 x 25.4 x 11.2mm or 2" x 1" x 0.44" inch
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKE Series
Power Rating

10 Watt
Output Voltage

24 Volt
Rated Current

0.42 Ampere
Input Voltage

18V~36V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.12 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKE10B-24 for a 24V PLC accessory or automation module?

Yes, it provides constant-voltage 24V output and is rated for 10W. It is a fit for PLC accessories or automation modules that require 24V and remain within the listed 10W rating.

Is the SKE10B-24 a good choice for 24V industrial relays or interface modules?

It can be used for 24V relays or interface modules that need a constant 24V supply. The key limit is the 10W power rating, so it is intended for lower-power loads rather than larger 24V devices.

Can this model power 24V embedded or control electronics from an 18-36VAC input range?

Yes, the listed input range is 18-36VAC and the output is constant 24V. That makes it suitable for embedded or control electronics designed for 24V operation within the 10W output capacity.

Can the SKE10B-24 be used in cold or warm indoor equipment spaces?

The operating temperature range is -25°C to +71°C, so the listed specs cover both cold and warm equipment environments within that range. No IP rating is shown, so enclosure or weather resistance is not defined in the provided data.

What is the difference between the SKE10B-24 and the other SKE10B versions?

The main difference is output rating within the same 10W family. The listed siblings are 5V at 2A for SKE10B-05, 12V at 840A for SKE10B-12, 15V at 666A for SKE10B-15, and 24V at 420A for SKE10B-24.
