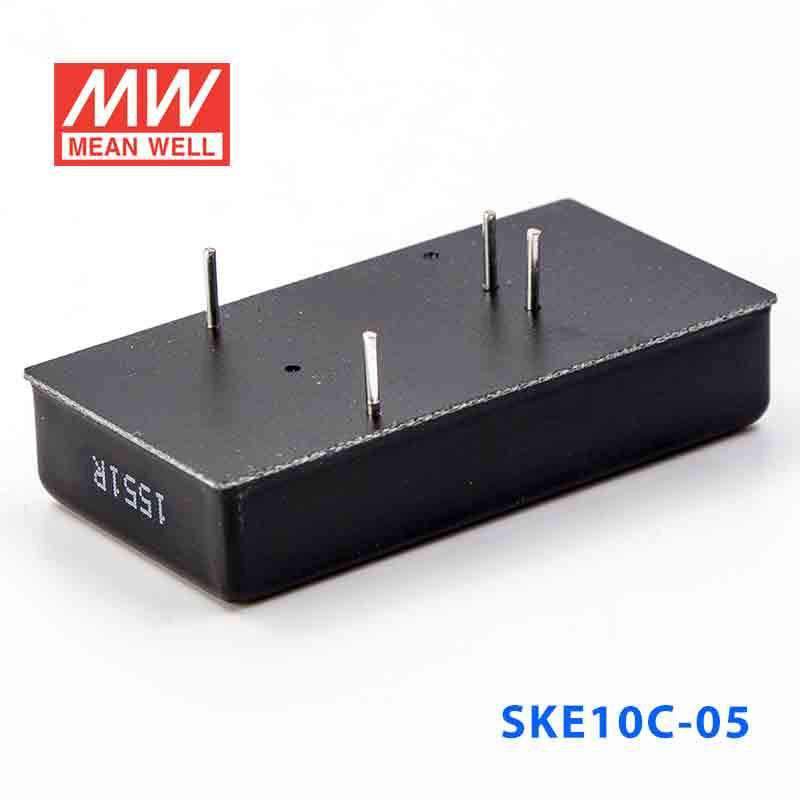

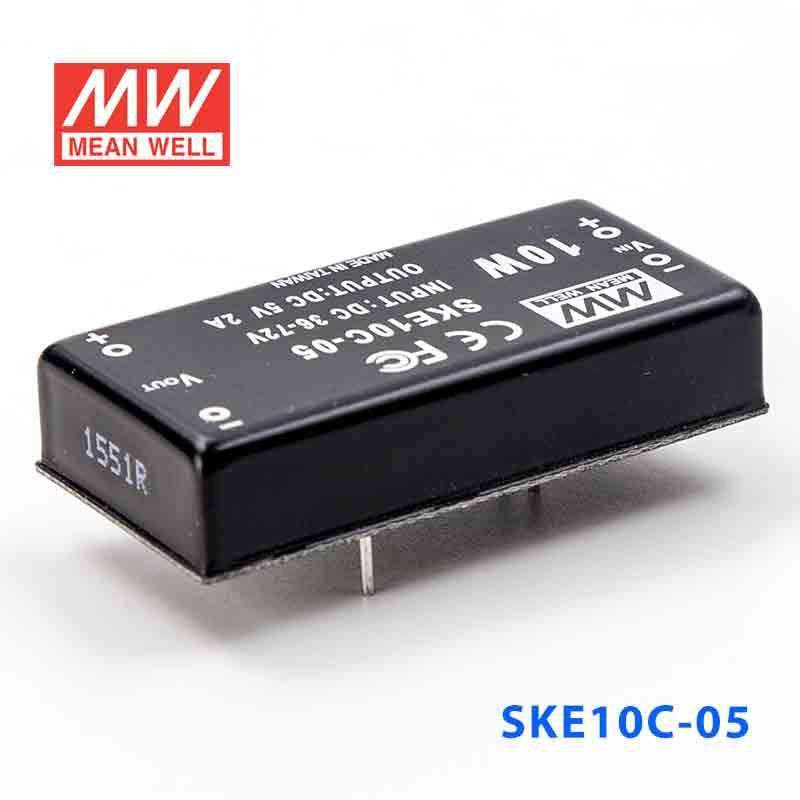

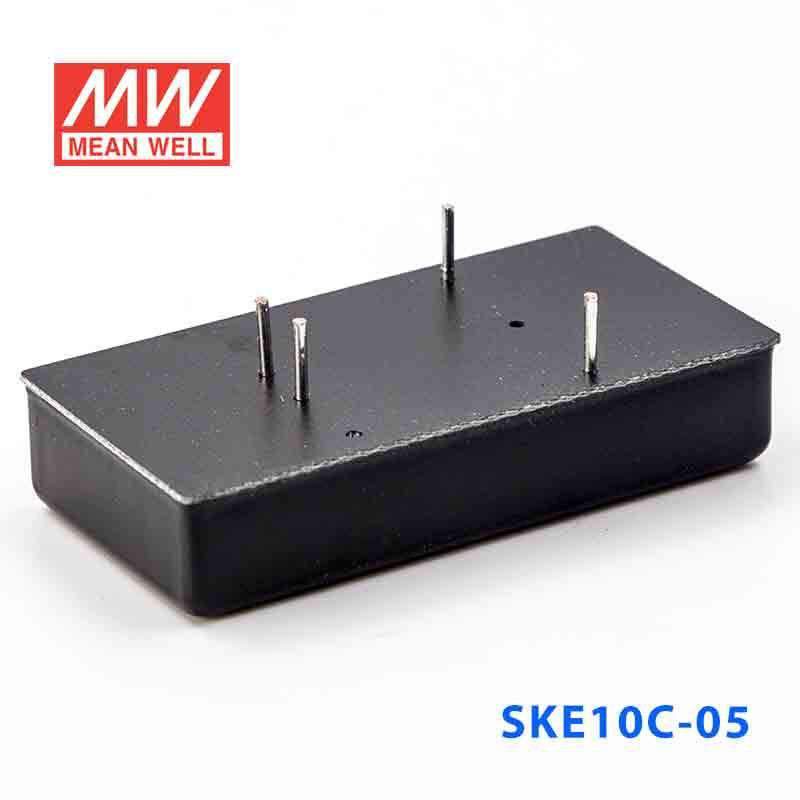

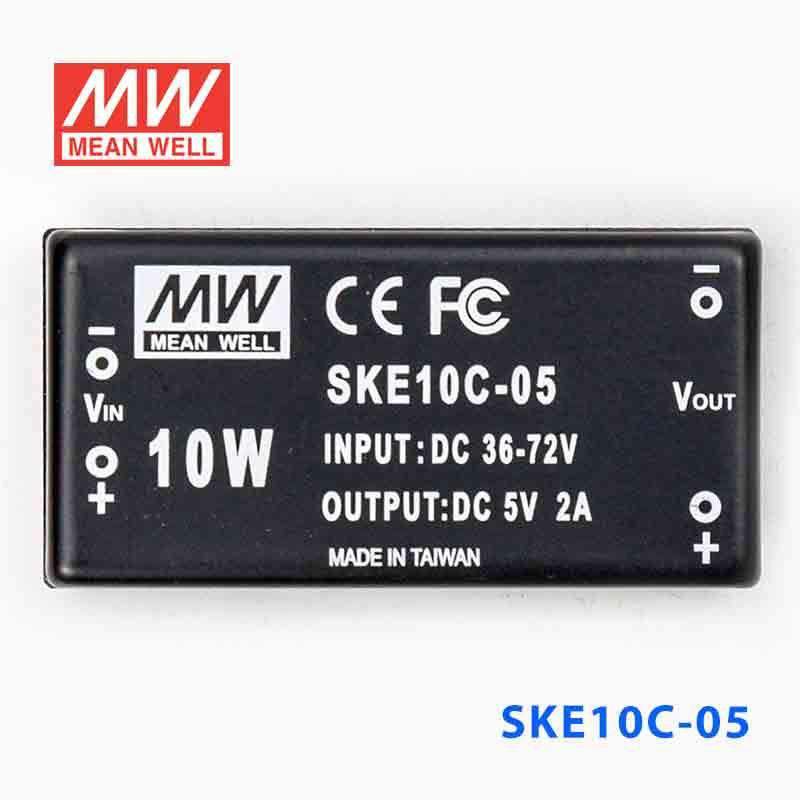

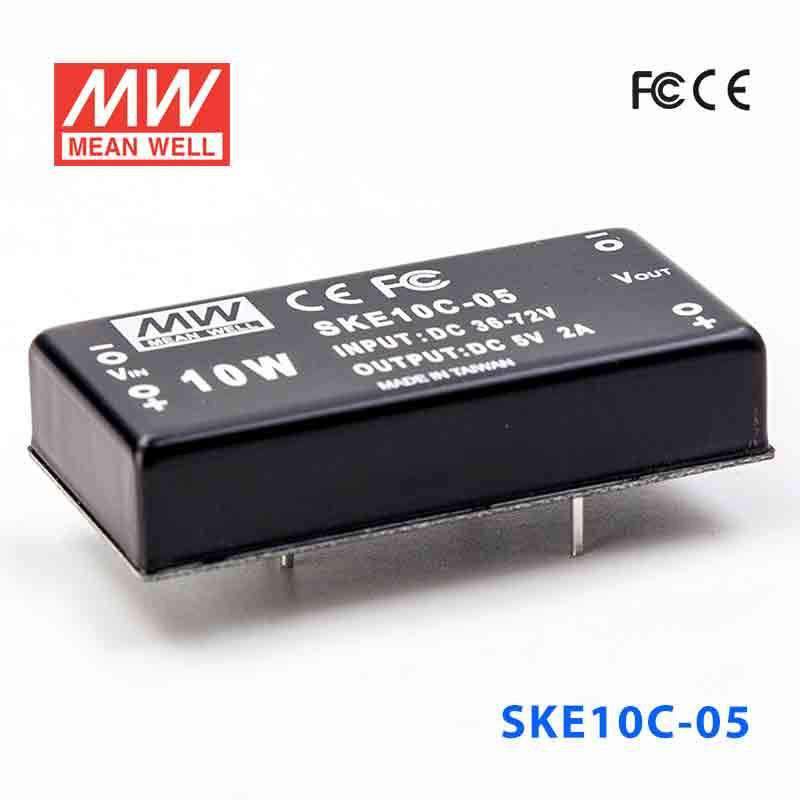

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SKE10C-05 DC-DC Converter - 10W - 36~72V in 5V out

SKU:

SKE10C-05

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1500VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

Approvals: FCC / EAC / CE / UKCA

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±0.3% (max.)
Load regulation	±0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	50.8 x 25.4 x 11.2mm or 2" x 1" x 0.44" inch
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKE Series
Power Rating

10 Watt
Output Voltage

5 Volt
Rated Current

2 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.12 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKE10C-05 to power 5V embedded controllers or logic boards?

Yes, it provides a constant 5V output with a 10W rating. It is suited to embedded controllers or logic boards that require 5V and fit within the listed 2A output and 10W power limit.

Is the SKE10C-05 suitable for industrial communication or monitoring electronics that run on 5V?

Yes, this converter is intended for a 36-72VAC input range and delivers constant-voltage 5V output. It is appropriate for monitoring or communication electronics that operate on 5V and stay within 2A.

Can this converter be used for low-power automation devices that need 5V from a higher input range?

It can be used where a low-power automation device needs constant 5V and the available input is within 36-72VAC. The stated limits are 10W total power and 2A output current.

Is the SKE10C-05 rated for outdoor exposure or washdown areas?

The listed operating temperature range is -25°C to +71°C, but no IP rating is included in the provided specs. Because of that, temperature performance is specified while outdoor or washdown protection is not.

How does the SKE10C-05 compare with the other SKE10C output options?

All listed SKE10C siblings are 10W converters with the same series format. The outputs are 5V at 2A for SKE10C-05, 12V at 840A for SKE10C-12, 15V at 666A for SKE10C-15, and 24V at 420A for SKE10C-24.
