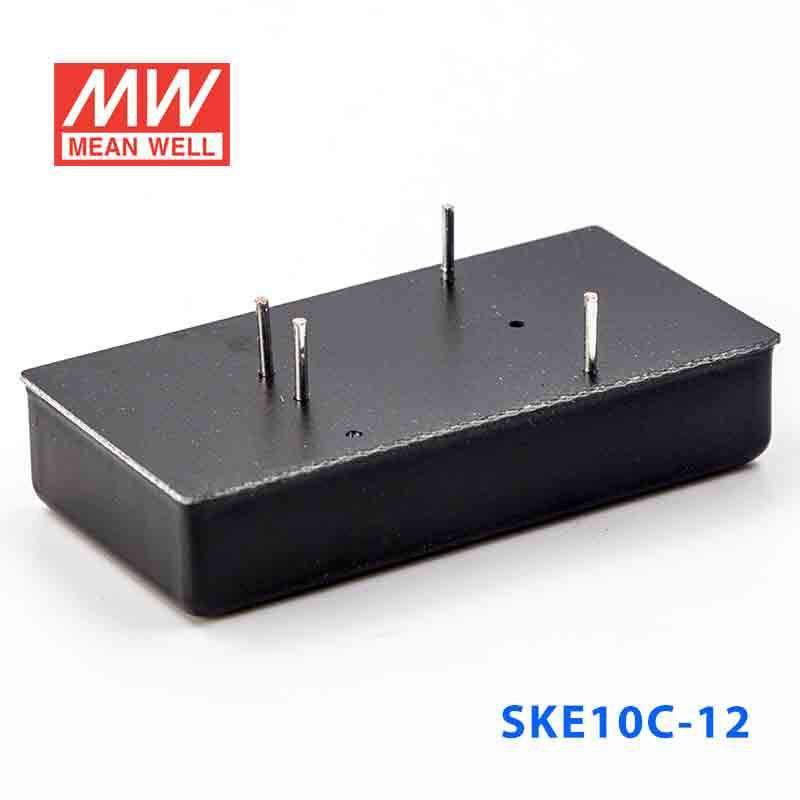

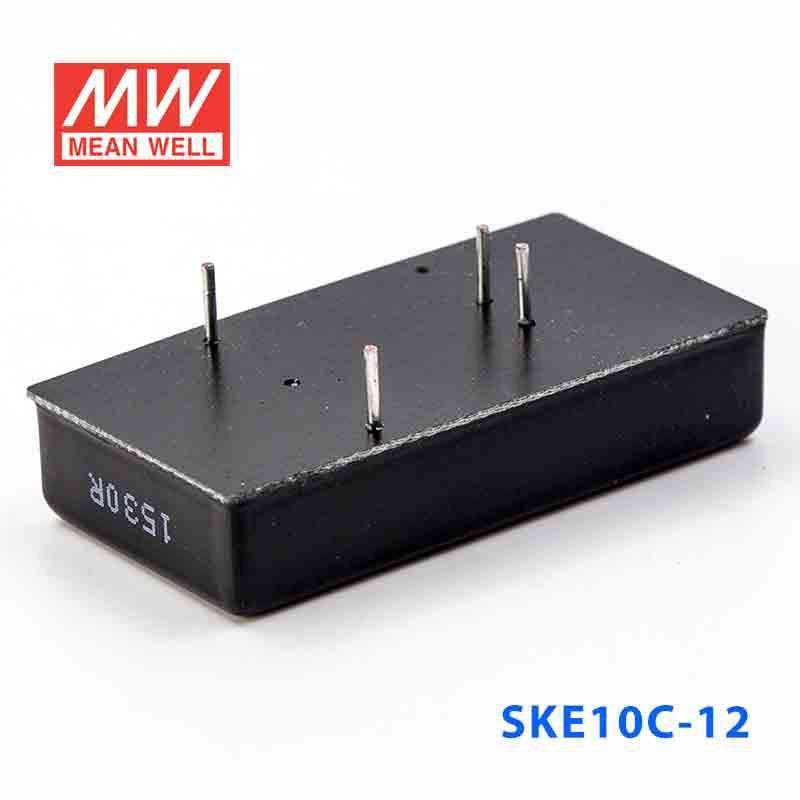

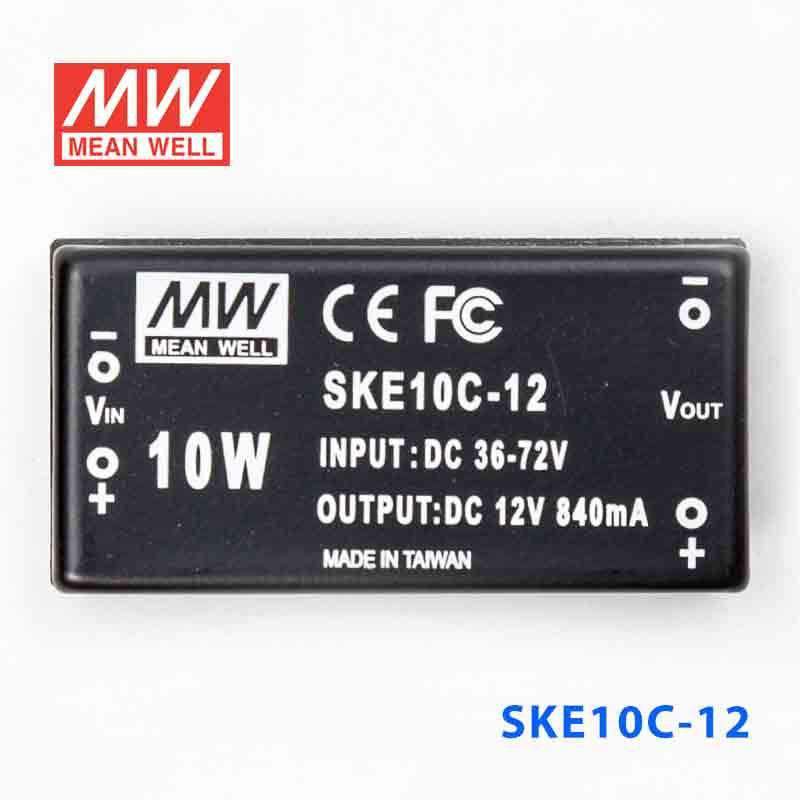

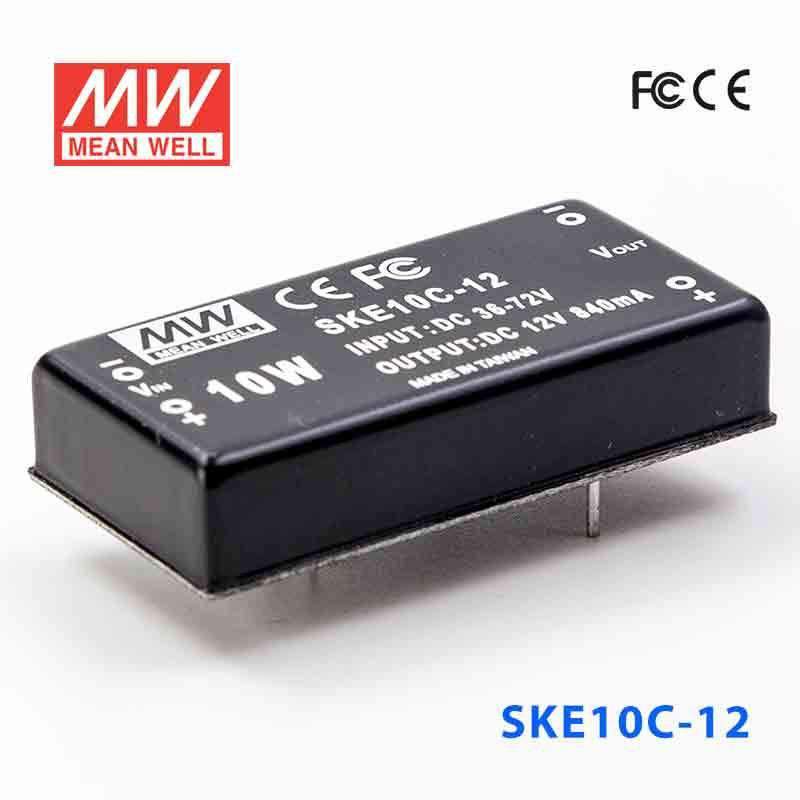

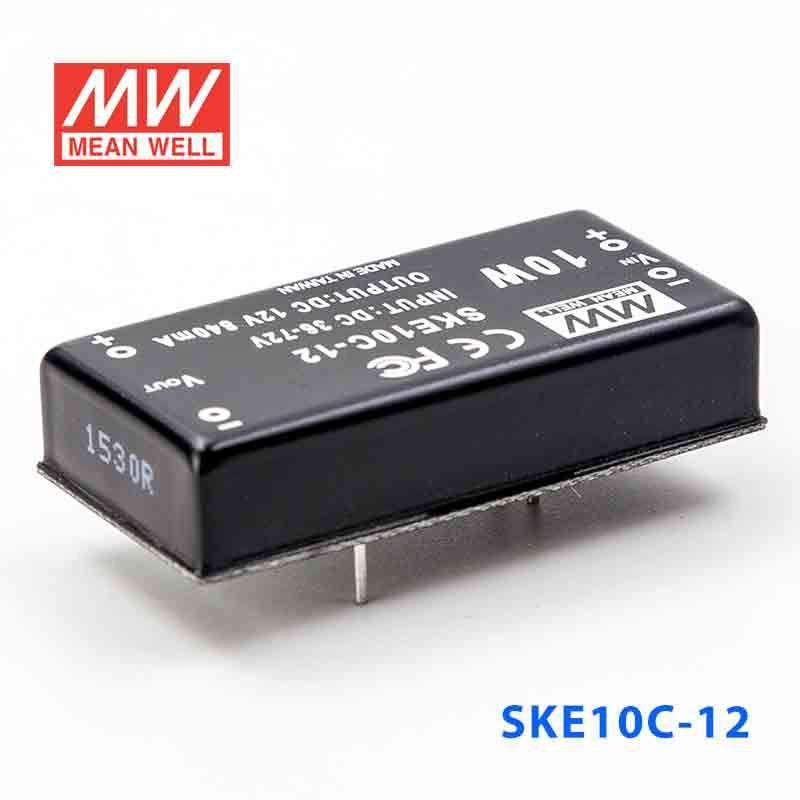

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SKE10C-12 DC-DC Converter - 10W - 36~72V in 12V out

SKU:

SKE10C-12

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1500VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

Approvals: FCC / EAC / CE / UKCA

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±0.3% (max.)
Load regulation	±0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	50.8 x 25.4 x 11.2mm or 2" x 1" x 0.44" inch
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKE Series
Power Rating

10 Watt
Output Voltage

12 Volt
Rated Current

0.84 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.12 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKE10C-12 for 12V industrial control electronics?

Yes, it provides constant-voltage 12V output and is rated at 10W. It fits industrial control electronics that require 12V and remain within the listed 10W capacity.

Is the SKE10C-12 suitable for 12V embedded systems powered from a 36-72VAC source?

Yes, the listed input range is 36-72VAC and the output is constant 12V. It is appropriate for embedded systems that need regulated 12V and fit within the stated 10W rating.

Can this model support low-power 12V automation interfaces or signal devices?

It can be used for low-power automation interfaces or signal devices that need 12V constant-voltage output. The product is rated for 10W, so it is intended for lighter 12V loads rather than larger equipment.

Is the SKE10C-12 better for protected indoor environments or exposed locations?

The provided specs state an operating temperature range of -25°C to +71°C, which defines its thermal range. No IP rating is listed, so the specs do not establish protection for exposed outdoor conditions.

What are the output differences across the SKE10C series?

The series changes by output while staying at 10W. The listed models are SKE10C-05 at 5V and 2A, SKE10C-12 at 12V and 840A, SKE10C-15 at 15V and 666A, and SKE10C-24 at 24V and 420A.

Model	Power	Voltage	Current	IP Rating
Mean Well SKE10C-24 DC-DC Converter - 10W - 36~72V in 24V out	10W	24V	0.42A	Indoor	View
Mean Well SKE10C-15 DC-DC Converter - 10W - 36~72V in 15V out	10W	15V	0.66A	Indoor	View
Mean Well SKE10C-05 DC-DC Converter - 10W - 36~72V in 5V out	10W	5V	2A	Indoor	View
Mean Well SKE10B-24 DC-DC Converter - 10W - 18~36V in 24V out	10W	24V	0.42A	Indoor	View
Mean Well SKE10B-15 DC-DC Converter - 10W - 18~36V in 15V out	10W	15V	0.66A	Indoor	View
Mean Well SKE10B-12 DC-DC Converter - 10W - 18~36V in 12V out	10W	12V	0.84A	Indoor	View
Mean Well SKE10B-05 DC-DC Converter - 10W - 18~36V in 5V out	10W	5V	2A	Indoor	View
Mean Well SKE10A-24 DC-DC Converter - 10W - 9~18V in 24V out	10W	24V	0.42A	Indoor	View
Mean Well SKE10A-15 DC-DC Converter - 10W - 9~18V in 15V out	10W	15V	0.66A	Indoor	View
Mean Well SKE10A-12 DC-DC Converter - 10W - 9~18V in 12V out	10W	12V	0.84A	Indoor	View
Mean Well SKE10A-05 DC-DC Converter - 10W - 9~18V in 5V out	10W	5V	2A	Indoor	View
