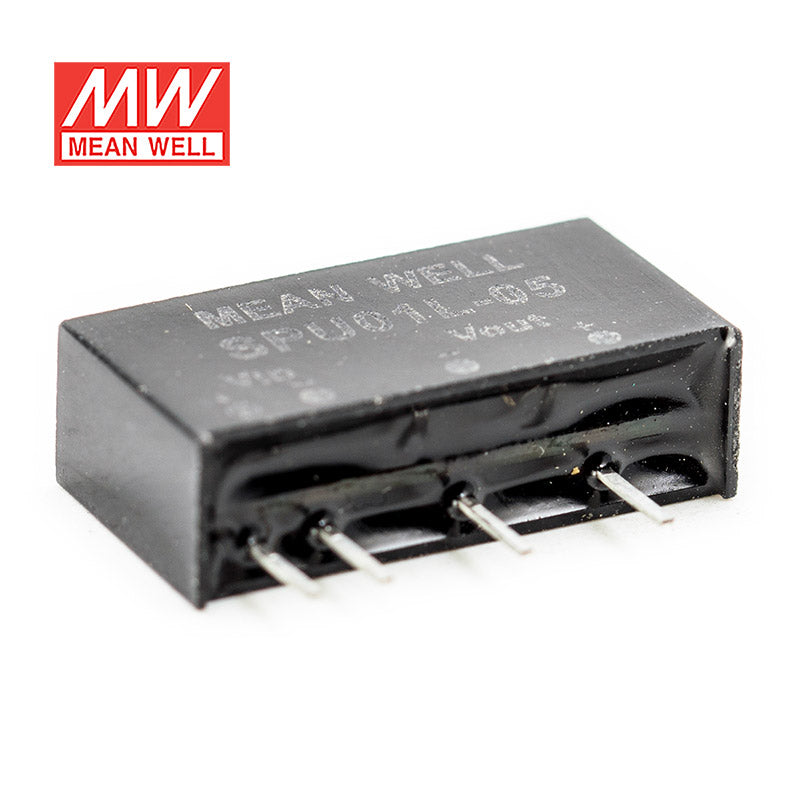

Mean Well SPU01L-05 DC-DC Converter - 1W - 4.4~5.5V in 5V out

SKU SPU01L-05

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SPU01L-05 is the 5V output model of this series: rated power 1W, typical efficiency 79%.

SP U01 and DP U01 series are 1 W isolated and unregulated module type DC-DC converter with SIP 6 package. It features international standard pins, a high efficiency up to 84%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, short circuit protection, etc. The models account for different input voltage 5V/12V/ 24V±10% , and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, s uch as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP6 package with industry standard pinout
Operating temperature range -40 ~ +90℃
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 84%
Protection: Short circuit
1.5KVDC I/O isolation
Low cost
3 years warranty

Specifications

SPU01L-05Specifications from the official datasheet (2024-04-30 edition)

INPUT

INPUT VOLTAGE (RANGE): 5V (4.5 ~ 5.5V)
INPUT CURRENT NO LOAD: 40mA
INPUT CURRENT FULL LOAD: 253mA
VOLTAGE RANGE: 4.5 ~ 5.5Vdc ,
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 500mA Slow-Blow Type for all models
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: 5V
OUTPUT CURRENT: 0 ~ 200mA
EFFICIENCY (TYP.): 79%
CAPACITOR LOAD (MAX.)^{* For each output}: 220μF
VOLTAGE ACCURACY: ±3.0%
RATED POWER: 1W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: 10%
SWITCHING FREQUENCY (Typ.): 24Vin: 75KHz, other: 100KHz

PROTECTION

SHORT CIRCUIT: 1 second max.

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 10pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 1500Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 5/12Vin models:19.5*6.1*10.2mm (0.77*0.24*0.40 inch); 24Vin models:19.5*7.2*10.2mm (0.77*0.28*0.40 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 5/12Vin models: 2.3g ; 16pcs/per tube,2944pcs/184 tube/per carton 24Vin models: 2.7g ; 15pcs/per tube,2205pcs/147 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 20% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

SPU01L-05 Plug Assignment — Plug Assignment

SPU01L-05 Standard Tube Packing — Standard Tube Packing

SPU01L-05 Installation Manual — Installation Manual

Typical applications

Downloads

Certificates3

Mean Well SPR01-SPU02-SPU03-EMC Certificate PDF Download

Mean Well SPR01-SPU01-SPU02-SPU03-CE-dec Certificate PDF Download

Mean Well SPR01-SPU02-03-UK-dec Certificate PDF Download

Test reports1

Test Report (SPU01L-05)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SPU01L-05 for low-power 5V embedded electronics or controller logic?

This model is intended for unregulated 5V applications where the total load stays within its 1W rating and 200mA. It is a better match for low-power embedded, IT, or control electronics than for larger 5V loads.

Is the SPU01L-05 suitable for a compact monitoring or communications board that needs 5V?

It can fit small monitoring or interface circuits that need a 5V rail from a 4.5~5.5VDC input range; the 1.5KVDC I/O isolation separates the two sides. The output is rated at 1W, so the application should be limited to low-power electronics.

Can this converter be used in low-power automation or industrial sensing electronics?

Yes, for low-power automation support circuits that can operate from an unregulated 5V output and remain within the unit's 1W output rating. Its compact dimensions of 19.5 × 6.1 × 10.2 mm also suit space-constrained electronics.

Is the SPU01L-05 appropriate for very hot or very cold operating environments?

The working temperature range is -40°C to +90°C (refer to the derating curve), which is broader than many standard electronics environments. No IP rating is shown, so the specs support temperature range evaluation but do not establish outdoor or water-exposed suitability.

How does the SPU01L-05 compare with the other SPU01L models?

The SPU01L-05 is rated 1W with 5V output and 200mA, the SPU01L-12 is rated 1W with 12V output and 84mA, and the SPU01L-15 is rated 1W with 15V output and 67mA. All three share the SPU01L series format and 1W power class.
