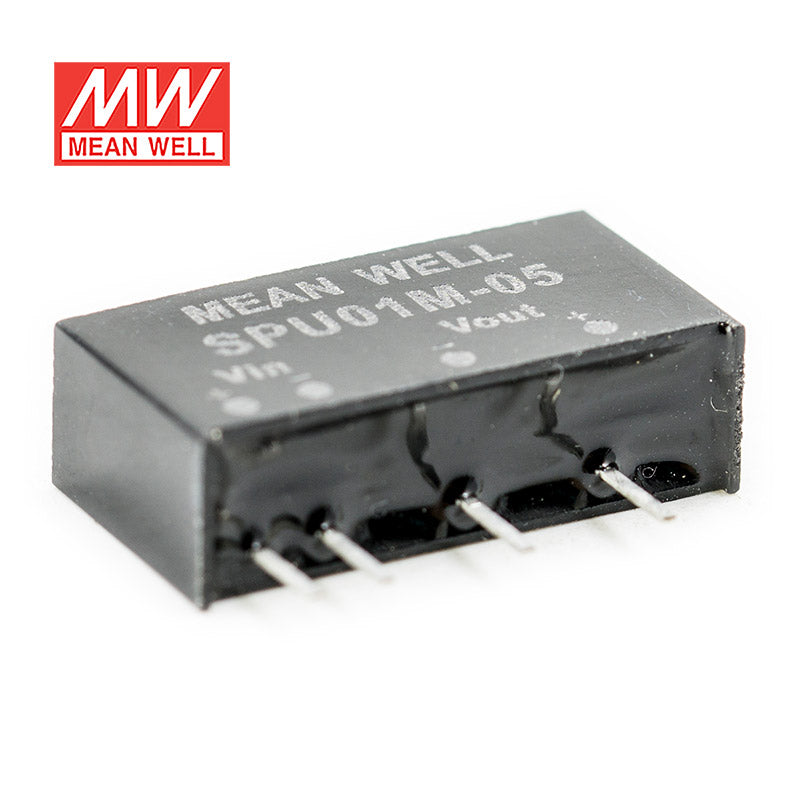

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SPU01M-05 DC-DC Converter - 1W - 10.8~13.2V in 5V out

SKU:

SPU01M-05

Please for Pricing

Notify me when it's back in stock

Description

Features

SIP6 package with industry-standard pinout

Wide operating temperature range -40~+90°C

High efficiency up to 84%

Comply to BS EN/EN55032 radiated Class A without additional components

Low cost

Protection: Short circuit

1.5KVDC I/O isolation

Low cost

3 years warranty

General Specification

Voltage accuracy	±3.0%
Vibration	10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	1-second max
Working temperature	-40°C to +90°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	5/12Vin models:19.56.110.2mm (0.770.240.40 inch); 24Vin models:19.57.210.2mm (0.770.280.40 inch)
Potting material	UL 94V-0 rated

Specifications

Brand

Mean Well
Series

SPU Series
Power Rating

1 Watt
Output Voltage

5 Volt
Rated Current

0.2 Ampere
Input Voltage

10.8V~13.2V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-55°C~125°C
Warranty

3 Year
Length

1.96 cm
Width

1.02 cm
Height

0.71 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SPU01M-05 to derive 5V for a small embedded controller from a 10.8~13.2V supply rail?

Yes, this model is intended for applications that need a 5V constant-voltage output from a 10.8~13.2V input range. Its power rating is 1W, so it fits low-power embedded and control electronics rather than higher-load devices.

Is the SPU01M-05 suitable for low-power industrial monitoring or sensor interface circuits?

It can fit low-power industrial monitoring circuits that need a regulated 5V output and stay within the unit's 1W rating. The constant-voltage output makes it more appropriate for stable low-power electronics than for loads with larger power demand.

Can this converter be used in compact automation boards where board space is limited?

Yes, the package is very small at 19.6 × 10.2 × 7.1 mm and weighs 0.0027 kg. That makes it practical for dense control, embedded, and automation assemblies that need 5V from a 10.8~13.2V input range.

Would the SPU01M-05 make sense for 5V logic or auxiliary control power in equipment with wide temperature exposure?

It is designed for very wide operating temperatures from -55°C to +125°C. Combined with its 5V constant-voltage output and 1W rating, that makes it a fit for low-power logic and auxiliary electronics in demanding temperature conditions.

How does the SPU01M-05 compare with the other SPU01M models?

All three SPU01M models are rated at 1W and use the same 19.6 × 10.2 × 7.1 mm package. The SPU01M-05 outputs 5V, while the SPU01M-12 outputs 12V at 0.08A and the SPU01M-15 outputs 15V at 0.07A.

Is the SPU01M-05 intended for indoor or outdoor environments?

The published specs list an operating temperature range of -55°C to +125°C, but they do not list an IP rating. Based on the available specs, temperature capability is defined, while exposed outdoor suitability is not specified.

Model	Power	Voltage	Current	IP Rating
Mean Well SPU01N-15 DC-DC Converter - 1W - 21.6~26.4V in 15V out	1W	15V	0.06A	—	View
Mean Well SPU01N-12 DC-DC Converter - 1W - 21.6~26.4V in 12V out	1W	12V	0.08A	—	View
Mean Well SPU01N-05 DC-DC Converter - 1W - 21.6~26.4V in 5V out	1W	5V	0.2A	Indoor	View
Mean Well SPU01M-15 DC-DC Converter - 1W - 10.8~13.2V in 15V out	1W	15V	0.06A	Indoor	View
Mean Well SPU01M-12 DC-DC Converter - 1W - 10.8~13.2V in 12V out	1W	12V	0.08A	Indoor	View
Mean Well SPU01L-15 DC-DC Converter - 1W - 4.4~5.5V in 15V out	1W	15V	0.06A	Indoor	View
Mean Well SPU01L-12 DC-DC Converter - 1W - 4.4~5.5V in 12V out	1W	12V	0.08A	Indoor	View
Mean Well SPU01L-05 DC-DC Converter - 1W - 4.4~5.5V in 5V out	1W	5V	0.2A	Indoor	View
