Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

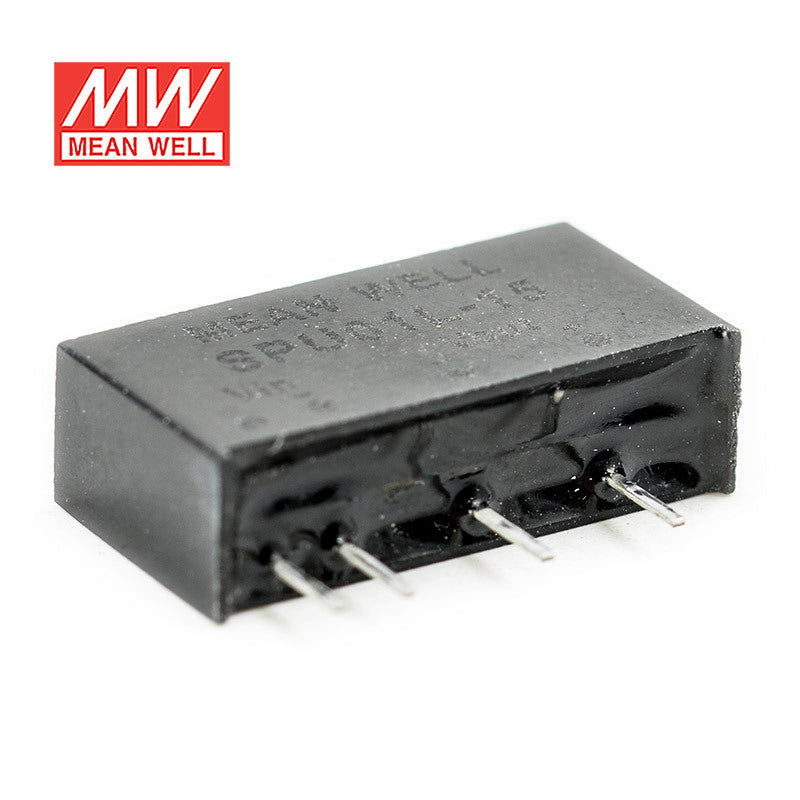

Mean Well SPU01L-15 DC-DC Converter - 1W - 4.4~5.5V in 15V out

SKU:

SPU01L-15

Please for Pricing

Notify me when it's back in stock

Description

Features

SIP6 package with industry-standard pinout

Wide operating temperature range -40~+90°C

High efficiency up to 84%

Comply to BS EN/EN55032 radiated Class A without additional components

Low cost

Protection: Short circuit

1.5KVDC I/O isolation

Low cost

3 years warranty

General Specification

Voltage accuracy	±3.0%
Vibration	10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	1-second max
Working temperature	-40°C to +90°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	5/12Vin models:19.56.110.2mm (0.770.240.40 inch); 24Vin models:19.57.210.2mm (0.770.280.40 inch)
Potting material	UL 94V-0 rated

Specifications

Brand

Mean Well
Series

SPU Series
Power Rating

1 Watt
Output Voltage

15 Volt
Rated Current

0.06 Ampere
Input Voltage

4.4V~5.5V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-55°C~125°C
Warranty

3 Year
Length

1.96 cm
Width

1.02 cm
Height

0.71 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SPU01L-15 for low-power 15V instrumentation or control electronics?

This converter is appropriate for low-power instrumentation, automation, or embedded electronics that require 15V constant voltage. The load must stay within the rated 1W output power and 0.07A output current.

Is the SPU01L-15 suitable for a compact analog or monitoring circuit that needs 15V?

It can be used for small analog, monitoring, or interface circuits where 15V is needed as a low-power support rail. The specified input range is 4-5VAC and the output is 15V constant voltage.

Can this model fit embedded automation electronics with limited space?

Yes, for low-power 15V electronics that fit within the converter's 1W and 0.07A limits. Its dimensions are 19.6 × 10.2 × 7.1 mm, which helps in compact embedded assemblies.

Is the SPU01L-15 designed for exposed outdoor use or only protected environments?

The listed operating temperature range is -55°C to +125°C, so it is specified for demanding temperature conditions. No IP rating is provided, so the available specs do not identify it as an outdoor-exposed product.

How does the SPU01L-15 compare with the other output variants in the series?

Within the SPU01L family, the SPU01L-05 is rated 1W with 5V output and 200A, the SPU01L-12 is rated 1W with 12V output and 0.08A, and the SPU01L-15 is rated 1W with 15V output and 0.07A. The family keeps the same 1W format while changing output voltage and rated output current.

Model	Power	Voltage	Current	IP Rating
Mean Well SPU01N-15 DC-DC Converter - 1W - 21.6~26.4V in 15V out	1W	15V	0.06A	—	View
Mean Well SPU01N-12 DC-DC Converter - 1W - 21.6~26.4V in 12V out	1W	12V	0.08A	—	View
Mean Well SPU01N-05 DC-DC Converter - 1W - 21.6~26.4V in 5V out	1W	5V	0.2A	Indoor	View
Mean Well SPU01M-15 DC-DC Converter - 1W - 10.8~13.2V in 15V out	1W	15V	0.06A	Indoor	View
Mean Well SPU01M-12 DC-DC Converter - 1W - 10.8~13.2V in 12V out	1W	12V	0.08A	Indoor	View
Mean Well SPU01M-05 DC-DC Converter - 1W - 10.8~13.2V in 5V out	1W	5V	0.2A	Indoor	View
Mean Well SPU01L-12 DC-DC Converter - 1W - 4.4~5.5V in 12V out	1W	12V	0.08A	Indoor	View
Mean Well SPU01L-05 DC-DC Converter - 1W - 4.4~5.5V in 5V out	1W	5V	0.2A	Indoor	View
