Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

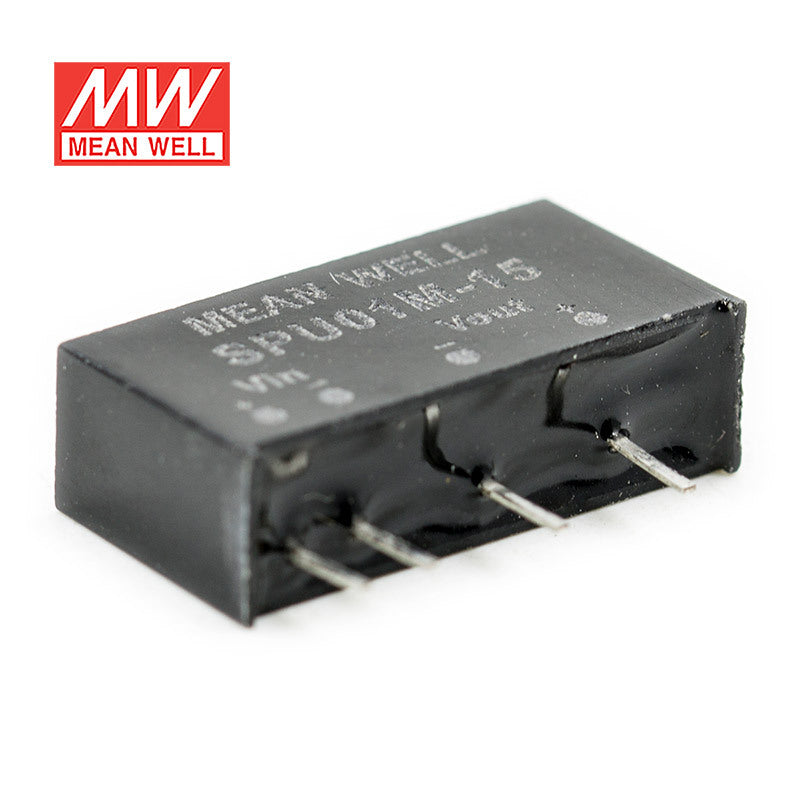

Mean Well SPU01M-15 DC-DC Converter - 1W - 10.8~13.2V in 15V out

SKU:

SPU01M-15

Please for Pricing

Notify me when it's back in stock

Description

Features

SIP6 package with industry-standard pinout

Wide operating temperature range -40~+90°C

High efficiency up to 84%

Comply to BS EN/EN55032 radiated Class A without additional components

Low cost

Protection: Short circuit

1.5KVDC I/O isolation

Low cost

3 years warranty

General Specification

Voltage accuracy	±3.0%
Vibration	10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	1-second max
Working temperature	-40°C to +90°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	5/12Vin models:19.56.110.2mm (0.770.240.40 inch); 24Vin models:19.57.210.2mm (0.770.280.40 inch)
Potting material	UL 94V-0 rated

Specifications

Brand

Mean Well
Series

SPU Series
Power Rating

1 Watt
Output Voltage

15 Volt
Rated Current

0.06 Ampere
Input Voltage

10.8V~13.2V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-55°C~125°C
Warranty

3 Year
Length

1.96 cm
Width

1.02 cm
Height

0.71 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SPU01M-15 to generate 15V for a low-power analog or control circuit?

Yes, this unit is designed to provide a 15V constant-voltage output from a 10.8~13.2V input range. Its 1W power rating and 0.07A output current make it suitable for low-power analog, control, and embedded circuitry.

Is the SPU01M-15 suitable for low-power industrial instrumentation that needs 15V?

It can fit instrumentation or signal-conditioning sections that require 15V and stay within 1W. The published 0.07A output current indicates it is for small electronic loads rather than heavier 15V equipment.

Would this model work well in compact embedded or automation hardware?

Yes, the body size is 19.6 × 10.2 × 7.1 mm and the weight is 0.0027 kg, so it suits compact board-level designs. It is intended for applications that need a low-power 15V rail from a 10.8~13.2V input.

Can the SPU01M-15 be used in systems that face extreme temperature swings?

The specified operating range is -55°C to +125°C. That wide range supports use in low-power 15V electronics placed in harsh temperature environments.

How does the SPU01M-15 differ from the other SPU01M converters?

The SPU01M-15 is the 15V member of the 1W SPU01M series and is rated at 0.07A. Its siblings are SPU01M-05 at 5V and SPU01M-12 at 12V with 0.08A, and all use the same 19.6 × 10.2 × 7.1 mm form factor.

Is this converter rated for indoor or outdoor use?

The available specs define an operating temperature range of -55°C to +125°C, but they do not provide an IP rating. Based on the published data, temperature limits are clear, while exposed outdoor suitability is not stated.

Model	Power	Voltage	Current	IP Rating
Mean Well SPU01N-15 DC-DC Converter - 1W - 21.6~26.4V in 15V out	1W	15V	0.06A	—	View
Mean Well SPU01N-12 DC-DC Converter - 1W - 21.6~26.4V in 12V out	1W	12V	0.08A	—	View
Mean Well SPU01N-05 DC-DC Converter - 1W - 21.6~26.4V in 5V out	1W	5V	0.2A	Indoor	View
Mean Well SPU01M-12 DC-DC Converter - 1W - 10.8~13.2V in 12V out	1W	12V	0.08A	Indoor	View
Mean Well SPU01M-05 DC-DC Converter - 1W - 10.8~13.2V in 5V out	1W	5V	0.2A	Indoor	View
Mean Well SPU01L-15 DC-DC Converter - 1W - 4.4~5.5V in 15V out	1W	15V	0.06A	Indoor	View
Mean Well SPU01L-12 DC-DC Converter - 1W - 4.4~5.5V in 12V out	1W	12V	0.08A	Indoor	View
Mean Well SPU01L-05 DC-DC Converter - 1W - 4.4~5.5V in 5V out	1W	5V	0.2A	Indoor	View
