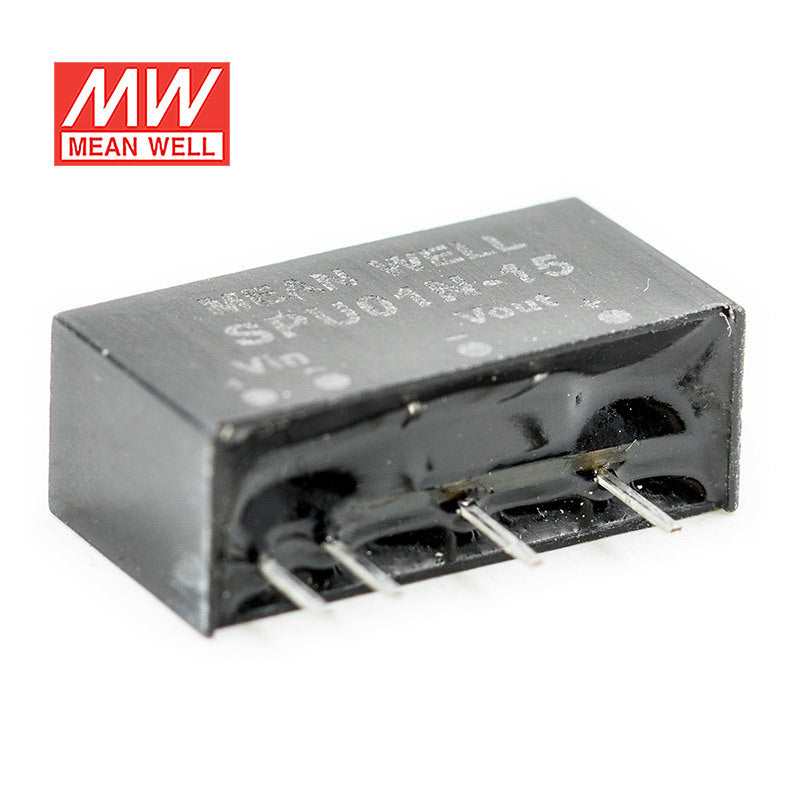

Mean Well SPU01N-15 DC-DC Converter - 1W - 21.6~26.4V in 15V out
Please Login for Pricing
Description
Description
Features
| SIP6 package with industry-standard pinout |
| Wide operating temperature range -40~+90°C |
| High efficiency up to 84% |
| Comply to BS EN/EN55032 radiated Class A without additional components |
| Low cost |
| Protection: Short circuit |
| 1.5KVDC I/O isolation |
| Low cost |
| 3 years warranty |
General Specification
| Voltage accuracy | ±3.0% |
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | 1-second max |
| Working temperature | -40°C to +90°C |
| EMC | Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 5/12Vin models:19.5*6.1*10.2mm (0.77*0.24*0.40 inch); 24Vin models:19.5*7.2*10.2mm (0.77*0.28*0.40 inch) |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesSPU Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~125°C
-
Warranty3 Year
-
Length1.96 cm
-
Width1.02 cm
-
Height0.71 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SPU01 Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SPU01N-12 DC-DC Converter - 1W - 21.6~26.4V in 12V out | 1W | 12V | 0.08A | — | View |
| Mean Well SPU01N-05 DC-DC Converter - 1W - 21.6~26.4V in 5V out | 1W | 5V | 0.2A | Indoor | View |
| Mean Well SPU01M-15 DC-DC Converter - 1W - 10.8~13.2V in 15V out | 1W | 15V | 0.06A | Indoor | View |
| Mean Well SPU01M-12 DC-DC Converter - 1W - 10.8~13.2V in 12V out | 1W | 12V | 0.08A | Indoor | View |
| Mean Well SPU01M-05 DC-DC Converter - 1W - 10.8~13.2V in 5V out | 1W | 5V | 0.2A | Indoor | View |
| Mean Well SPU01L-15 DC-DC Converter - 1W - 4.4~5.5V in 15V out | 1W | 15V | 0.06A | Indoor | View |
| Mean Well SPU01L-12 DC-DC Converter - 1W - 4.4~5.5V in 12V out | 1W | 12V | 0.08A | Indoor | View |
| Mean Well SPU01L-05 DC-DC Converter - 1W - 4.4~5.5V in 5V out | 1W | 5V | 0.2A | Indoor | View |
{
