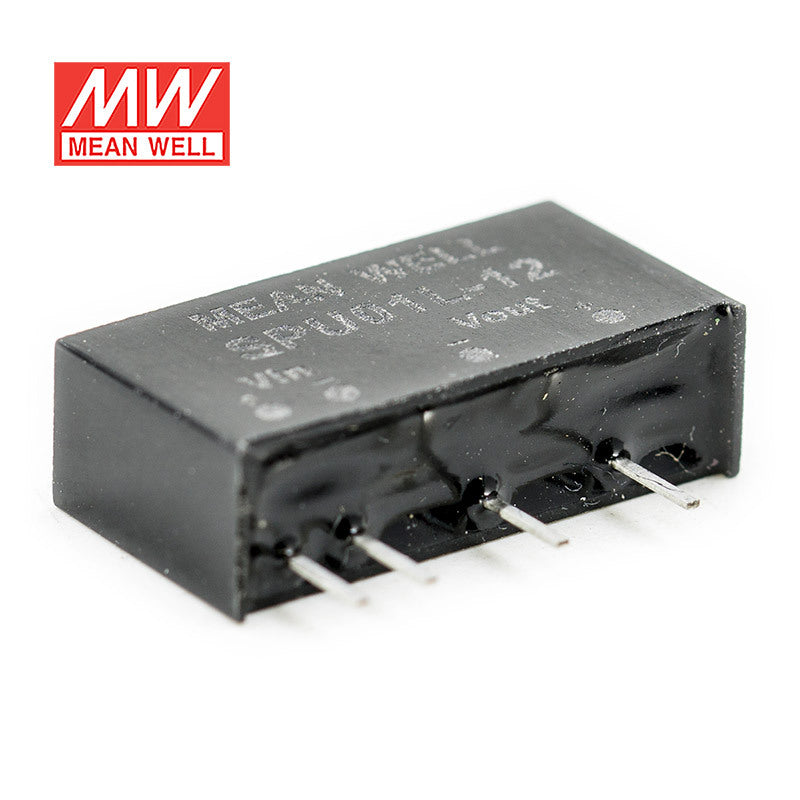

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SPU01L-12 DC-DC Converter - 1W - 4.4~5.5V in 12V out

SKU:

SPU01L-12

Please for Pricing

Notify me when it's back in stock

Description

Features

SIP6 package with industry-standard pinout

Wide operating temperature range -40~+90°C

High efficiency up to 84%

Comply to BS EN/EN55032 radiated Class A without additional components

Low cost

Protection: Short circuit

1.5KVDC I/O isolation

Low cost

3 years warranty

General Specification

Voltage accuracy	±3.0%
Vibration	10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	1-second max
Working temperature	-40°C to +90°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	5/12Vin models:19.56.110.2mm (0.770.240.40 inch); 24Vin models:19.57.210.2mm (0.770.280.40 inch)
Potting material	UL 94V-0 rated

Specifications

Brand

Mean Well
Series

SPU Series
Power Rating

1 Watt
Output Voltage

12 Volt
Rated Current

0.08 Ampere
Input Voltage

4.4V~5.5V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-55°C~125°C
Warranty

3 Year
Length

1.96 cm
Width

1.02 cm
Height

0.71 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SPU01L-12 for low-power industrial control or embedded 12V electronics?

This model can fit low-power industrial, automation, or embedded circuits that need a regulated 12V constant-voltage output. The load should remain within 1W total output power and 0.08A output current.

Is the SPU01L-12 a good match for a compact 12V monitoring or interface board?

It is suitable for small monitoring or interface electronics where 12V is needed as a support rail rather than a higher-power supply. The converter uses the listed 4-5VAC input range and provides 12V constant voltage at up to 0.08A.

Can this unit support low-power sensor processing or panel electronics that run on 12V?

Yes, if the downstream electronics need 12V constant voltage and stay within the 1W and 0.08A limits. Its 19.6 × 10.2 × 7.1 mm dimensions also make it suitable where board space is limited.

Is the SPU01L-12 suitable for outdoor equipment or extreme temperatures?

The operating temperature is specified from -55°C to +125°C, so the temperature range is very wide. No IP rating is listed in the provided specs, so outdoor exposure suitability is not confirmed by the product data here.

What is the difference between the SPU01L-12 and the other SPU01L versions?

The SPU01L-05 is rated 1W with 5V output and 200A, the SPU01L-12 is rated 1W with 12V output and 0.08A, and the SPU01L-15 is rated 1W with 15V output and 0.07A. The series changes the output voltage while staying in the 1W class.

Model	Power	Voltage	Current	IP Rating
Mean Well SPU01N-15 DC-DC Converter - 1W - 21.6~26.4V in 15V out	1W	15V	0.06A	—	View
Mean Well SPU01N-12 DC-DC Converter - 1W - 21.6~26.4V in 12V out	1W	12V	0.08A	—	View
Mean Well SPU01N-05 DC-DC Converter - 1W - 21.6~26.4V in 5V out	1W	5V	0.2A	Indoor	View
Mean Well SPU01M-15 DC-DC Converter - 1W - 10.8~13.2V in 15V out	1W	15V	0.06A	Indoor	View
Mean Well SPU01M-12 DC-DC Converter - 1W - 10.8~13.2V in 12V out	1W	12V	0.08A	Indoor	View
Mean Well SPU01M-05 DC-DC Converter - 1W - 10.8~13.2V in 5V out	1W	5V	0.2A	Indoor	View
Mean Well SPU01L-15 DC-DC Converter - 1W - 4.4~5.5V in 15V out	1W	15V	0.06A	Indoor	View
Mean Well SPU01L-05 DC-DC Converter - 1W - 4.4~5.5V in 5V out	1W	5V	0.2A	Indoor	View
