Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

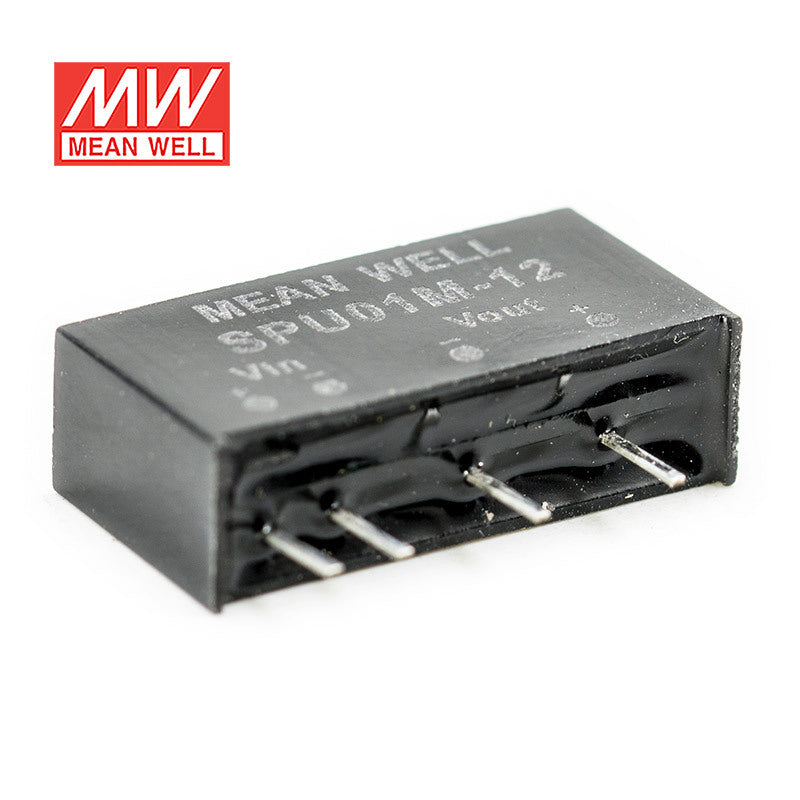

Mean Well SPU01M-12 DC-DC Converter - 1W - 10.8~13.2V in 12V out

SKU:

SPU01M-12

Please for Pricing

Notify me when it's back in stock

Description

Features

SIP6 package with industry-standard pinout

Wide operating temperature range -40~+90°C

High efficiency up to 84%

Comply to BS EN/EN55032 radiated Class A without additional components

Low cost

Protection: Short circuit

1.5KVDC I/O isolation

Low cost

3 years warranty

General Specification

Voltage accuracy	±3.0%
Vibration	10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	1-second max
Working temperature	-40°C to +90°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	5/12Vin models:19.56.110.2mm (0.770.240.40 inch); 24Vin models:19.57.210.2mm (0.770.280.40 inch)
Potting material	UL 94V-0 rated

Specifications

Brand

Mean Well
Series

SPU Series
Power Rating

1 Watt
Output Voltage

12 Volt
Rated Current

0.08 Ampere
Input Voltage

10.8V~13.2V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-55°C~125°C
Warranty

3 Year
Length

1.96 cm
Width

1.02 cm
Height

0.71 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SPU01M-12 to supply 12V control electronics from a 10.8~13.2V source?

Yes, this model provides a 12V constant-voltage output when the input is within 10.8~13.2V. With a 1W rating and 0.08A output current, it is suited to low-power control and embedded loads.

Is the SPU01M-12 a good fit for low-power automation modules that require regulated 12V?

It can be used where the load needs a stable 12V output and stays within 1W. The 0.08A output rating points to lighter-duty automation electronics rather than larger 12V devices.

Can this converter support compact industrial or embedded designs with tight space constraints?

Yes, its 19.6 × 10.2 × 7.1 mm size and 0.0027 kg weight make it suitable for compact assemblies. It is intended for low-power 12V sections inside embedded, IT, or automation hardware.

Would the SPU01M-12 work in equipment exposed to very high or very low operating temperatures?

Its operating temperature range is -55°C to +125°C, which is unusually broad. That makes it appropriate for low-power 12V electronics used in equipment with severe temperature conditions.

What is the difference between the SPU01M-12 and the other SPU01M variants?

The SPU01M-12 is the 12V version in the 1W SPU01M family. The sibling models are SPU01M-05 at 5V and SPU01M-15 at 15V with 0.07A, and all share the same 19.6 × 10.2 × 7.1 mm dimensions.

Can the SPU01M-12 be used outdoors or in unprotected conditions?

The temperature range is specified as -55°C to +125°C, but no IP rating is listed in the provided specs. That means temperature capability is defined, while direct outdoor exposure is not explicitly covered.

Model	Power	Voltage	Current	IP Rating
Mean Well SPU01N-15 DC-DC Converter - 1W - 21.6~26.4V in 15V out	1W	15V	0.06A	—	View
Mean Well SPU01N-12 DC-DC Converter - 1W - 21.6~26.4V in 12V out	1W	12V	0.08A	—	View
Mean Well SPU01N-05 DC-DC Converter - 1W - 21.6~26.4V in 5V out	1W	5V	0.2A	Indoor	View
Mean Well SPU01M-15 DC-DC Converter - 1W - 10.8~13.2V in 15V out	1W	15V	0.06A	Indoor	View
Mean Well SPU01M-05 DC-DC Converter - 1W - 10.8~13.2V in 5V out	1W	5V	0.2A	Indoor	View
Mean Well SPU01L-15 DC-DC Converter - 1W - 4.4~5.5V in 15V out	1W	15V	0.06A	Indoor	View
Mean Well SPU01L-12 DC-DC Converter - 1W - 4.4~5.5V in 12V out	1W	12V	0.08A	Indoor	View
Mean Well SPU01L-05 DC-DC Converter - 1W - 4.4~5.5V in 5V out	1W	5V	0.2A	Indoor	View
