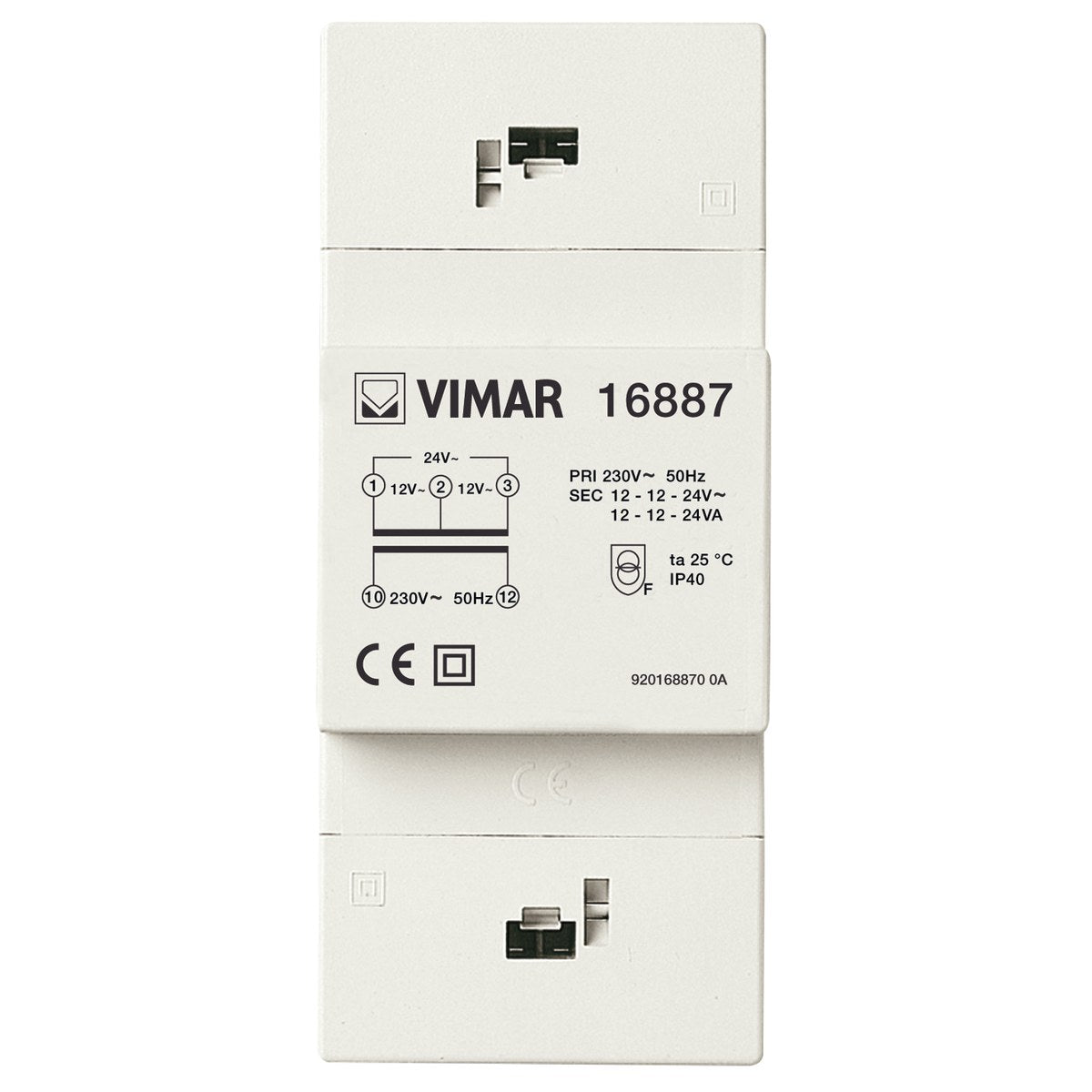

Vimar Safety Transformer 230/12-24V
Please Login for Pricing
Description
Description
Specifications
Specifications
-
BrandVimar
-
SeriesVimar By-me Plus
-
Standards MetCE,EAC,KNX,ROHS,WEEE
-
Operating Temperature-25°C~45°C
-
Warranty3 Year
-
Length14.2 cm
-
Width6.7 cm
-
Height5.9 cm
-
Weight0.66 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Vimar Safety Transformer 230/12-24V used for?
This model is a safety transformer designed for building and smart-home applications where a SELV low-voltage supply is required. It is positioned for DIN rail mounting in control panels and similar electrical enclosures. Its 24 VA rating makes it suited to low-power applications within those systems.
What are the main electrical specifications of this transformer?
The Vimar Safety Transformer VM-16887 is specified as 230/12-24 V~ with SELV output and a 24 VA power rating. It is intended for continuous duty operation. Those specifications make it a dedicated low-voltage transformer rather than a general-purpose power supply.
Is this transformer compatible with standard DIN rail panels?
Yes, this transformer is designed for DIN rail mounting on 60715 TH35 rail. It occupies 3 modules of 17.5 mm each, so panel space requirements are straightforward to plan. This makes it suitable for installations that use standard modular enclosure layouts.
Can this transformer be used in demanding temperature conditions?
This model is rated for operation from -25°C to 45°C. That range supports use in many indoor control cabinet and building-system environments, provided the surrounding installation stays within those limits. Buyers should confirm that their ambient conditions match the stated operating range.
What makes this model different from a generic transformer?
This Vimar unit combines SELV output, continuous-duty operation, and DIN rail form factor in a compact modular design. It also has a defined enclosure footprint of 3 DIN modules and a specified grey RAL 7035 finish for panel consistency. For buyers standardizing on modular building-system components, those product-specific details can matter as much as the voltage rating.
