Mean Well MDS02L-05N SIP Package DC-DC Converter- 2W - 5V out 400mA

Input 4.5~5.5VSIP7 package with international standard pinoutmedical gradelow cost

SKU MDS02L-05N

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

MDS02L-05N is the 5V output model of this series: rated power 2W, typical efficiency 80%.

MDS02-N and MDD02-N series are 2W isolated and unregulated module type medical grade DC-DC converter with SIP7 package. It features international standard pins, a high efficiency up to 86%, wide working temperature range -40~+95℃, 6KVDC I/P-O/P high isolation voltage, short circuit protection, etc. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V /±12V/±15V for dual outputs, which are suitable for medical systems, ultra low leakage current or industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP7 package with international standard pinout
Operating temperature range -40 ~ +95℃
Comply with IEC/UL62368-1 and LVD IEC60601-1
Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
Low patient leakage current <2μA
Protections: Short circuit (Continuous)
6KVDC hight I/O isolation (Reinforced insulation)
Low cost
3 years warranty

Specifications

MDS02L-05NSpecifications from the official datasheet (2024-08-12 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 5V (4.5 ~ 5.5V)
INPUT CURRENT NO LOAD: 40mA
INPUT CURRENT FULL LOAD: 490mA
OUTPUT VOLTAGE: 5V
OUTPUT CURRENT: 40 ~ 400mA
EFFICIENCY (TYP.): 80%
CAPACITOR LOAD (MAX.)^{* For each output}: 1000μF

INPUT

VOLTAGE RANGE: 4.5 ~ 5.5Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 500mA Slow-Blow Type for all models

OUTPUT

VOLTAGE ACCURACY: ±5.0%
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: ±15% for 3.3Vo, 5Vo ; ±10% for others
SWITCHING FREQUENCY (Typ.): 20KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +95℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.02% / ℃ (0 ~ 90℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.6)

SAFETY STANDARDS: IEC62368-1 / UL62368-1, LVD IEC60601-1, EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:6KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION LEVEL: Primary-secondary: 1xMOPP / 2xMOOP when system input voltage is with 250VAC
ISOLATION CAPACITANCE (Typ.): 25pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032, BS EN/EN55011 Class A/B with external components
Radiated BS EN/EN55032, BS EN/EN55011 Class A/B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±4KV contact, Level 3, ±8KV air
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV / 5KHz
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line to Ground
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032, BS EN/EN55011	Class A/B with external components
Radiated	BS EN/EN55032, BS EN/EN55011	Class A/B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±4KV contact, Level 3, ±8KV air
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV / 5KHz
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line to Ground
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 12900Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.7*7.1*11.5mm (0.775*0.279*0.452 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)

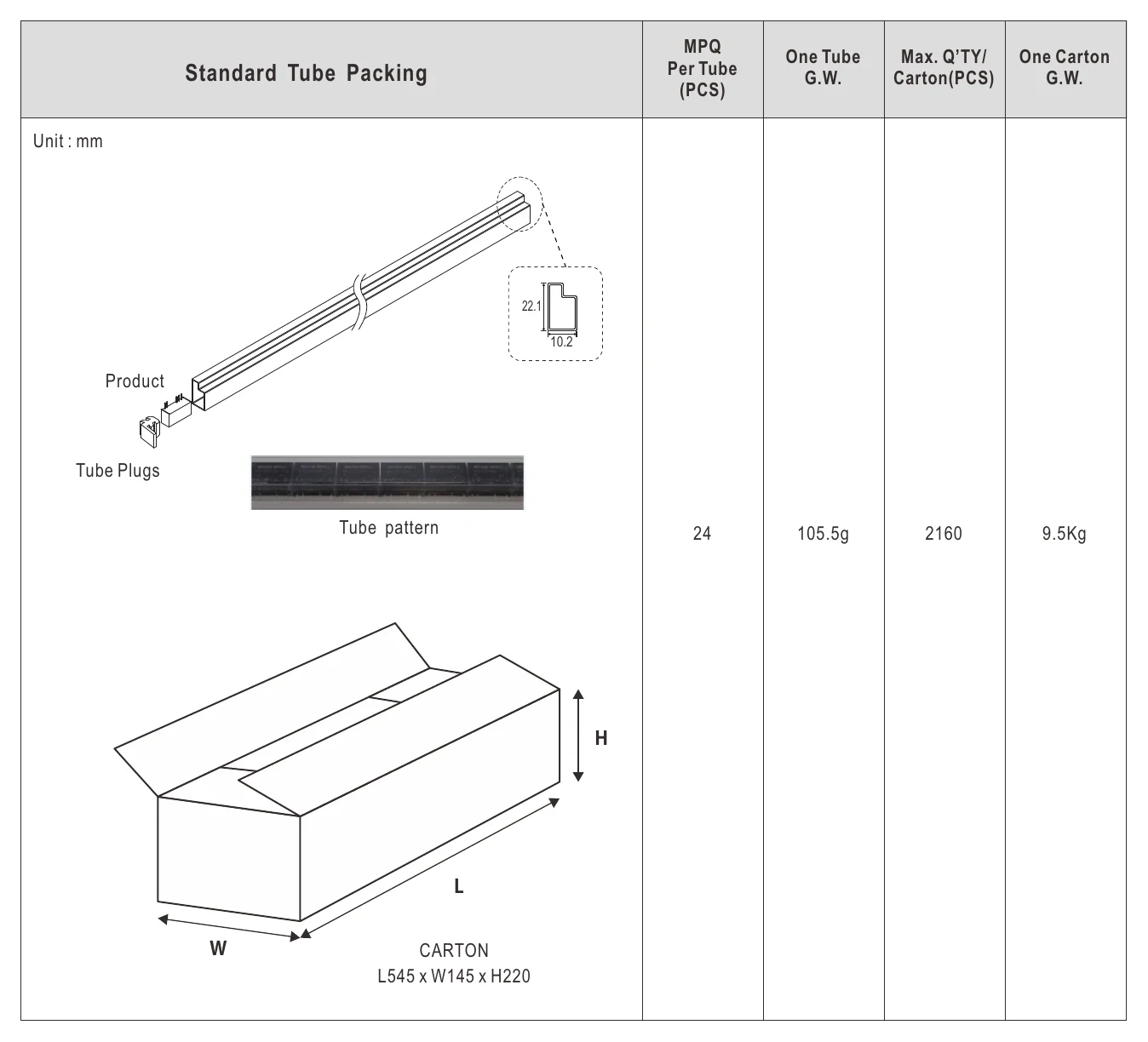

PACKING: 2.8g ; 24pcs/per tube, 2160pcs/90 tube/per carton

Test conditions and notes6

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.Patient leakage current(2μA max.) and reinforced isolation is based on a 250VAC, 50/60Hz system input voltage.
6.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

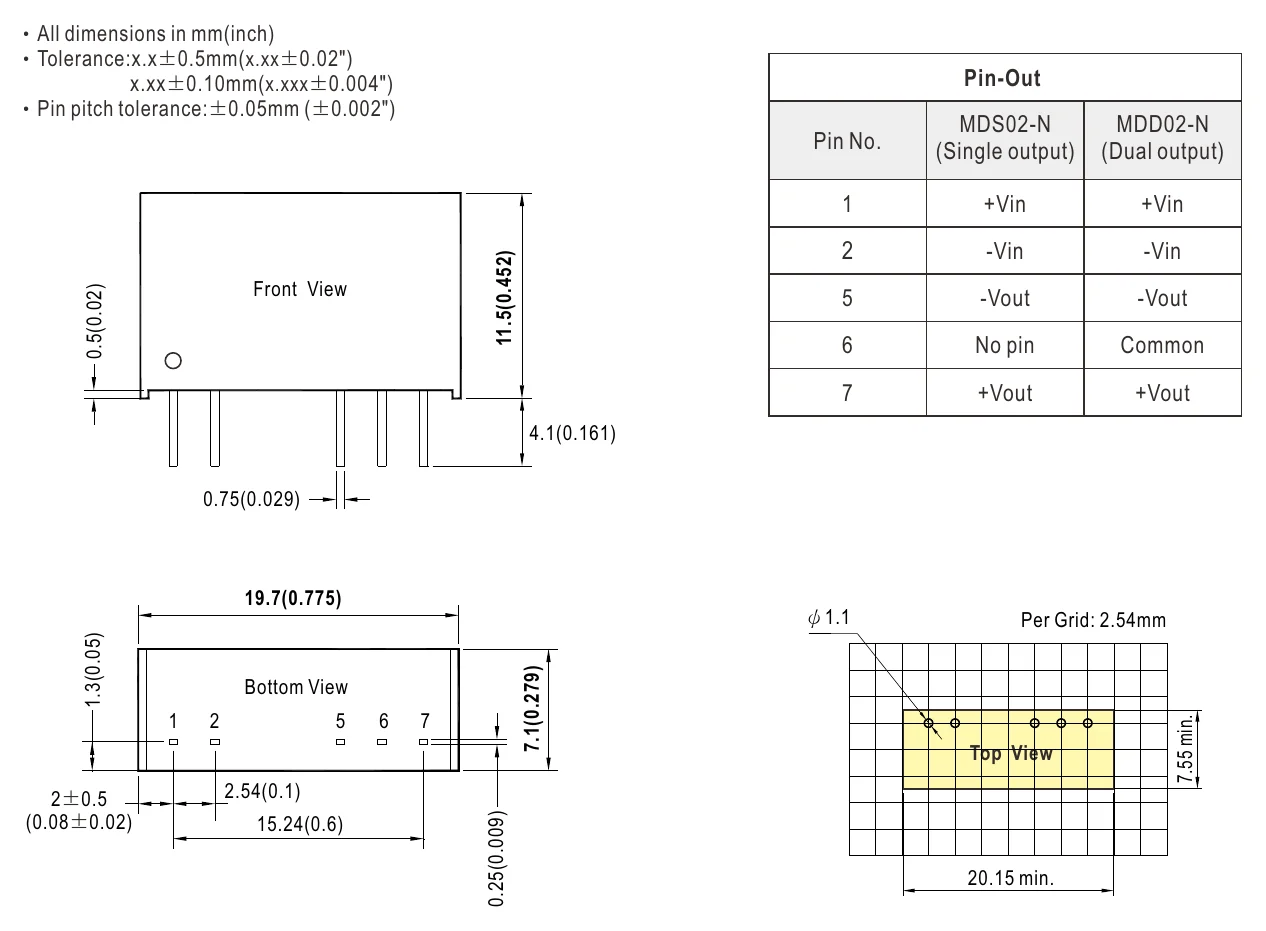

MDS02L-05N Mechanical Specification — Mechanical Specification

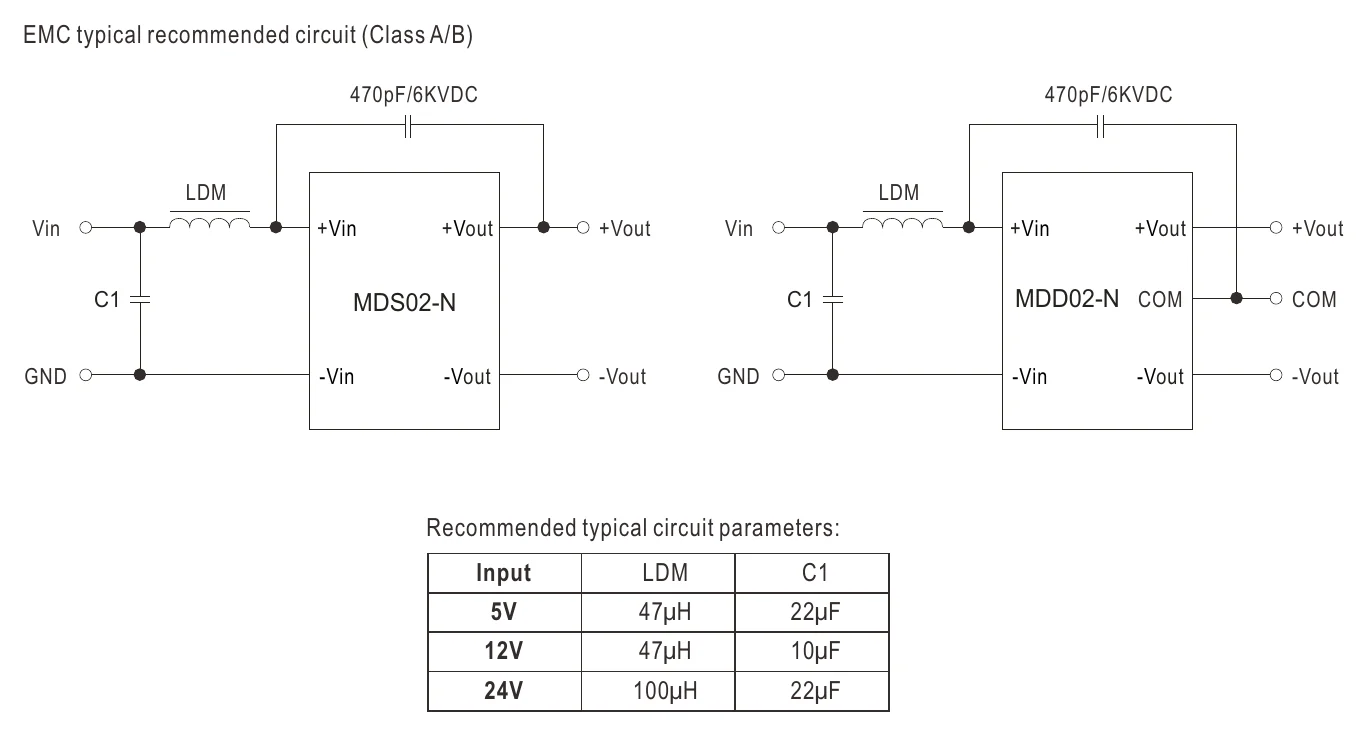

MDS02L-05N EMC Suggestion — EMC Suggestion

Typical applications

Downloads

::specification::

FAQ

What type of product is the Mean Well MDS02L-05N?

The Mean Well MDS02L-05N is a 2W SIP-package DC-DC converter module with a regulated 5V output. It is part of Mean Well's MDS02L series and is designed for compact embedded power applications that need isolated DC conversion.

What are the key output and power specifications of the MDS02L-05N?

This model provides a 5V DC output and is rated for 2W of output power. The listed rated current is 40 mA, and the product is intended for low-power DC-DC conversion in compact electronic designs.

Is the MDS02L-05N suitable for medical or safety-sensitive equipment?

Yes, this model is described as medically safety approved to IEC60601-1 with 1xMOPP/2xMOOP support. It also features reinforced insulation with 6KVDC input-to-output isolation and low patient leakage current below 2 microamps, which makes it relevant for medical-related applications where those approvals matter.

How does the MDS02L-05N perform in harsh temperature environments?

The MDS02L-05N has an operating temperature range of -40°C to +95°C. That wide range makes it suitable for equipment that may face cold starts, enclosed electronics, or demanding industrial operating conditions.

What protection features does the MDS02L-05N include?

This converter includes continuous short-circuit protection for long-duration fault conditions. It also has overload protection that shuts down the output when rated power reaches 102% or higher, then recovers automatically.

What certifications and compliance marks are listed for the MDS02L-05N?

The product lists CB, UL, EAC, CE, and UKCA safety certifications. It is also stated to comply with IEC/UL62368-1 and IEC60601-1, except where noted in the source description for certain output variants.
