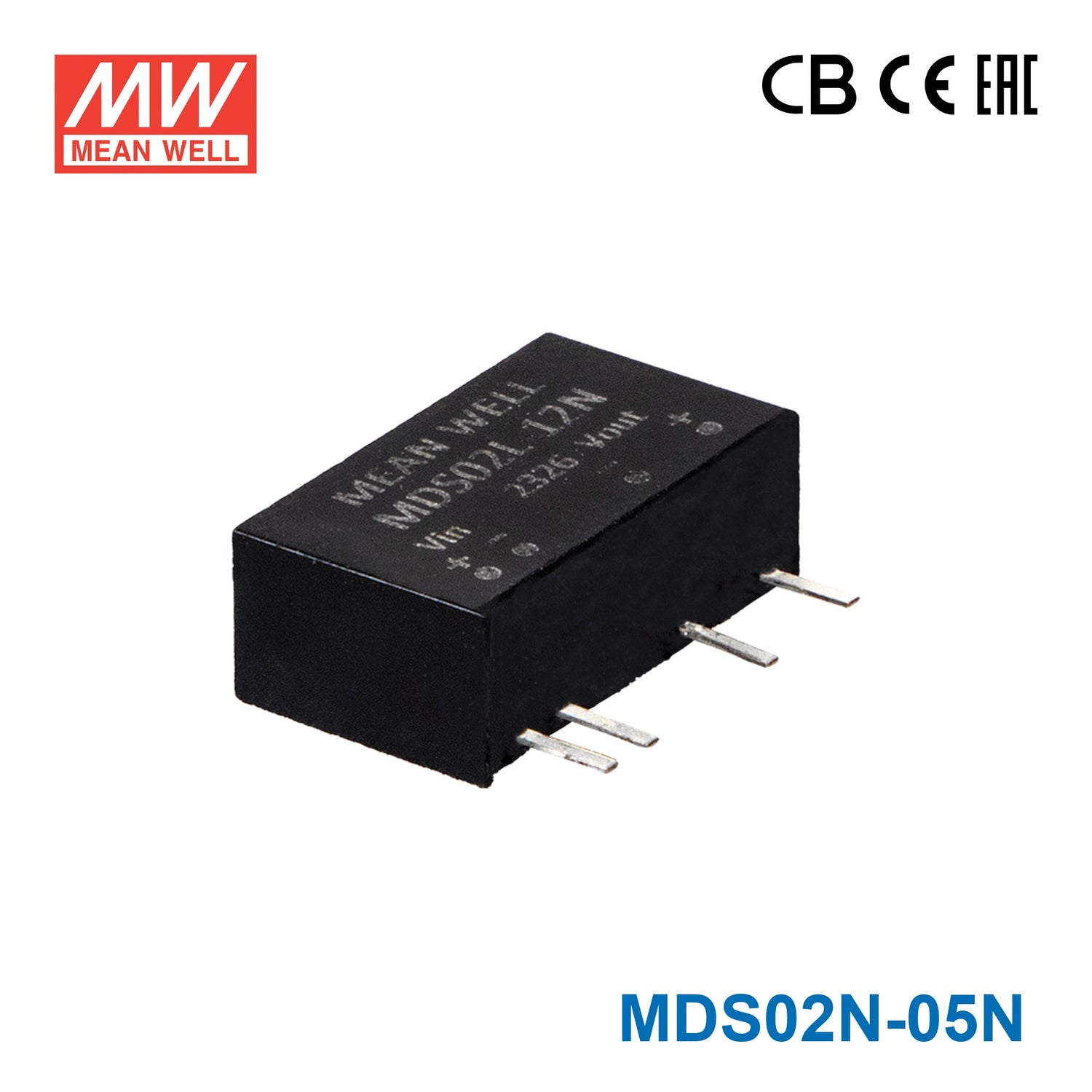

Mean Well MDS02N-05N SIP Package DC-DC Converter- 2W - 5V out 12mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage5 Volt
-
Rated Current0.01 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well MDS02N-05N used for?
The MDS02N-05N is a 2W SIP-package DC-DC converter designed for regulated 5V output in compact embedded equipment. It is suited to space-constrained industrial and medical-related electronic designs that need reinforced isolation and low leakage current.
What are the key electrical ratings of the MDS02N-05N?
This model is rated for 2W output power and provides a 5V DC output. The product family specification shown for this series includes a 5V input version with a 4.5 to 5.5VDC input range, and this model belongs to that MDS series.
Does the MDS02N-05N provide isolation for sensitive applications?
Yes. The MDS series is specified with 6KVDC input-to-output isolation using reinforced insulation, which is a strong differentiator for compact DC-DC modules. It is also described as having low patient leakage current below 2uA and medical safety approval under IEC60601-1.
Is the MDS02N-05N suitable for medical or safety-focused equipment?
Yes, this series is medical safety approved with 1 x MOPP and 2 x MOOP according to IEC60601-1. The listed certifications also include CB, UL, EAC, CE, and UKCA under 62368-1 and 60601-1 standards, making it relevant for designs with stricter safety requirements.
What operating temperatures can the MDS02N-05N handle?
The MDS02N-05N is specified for operation from -40C to +95C. That wide temperature range makes it appropriate for equipment expected to run in both low-temperature and elevated-temperature environments.
What protection features are included in the MDS02N-05N?
This model includes continuous short-circuit protection. The series also specifies overload protection that shuts down the output when rated power reaches at least 102 percent and then automatically recovers.
How compact is the MDS02N-05N for board-level designs?
The converter measures 19.7 x 7.1 x 11.5 mm and weighs 2.8 g. Its SIP7 package and small footprint make it a practical choice where PCB space and component height are limited.
