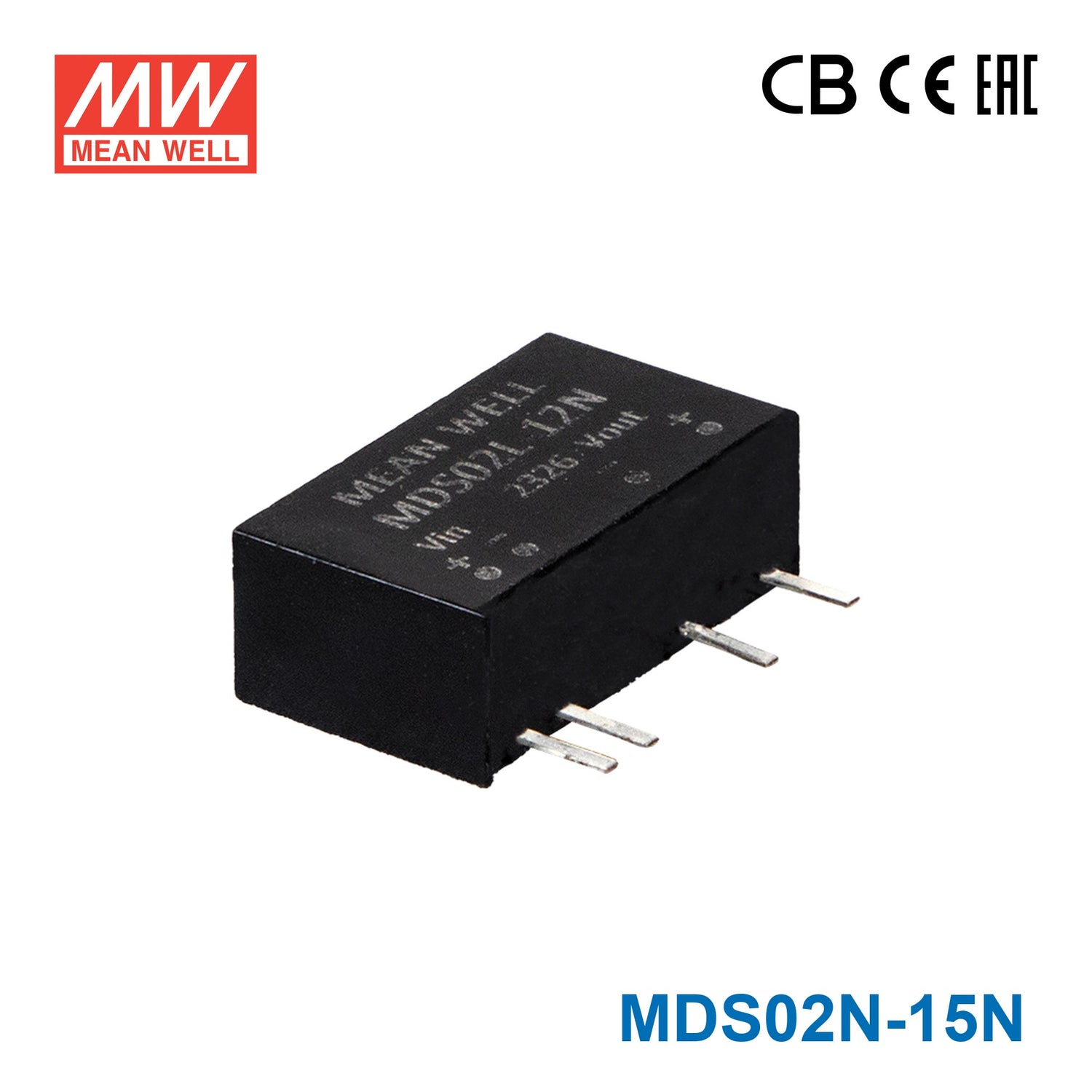

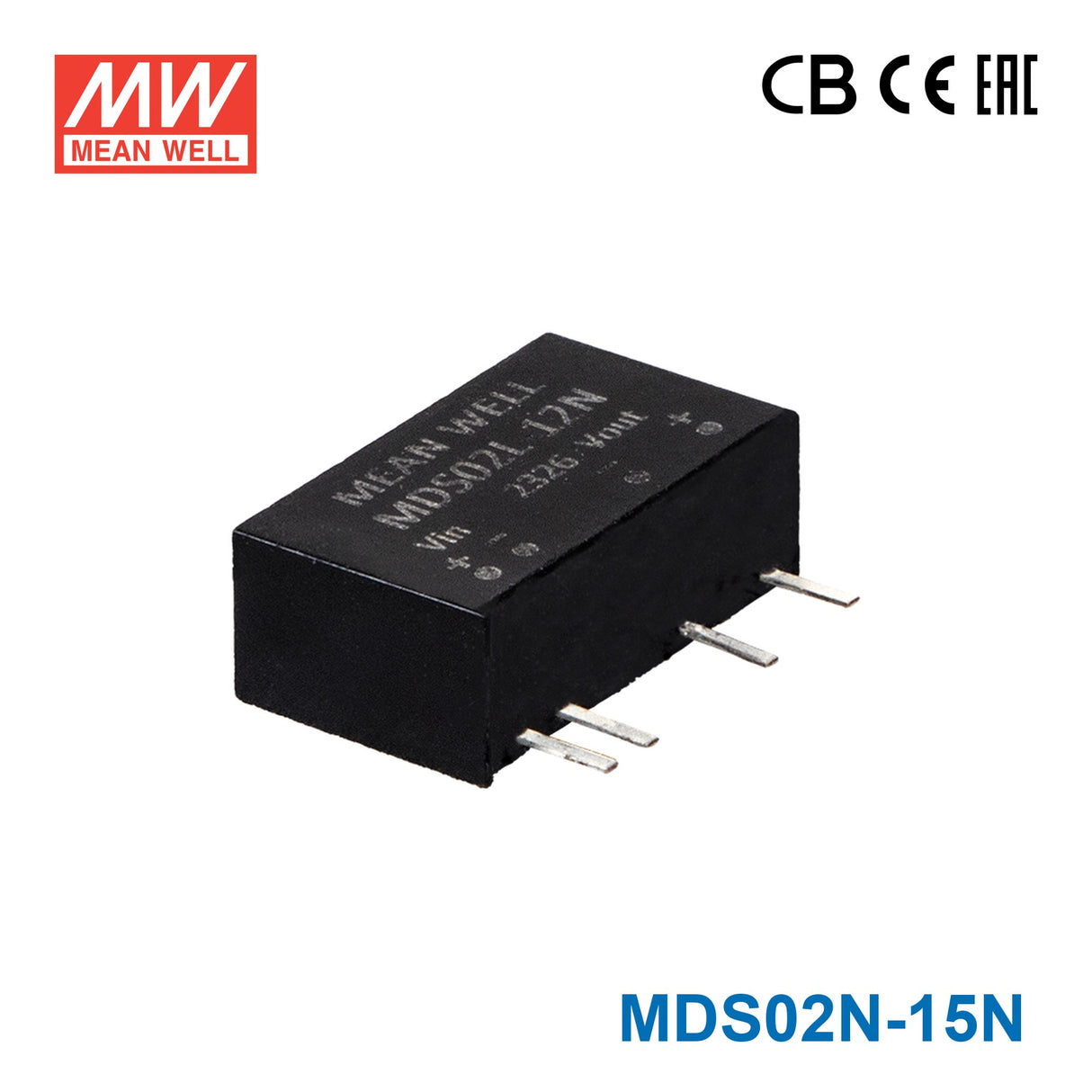

Mean Well MDS02N-15N SIP Package DC-DC Converter- 2W - 15V Out 133mA

Input 21.6~26.4VSIP7 package with international standard pinoutmedical gradelow cost

SKU MDS02N-15N

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

MDS02N-15N is the 15V output model of this series: rated power 2W, typical efficiency 85%.

MDS02-N and MDD02-N series are 2W isolated and unregulated module type medical grade DC-DC converter with SIP7 package. It features international standard pins, a high efficiency up to 86%, wide working temperature range -40~+95℃, 6KVDC I/P-O/P high isolation voltage, short circuit protection, etc. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V /±12V/±15V for dual outputs, which are suitable for medical systems, ultra low leakage current or industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP7 package with international standard pinout
Operating temperature range -40 ~ +95℃
Comply with IEC/UL62368-1 and LVD IEC60601-1
Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
Low patient leakage current <2μA
Protections: Short circuit (Continuous)
6KVDC hight I/O isolation (Reinforced insulation)
Low cost
3 years warranty

Specifications

MDS02N-15NSpecifications from the official datasheet (2024-08-12 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 24V (21.6 ~ 26.4V)
INPUT CURRENT NO LOAD: 12mA
INPUT CURRENT FULL LOAD: 98mA
OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 13 ~ 134mA
EFFICIENCY (TYP.): 85%
CAPACITOR LOAD (MAX.)^{* For each output}: 330μF

INPUT

VOLTAGE RANGE: 21.6 ~ 26.4Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 500mA Slow-Blow Type for all models

OUTPUT

VOLTAGE ACCURACY: ±5.0%
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: ±15% for 3.3Vo, 5Vo ; ±10% for others
SWITCHING FREQUENCY (Typ.): 20KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +95℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.02% / ℃ (0 ~ 90℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.6)

SAFETY STANDARDS: IEC62368-1 / UL62368-1, LVD IEC60601-1, EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:6KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION LEVEL: Primary-secondary: 1xMOPP / 2xMOOP when system input voltage is with 250VAC
ISOLATION CAPACITANCE (Typ.): 25pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032, BS EN/EN55011 Class A/B with external components
Radiated BS EN/EN55032, BS EN/EN55011 Class A/B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±4KV contact, Level 3, ±8KV air
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV / 5KHz
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line to Ground
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032, BS EN/EN55011	Class A/B with external components
Radiated	BS EN/EN55032, BS EN/EN55011	Class A/B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±4KV contact, Level 3, ±8KV air
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV / 5KHz
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line to Ground
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 12900Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.7*7.1*11.5mm (0.775*0.279*0.452 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 2.8g ; 24pcs/per tube, 2160pcs/90 tube/per carton

Test conditions and notes6

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.Patient leakage current(2μA max.) and reinforced isolation is based on a 250VAC, 50/60Hz system input voltage.
6.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

MDS02N-15N Mechanical Specification — Mechanical Specification

MDS02N-15N EMC Suggestion — EMC Suggestion

Typical applications

Downloads

::specification::

FAQ

What is the Mean Well MDS02N-15N designed for?

The MDS02N-15N is a 2W SIP-package, medical grade unregulated DC-DC converter with a 15V DC output for compact embedded power designs. Its reinforced 6KVDC input-to-output isolation and medical safety approval make it relevant for industrial and medical-related equipment where isolation and board space matter.

What are the key output and power specifications of the MDS02N-15N?

This model provides a single 15V DC output and is rated for 2W. The output current range is 13 to 134mA, and it is part of Mean Well's MDS02-N/MDD02-N series of SIP-package isolated DC-DC converters.

What input voltage range does the MDS02N-15N support?

The MDS02N-15N is the 24V nominal input version, with a stated input range of 21.6 to 26.4V DC. The series also offers 5V (4.5 to 5.5V) and 12V (10.8 to 13.2V) input versions under other model codes, so choose the input code that matches your system supply.

Is the MDS02N-15N suitable for medical or safety-sensitive equipment?

Yes, this converter is medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP (for a system input voltage within 250VAC) and a patient leakage current of 2μA max. It is also approved to IEC62368-1/UL62368-1 and EAC TP TC 020/2011.

How does the MDS02N-15N perform in harsh temperature environments?

The MDS02N-15N is rated for operation from -40°C to +95°C with free-air convection cooling, with load derating at higher ambient temperatures per the derating curve. That wide temperature range helps it fit applications where standard commercial-temperature converters may be too limited.

What protection features are included in the MDS02N-15N?

This model includes continuous short-circuit protection with automatic recovery once the fault is removed. For input protection, Mean Well recommends an external 500mA slow-blow fuse.
