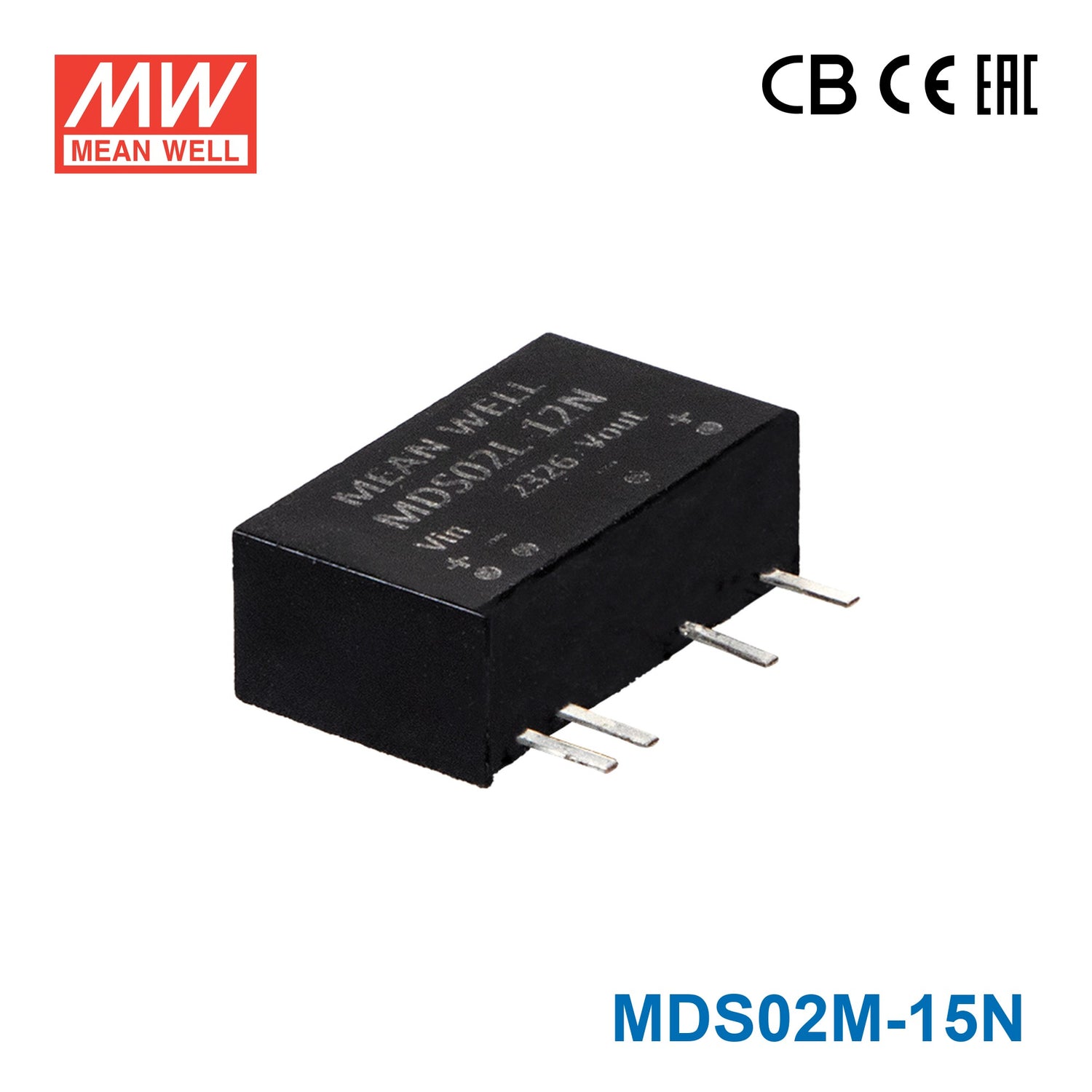

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well MDS02M-15N SIP Package DC-DC Converter- 2W - 15V Out 133mA

Input 10.8~13.2VSIP7 package with international standard pinoutmedical gradelow cost

SKU MDS02M-15N

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

MDS02M-15N is the 15V output model of this series: rated power 2W, typical efficiency 83%.

MDS02-N and MDD02-N series are 2W isolated and unregulated module type medical grade DC-DC converter with SIP7 package. It features international standard pins, a high efficiency up to 86%, wide working temperature range -40~+95℃, 6KVDC I/P-O/P high isolation voltage, short circuit protection, etc. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V /±12V/±15V for dual outputs, which are suitable for medical systems, ultra low leakage current or industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP7 package with international standard pinout
Operating temperature range -40 ~ +95℃
Comply with IEC/UL62368-1 and LVD IEC60601-1
Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
Low patient leakage current <2μA
Protections: Short circuit (Continuous)
6KVDC hight I/O isolation (Reinforced insulation)
Low cost
3 years warranty

Specifications

MDS02M-15NSpecifications from the official datasheet (2024-08-12 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 12V (10.8 ~ 13.2V)
INPUT CURRENT NO LOAD: 23mA
INPUT CURRENT FULL LOAD: 200mA
OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 13 ~ 134mA
EFFICIENCY (TYP.): 83%
CAPACITOR LOAD (MAX.)^{* For each output}: 330μF

INPUT

VOLTAGE RANGE: 10.8 ~ 13.2Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 500mA Slow-Blow Type for all models

OUTPUT

VOLTAGE ACCURACY: ±5.0%
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: ±15% for 3.3Vo, 5Vo ; ±10% for others
SWITCHING FREQUENCY (Typ.): 20KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +95℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.02% / ℃ (0 ~ 90℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.6)

SAFETY STANDARDS: IEC62368-1 / UL62368-1, LVD IEC60601-1, EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:6KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION LEVEL: Primary-secondary: 1xMOPP / 2xMOOP when system input voltage is with 250VAC
ISOLATION CAPACITANCE (Typ.): 25pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032, BS EN/EN55011 Class A/B with external components
Radiated BS EN/EN55032, BS EN/EN55011 Class A/B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±4KV contact, Level 3, ±8KV air
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV / 5KHz
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line to Ground
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032, BS EN/EN55011	Class A/B with external components
Radiated	BS EN/EN55032, BS EN/EN55011	Class A/B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±4KV contact, Level 3, ±8KV air
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV / 5KHz
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line to Ground
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 12900Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.7*7.1*11.5mm (0.775*0.279*0.452 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 2.8g ; 24pcs/per tube, 2160pcs/90 tube/per carton

Test conditions and notes6

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.Patient leakage current(2μA max.) and reinforced isolation is based on a 250VAC, 50/60Hz system input voltage.
6.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

MDS02M-15N Mechanical Specification — Mechanical Specification

MDS02M-15N EMC Suggestion — EMC Suggestion

Typical applications

Downloads

::specification::

FAQ

What is the Mean Well MDS02M-15N used for?

The MDS02M-15N is a 2W SIP-package, medical grade unregulated DC-DC converter with a 15V DC output for compact electronic equipment. It is suited to space-constrained OEM and industrial designs where reinforced isolation and a small footprint are important.

What are the key electrical specifications of the MDS02M-15N?

This model provides a single 15V DC output with a 2W power rating and an output current range of 13 to 134mA. It belongs to the MDS02-N/MDD02-N series, which is offered in multiple input ranges; this SKU is the 12V nominal (10.8 to 13.2V) input, 15V output variant.

Is the MDS02M-15N suitable for medical or safety-critical equipment?

This converter is medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP, and it is also approved to IEC62368-1/UL62368-1 as listed for the series. It features 6KVDC input-to-output isolation and a patient leakage current of 2μA max, which makes it relevant for medical-related applications that require reinforced insulation.

What protection features does the MDS02M-15N include?

The MDS02M-15N includes continuous short-circuit protection with automatic recovery. Mean Well also recommends an external 500mA slow-blow fuse on the input.

What operating environment is the MDS02M-15N designed for?

This model is rated for an operating temperature range of -40°C to +95°C, with load derating at higher temperatures per the derating curve. That wide temperature capability makes it appropriate for demanding industrial and embedded applications where environmental conditions may vary significantly.

How compact is the Mean Well MDS02M-15N?

The converter is built in a SIP package with dimensions of 19.7 x 7.1 x 11.5 mm and a weight of 2.8 g. Its compact size helps support dense PCB layouts and small-form-factor equipment designs.
