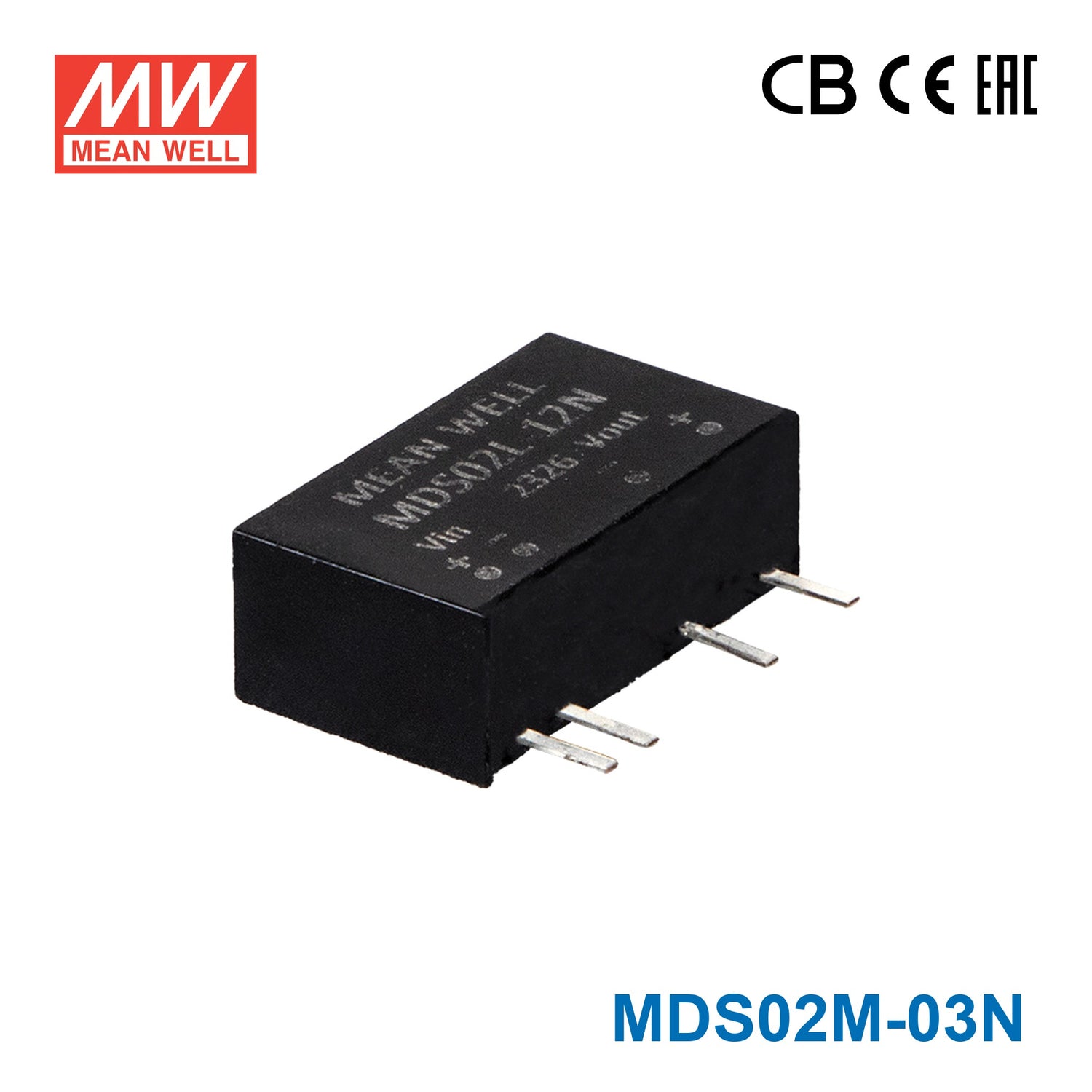

Mean Well MDS02M-03N SIP Package DC-DC Converter- 2W - 3.3V out 28mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.02 Ampere
-
Input Voltage10.8V~13.2V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well MDS02M-03N designed for?
The MDS02M-03N is a 2W SIP-package DC-DC converter intended for compact embedded power conversion in space-constrained equipment. This model provides a 3.3V output and is suited to B2B and industrial designs that need reinforced isolation and approved safety coverage.
What are the key electrical specifications of the MDS02M-03N?
This model is rated for 2W output power and provides a 3.3V output. The listed rated current is 28 mA, and the product is part of Mean Well's MDS-MDD SIP7 DC-DC converter family.
Is the MDS02M-03N suitable for medical or safety-sensitive equipment?
Yes. The series is described as medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP coverage, and it also complies with IEC/UL62368-1 except for the 15Vo and +/-15Vo versions. It also specifies low patient leakage current below 2 uA and 6KVDC input-to-output isolation with reinforced insulation.
How does the MDS02M-03N handle harsh operating environments?
The MDS02M-03N is specified for an operating temperature range of -40C to +95C, making it appropriate for demanding industrial environments. Its compact SIP7 form factor also supports use in dense assemblies where board space is limited.
What protection features does the MDS02M-03N include?
This model includes continuous short-circuit protection for long-duration fault conditions. The series also provides overload protection that shuts down the output when rated power reaches 102% or higher, then recovers automatically.
How compact is the MDS02M-03N compared with other isolated DC-DC converter formats?
The MDS02M-03N uses a SIP7 package with dimensions of 19.7 x 7.1 x 11.5 mm and a weight of 2.8 g. Compared with larger board-mount converter formats, this makes it a compact option for applications where isolation and small size both matter.
