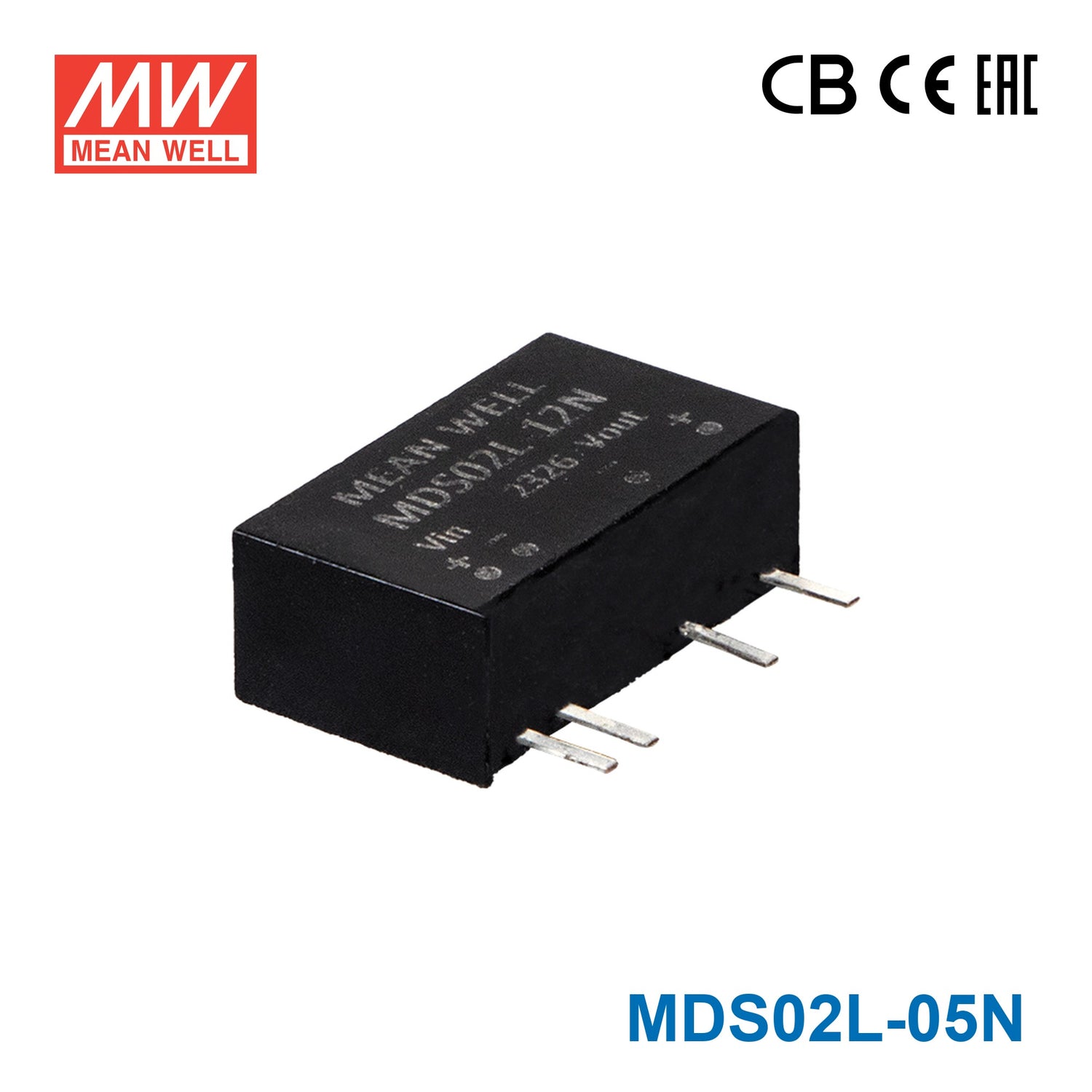

Mean Well MDS02L-05N SIP Package DC-DC Converter- 2W - 5V out 40mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage5 Volt
-
Rated Current0.04 Ampere
-
Input Voltage4.5V~5.5V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of product is the Mean Well MDS02L-05N?
The Mean Well MDS02L-05N is a 2W SIP-package DC-DC converter module with a regulated 5V output. It is part of Mean Well's MDS02L series and is designed for compact embedded power applications that need isolated DC conversion.
What are the key output and power specifications of the MDS02L-05N?
This model provides a 5V DC output and is rated for 2W of output power. The listed rated current is 40 mA, and the product is intended for low-power DC-DC conversion in compact electronic designs.
Is the MDS02L-05N suitable for medical or safety-sensitive equipment?
Yes, this model is described as medically safety approved to IEC60601-1 with 1xMOPP/2xMOOP support. It also features reinforced insulation with 6KVDC input-to-output isolation and low patient leakage current below 2 microamps, which makes it relevant for medical-related applications where those approvals matter.
How does the MDS02L-05N perform in harsh temperature environments?
The MDS02L-05N has an operating temperature range of -40°C to +95°C. That wide range makes it suitable for equipment that may face cold starts, enclosed electronics, or demanding industrial operating conditions.
What protection features does the MDS02L-05N include?
This converter includes continuous short-circuit protection for long-duration fault conditions. It also has overload protection that shuts down the output when rated power reaches 102% or higher, then recovers automatically.
What certifications and compliance marks are listed for the MDS02L-05N?
The product lists CB, UL, EAC, CE, and UKCA safety certifications. It is also stated to comply with IEC/UL62368-1 and IEC60601-1, except where noted in the source description for certain output variants.
