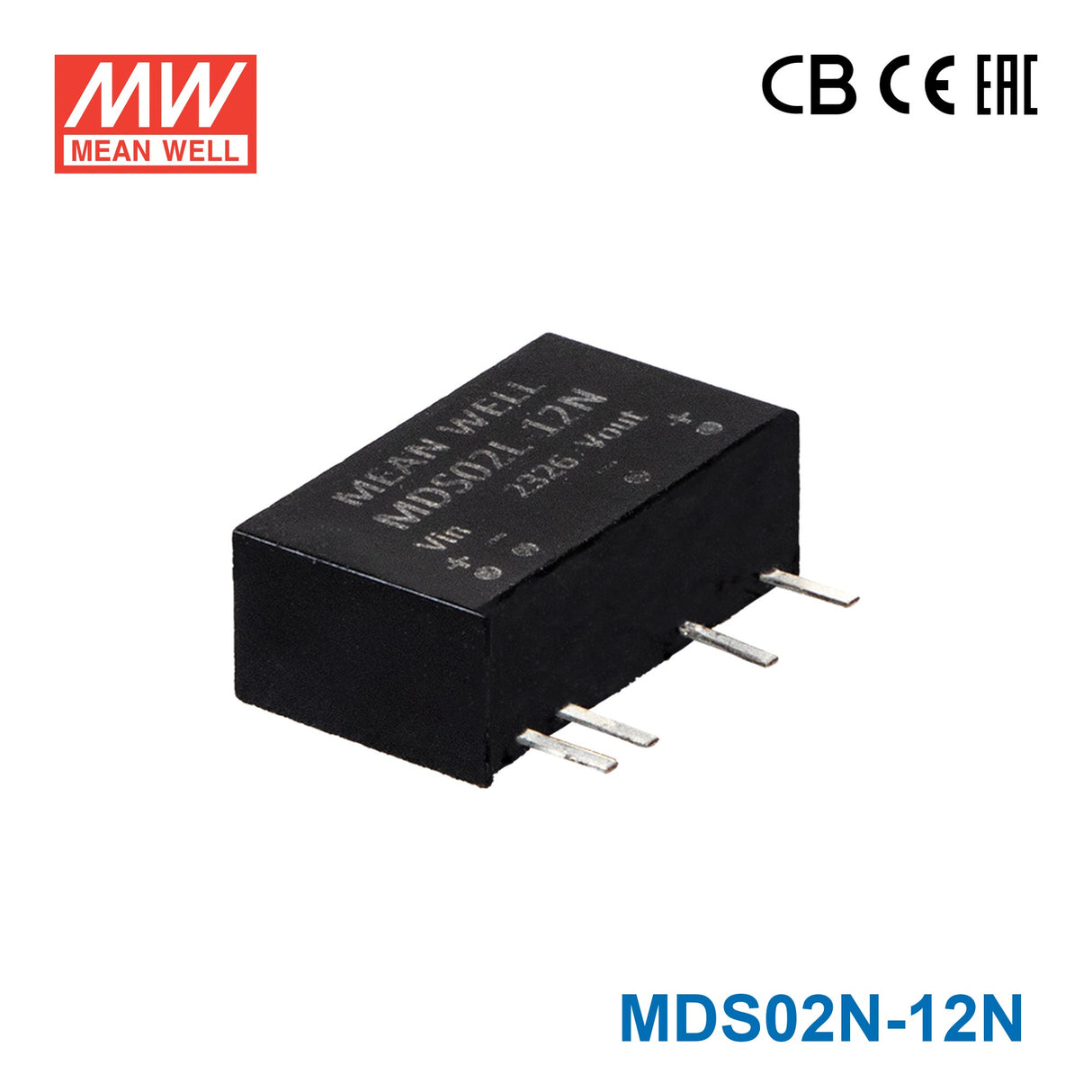

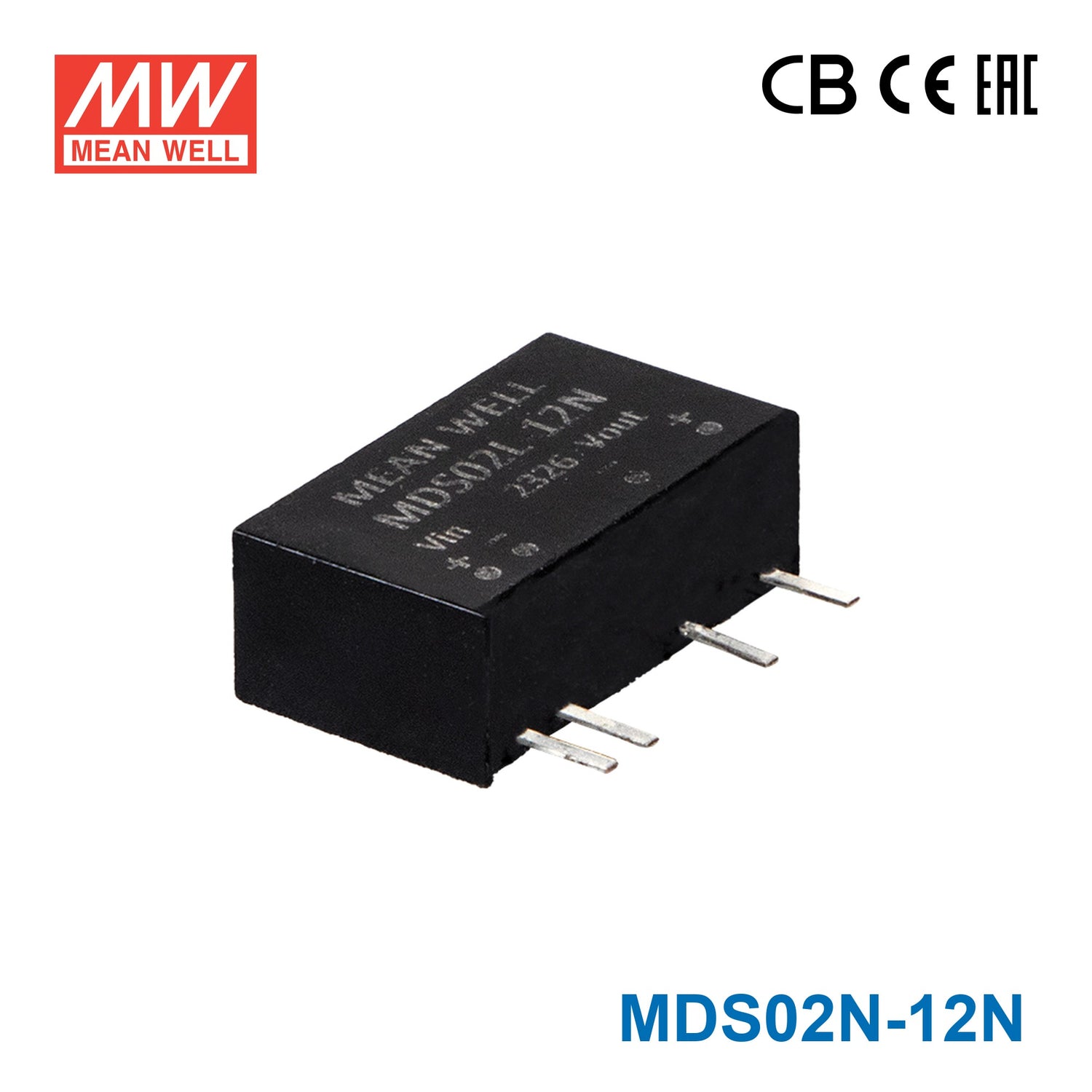

Mean Well MDS02N-12N SIP Package DC-DC Converter- 2W - 12V Out 12mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage12 Volt
-
Rated Current0.01 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well MDS02N-12N used for?
The MDS02N-12N is a 2W SIP-package DC-DC converter intended for compact embedded power applications that need a regulated 12V output. Its reinforced 6KVDC input-to-output isolation and medical safety approvals make it relevant for industrial and medical-related equipment where isolation and safety matter.
What are the key electrical specifications of the MDS02N-12N?
This model is rated for 2W output power and provides a 12V DC output. The listed rated current is 12 mA, and the 12V input version operates over a 10.8 to 13.2V DC input range.
Is the MDS02N-12N suitable for medical or safety-sensitive equipment?
Yes, this series is described as medical safety approved to IEC60601-1 with 1xMOPP and 2xMOOP. It also lists low patient leakage current below 2 microamps and compliance with IEC/UL62368-1 and LVD IEC60601-1, which supports use in applications with stricter safety requirements.
How does the MDS02N-12N perform in harsh temperature conditions?
The MDS02N-12N has an operating temperature range of -40°C to +95°C. That wide range makes it a practical option for equipment exposed to cold starts, elevated internal enclosure temperatures, or other demanding operating environments.
What protection features does the MDS02N-12N include?
This converter includes continuous short-circuit protection for long-duration fault conditions. It also provides overload protection by shutting down the output when rated power reaches 102% or more, then recovering automatically.
Why would a buyer choose the MDS02N-12N over a non-isolated compact converter?
A main differentiator is its 6KVDC input-to-output isolation with reinforced insulation in a compact SIP7 package. Buyers comparing isolated versus non-isolated options may choose this model when safety approvals, isolation performance, and small size are more important than using a basic low-cost converter.
