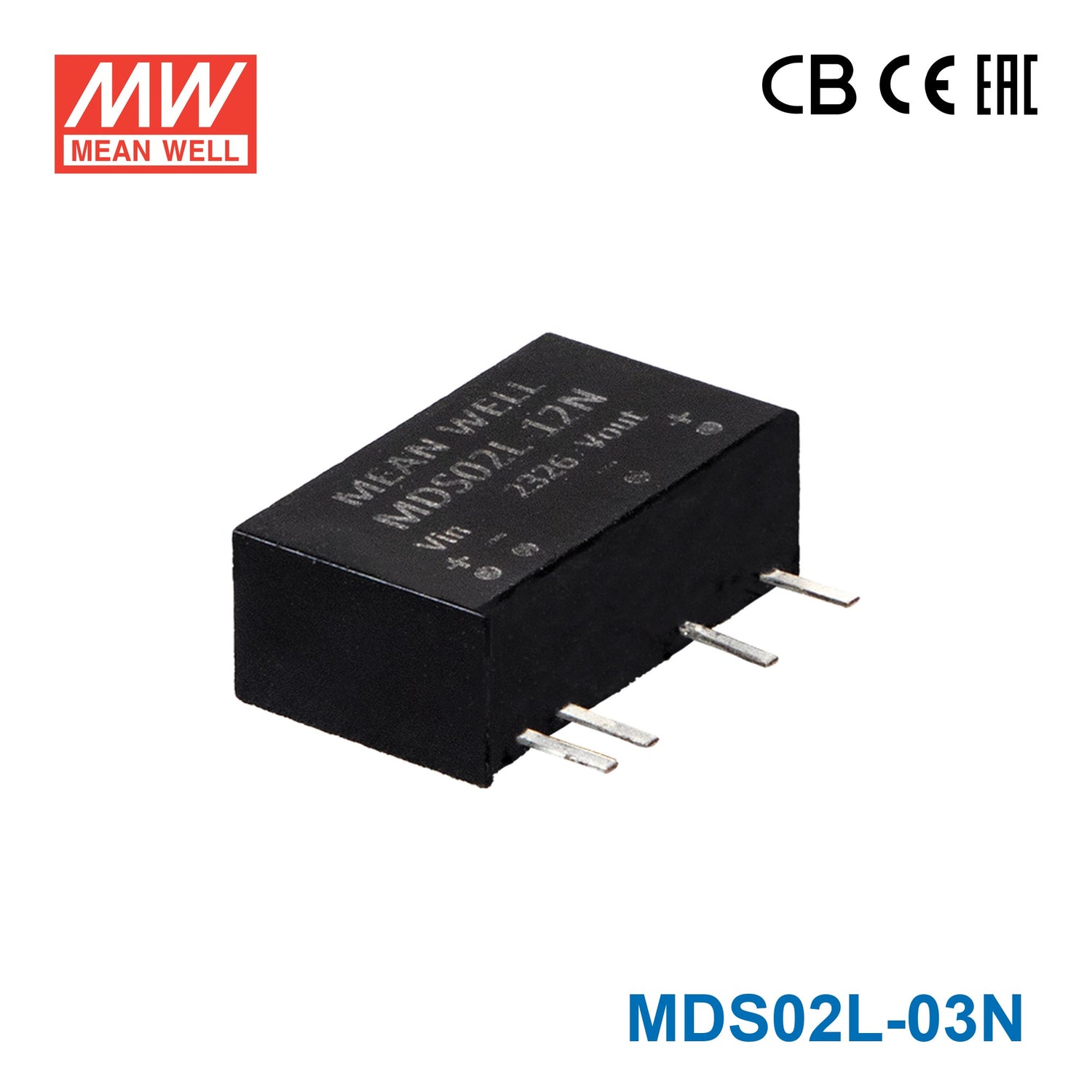

Mean Well MDS02L-03N SIP Package DC-DC Converter- 2W - 3.3V out 40mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.04 Ampere
-
Input Voltage4.5V~5.5V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well MDS02L-03N designed for?
The Mean Well MDS02L-03N is a 2W SIP package DC-DC converter for applications that need a regulated 3.3V DC output in a compact module format. It is suited to space-constrained electronic equipment where reinforced isolation and certified safety performance are important.
What are the key electrical specifications of the MDS02L-03N?
This model is rated for 2W output power and provides a 3.3V DC output. The listed rated current is 40 mA, and the product belongs to Mean Well's MDS02L series in a SIP7 package.
Is the MDS02L-03N suitable for medical or safety-sensitive equipment?
Yes. The product description states it is medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP and has low patient leakage current below 2 microamps. It also complies with IEC/UL62368-1 and carries CB, UL, EAC, CE, and UKCA safety certifications.
How much isolation does the MDS02L-03N provide?
The MDS02L-03N is specified with 6KVDC input-to-output isolation. The description identifies this as reinforced insulation, which helps differentiate it from lower-isolation DC-DC converter modules.
What operating environment can the MDS02L-03N handle?
This converter is rated for an operating temperature range of -40°C to +95°C. That makes it suitable for demanding industrial and embedded environments where wide temperature tolerance is required.
Does the MDS02L-03N include built-in protection features?
Yes. It includes continuous short-circuit protection and overload protection that shuts down the output when rated power reaches 102% or more, then automatically recovers. These protections help support reliability in normal equipment operation.
