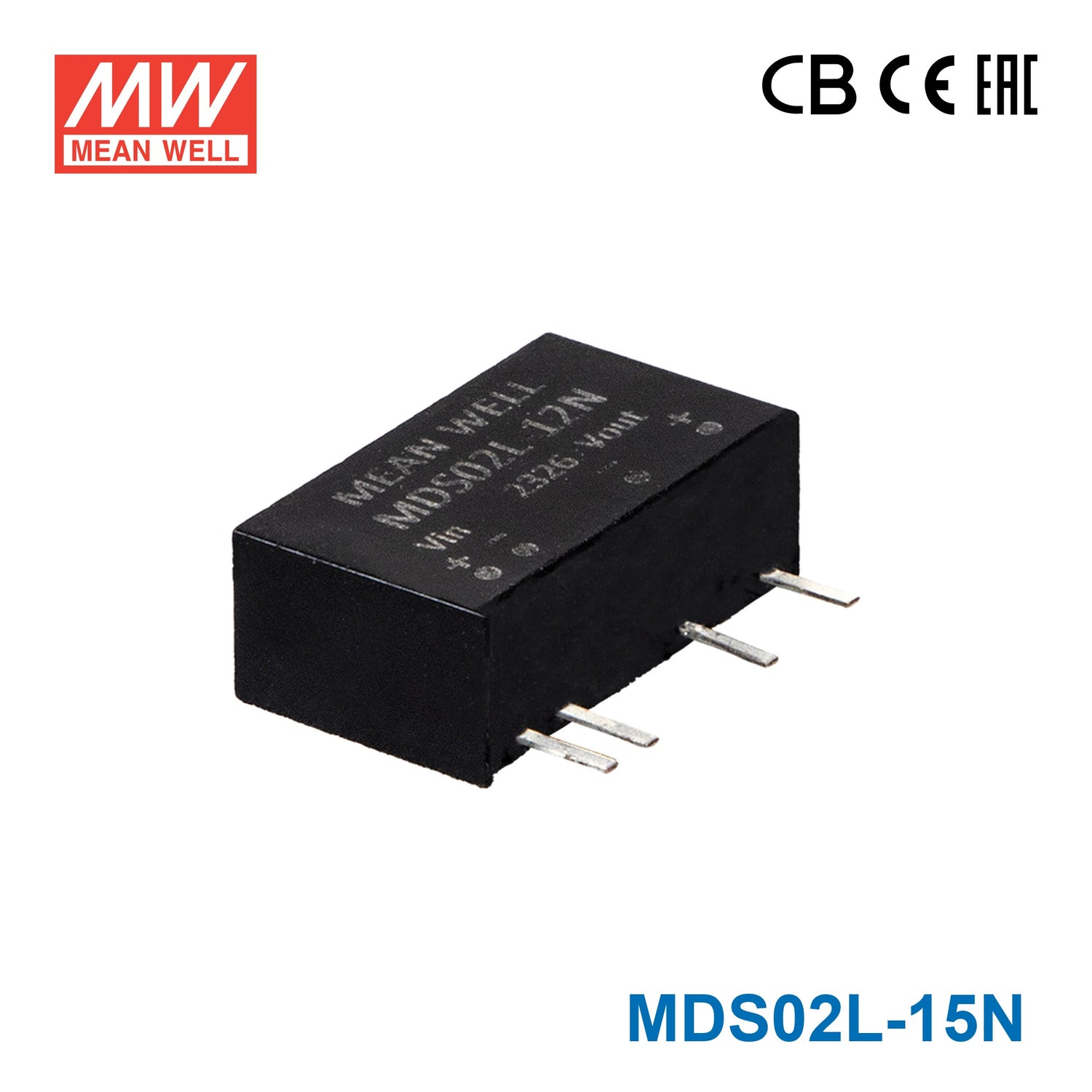

Mean Well MDS02L-15N SIP Package DC-DC Converter- 2W - 15V Out 40mA
Please Login for Pricing
Description
Description
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.04 Ampere
-
Input Voltage4.5V~5.5V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.97 cm
-
Width0.71 cm
-
Height1.15 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well MDS02L-15N used for?
The MDS02L-15N is a 2W SIP-package DC-DC converter designed for regulated 15V DC output in compact embedded equipment. It is suited to industrial and medical-related electronic applications where reinforced isolation, small size, and low leakage current are important.
What are the key electrical ratings of the MDS02L-15N?
This model provides 15V DC output with a 2W power rating and a rated output current of 40 mA. It belongs to the MDS02L series, which is built for isolated DC-DC conversion in a compact SIP7 form factor.
Is the MDS02L-15N suitable for medical or safety-sensitive equipment?
This converter is medical safety approved to IEC60601-1 with 1xMOPP and 2xMOOP ratings, and it also lists compliance with IEC/UL62368-1 except for 15Vo and ±15Vo variants. It features 6KVDC input-to-output isolation and patient leakage current below 2 microamps, which supports use in safety-sensitive designs.
Can the MDS02L-15N operate in harsh temperature environments?
Yes. The specified operating temperature range is -40°C to +95°C, making it suitable for demanding industrial environments where wide-temperature performance is required. Buyers should still confirm the full system design remains within the product's published limits.
What protection features does the MDS02L-15N include?
The MDS02L-15N includes continuous short-circuit protection for long-duration fault conditions. It also provides overload protection that shuts down the output when rated power reaches 102% or more, then automatically recovers.
How compact is the Mean Well MDS02L-15N?
This model measures 19.7 x 7.1 x 11.5 mm and weighs 2.8 g. Its compact SIP7 package helps it fit space-constrained power designs where board area and component height matter.
