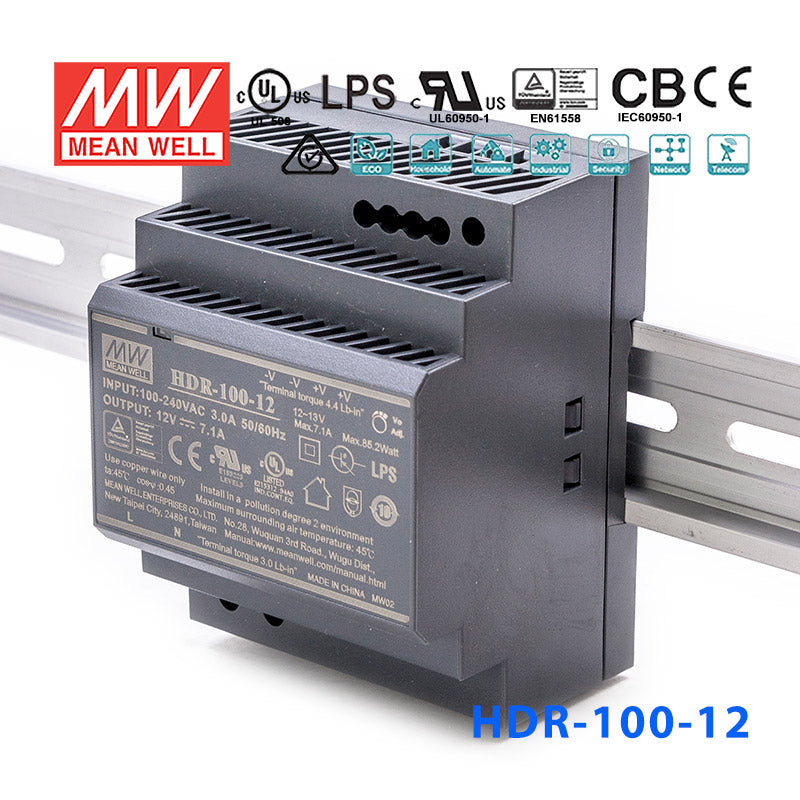

Mean Well HDR-100-12 Ultra Slim Step Shape Power Supply 100W 12V 7.1A - DIN Rail

step sizeisolation class IIDC output adjustableno load power consumption<0.3W

SKU HDR-100-12

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

HDR-100-12

HDR-100-12 100W 12V Low stock

HDR-15-12 15W 12V In stock

HDR-150-12 150W 12V Low stock

HDR-30-12 30W 12V In stock

HDR-60-12 60W 12V In stock

Product variants

In stock

Overview

HDR-100-12 is the 12V output model of this series: rated current 7.1A, rated power 85.2W, typical efficiency 88%.

HDR-100 is one economical ultra slim 100W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 70mm(4SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-100 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1, UL508, UL62368-1, BS EN/EN61558-2-16) make HDR-100 a very competitive power supply solution for household and industrial applications.

Features

Ultra slim design with 70mm(4SU) width
Universal input 85~264VAC(277VAC operational)
No load power consumption<0.3W
Isolation class Ⅱ
Pass LPS (Limited power source) for Blank type
DC output voltage adjustable
Protections : Short circuit / Overload / Over voltage
Cooling by free air convection (working temperature:-30~+70°C)
DIN rail TS-35/7.5 or 15 mountable
LED indicator for power on
3 years warranty

Specifications

HDR-100-12Specifications from the official datasheet (2026-10-09 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 7.1A
CURRENT RANGE: 0 ~ 7.1A
RATED POWER: 85.2W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE Pass LPS: 12 ~ 13V
VOLTAGE ADJ. RANGE Non LPS: 12~ 13.8V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load
HOLD UP TIME (Typ.): 30ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational )
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 3A/115VAC 1.6A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A/115VAC 70A/230VAC

PROTECTION

OVERLOAD: HDR-100 : 102 ~ 110% rated output power; HDR-100-xxN : 105 ~ 150% rated output power Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed
OVER VOLTAGE: 14.2 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃) RH non-condensing
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE: 2000 meters
OVER VOLTAGE CATEGORY: Ⅲ ;According to EN 61558, EN50178,EN60664-1, EN62477-1 ;altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS^{Note 5}: UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, IEC62368-1, EAC TP TC 004, BSMI CNS15598-1 BIS IS13252(Part1):2010/IEC 609501:2005(Note 7) approved; Design refer to TUV BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32), CNS15936 Class B
Radiated BS EN/EN55032(CISPR32), CNS15936 Class B
Harmonic Current (Note 5) BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, criteria A
Surge BS EN/EN61000-4-5 Level 4,2KV/L-N, criteria A
Conducted BS EN/EN61000-4-6 Level 3, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, criteria A
Voltage Dips and interruptions BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32), CNS15936	Class B
Radiated	BS EN/EN55032(CISPR32), CNS15936	Class B
Harmonic Current (Note 5)	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 3, criteria A
Surge	BS EN/EN61000-4-5	Level 4,2KV/L-N, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, criteria A
Voltage Dips and interruptions	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 3271.9K hrs min. Telcordia SR-332 (Bellcore) ; 856.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 70*90*54.5mm (W*H*D)
PACKING: 0.27Kg; 48pcs/13.74Kg/0.96CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Harmonic current test at 90% load for HDR-100-xxN.
5. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. Some models may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

HDR-100-12 Block Diagram — Block Diagram

HDR-100-12 Output Derating VS Input Voltage — Output Derating VS Input Voltage

HDR-100-12 Mechanical Specification — Mechanical Specification

Typical applications

Household control system
Building automation
Industrial control system
Factory automation
Electro-mechanical apparatus

Downloads

Certificates9

Mean Well E215312-UL Certificate PDF Download

Mean Well HDR-100 TUV Certificate PDF Download

Mean Well HDR-100 BSMI Certificate PDF Download

Mean Well HDR-100 CB(UL) Certificate PDF Download

Mean Well HDR-100 EMC Certificate PDF Download

Mean Well HDR-100 CE-dec Certificate PDF Download

Mean Well HDR-100 UK-dec Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Mean Well EAC Certificate PDF Download

Test reports1

Mean Well HDR-100-12 Test Report PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Is the HDR-100-12 suitable for powering 12V PLC systems in a control panel?

Yes. The HDR-100-12 delivers 12V at up to 7.1A (85.2W), which fits many 12V PLC power buses and small control panel loads. Its DIN rail form factor and step-shape profile simplify installation inside compact enclosures.

Can this power supply run in cold or hot environments, such as an outdoor control cabinet?

The HDR-100-12 is rated for -30°C to +70°C operating temperature (with output derating at high ambient per the derating curve), making it suitable for use inside control cabinets that experience wide temperature swings. It does not carry an IP rating, so it must be housed in an enclosure and kept within 20–90% RH non-condensing.

How does the HDR-100-12 differ from the HDR-100-12N?

Both are 12V DIN rail supplies with identical physical dimensions (70 × 90 × 54.5 mm, W × H × D). The HDR-100-12 is rated at 85.2W / 7.1A and is the version listed with UL508 and LPS, while the HDR-100-12N is rated at 90W / 7.5A — a higher continuous current capacity.

What certifications does the HDR-100-12 hold?

The HDR-100-12 is listed to UL62368-1, UL508, TUV BS EN/EN61558-2-16, IEC62368-1, EAC TP TC 004, BSMI CNS15598-1 and BIS IS13252. This breadth supports use in North American, European, and other regulated installations.

Is the output voltage on the HDR-100-12 adjustable?

Yes, the HDR-100-12 features an adjustable DC output voltage: 12–13V while keeping LPS compliance, or 12–13.8V outside the LPS range.
