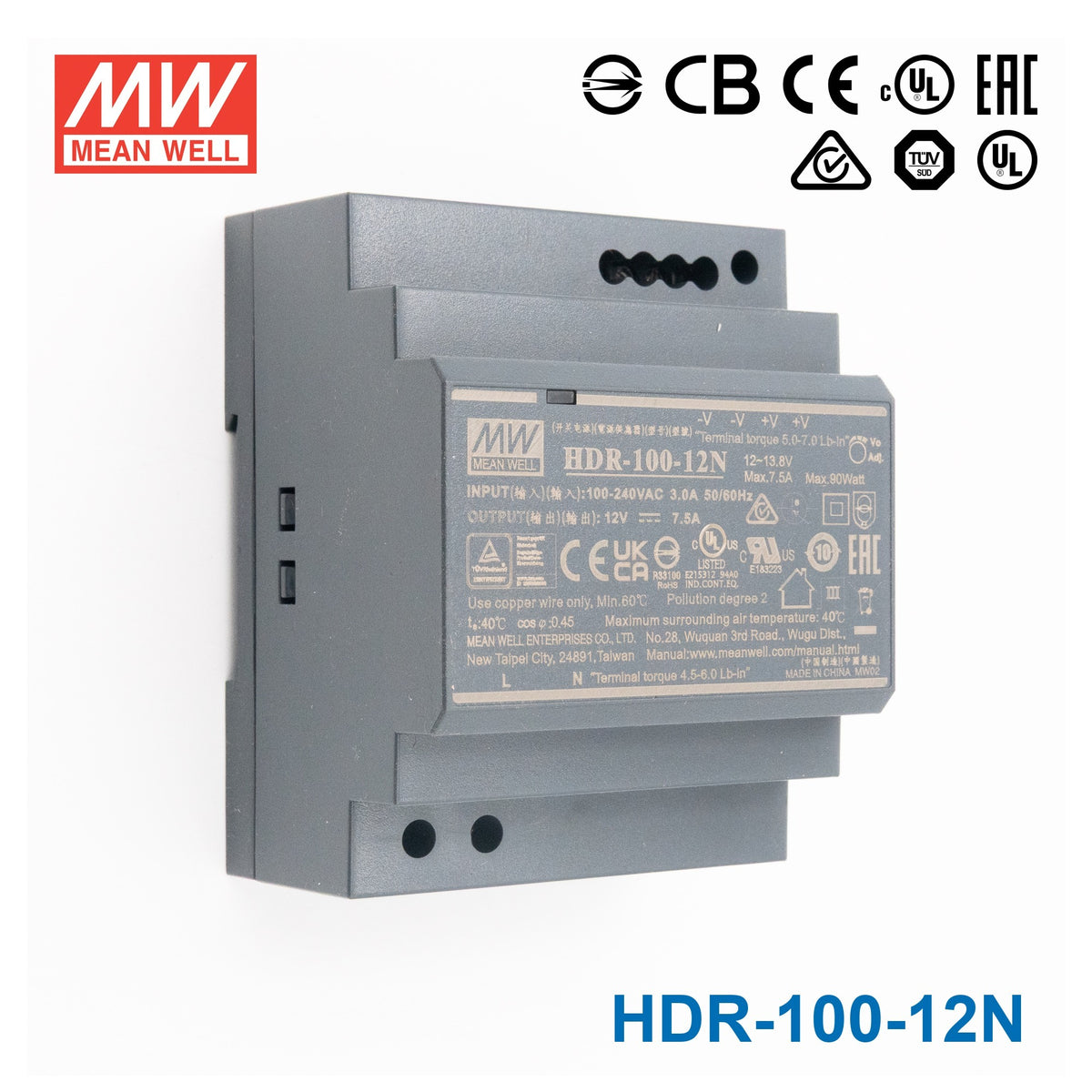

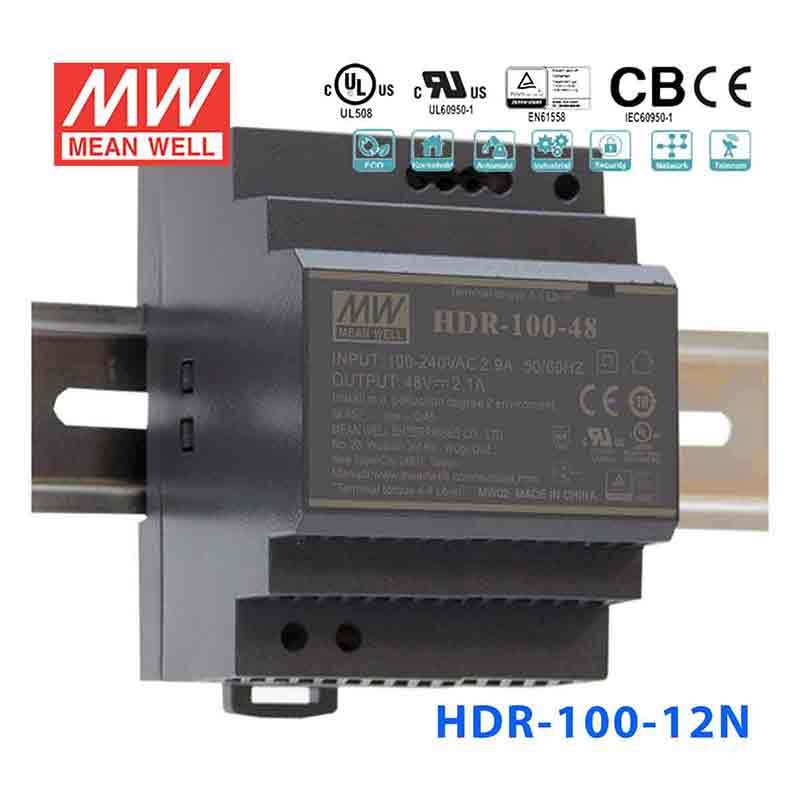

Mean Well HDR-100-12N Ultra Slim Step Shape Power Supply 100W 12V - DIN Rail

Q: What types of 12V industrial loads can the HDR-100-12N support?

With 90W at 7.5A output, the HDR-100-12N suits 12V industrial automation loads such as relay banks, HMI panels, and small PLC controllers mounted in DIN rail enclosures. Its slim step-shape profile conserves horizontal rail space.

Q: How does the HDR-100-12N compare to the HDR-100-12?

The HDR-100-12N outputs 90W at 7.5A versus the HDR-100-12's 82.5W at 7.1A. Both share the same 90.0 × 70.0 × 54.5 mm footprint, input range (85–264VAC), certifications, and 3-year warranty — so the N variant provides about 9% more current capacity in the same space.

Q: Can the HDR-100-12N operate across international mains voltages?

Yes, the HDR-100-12N accepts 85–264VAC input, covering both 100–120V and 200–240V mains. This makes it usable in North American, European, and most global installations without a separate step-down transformer.

Q: What is the operating temperature range for control cabinet use?

The HDR-100-12N is rated -30°C to +70°C, so it can operate inside cabinets that heat up significantly during industrial production. It must be installed inside a suitable enclosure since it carries no IP rating of its own.

step size, isolation class II, DC output adjustable, no load power consumption

SKU:

HDR-100-12N

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Installed on DIN rail TS35 / 7.5 or 15

Protections: Short circuit / Overload / Over voltage

No load power consumption <0.3W

Ultra slim design with 70mm(4SU) width

Isolation class II

Cooling by free air convection

LED indicator for power on

3 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current	Cold start 35A at 115VAC, 70A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection	110%~145% constant current limiting, auto-recovery
Over voltage protection	115%~135% rated output voltage
Setup, rise, hold up time	500ms, 60ms, 30ms
Withstand voltage	I/P-O/P:4kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards	UL508, UL,IEC 62368-1, EN61588-1,2-16
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	I/P: 2 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH)	70x90x54.5
Packing	48pcs / 14kg

Specifications

Brand

Mean Well
Series

HDR Series
Power Rating

90 Watt
Output Voltage

12 Volt
Rated Current

7.5 Ampere
Input Voltage

85V~264V
Standards Met

BSMI,CB,CE,cUL,EAC,RCM,TUV,UL
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

9 cm
Width

7 cm
Height

5.45 cm
Weight

0.27 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What types of 12V industrial loads can the HDR-100-12N support?

With 90W at 7.5A output, the HDR-100-12N suits 12V industrial automation loads such as relay banks, HMI panels, and small PLC controllers mounted in DIN rail enclosures. Its slim step-shape profile conserves horizontal rail space.

How does the HDR-100-12N compare to the HDR-100-12?

The HDR-100-12N outputs 90W at 7.5A versus the HDR-100-12's 82.5W at 7.1A. Both share the same 90.0 × 70.0 × 54.5 mm footprint, input range (85–264VAC), certifications, and 3-year warranty — so the N variant provides about 9% more current capacity in the same space.

Can the HDR-100-12N operate across international mains voltages?

Yes, the HDR-100-12N accepts 85–264VAC input, covering both 100–120V and 200–240V mains. This makes it usable in North American, European, and most global installations without a separate step-down transformer.

What is the operating temperature range for control cabinet use?

The HDR-100-12N is rated -30°C to +70°C, so it can operate inside cabinets that heat up significantly during industrial production. It must be installed inside a suitable enclosure since it carries no IP rating of its own.

Model	Power	Voltage	Current	IP Rating
Mean Well HDR-100-24 Ultra Slim Step Shape Power Supply 100W 24V - DIN Rail	92W	24V	3.83A	Indoor	View
Mean Well HDR-100-24N Ultra Slim Step Shape Power Supply 100W 24V - DIN Rail	100.8W	24V	4.2A	Indoor	View
Mean Well HDR-100-12 Ultra Slim Step Shape Power Supply 100W 12V - DIN Rail	82.5W	12V	7.1A	Indoor	View
Mean Well HDR-100-48N Ultra Slim Step Shape Power Supply 100W 48V - DIN Rail	100.8W	48V	2.1A	Indoor	View
Mean Well HDR-100-48 Ultra Slim Step Shape Power Supply 100W 48V - DIN Rail	92.2W	48V	1.92A	Indoor	View
Mean Well HDR-100-15N Ultra Slim Step Shape Power Supply 100W 15V - DIN Rail	97.5W	15V	6.5A	Indoor	View
Mean Well HDR-100-15 Ultra Slim Step Shape Power Supply 100W 15V - DIN Rail	92W	15V	6.13A	Indoor	View
