Mean Well

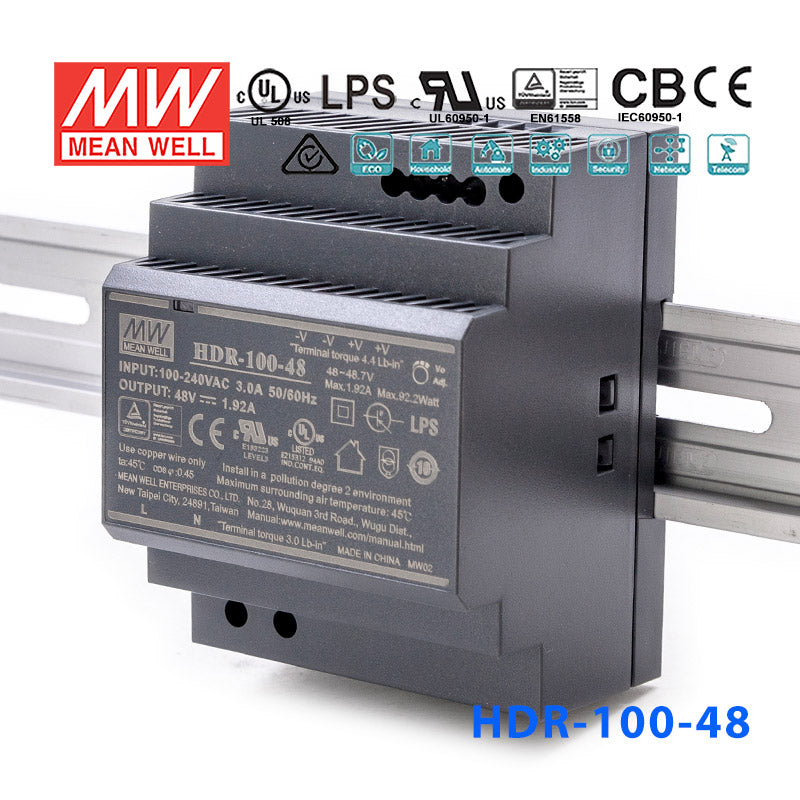

Mean Well HDR-100-48 Ultra Slim Step Shape Power Supply 100W 48V - DIN Rail

step size, isolation class II, DC output adjustable, no load power consumption
SKU:
HDR-100-48
Please for Pricing
|

Description

Features

Universal AC input / Full range
Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.3W
Ultra slim design with 70mm(4SU) width
Isolation class II
Cooling by free air convection
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start 35A at 115VAC, 70A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 110%~145% constant current limiting, auto-recovery
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 500ms, 60ms, 30ms
Withstand voltage I/P-O/P:4kVAC
Working temperature -30~+70°C (refer to output derating curve)
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards UL508, UL,IEC 62368-1, EN61588-1,2-16
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection I/P: 2 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH) 70x90x54.5
Packing 48pcs / 14kg

Specifications
  • Brand
    Mean Well
  • Series
    HDR Series
  • Power Rating
    92.2 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    1.92 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSMI,CB,CE,cUL,EAC,RCM,TUV,UL
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    9 cm
  • Width
    7 cm
  • Height
    5.45 cm
  • Weight
    0.27 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What 48V DIN rail applications is the HDR-100-48 designed for?

The HDR-100-48 outputs 48V at 1.92A (92.2W), suiting 48VDC loads such as telecom equipment, PoE midspans, industrial fieldbus systems, and some motor driver pre-regulation stages in DIN rail control panels. Its slim body mounts directly on standard 35mm DIN rail.

How does the HDR-100-48 compare to the HDR-100-48N?

The HDR-100-48 is rated at 92.2W / 1.92A while the HDR-100-48N delivers 100.8W / 2.1A. Both measure 90.0 × 70.0 × 54.5 mm and weigh 0.27 kg, with the same certifications and 3-year warranty — the N variant supplies about 9% more current.

Can the HDR-100-48 handle high-ambient industrial environments?

The HDR-100-48 is rated -30°C to +70°C, making it compatible with warm industrial enclosures. Without an IP rating, it must always be enclosed in a suitable control cabinet or panel.

What certifications does the HDR-100-48 carry for global compliance?

The HDR-100-48 holds BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, and UL certifications, covering major markets including North America, Europe, and Australia. The 3-year warranty reflects Mean Well's standard for this series.
