Mean Well

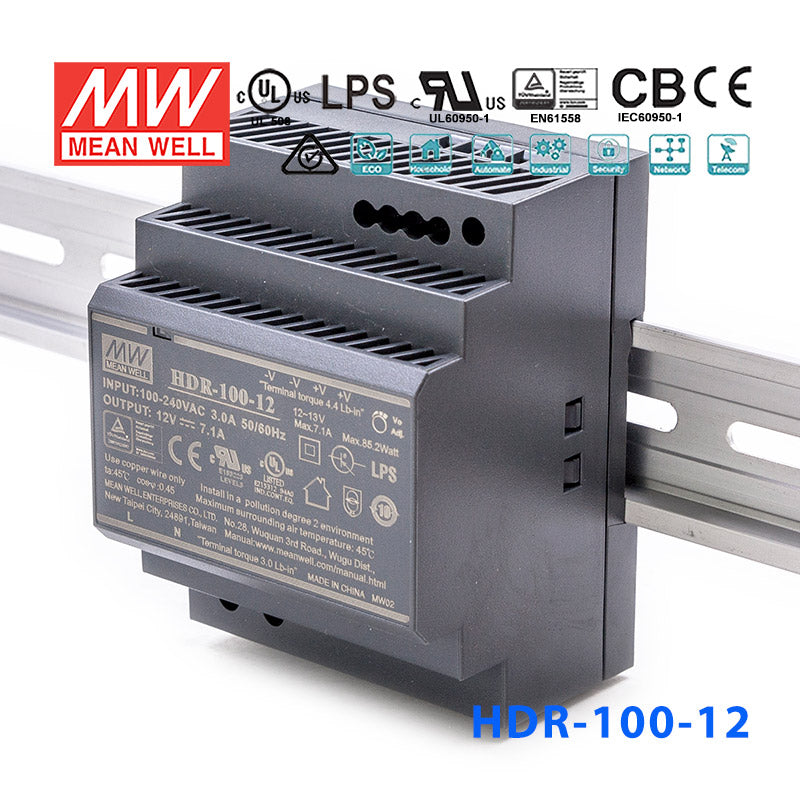

Mean Well HDR-100-12 Ultra Slim Step Shape Power Supply 100W 12V - DIN Rail

step size, isolation class II, DC output adjustable, no load power consumption
SKU:
HDR-100-12
Model
Please for Pricing
|

Description

Features

Universal AC input / Full range
Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.3W
Ultra slim design with 70mm(4SU) width
Isolation class II
Cooling by free air convection
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start 35A at 115VAC, 70A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 110%~145% constant current limiting, auto-recovery
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 500ms, 60ms, 30ms
Withstand voltage I/P-O/P:4kVAC
Working temperature -30~+70°C (refer to output derating curve)
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards UL508, UL,IEC 62368-1, EN61588-1,2-16
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection I/P: 2 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH) 70x90x54.5
Packing 48pcs / 14kg

Specifications
  • Brand
    Mean Well
  • Series
    HDR Series
  • Power Rating
    82.5 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    7.1 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSMI,CB,CE,cUL,EAC,RCM,TUV,UL
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    9 cm
  • Width
    7 cm
  • Height
    5.45 cm
  • Weight
    0.27 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Is the HDR-100-12 suitable for powering 12V PLC systems in a control panel?

Yes. The HDR-100-12 delivers 12V at up to 7.1A (82.5W), which fits many 12V PLC power buses and small control panel loads. Its DIN rail form factor and step-shape profile simplify installation inside compact enclosures.

Can this power supply run in cold or hot environments, such as an outdoor control cabinet?

The HDR-100-12 is rated for -30°C to +70°C operating temperature, making it suitable for use inside control cabinets that experience wide temperature swings. It does not carry an IP rating, so it must be housed in an enclosure when used in dusty or wet environments.

How does the HDR-100-12 differ from the HDR-100-12N?

Both are 12V DIN rail supplies with identical physical dimensions (90.0 × 70.0 × 54.5 mm) and the same certifications. The HDR-100-12 is rated at 82.5W / 7.1A, while the HDR-100-12N is rated at 90W / 7.5A — a higher continuous current capacity.

What certifications does the HDR-100-12 hold?

The HDR-100-12 holds BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, and UL certifications. This certification breadth supports use in North American, European, and Australian regulated installations.

Is the output voltage on the HDR-100-12 adjustable?

Yes, the HDR-100-12 features an adjustable DC output voltage. The no-load power consumption is less than 0.3W, which keeps standby draw minimal in always-on control systems.
