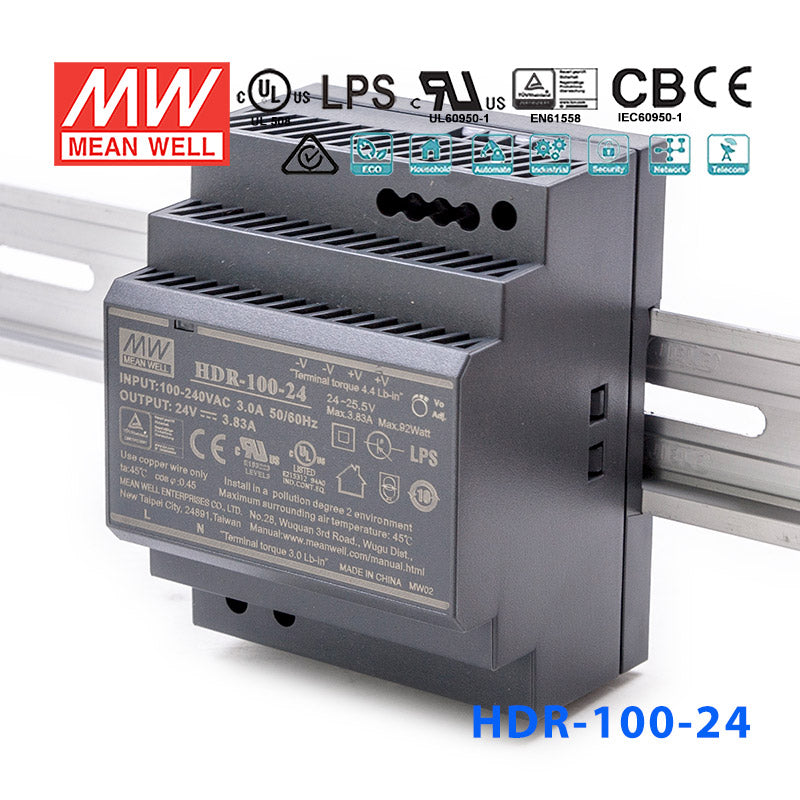

Mean Well HDR-100-24 Ultra Slim Step Shape Power Supply 100W 24V - DIN Rail

step size, isolation class II, DC output adjustable, no load power consumption
SKU:
HDR-100-24
Model
Please for Pricing
|

Description

Features

Universal AC input / Full range
Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.3W
Ultra slim design with 70mm(4SU) width
Isolation class II
Cooling by free air convection
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start 35A at 115VAC, 70A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 110%~145% constant current limiting, auto-recovery
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 500ms, 60ms, 30ms
Withstand voltage I/P-O/P:4kVAC
Working temperature -30~+70°C (refer to output derating curve)
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards UL508, UL,IEC 62368-1, EN61588-1,2-16
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection I/P: 2 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH) 70x90x54.5
Packing 48pcs / 14kg

Specifications
  • Brand
    Mean Well
  • Series
    HDR Series
  • Power Rating
    92 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    3.83 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    BSMI,CB,CE,cUL,EAC,RCM,TUV,UL
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    9 cm
  • Width
    7 cm
  • Height
    5.45 cm
  • Weight
    0.27 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Is the HDR-100-24 suitable for powering 24V PLCs and building management controllers?

Yes. The HDR-100-24 delivers 24V at 3.83A (92W), which aligns with the standard 24VDC bus used by most PLCs, building automation controllers, and industrial I/O modules. Its DIN rail mounting and 90.0 × 70.0 × 54.5 mm footprint make it a compact fit in control cabinets.

How does the HDR-100-24 compare to the HDR-100-24N?

The HDR-100-24 is rated at 92W / 3.83A while the HDR-100-24N delivers 100.8W / 4.2A. Both share the same 90.0 × 70.0 × 54.5 mm chassis, 85–264VAC input, and identical certifications — the N variant provides about 10% more output current.

Can this unit handle the temperature extremes of an outdoor control cabinet?

The HDR-100-24 is rated -30°C to +70°C, covering cold outdoor enclosures down to -30°C and warm in-cabinet temperatures up to +70°C. It has no IP rating and requires installation inside a proper enclosure for protection against moisture and dust.

What is the isolation class of the HDR-100-24?

The HDR-100-24 uses isolation class II, meaning it does not require a protective earth connection on the output side. This can simplify grounding in systems with specific safety architectures.
