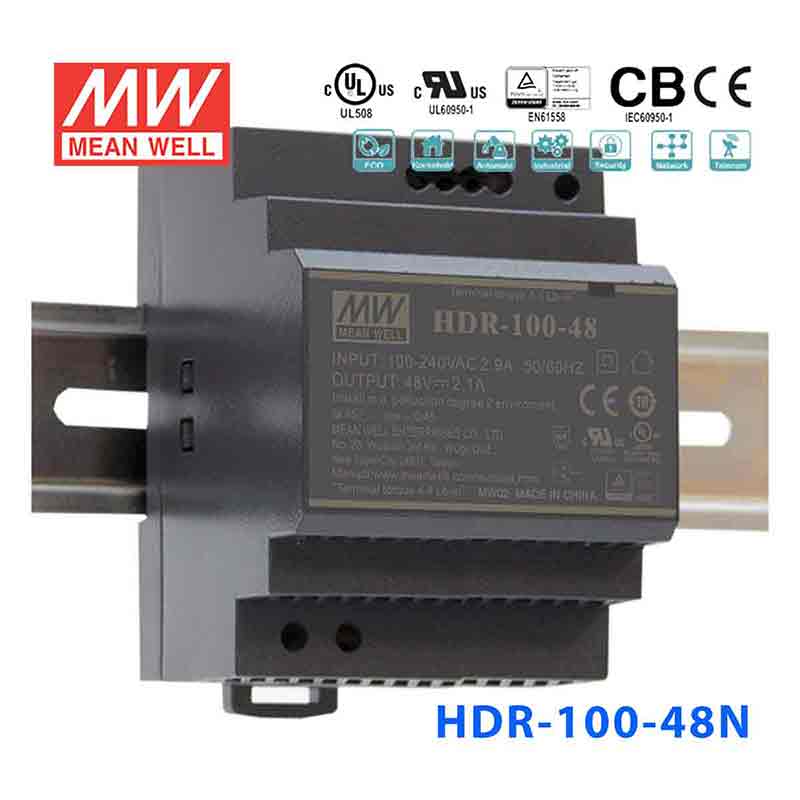

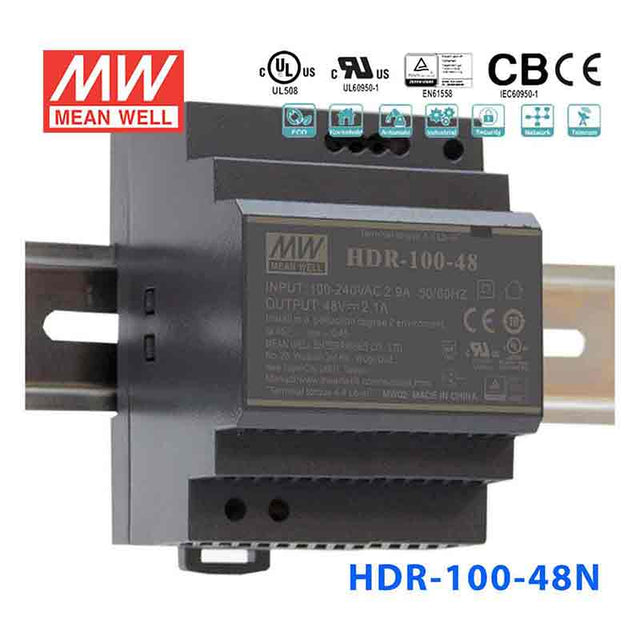

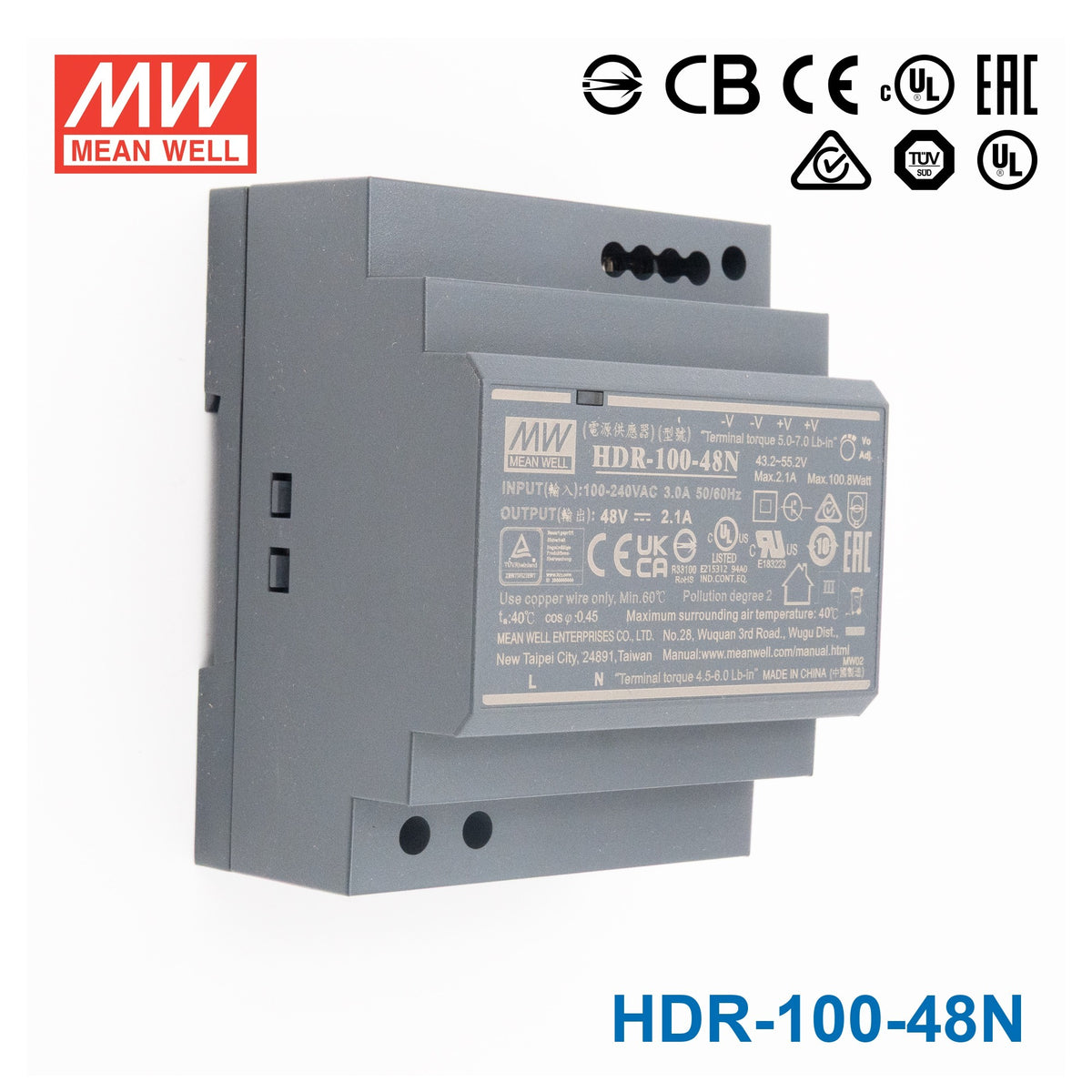

Mean Well HDR-100-48N Ultra Slim Step Shape Power Supply 100W 48V -...
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Installed on DIN rail TS35 / 7.5 or 15 |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.3W |
| Ultra slim design with 70mm(4SU) width |
| Isolation class II |
| Cooling by free air convection |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current | Cold start 35A at 115VAC, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 110%~145% constant current limiting, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Setup, rise, hold up time | 500ms, 60ms, 30ms |
| Withstand voltage | I/P-O/P:4kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | UL508, UL,IEC 62368-1, EN61588-1,2-16 |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | I/P: 2 poles, O/P: 4 poles screw DIN terminal |
| Dimension (LxWxH) | 70x90x54.5 |
| Packing | 48pcs / 14kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating100.8 Watt
-
Output Voltage48 Volt
-
Rated Current2.1 Ampere
-
Input Voltage85V~264V
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9 cm
-
Width7 cm
-
Height5.45 cm
-
Weight0.27 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What types of 48V equipment can the HDR-100-48N power in a control panel?
At 100.8W and 2.1A on a 48VDC bus, the HDR-100-48N suits telecom converters, industrial Ethernet switches, and PoE mid-span injectors mounted in DIN rail enclosures. The step-shape slim profile keeps cabinet space consumption low.
What is the difference between the HDR-100-48N and the HDR-100-48?
The HDR-100-48N is rated 100.8W / 2.1A while the HDR-100-48 is rated 92.2W / 1.92A. The N variant provides about 9% more output current in the same 90.0 × 70.0 × 54.5 mm housing with the same certifications and warranty.
Is the output voltage on the HDR-100-48N adjustable?
Yes, the DC output voltage is field-adjustable. The no-load consumption is less than 0.3W, which limits idle draw in 48V systems that remain powered continuously.
What is the minimum operating temperature for the HDR-100-48N?
The HDR-100-48N operates from -30°C to +70°C. The lower bound supports use in unheated cabinets in cold climates, while the upper bound accommodates warm industrial enclosures without derating.
