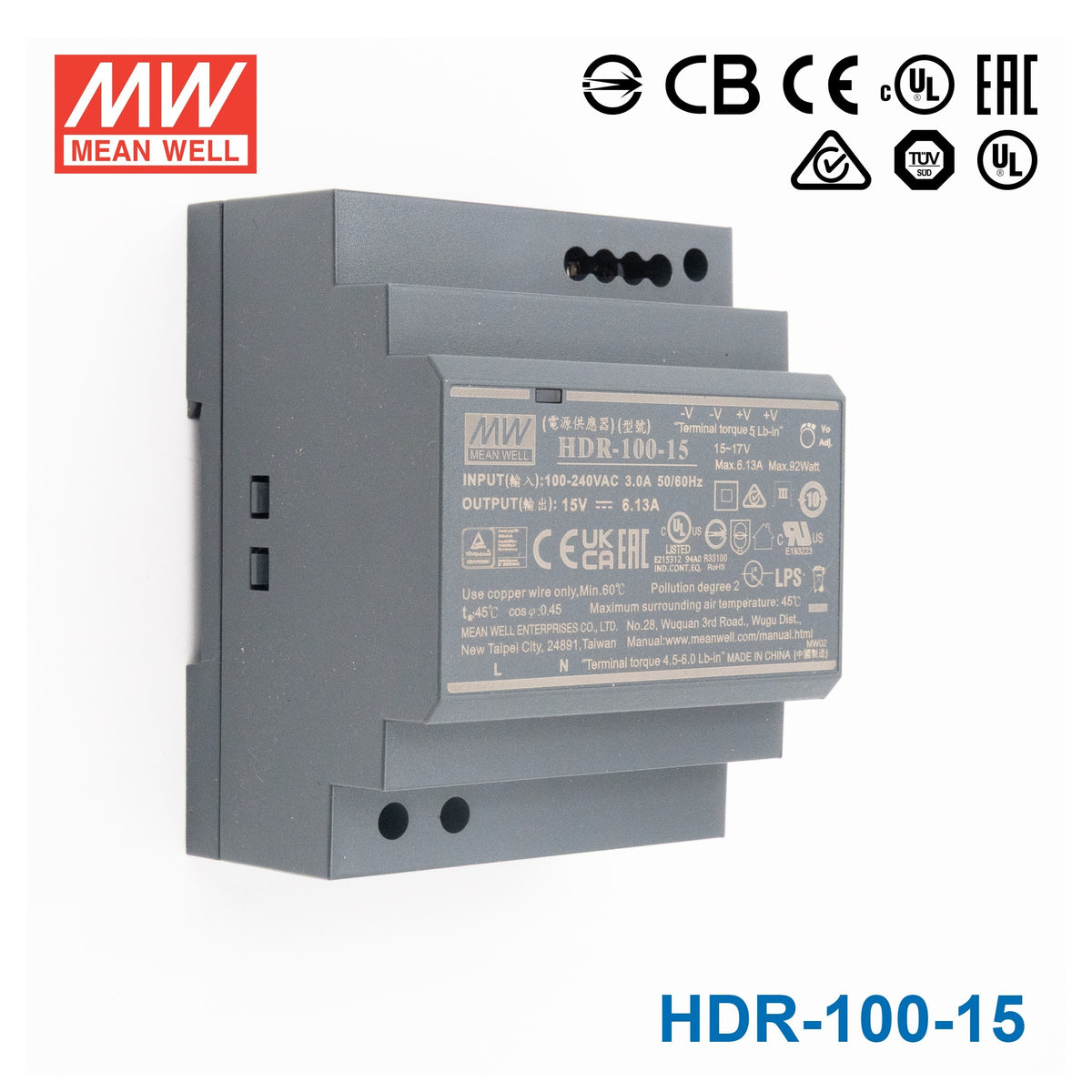

Mean Well HDR-100-15 Ultra Slim Step Shape Power Supply 100W 15V - DIN Rail

Q: Is the HDR-100-15 a good match for 15V industrial control applications?

The HDR-100-15 provides 92W at 6.13A on a 15V bus, which fits legacy industrial control panels, some actuator drivers, and specialty sensors that require a 15V rail. It mounts directly on a standard DIN rail via its step-shape form factor.

Q: How does the HDR-100-15 compare to the HDR-100-15N in the same series?

The HDR-100-15 is rated 92W / 6.13A while the HDR-100-15N is rated 97.5W / 6.5A. Both share the same 90.0 × 70.0 × 54.5 mm body, identical certifications (BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, UL), and 3-year warranty — the N variant offers roughly 6% more output current.

Q: What is the weight and physical size of the HDR-100-15?

The HDR-100-15 measures 90.0 × 70.0 × 54.5 mm and weighs 0.27 kg. The slim step-shape profile minimizes the DIN rail width consumed in panel layouts.

Q: Can the HDR-100-15 be used across a wide temperature range inside enclosures?

Yes, it is rated for -30°C to +70°C operation. This range accommodates unheated outdoor control cabinets in winter climates as well as warm machine enclosures in production environments.

step size, isolation class II, DC output adjustable, no load power consumption

SKU:

HDR-100-15

Model

15W 15V

SKU: HDR-15-15

100W 15V

SKU: HDR-100-15

150W 15V

SKU: HDR-150-15

30W 15V

SKU: HDR-30-15

60W 15V

SKU: HDR-60-15

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Installed on DIN rail TS35 / 7.5 or 15

Protections: Short circuit / Overload / Over voltage

No load power consumption <0.3W

Ultra slim design with 70mm(4SU) width

Isolation class II

Cooling by free air convection

LED indicator for power on

3 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current	Cold start 35A at 115VAC, 70A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection	110%~145% constant current limiting, auto-recovery
Over voltage protection	115%~135% rated output voltage
Setup, rise, hold up time	500ms, 60ms, 30ms
Withstand voltage	I/P-O/P:4kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards	UL508, UL,IEC 62368-1, EN61588-1,2-16
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	I/P: 2 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH)	70x90x54.5
Packing	48pcs / 14kg

Specifications

Brand

Mean Well
Series

HDR Series
Power Rating

92 Watt
Output Voltage

15 Volt
Rated Current

6.13 Ampere
Input Voltage

85V~264V
Standards Met

BSMI,CB,CE,cUL,EAC,RCM,TUV,UL
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

9 cm
Width

7 cm
Height

5.45 cm
Weight

0.27 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Is the HDR-100-15 a good match for 15V industrial control applications?

The HDR-100-15 provides 92W at 6.13A on a 15V bus, which fits legacy industrial control panels, some actuator drivers, and specialty sensors that require a 15V rail. It mounts directly on a standard DIN rail via its step-shape form factor.

How does the HDR-100-15 compare to the HDR-100-15N in the same series?

The HDR-100-15 is rated 92W / 6.13A while the HDR-100-15N is rated 97.5W / 6.5A. Both share the same 90.0 × 70.0 × 54.5 mm body, identical certifications (BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, UL), and 3-year warranty — the N variant offers roughly 6% more output current.

What is the weight and physical size of the HDR-100-15?

The HDR-100-15 measures 90.0 × 70.0 × 54.5 mm and weighs 0.27 kg. The slim step-shape profile minimizes the DIN rail width consumed in panel layouts.

Can the HDR-100-15 be used across a wide temperature range inside enclosures?

Yes, it is rated for -30°C to +70°C operation. This range accommodates unheated outdoor control cabinets in winter climates as well as warm machine enclosures in production environments.

Model	Power	Voltage	Current	IP Rating
Mean Well HDR-100-24 Ultra Slim Step Shape Power Supply 100W 24V - DIN Rail	92W	24V	3.83A	Indoor	View
Mean Well HDR-100-24N Ultra Slim Step Shape Power Supply 100W 24V - DIN Rail	100.8W	24V	4.2A	Indoor	View
Mean Well HDR-100-12 Ultra Slim Step Shape Power Supply 100W 12V - DIN Rail	82.5W	12V	7.1A	Indoor	View
Mean Well HDR-100-48N Ultra Slim Step Shape Power Supply 100W 48V - DIN Rail	100.8W	48V	2.1A	Indoor	View
Mean Well HDR-100-48 Ultra Slim Step Shape Power Supply 100W 48V - DIN Rail	92.2W	48V	1.92A	Indoor	View
Mean Well HDR-100-15N Ultra Slim Step Shape Power Supply 100W 15V - DIN Rail	97.5W	15V	6.5A	Indoor	View
Mean Well HDR-100-12N Ultra Slim Step Shape Power Supply 100W 12V - DIN Rail	90W	12V	7.5A	Indoor	View
