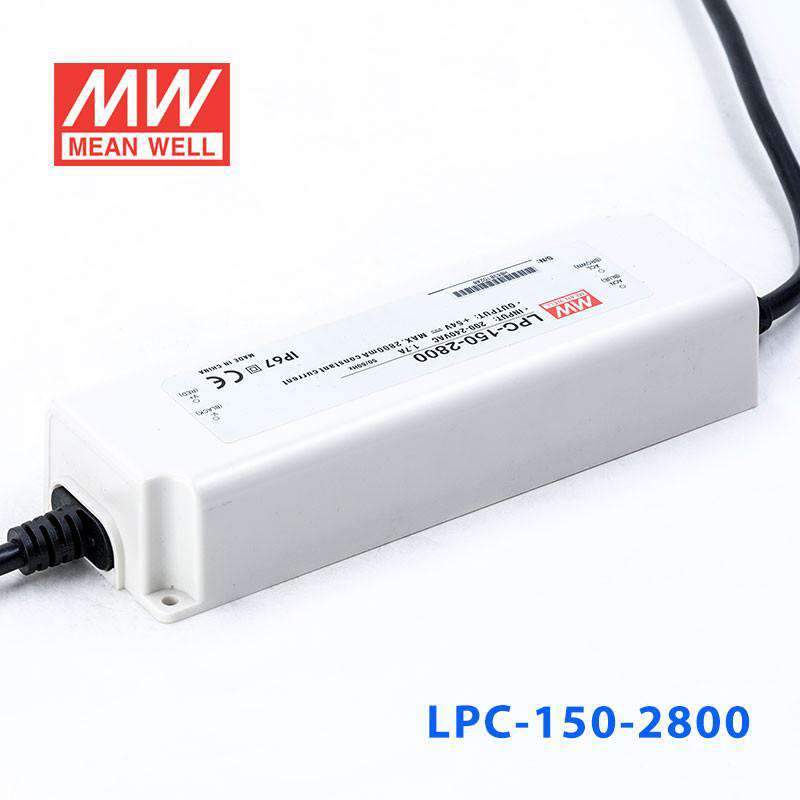

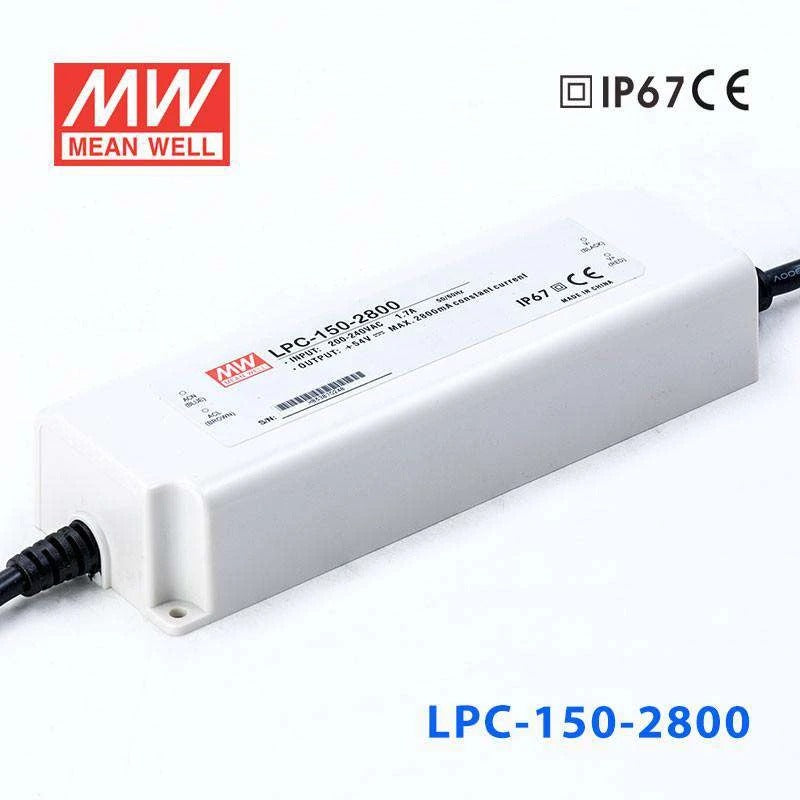

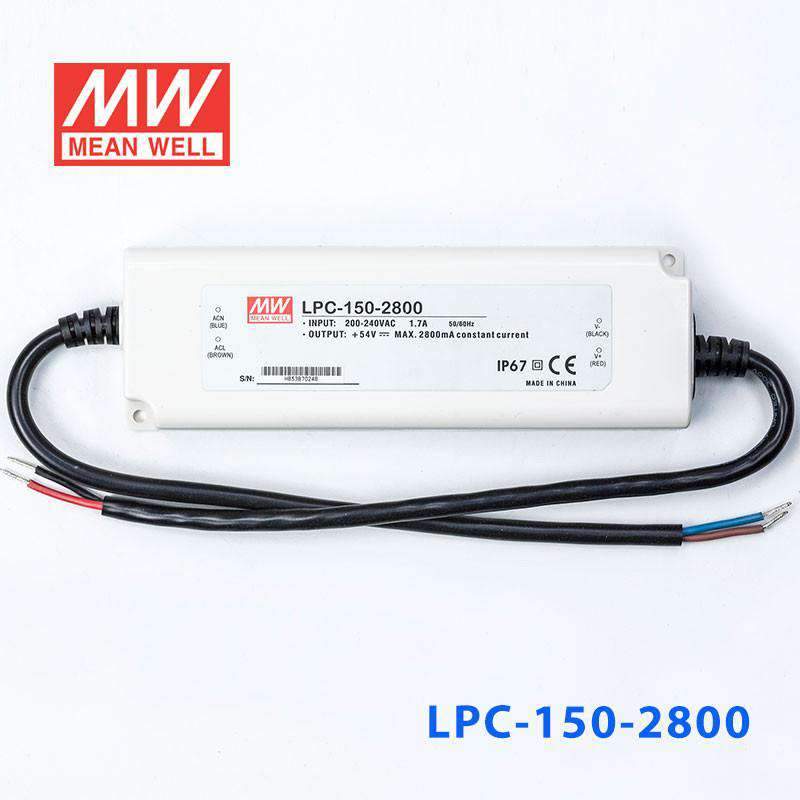

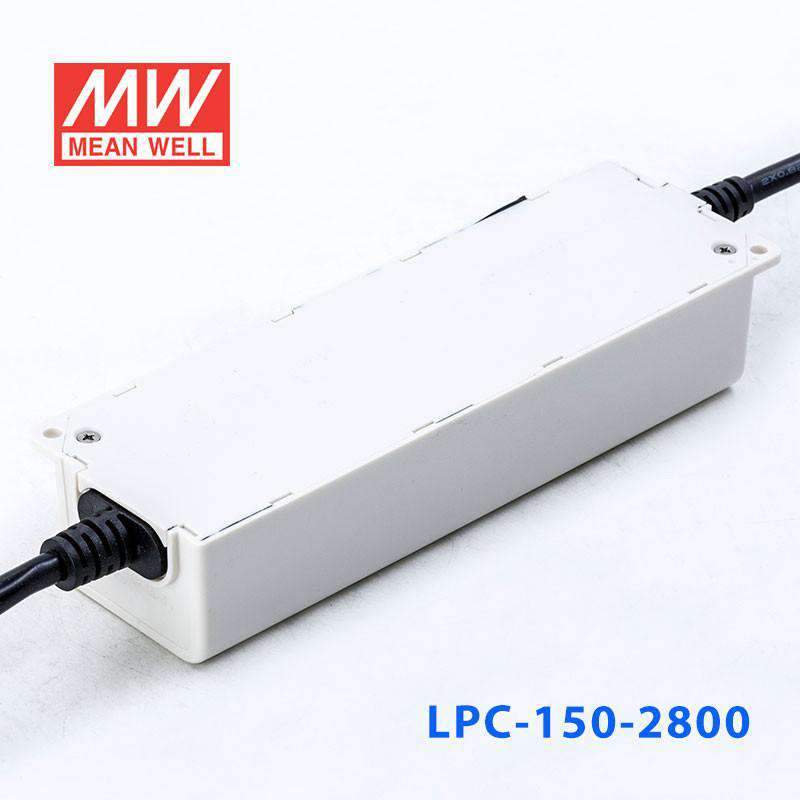

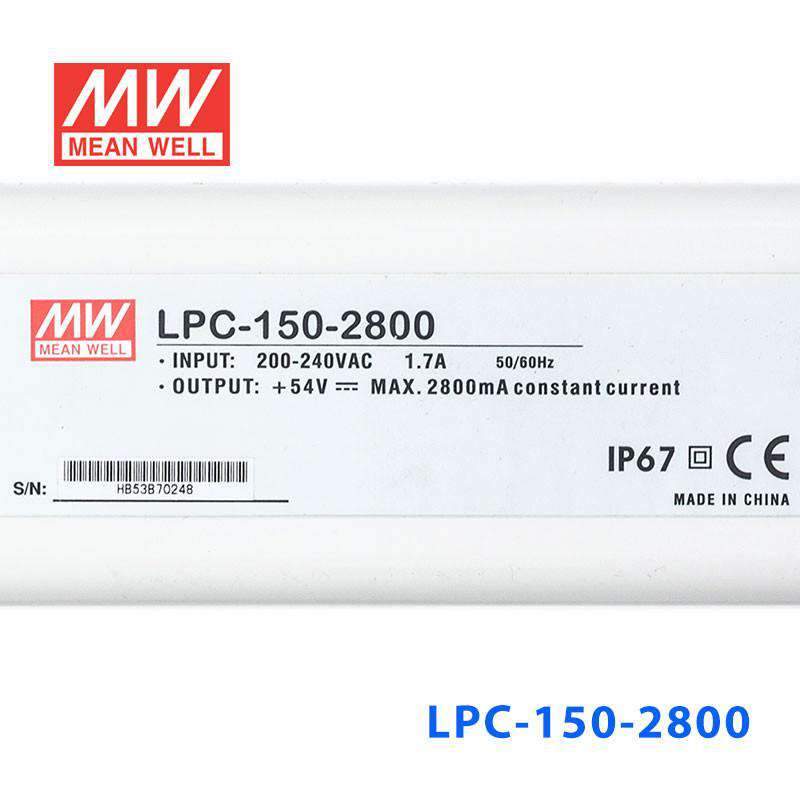

Mean Well LPC-150-2800 Power Supply 150W 2800mA

4.5 (8 reviews)

slim plastic caseeconomicalIP67

SKU LPC-150-2800

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LPC-150-2800 is the model of this series: rated current 2800mA, rated power 151.2W, typical efficiency 90%.

Features

Constant current design
180~305VAC input only
High efficiency up to 90%
Protections: Short circuit / Over voltage / Over temperature
Cooling by free air convection
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
ClassⅡ power unit, no FG
Display devices for decorative & advertising accessories (Note.9)
100% full load burn-in test
Low cost, high reliability
2 years warranty (Note.4)

Specifications

LPC-150-2800Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT: 2800mA
CURRENT ACCURACY: ±5.0%
CONSTANT CURRENT REGION^Note.5: 27V ~ 54V
RATED POWER: 151.2W
RIPPLE CURRENT: ±5%
VOLTAGE TOLERANCE: ±2.0%
SETUP, RISE TIME: 1000ms, 80ms / 230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 305VAC 254VDC ~ 431VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.7 A / 230VAC 1.5A / 277VAC
INRUSH CURRENT (Typ.): COLD START 40A(twidth=750μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 63 ~ 75V Protection type : Shut down and latch off o/p voltage re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -25 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +70℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: BIS IS15885(for 700mA,1050mA,1400mA,2800mA only), EAC TP TC 004, IP67;IEC 62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(≤80% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020

OTHERS

MTBF: 3528.4K hrs min. Telcordia SR-332 (Bellcore) ; 479.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 191*63*37.5mm (L*W*H)
PACKING: 0.74Kg; 20pcs/15.8Kg/0.95CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Derating may be needed under low input voltages. Please check the static characteristics for more details.
3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. Refer to warranty statement.
5. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
6. Suitable for indoor use or outdoor use without direct sunlight exposure, please avoid immerse in the water over 30minutes.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPC-150-2800 Mechanical Specification — Mechanical Specification

LPC-150-2800 Recommend Mounting Direction — Recommend Mounting Direction

LPC-150-2800 Block Diagram — Block Diagram

Downloads

Datasheet1

LPC-150-2800 datasheetLPC-150-SPEC.PDF · 2026-09-07 edition PDF Download

Certificates1

EMC Certificate (LPC-150)(EN) PDF Download

Test reports1

Test Report (LPC-150-2800)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPC-150-2800 for constant current LED downlights?

Yes, if the downlight is designed for 2800mA constant current and its total forward voltage stays within the 27-54V CC range. This driver is not meant for constant voltage LED products, even though the maximum output voltage is 54V.

Is the LPC-150-2800 a good fit for LED signage modules with higher drive current?

It can be, provided the signage module assembly is specified for 2800mA constant current and the combined LED forward voltage is between 27V and 54V. It is intended for constant current module strings, not fixed-voltage signage systems.

Can this model power a compact high-power LED array?

Yes, this driver is suited to small LED arrays that need 2800mA constant current and operate within the 27-54V range. With 151.2W available, it is aimed at higher-power constant current arrays rather than low-current LED boards.

What should I check before pairing LEDs with the LPC-150-2800?

The LED load must require 2800mA constant current, and the total forward voltage must remain within 27-54V while operating. The number of LEDs depends on the forward voltage of each LED, so there is no fixed LED count that applies to every design.

Is the LPC-150-2800 appropriate for outdoor or damp locations?

Yes, the IP67 rating indicates a sealed design for wet and dusty conditions, suitable for outdoor use without direct sunlight exposure. It is also specified for operation from -25°C to +50°C, so ambient temperature still needs to stay within that range.

How does the LPC-150-2800 differ from nearby LPC-150 current options?

In the same 150W family, the LPC-150-2100 is 2100mA with a 36-72V CC range, the LPC-150-2450 is 2450mA with 31-62V, the LPC-150-2800 is 2800mA with 27-54V, and the LPC-150-3150 is 3150mA with 24-48V. As current rises across those models, the CC voltage range moves lower while power remains about 151W.
