Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

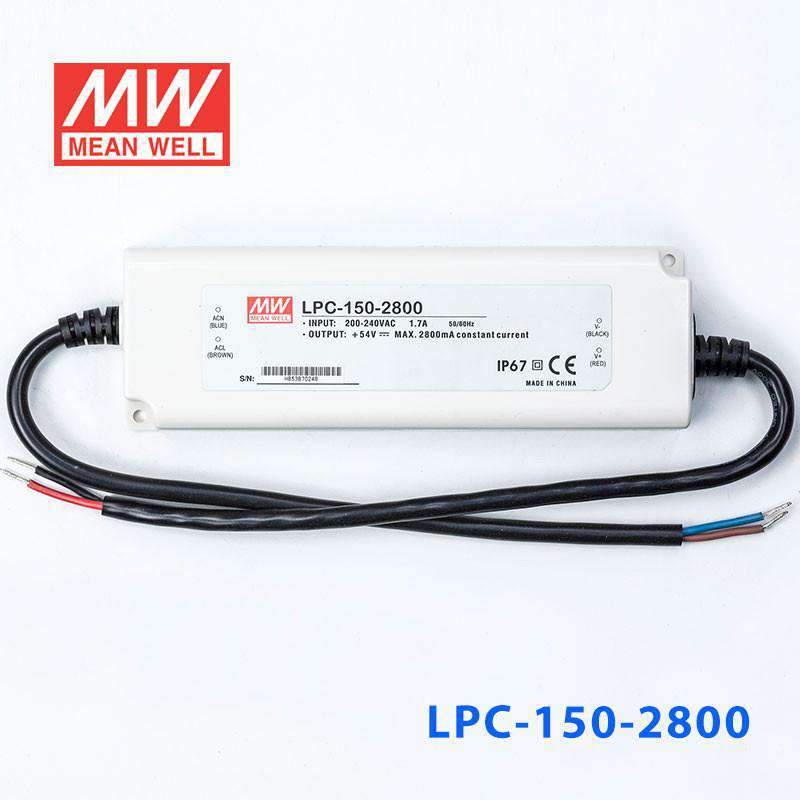

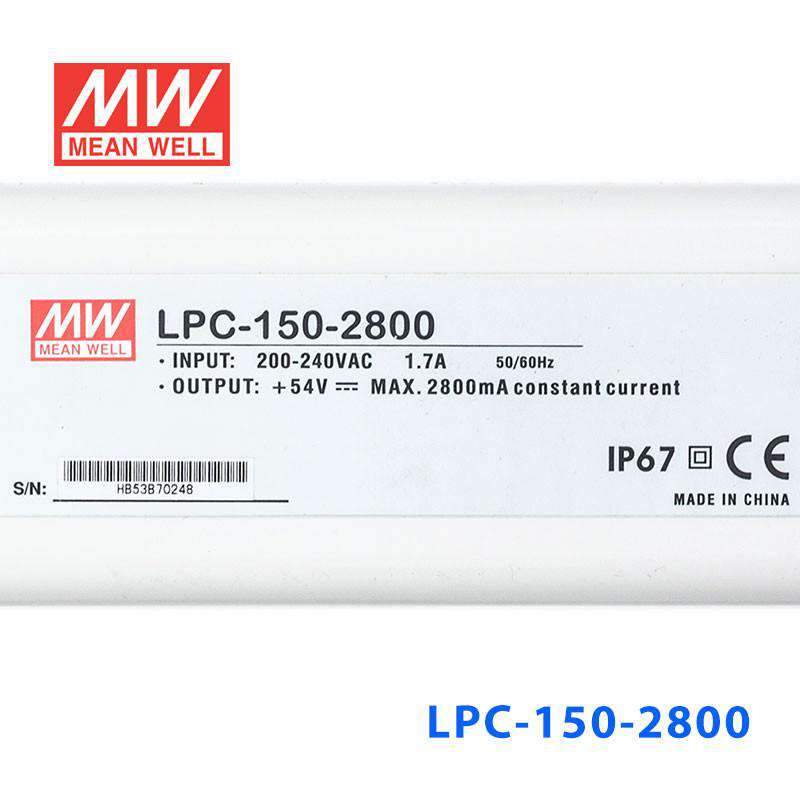

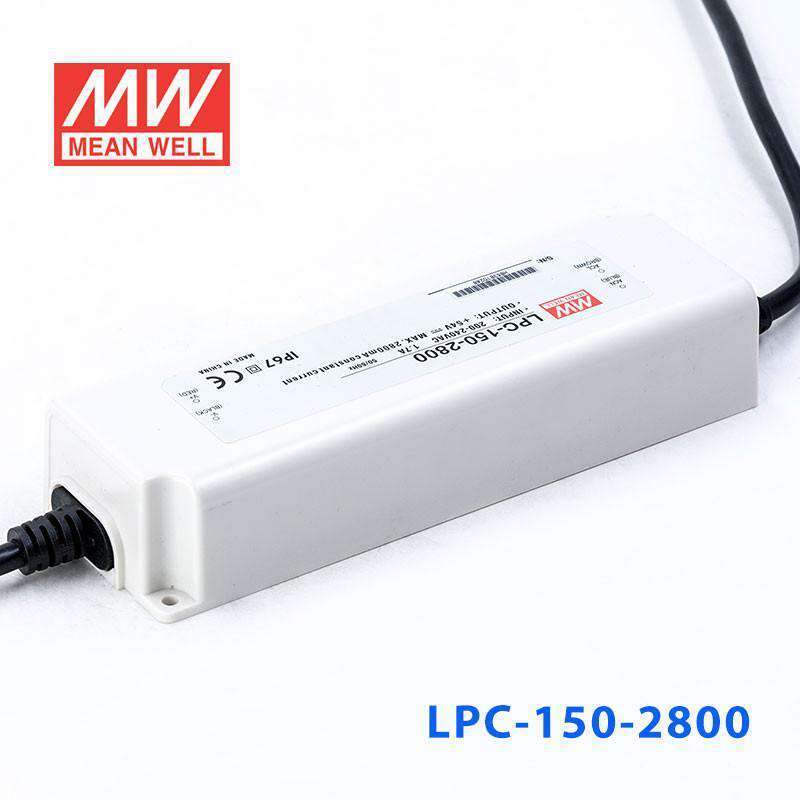

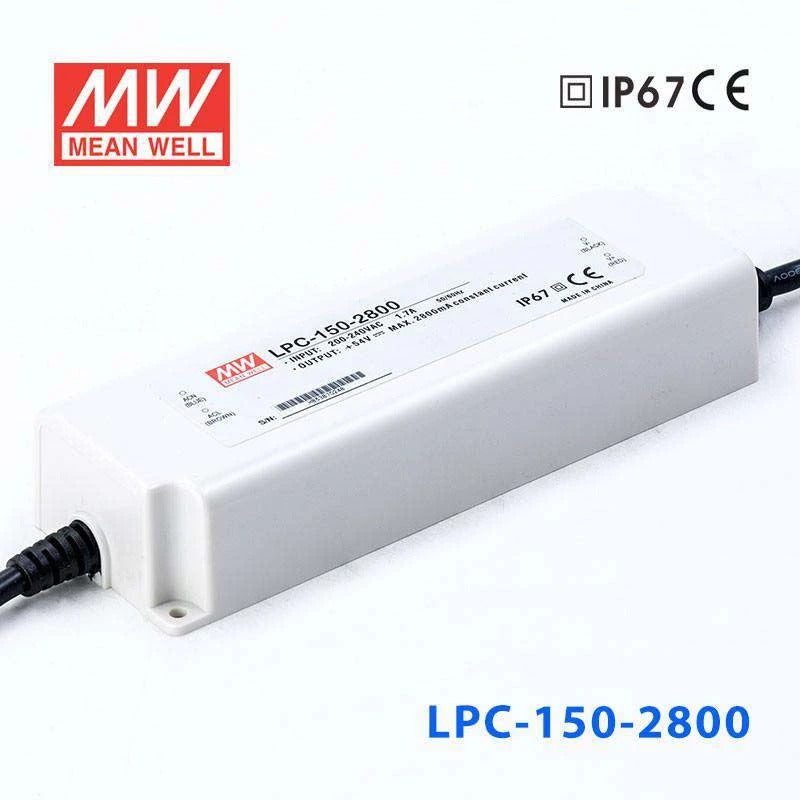

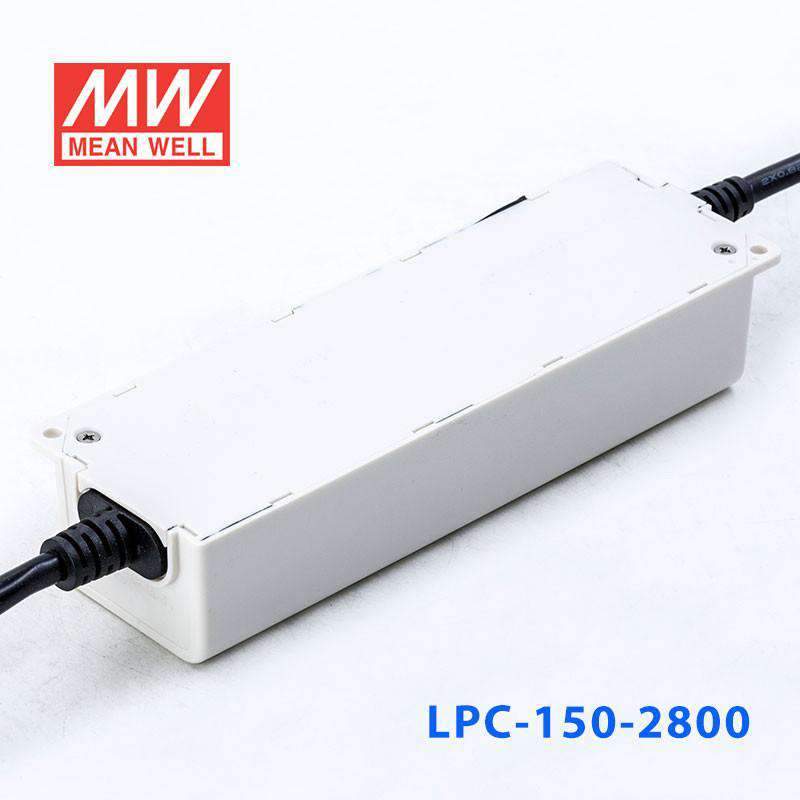

Mean Well LPC-150-2800 Power Supply 150W 2800mA

slim plastic case, economical, IP67

SKU:

LPC-150-2800

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input/full rauge

Fully encapsulated with IP67 level

Protections: Short circuit / Over voltage

Constant current design

Withstand 300VAC surge input for 5 seconds

High efficiency up to 90%

Class II power unit, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	180~305VAC
AC inrush current	Cold start, 40A at 230VAC
Over voltage protection	105%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-25~+50°C
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	IP67 approved;Design refer to TUV EN60950-1
EMC standards	EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN55024
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL rated, SJTW 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	191x 63x 37.5

Specifications

Brand

Mean Well
Series

LPC Series
Power Rating

151.2 Watt
Output Voltage

54 Volt
Rated Current

2.8 Ampere
Input Voltage

180V~305V
Standards Met

CE,EAC
Operation Mode

Constant Current
Operating Temperature

-25°C~50°C
Warranty

2 Year
Length

19.1 cm
Width

6.3 cm
Height

3.75 cm
Weight

0.74 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPC-150-2800 for constant current LED downlights?

Yes, if the downlight is designed for 2800mA constant current and its total forward voltage stays within the 27-54V CC range. This driver is not meant for constant voltage LED products, even though the maximum output voltage is 54V.

Is the LPC-150-2800 a good fit for LED signage modules with higher drive current?

It can be, provided the signage module assembly is specified for 2800mA constant current and the combined LED forward voltage is between 27V and 54V. It is intended for constant current module strings, not fixed-voltage signage systems.

Can this model power a compact high-power LED array?

Yes, this driver is suited to small LED arrays that need 2800mA constant current and operate within the 27-54V range. With 151.2W available, it is aimed at higher-power constant current arrays rather than low-current LED boards.

What should I check before pairing LEDs with the LPC-150-2800?

The LED load must require 2800mA constant current, and the total forward voltage must remain within 27-54V while operating. The number of LEDs depends on the forward voltage of each LED, so there is no fixed LED count that applies to every design.

Is the LPC-150-2800 appropriate for outdoor or damp locations?

Yes, the IP67 rating indicates a sealed design for wet and dusty conditions. It is also specified for operation from -25°C to +50°C, so ambient temperature still needs to stay within that range.

How does the LPC-150-2800 differ from nearby LPC-150 current options?

In the same 150W family, the LPC-150-2100 is 2100mA with a 36-72V CC range, the LPC-150-2450 is 2450mA with 31-62V, the LPC-150-2800 is 2800mA with 27-54V, and the LPC-150-3150 is 3150mA with 24-48V. As current rises across those models, the CC voltage range moves lower while power remains about 151W.

Model	Power	Voltage	Current	IP Rating
Mean Well LPC-150-700 Power Supply 150W 700mA	150.5W	215V	0.7A	IP67	View
Mean Well LPC-150-500 Power Supply 150W 500mA	150W	300V	0.5A	IP67	View
Mean Well LPC-150-350 Power Supply150W 350mA	150.5W	430V	0.35A	IP67	View
Mean Well LPC-150-3150 Power Supply 150W 3150mA	151.2W	48V	3.15A	IP67	View
Mean Well LPC-150-2450 Power Supply 150W 2450mA	151.9W	62V	2.45A	IP67	View
Mean Well LPC-150-2100 Power Supply 150W 2100mA	151.2W	72V	2.1A	IP67	View
Mean Well LPC-150-1750 Power Supply 150W 1750mA	150.5W	86V	1.75A	IP67	View
Mean Well LPC-150-1400 Power Supply 150W1400mA	151.2W	108V	1.4A	IP67	View
Mean Well LPC-150-1050 Power Supply 150W 1050mA	151.2W	144V	1.05A	IP67	View
