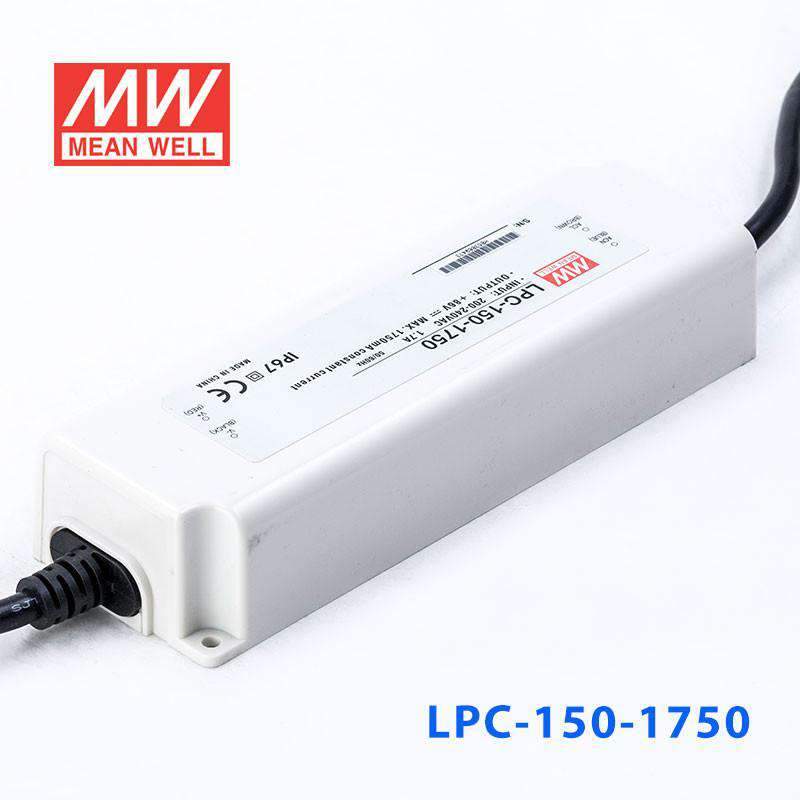

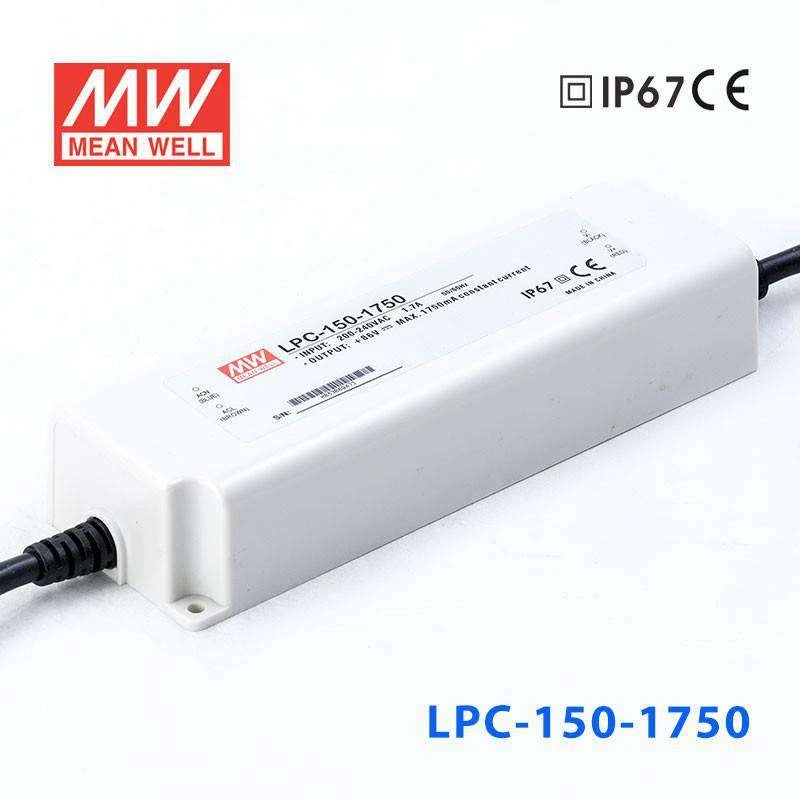

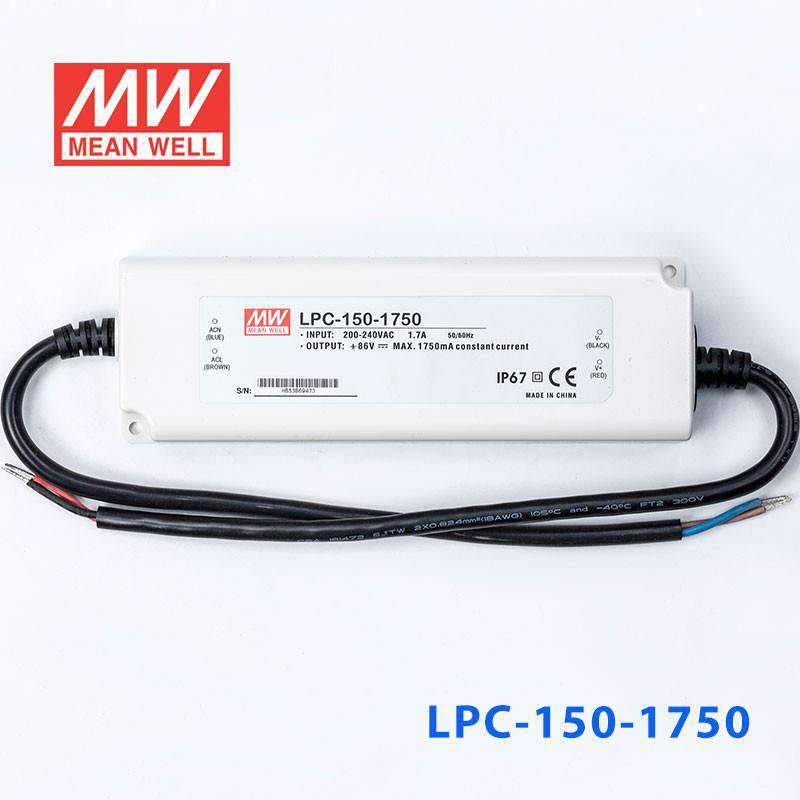

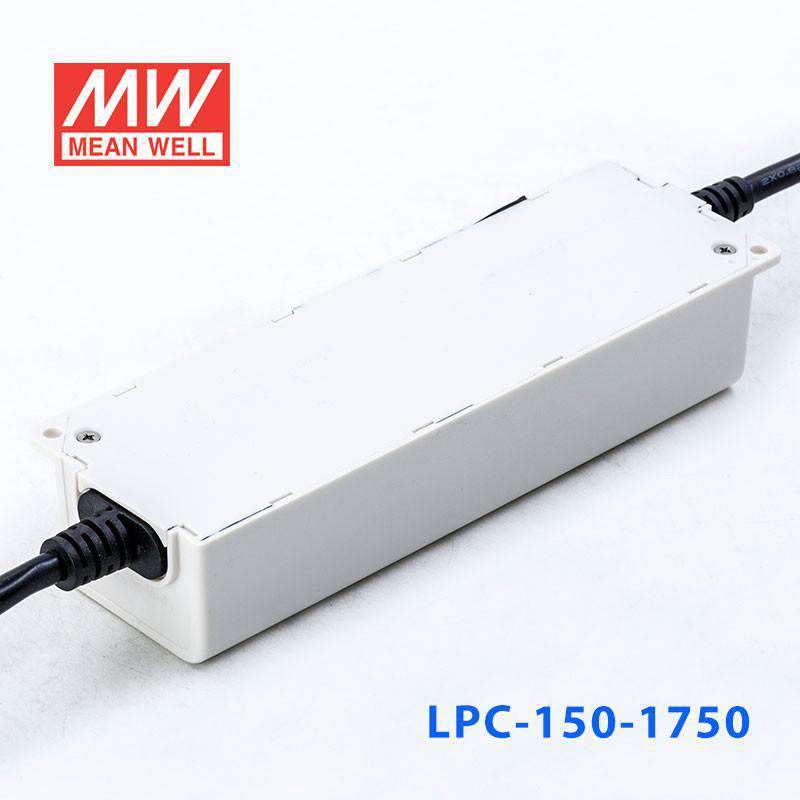

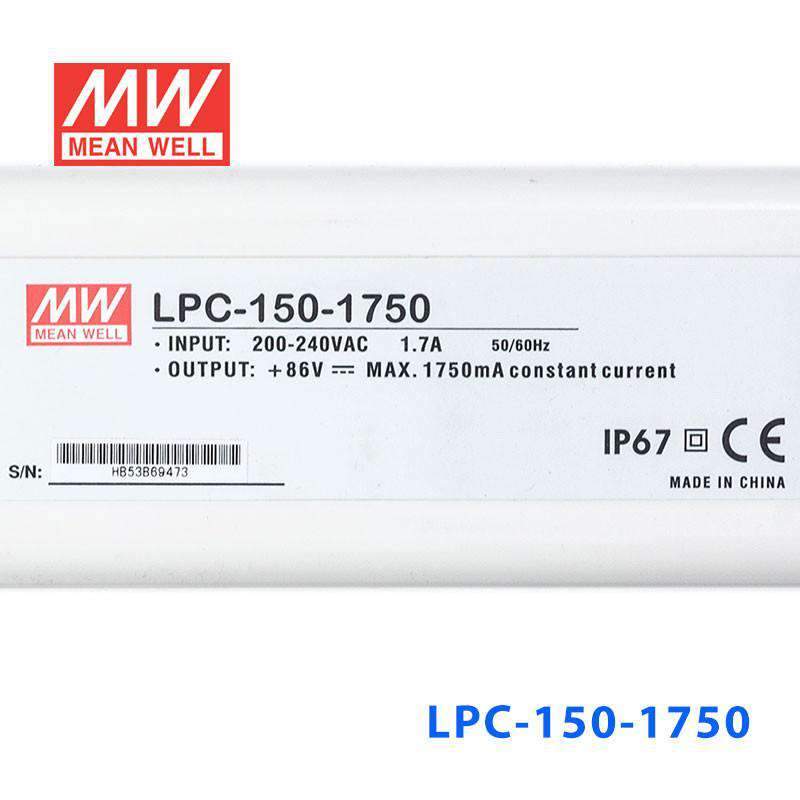

Mean Well LPC-150-1750 Power Supply 150W 1750mA

4.5 (8 reviews)

slim plastic caseeconomicalIP67

SKU LPC-150-1750

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

LPC-150-1750

LPC-60-1750 60W 1750mA Backorder

LPC-100-1750 100W 1750mA Backorder

LPC-150-1750 150W 1750mA Backorder

Product variants

Available to order

Overview

LPC-150-1750 is the model of this series: rated current 1750mA, rated power 150.5W, typical efficiency 90%.

Features

Constant current design
180~305VAC input only
High efficiency up to 90%
Protections: Short circuit / Over voltage / Over temperature
Cooling by free air convection
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
ClassⅡ power unit, no FG
Display devices for decorative & advertising accessories (Note.9)
100% full load burn-in test
Low cost, high reliability
2 years warranty (Note.4)

Specifications

LPC-150-1750Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT: 1750mA
CURRENT ACCURACY: ±5.0%
CONSTANT CURRENT REGION^Note.5: 43V ~ 86V
RATED POWER: 150.5W
RIPPLE CURRENT: ±5%
VOLTAGE TOLERANCE: ±2.0%
SETUP, RISE TIME: 1000ms, 80ms / 230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 305VAC 254VDC ~ 431VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.7 A / 230VAC 1.5A / 277VAC
INRUSH CURRENT (Typ.): COLD START 40A(twidth=750μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 96 ~ 115V Protection type : Shut down and latch off o/p voltage re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -25 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +70℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: BIS IS15885(for 700mA,1050mA,1400mA,2800mA only), EAC TP TC 004, IP67;IEC 62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(≤80% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020

OTHERS

MTBF: 3528.4K hrs min. Telcordia SR-332 (Bellcore) ; 479.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 191*63*37.5mm (L*W*H)
PACKING: 0.74Kg; 20pcs/15.8Kg/0.95CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Derating may be needed under low input voltages. Please check the static characteristics for more details.
3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. Refer to warranty statement.
5. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
6. Suitable for indoor use or outdoor use without direct sunlight exposure, please avoid immerse in the water over 30minutes.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPC-150-1750 Mechanical Specification — Mechanical Specification

LPC-150-1750 Recommend Mounting Direction — Recommend Mounting Direction

LPC-150-1750 Block Diagram — Block Diagram

Downloads

Datasheet1

LPC-150-1750 datasheetLPC-150-SPEC.PDF · 2026-09-07 edition PDF Download

Certificates1

EMC Certificate (LPC-150)(EN) PDF Download

Test reports1

Test Report (LPC-150-1750)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPC-150-1750 for a high-current LED downlight?

Yes, if the downlight is designed for 1750mA constant current operation. The total LED forward voltage must stay within 43-86V, and the load must remain within the 150.5W output rating.

Is the LPC-150-1750 a fit for signage modules that need more current and lower voltage than 1050mA models?

Yes, this model is intended for 1750mA constant current LED loads and operates across 43-86V. That makes it better suited to lower-voltage, higher-current module strings than models with 72-144V or 107-215V ranges.

Can this driver run a small LED array based on high-current LEDs?

It can, provided the array is built for 1750mA constant current input. The full array forward voltage needs to fall within 43-86V, which is more appropriate for higher-current arrays than long high-voltage strings.

How should I judge compatibility for the LPC-150-1750?

Match the LED load to 1750mA constant current and make sure the total forward voltage is within 43-86V. This is not a constant voltage power supply, and the number of LEDs depends on the forward voltage of each LED in the array.

Is the LPC-150-1750 suitable for outdoor lighting conditions?

The driver has an IP67 waterproof rating and an operating temperature range of -25°C to +50°C. That supports indoor use, or outdoor use without direct sunlight exposure, where the driver may face rain, dust, or seasonal temperature changes within that range.
