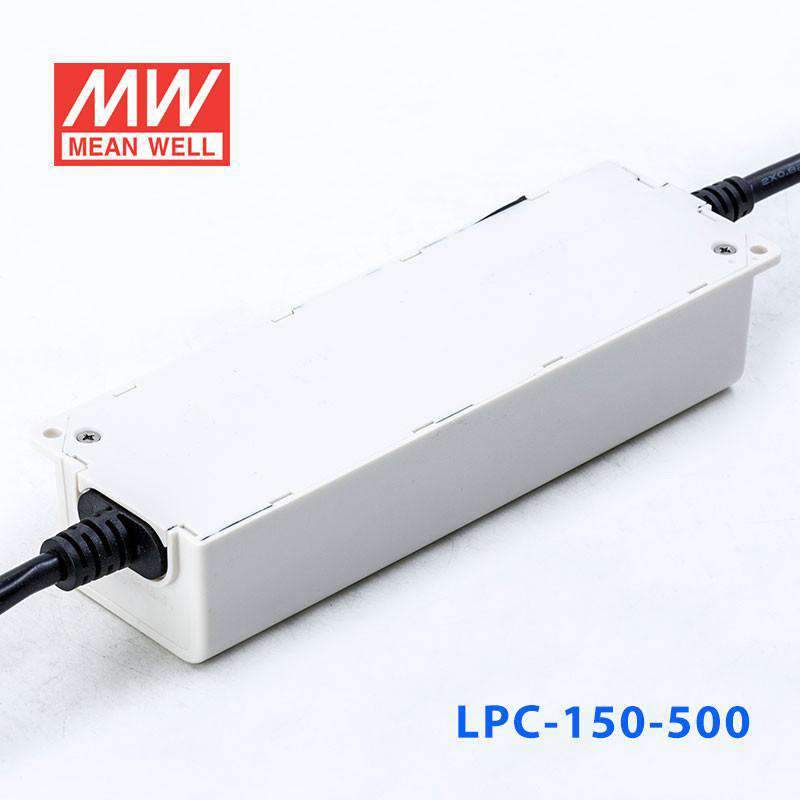

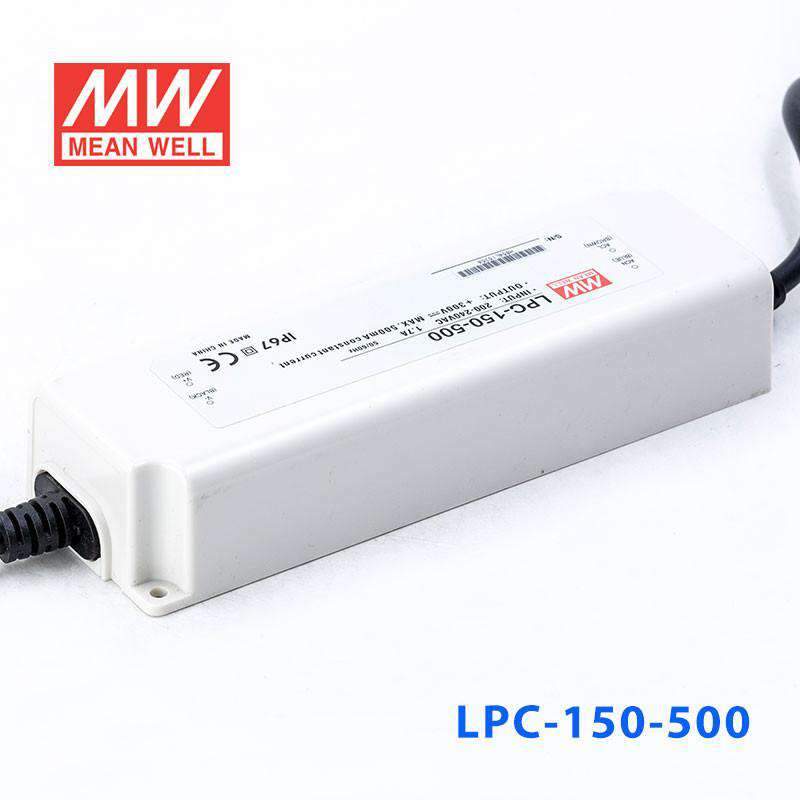

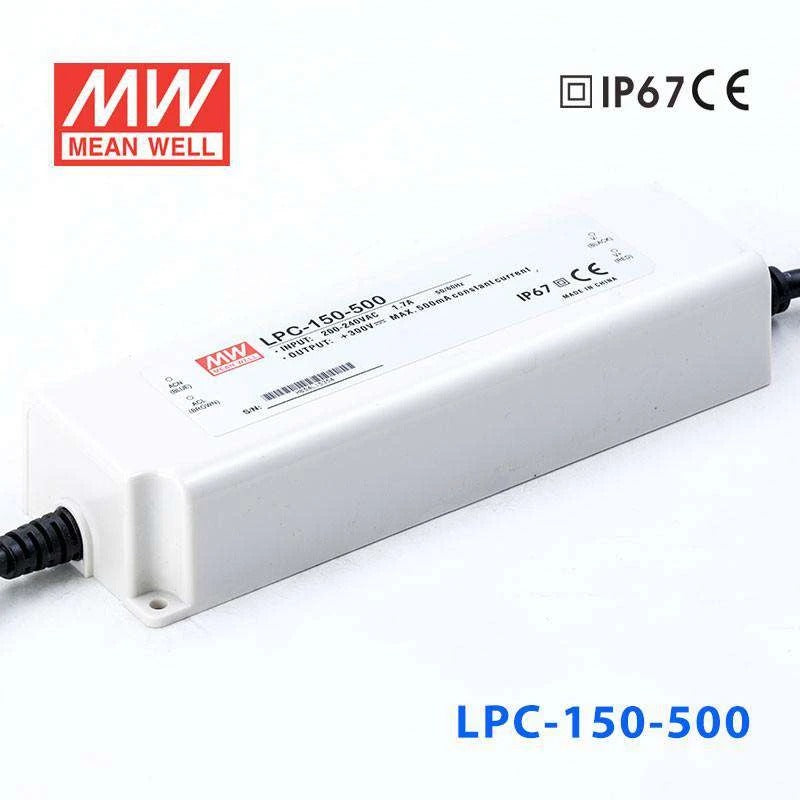

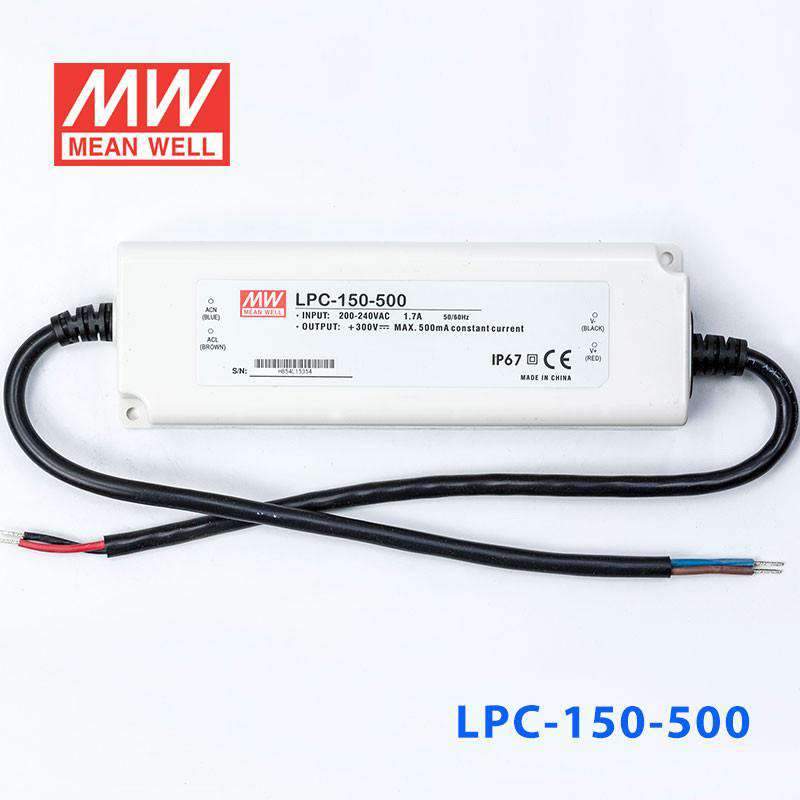

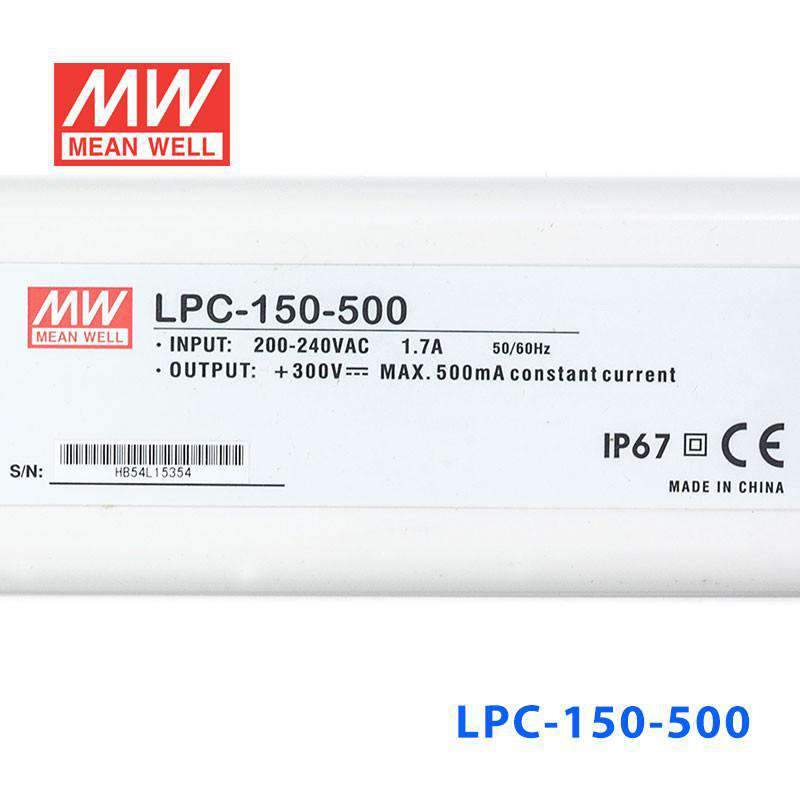

Mean Well LPC-150-500 Power Supply 150W 500mA

4.5 (8 reviews)

slim plastic caseeconomicalIP67

SKU LPC-150-500

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

LPC-150-500

LPC-100-500 100W 500mA Backorder

LPC-150-500 150W 500mA Backorder

Product variants

Available to order

Overview

LPC-150-500 is the model of this series: rated current 500mA, rated power 150W, typical efficiency 90%.

Features

Constant current design
180~305VAC input only
High efficiency up to 90%
Protections: Short circuit / Over voltage / Over temperature
Cooling by free air convection
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
ClassⅡ power unit, no FG
Display devices for decorative & advertising accessories (Note.9)
100% full load burn-in test
Low cost, high reliability
2 years warranty (Note.4)

Specifications

LPC-150-500Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT: 500mA
CURRENT ACCURACY: ±5.0%
CONSTANT CURRENT REGION^Note.5: 150 ~ 300V
RATED POWER: 150W
RIPPLE CURRENT: ±5%
VOLTAGE TOLERANCE: ±2.0%
SETUP, RISE TIME: 1000ms, 80ms / 230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 305VAC 254VDC ~ 431VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.7 A / 230VAC 1.5A / 277VAC
INRUSH CURRENT (Typ.): COLD START 40A(twidth=750μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 330 ~ 365V Protection type : Shut down and latch off o/p voltage re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -25 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +70℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: BIS IS15885(for 700mA,1050mA,1400mA,2800mA only), EAC TP TC 004, IP67;IEC 62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(≤80% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020

OTHERS

MTBF: 3528.4K hrs min. Telcordia SR-332 (Bellcore) ; 479.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 191*63*37.5mm (L*W*H)
PACKING: 0.74Kg; 20pcs/15.8Kg/0.95CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Derating may be needed under low input voltages. Please check the static characteristics for more details.
3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. Refer to warranty statement.
5. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
6. Suitable for indoor use or outdoor use without direct sunlight exposure, please avoid immerse in the water over 30minutes.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPC-150-500 Mechanical Specification — Mechanical Specification

LPC-150-500 Recommend Mounting Direction — Recommend Mounting Direction

LPC-150-500 Block Diagram — Block Diagram

Downloads

Datasheet1

LPC-150-500 datasheetLPC-150-SPEC.PDF · 2026-09-07 edition PDF Download

Certificates1

EMC Certificate (LPC-150)(EN) PDF Download

Test reports1

Test Report (LPC-150-500)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPC-150-500 for constant current LED downlights with long series strings?

Yes, if the downlight requires 500mA constant current and the total LED forward voltage is within the 150-300V CC range. It is meant for constant current loads and is not the correct choice for constant voltage LED systems.

Is the LPC-150-500 suitable for LED signage modules in higher-voltage series arrangements?

It can be suitable for signage module assemblies that are designed for 500mA constant current and whose total forward voltage stays between 150V and 300V. It should not be used for standard fixed-voltage modules.

Can this driver power a small LED array that needs 500mA?

Yes, for a small LED array specified for 500mA constant current with a combined forward voltage inside the 150-300V operating window. With 150W output power, it is intended for substantial constant current LED loads rather than low-power boards.

How do I check whether my LEDs match the LPC-150-500?

Your LED assembly must require 500mA constant current, and the total forward voltage must remain in the 150-300V CC range. The number of LEDs depends on the forward voltage of each LED, so the correct series length varies by LED type.

Is the LPC-150-500 appropriate for outdoor environments?

Yes, provided it is kept out of direct sunlight: the IP67 rating means the enclosure is built for wet and dusty conditions. The specified operating temperature range is -25°C to +50°C, so the application should remain within those ambient limits.

How does the LPC-150-500 differ from other high-voltage LPC-150 models?

The LPC-150-350 provides 350mA over 215-430V at 150.5W, the LPC-150-500 provides 500mA over 150-300V at 150W, and the LPC-150-700 provides 700mA over 107-215V at 150.5W. All three are around 150W, but the current and constant current voltage range shift depending on the LED load requirement.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LPC-150-700 Power Supply 150W 700mA	150.5W	215V	0.7A	IP67	View
Mean Well LPC-150-350 Power Supply150W 350mA	150.5W	430V	0.35A	IP67	View
Mean Well LPC-150-3150 Power Supply 150W 3150mA	151.2W	48V	3.15A	IP67	View
Mean Well LPC-150-2800 Power Supply 150W 2800mA	151.2W	54V	2.8A	IP67	View
Mean Well LPC-150-2450 Power Supply 150W 2450mA	151.9W	62V	2.45A	IP67	View
Mean Well LPC-150-2100 Power Supply 150W 2100mA	151.2W	72V	2.1A	IP67	View
Mean Well LPC-150-1750 Power Supply 150W 1750mA	150.5W	86V	1.75A	IP67	View
Mean Well LPC-150-1400 Power Supply 150W1400mA	151.2W	108V	1.4A	IP67	View
Mean Well LPC-150-1050 Power Supply 150W 1050mA	151.2W	144V	1.05A	IP67	View
