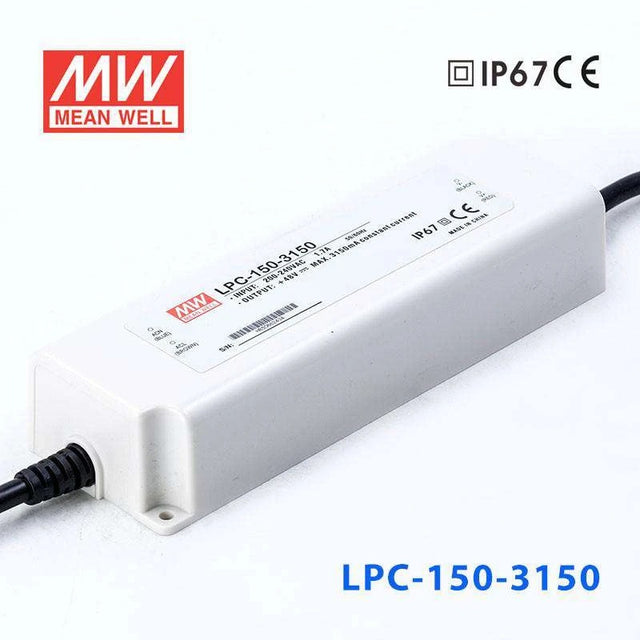

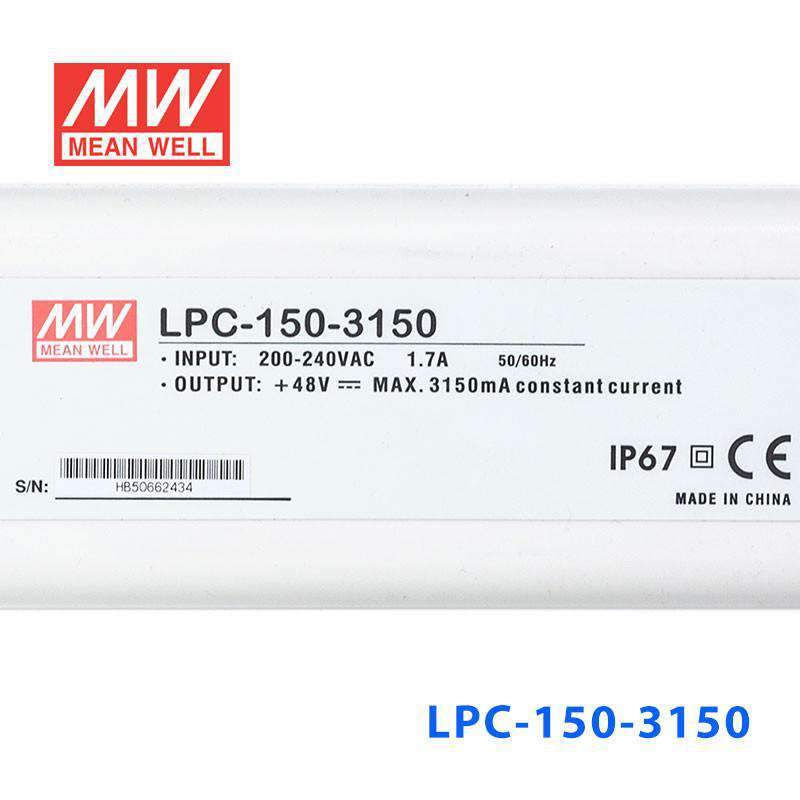

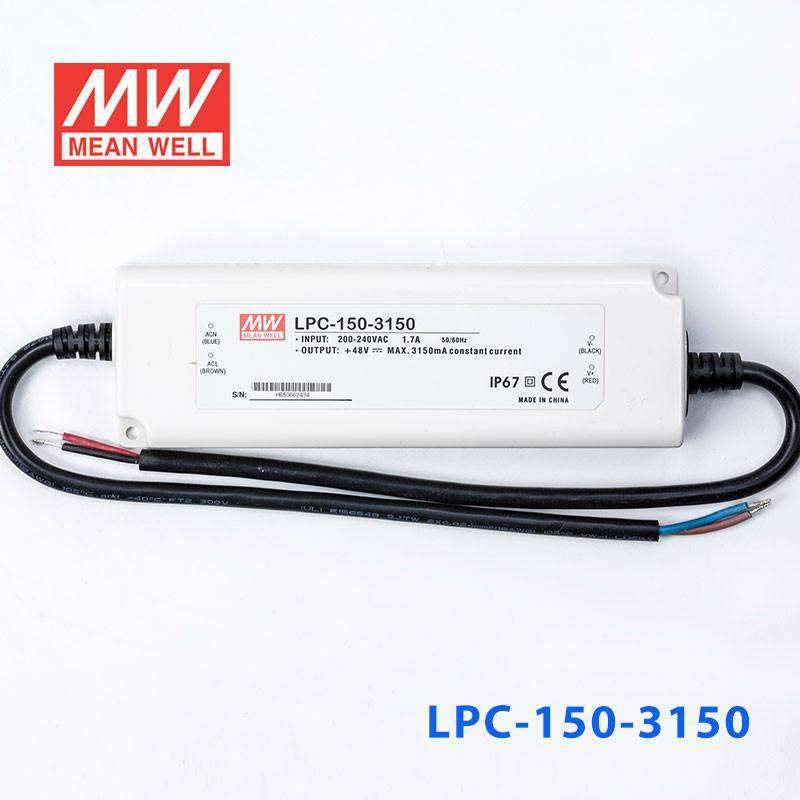

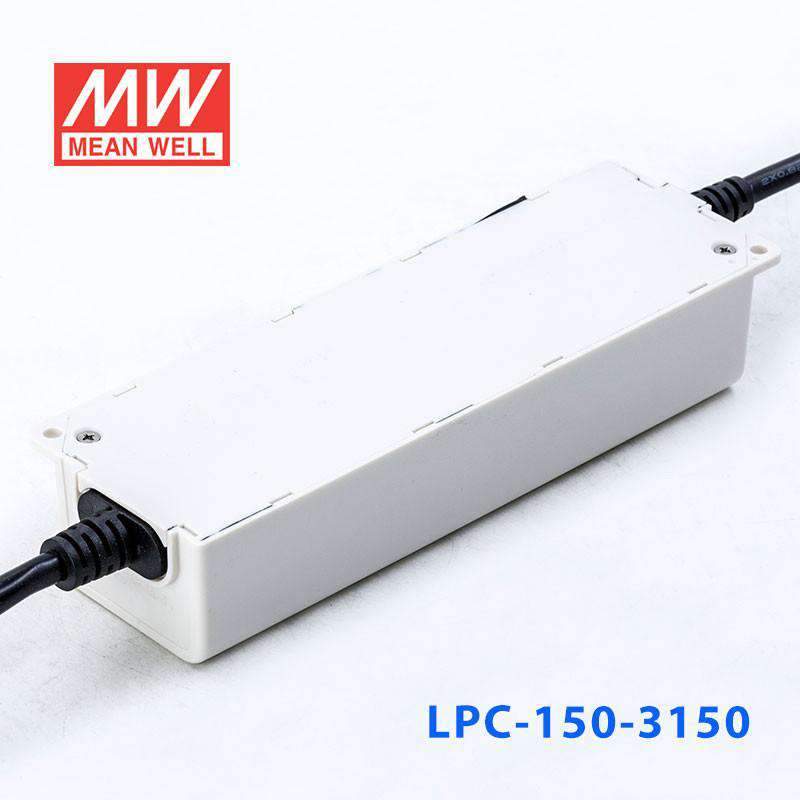

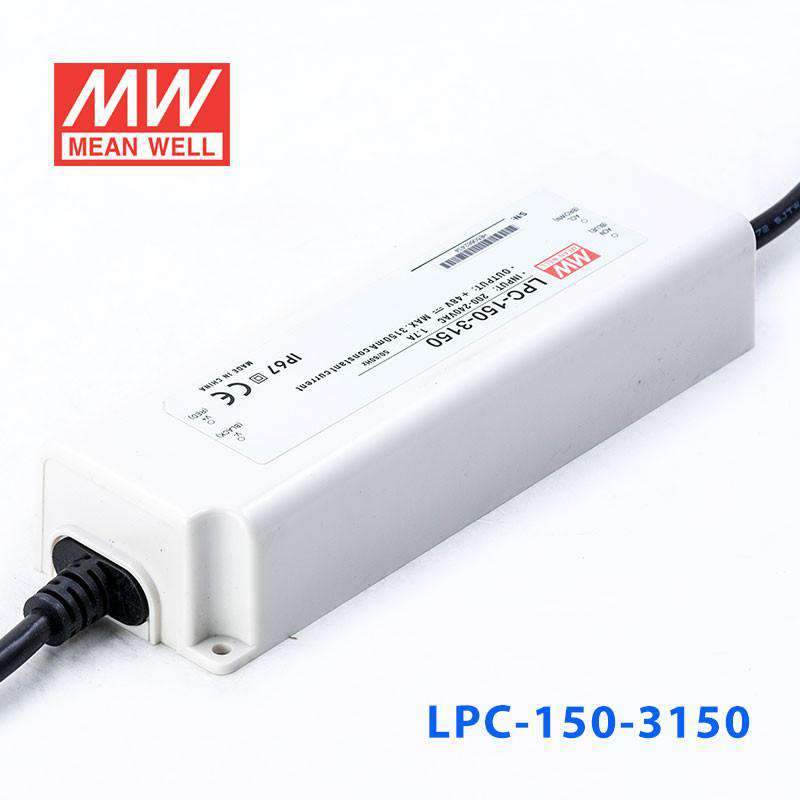

Mean Well LPC-150-3150 Power Supply 150W 3150mA

4.5 (8 reviews)

slim plastic caseeconomicalIP67

SKU LPC-150-3150

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LPC-150-3150 is the model of this series: rated current 3150mA, rated power 151.2W, typical efficiency 90%.

Features

Constant current design
180~305VAC input only
High efficiency up to 90%
Protections: Short circuit / Over voltage / Over temperature
Cooling by free air convection
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
ClassⅡ power unit, no FG
Display devices for decorative & advertising accessories (Note.9)
100% full load burn-in test
Low cost, high reliability
2 years warranty (Note.4)

Specifications

LPC-150-3150Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT: 3150mA
CURRENT ACCURACY: ±5.0%
CONSTANT CURRENT REGION^Note.5: 24V ~ 48V
RATED POWER: 151.2W
RIPPLE CURRENT: ±5%
VOLTAGE TOLERANCE: ±2.0%
SETUP, RISE TIME: 1000ms, 80ms / 230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 305VAC 254VDC ~ 431VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.7 A / 230VAC 1.5A / 277VAC
INRUSH CURRENT (Typ.): COLD START 40A(twidth=750μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 55 ~ 65V Protection type : Shut down and latch off o/p voltage re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -25 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +70℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: BIS IS15885(for 700mA,1050mA,1400mA,2800mA only), EAC TP TC 004, IP67;IEC 62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(≤80% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020

OTHERS

MTBF: 3528.4K hrs min. Telcordia SR-332 (Bellcore) ; 479.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 191*63*37.5mm (L*W*H)
PACKING: 0.74Kg; 20pcs/15.8Kg/0.95CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Derating may be needed under low input voltages. Please check the static characteristics for more details.
3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. Refer to warranty statement.
5. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
6. Suitable for indoor use or outdoor use without direct sunlight exposure, please avoid immerse in the water over 30minutes.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPC-150-3150 Mechanical Specification — Mechanical Specification

LPC-150-3150 Recommend Mounting Direction — Recommend Mounting Direction

LPC-150-3150 Block Diagram — Block Diagram

Downloads

Datasheet1

LPC-150-3150 datasheetLPC-150-SPEC.PDF · 2026-09-07 edition PDF Download

Certificates1

EMC Certificate (LPC-150)(EN) PDF Download

Test reports1

Test Report (LPC-150-3150)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPC-150-3150 for very high-current LED downlights?

Yes, if the downlight is specified for 3150mA constant current and the full LED string operates within the 24-48V CC range. This is a constant current driver, so it is not a substitute for a constant voltage supply.

Is the LPC-150-3150 suitable for dense LED arrays?

It is suitable for small LED arrays that need a high 3150mA drive current and fit within the 24-48V constant current window. With 151.2W output, it is intended for higher-power LED assemblies rather than low-current boards.

Can this driver be used for LED signage modules that need strong current output?

Yes, but only for signage module assemblies built for 3150mA constant current and a total forward voltage between 24V and 48V. It should not be used for standard constant voltage modules that expect a fixed DC rail.

How do I determine compatibility with the LPC-150-3150?

Your LEDs must be rated for 3150mA constant current, and the combined forward voltage has to stay inside the 24-48V constant current range. The number of LEDs depends on the forward voltage of each LED, so the correct string size varies by LED type.

Can the LPC-150-3150 handle outdoor conditions?

It carries an IP67 waterproof rating, so it suits wet and dusty environments, including outdoor use without direct sunlight exposure. The specified operating temperature range is -25°C to +50°C.

What is the difference between the LPC-150-3150 and other LPC-150 current ratings?

The LPC-150-3150 provides 3150mA with a 24-48V CC range and 151.2W. Other nearby LPC-150 versions are 2100mA at 36-72V, 2450mA at 31-62V, and 2800mA at 27-54V, while the lower-current 1050mA, 1400mA, and 1750mA versions operate at progressively higher CC voltage ranges.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LPC-150-700 Power Supply 150W 700mA	150.5W	215V	0.7A	IP67	View
Mean Well LPC-150-500 Power Supply 150W 500mA	150W	300V	0.5A	IP67	View
Mean Well LPC-150-350 Power Supply150W 350mA	150.5W	430V	0.35A	IP67	View
Mean Well LPC-150-2800 Power Supply 150W 2800mA	151.2W	54V	2.8A	IP67	View
Mean Well LPC-150-2450 Power Supply 150W 2450mA	151.9W	62V	2.45A	IP67	View
Mean Well LPC-150-2100 Power Supply 150W 2100mA	151.2W	72V	2.1A	IP67	View
Mean Well LPC-150-1750 Power Supply 150W 1750mA	150.5W	86V	1.75A	IP67	View
Mean Well LPC-150-1400 Power Supply 150W1400mA	151.2W	108V	1.4A	IP67	View
Mean Well LPC-150-1050 Power Supply 150W 1050mA	151.2W	144V	1.05A	IP67	View
