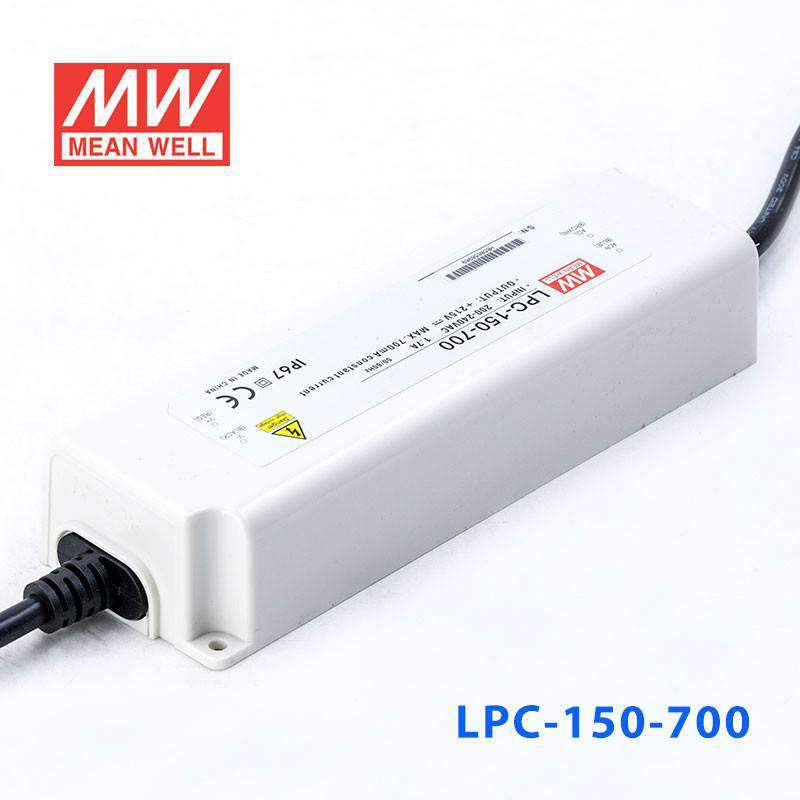

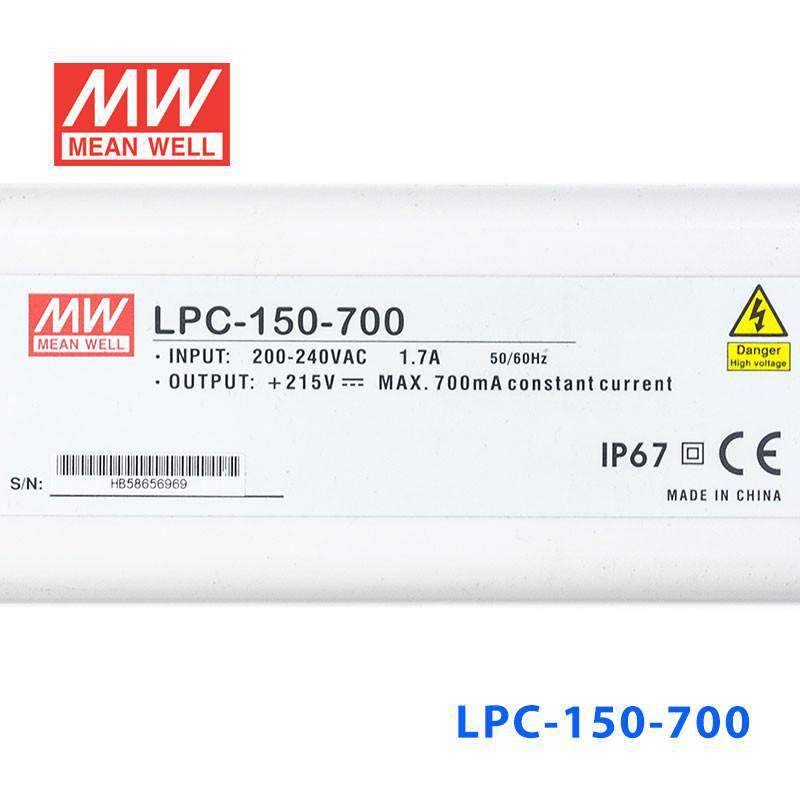

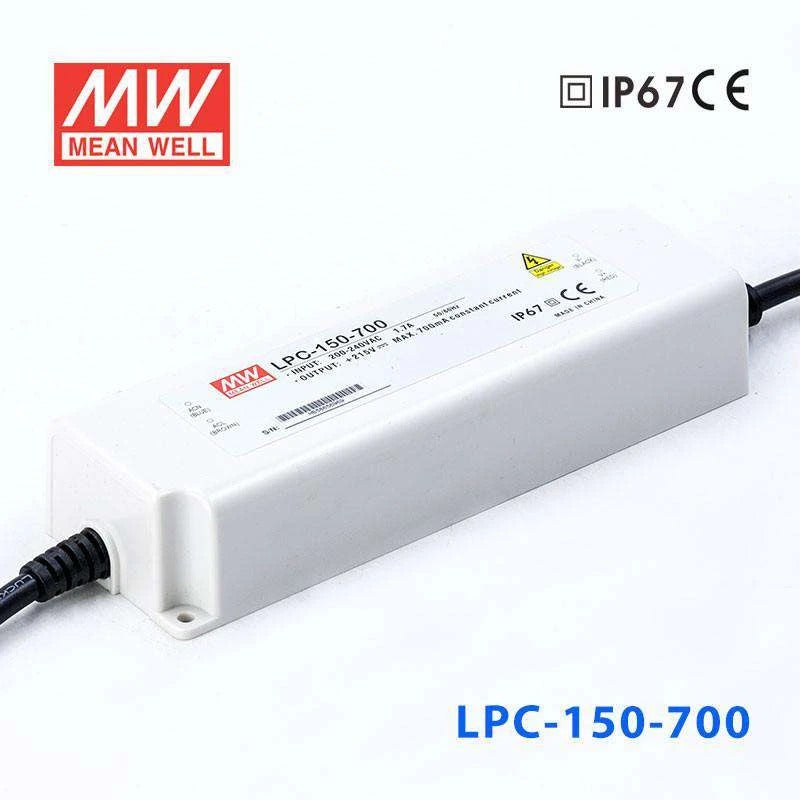

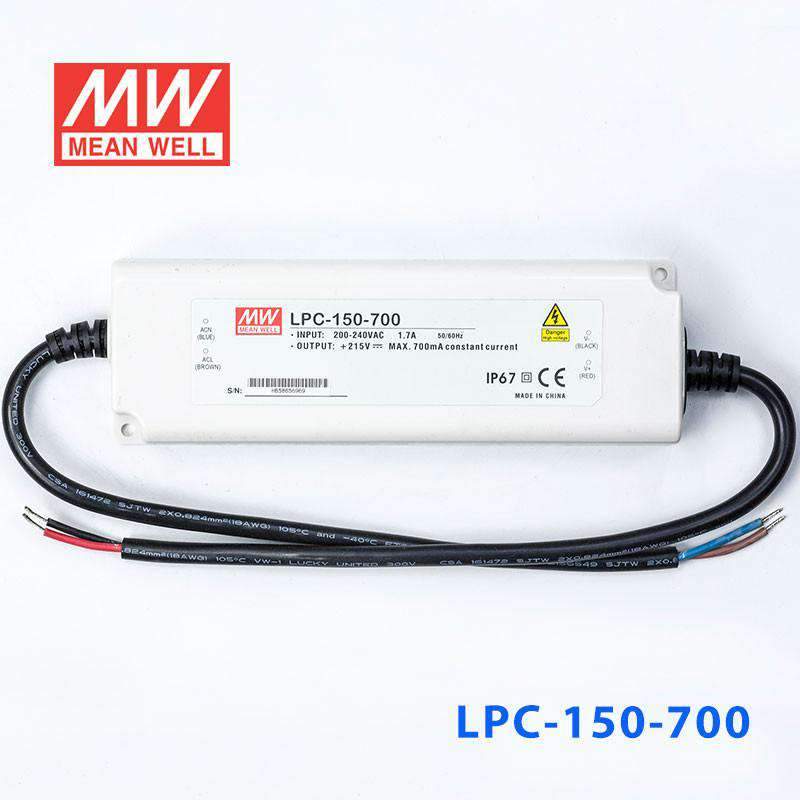

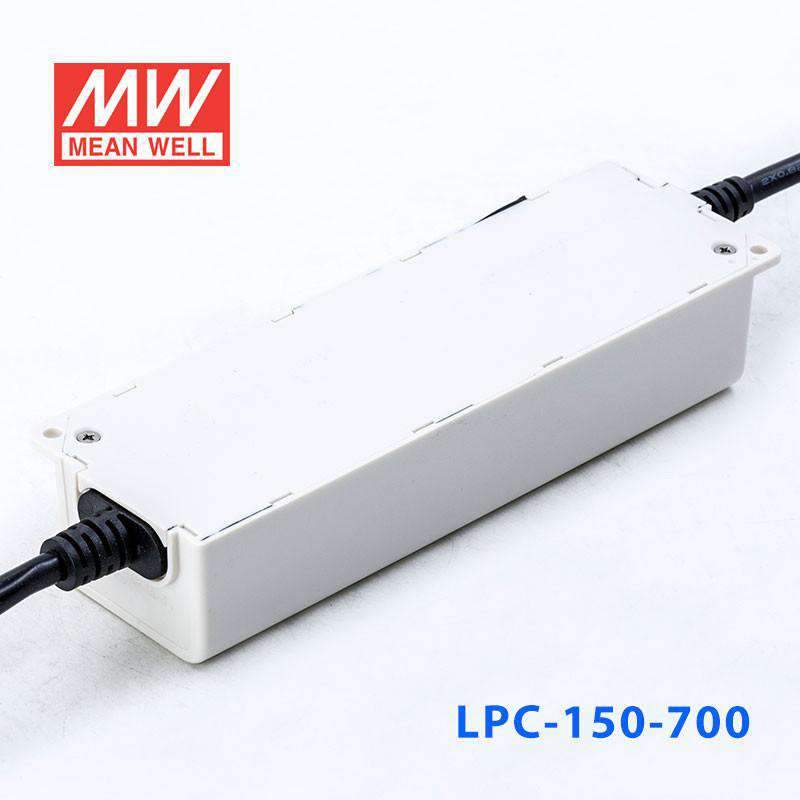

Mean Well LPC-150-700 Power Supply 150W 700mA

4.5 (8 reviews)

slim plastic caseeconomicalIP67

SKU LPC-150-700

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

LPC-150-700

LPC-20-700 20W 700mA In stock

LPC-100-700 100W 700mA Low stock

LPC-150-700 150W 700mA Low stock

LPC-35-700 35W 700mA In stock

Product variants

In stock

Overview

LPC-150-700 is the model of this series: rated current 700mA, rated power 150.5W, typical efficiency 90%.

Features

Constant current design
180~305VAC input only
High efficiency up to 90%
Protections: Short circuit / Over voltage / Over temperature
Cooling by free air convection
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
ClassⅡ power unit, no FG
Display devices for decorative & advertising accessories (Note.9)
100% full load burn-in test
Low cost, high reliability
2 years warranty (Note.4)

Specifications

LPC-150-700Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT: 700mA
CURRENT ACCURACY: ±5.0%
CONSTANT CURRENT REGION^Note.5: 107V ~ 215V
RATED POWER: 150.5W
RIPPLE CURRENT: ±5%
VOLTAGE TOLERANCE: ±2.0%
SETUP, RISE TIME: 1000ms, 80ms / 230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 305VAC 254VDC ~ 431VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.7 A / 230VAC 1.5A / 277VAC
INRUSH CURRENT (Typ.): COLD START 40A(twidth=750μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 235 ~ 265V Protection type : Shut down and latch off o/p voltage re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -25 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +70℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: BIS IS15885(for 700mA,1050mA,1400mA,2800mA only), EAC TP TC 004, IP67;IEC 62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(≤80% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020

OTHERS

MTBF: 3528.4K hrs min. Telcordia SR-332 (Bellcore) ; 479.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 191*63*37.5mm (L*W*H)
PACKING: 0.74Kg; 20pcs/15.8Kg/0.95CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Derating may be needed under low input voltages. Please check the static characteristics for more details.
3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. Refer to warranty statement.
5. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
6. Suitable for indoor use or outdoor use without direct sunlight exposure, please avoid immerse in the water over 30minutes.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPC-150-700 Mechanical Specification — Mechanical Specification

LPC-150-700 Recommend Mounting Direction — Recommend Mounting Direction

LPC-150-700 Block Diagram — Block Diagram

Downloads

Datasheet1

LPC-150-700 datasheetLPC-150-SPEC.PDF · 2026-09-07 edition PDF Download

Certificates1

EMC Certificate (LPC-150)(EN) PDF Download

Test reports1

Test Report (LPC-150-700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPC-150-700 for high-voltage LED downlights?

This driver can fit LED downlights that are designed for a constant current source at 700mA and operate within the 107-215V constant current range. It is a constant current model, so it is intended for LED loads that require current regulation rather than constant voltage. The 150.5W rating also suits larger downlight assemblies that stay within that voltage window.

Is the LPC-150-700 suitable for signage modules or long series LED boards?

It can be suitable for signage modules or long series LED boards when the full LED load is specified for 700mA constant current and falls inside the 107-215V CC range. Because this is not a constant voltage driver, it should be matched to constant current LED assemblies only. Its 150.5W output is aimed at higher-power arrays rather than small low-voltage module sets.

Can this driver run a small LED array for architectural or display lighting?

It can run a small LED array only if that array is built as a high-voltage constant current load at 700mA within 107-215V. Many smaller arrays operate at much lower forward voltage, so this model is generally a better fit for larger series-connected LED assemblies. The driver regulates current, not a fixed constant voltage output.

How do I know if my LED load is compatible with the LPC-150-700?

The LED load needs to be a constant current load rated for 700mA, and its total forward voltage must fall within the 107-215V constant current output range. The number of LEDs depends on the forward voltage of each LED, so compatibility is based on the total load voltage rather than a fixed LED count. This model should not be selected for constant voltage LED products.

What is the difference between the LPC-150 current options in the same series?

Within the LPC-150 family, the listed options are 350mA at 215-430V and 150.5W, 500mA at 150-300V and 150W, 700mA at 107-215V and 150.5W, 1050mA at 72-144V and 151.2W, 1400mA at 54-108V and 151.2W, 1750mA at 43-86V and 150.5W, 2100mA at 36-72V and 151.2W, 2450mA at 31-62V and 151.9W, 2800mA at 27-54V and 151.2W, and 3150mA at 24-48V and 151.2W. The main difference is the tradeoff between output current and constant current voltage range across the series.

Is the LPC-150-700 suitable for wet or outdoor locations?

It has an IP67 waterproof rating, so it is built for environments where dust protection and water exposure matter. The operating temperature range is -25°C to +50°C, which defines the conditions it is rated for. It is suitable for indoor use, or for outdoor use without direct sunlight exposure.
