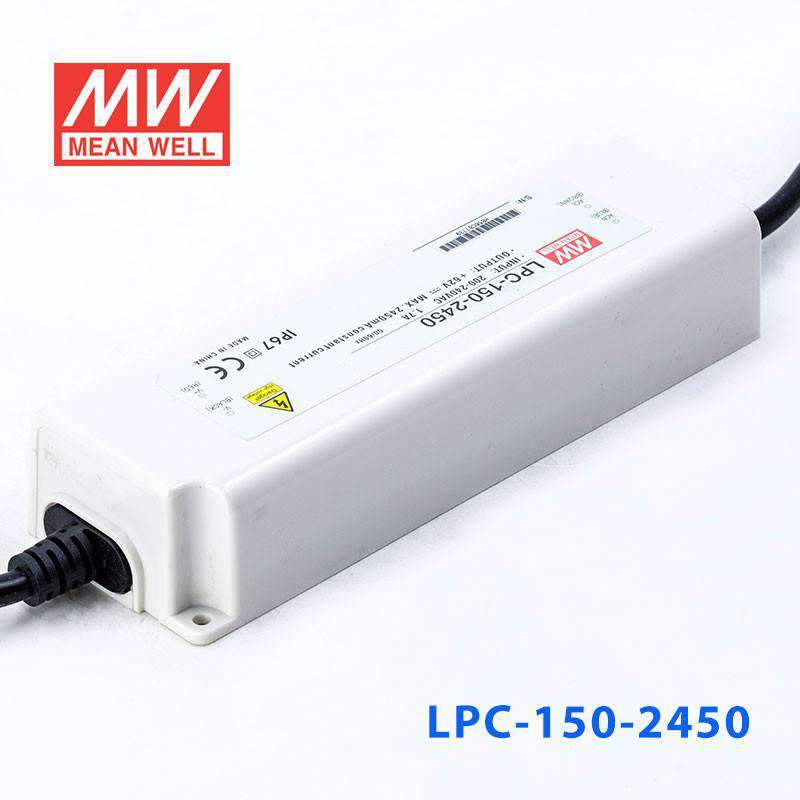

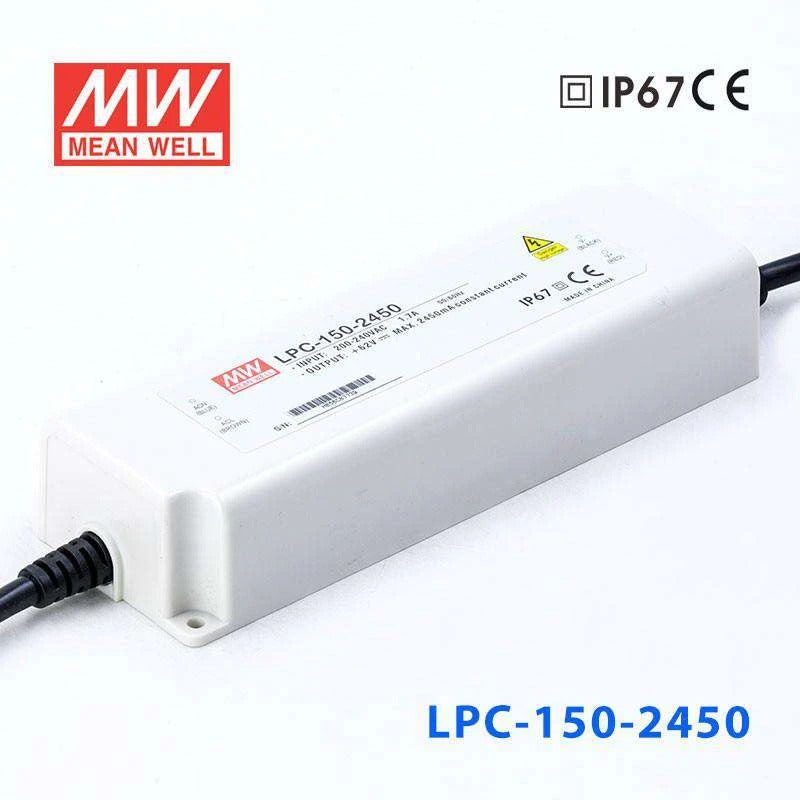

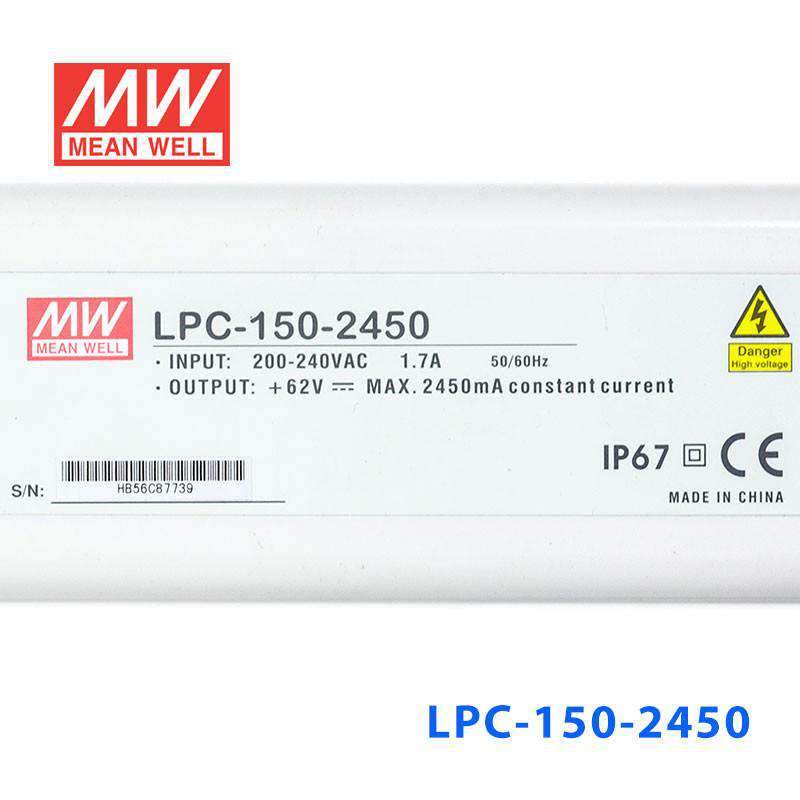

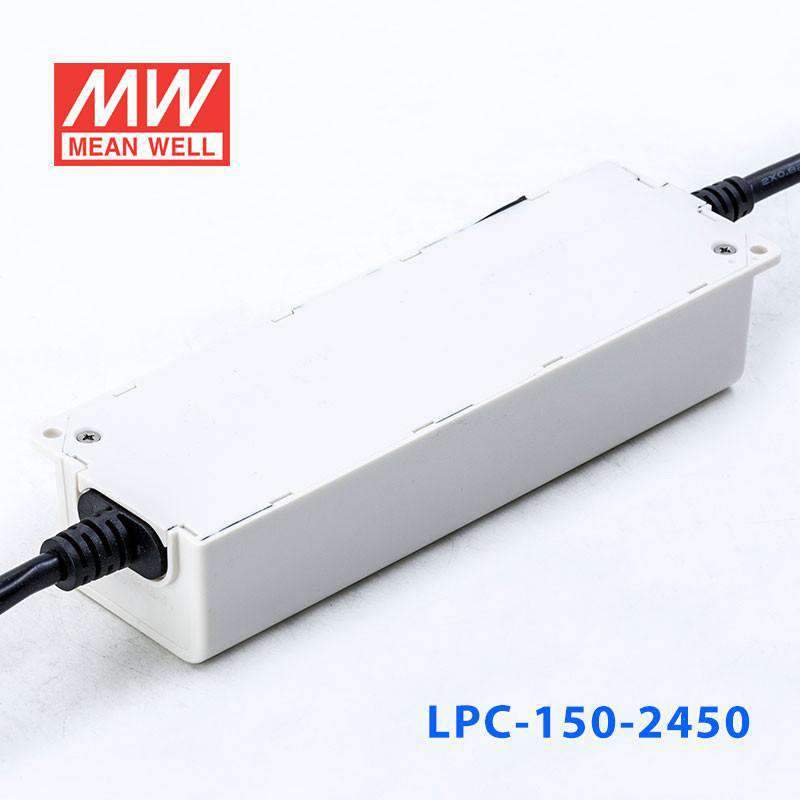

Mean Well LPC-150-2450 Power Supply 150W 2450mA

4.5 (8 reviews)

slim plastic caseeconomicalIP67

SKU LPC-150-2450

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LPC-150-2450 is the model of this series: rated current 2450mA, rated power 151.9W, typical efficiency 90%.

Features

Constant current design
180~305VAC input only
High efficiency up to 90%
Protections: Short circuit / Over voltage / Over temperature
Cooling by free air convection
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
ClassⅡ power unit, no FG
Display devices for decorative & advertising accessories (Note.9)
100% full load burn-in test
Low cost, high reliability
2 years warranty (Note.4)

Specifications

LPC-150-2450Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

RATED CURRENT: 2450mA
CURRENT ACCURACY: ±5.0%
CONSTANT CURRENT REGION^Note.5: 31V ~ 62V
RATED POWER: 151.9W
RIPPLE CURRENT: ±5%
VOLTAGE TOLERANCE: ±2.0%
SETUP, RISE TIME: 1000ms, 80ms / 230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 305VAC 254VDC ~ 431VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.7 A / 230VAC 1.5A / 277VAC
INRUSH CURRENT (Typ.): COLD START 40A(twidth=750μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 69 ~ 80V Protection type : Shut down and latch off o/p voltage re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -25 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +70℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: BIS IS15885(for 700mA,1050mA,1400mA,2800mA only), EAC TP TC 004, IP67;IEC 62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(≤80% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020

OTHERS

MTBF: 3528.4K hrs min. Telcordia SR-332 (Bellcore) ; 479.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 191*63*37.5mm (L*W*H)
PACKING: 0.74Kg; 20pcs/15.8Kg/0.95CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Derating may be needed under low input voltages. Please check the static characteristics for more details.
3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. Refer to warranty statement.
5. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
6. Suitable for indoor use or outdoor use without direct sunlight exposure, please avoid immerse in the water over 30minutes.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPC-150-2450 Mechanical Specification — Mechanical Specification

LPC-150-2450 Recommend Mounting Direction — Recommend Mounting Direction

LPC-150-2450 Block Diagram — Block Diagram

Downloads

Datasheet1

LPC-150-2450 datasheetLPC-150-SPEC.PDF · 2026-09-07 edition PDF Download

Certificates1

EMC Certificate (LPC-150)(EN) PDF Download

Test reports1

Test Report (LPC-150-2450)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LPC-150-2450 for high-output LED downlights?

Yes, if the downlight requires a constant current driver at 2450mA and the total LED forward voltage falls within the 31-62V constant current range. This model is not a constant voltage supply, so it is intended for constant current LED loads rather than 12V or 24V LED products.

Is the LPC-150-2450 suitable for powering LED signage modules?

It can be suitable for signage modules that are designed to run from a 2450mA constant current source and whose combined forward voltage stays between 31V and 62V. It is not the right choice for standard constant voltage signage modules that expect a fixed DC voltage output.

Can this driver run a small LED array for general lighting?

Yes, for a small LED array that is specified for 2450mA constant current and fits inside the 31-62V operating window. With 151.9W output power, it is meant for higher-power constant current LED assemblies rather than low-power arrays.

How do I know if my LED load is compatible with the LPC-150-2450?

Your LED load should require 2450mA constant current, and its total forward voltage must fall within the 31-62V constant current output range. The number of LEDs depends on the forward voltage of each LED, so compatibility should be checked from the LED data rather than by counting diodes.

Can the LPC-150-2450 be used in wet or outdoor conditions?

This model is rated IP67, so it suits wet and dusty environments, including outdoor use without direct sunlight exposure. Its operating temperature range is -25°C to +50°C, so the ambient conditions also need to stay within that range.

How does the LPC-150-2450 compare with other LPC-150 drivers?

Within the LPC-150 series, the LPC-150-1050 is 1050mA with a 72-144V CC range and 151.2W, the LPC-150-1400 is 1400mA with 54-108V and 151.2W, the LPC-150-1750 is 1750mA with 43-86V and 150.5W, the LPC-150-2100 is 2100mA with 36-72V and 151.2W, the LPC-150-2450 is 2450mA with 31-62V and 151.9W, the LPC-150-2800 is 2800mA with 27-54V and 151.2W, and the LPC-150-3150 is 3150mA with 24-48V and 151.2W. The lower-current LPC-150-350, LPC-150-500, and LPC-150-700 versions shift to much higher CC voltage ranges of 215-430V, 150-300V, and 107-215V respectively.
