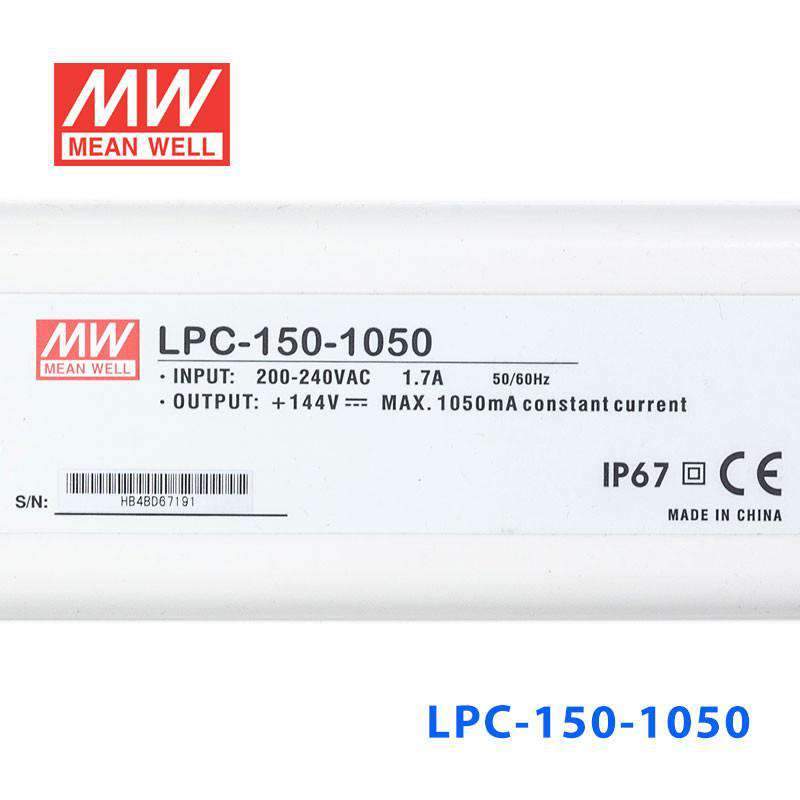

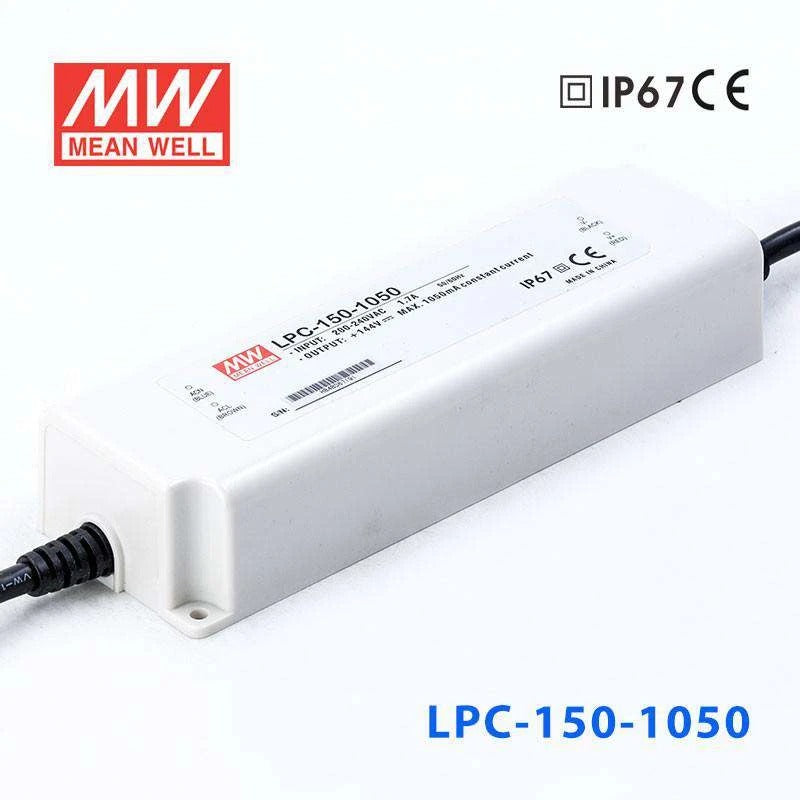

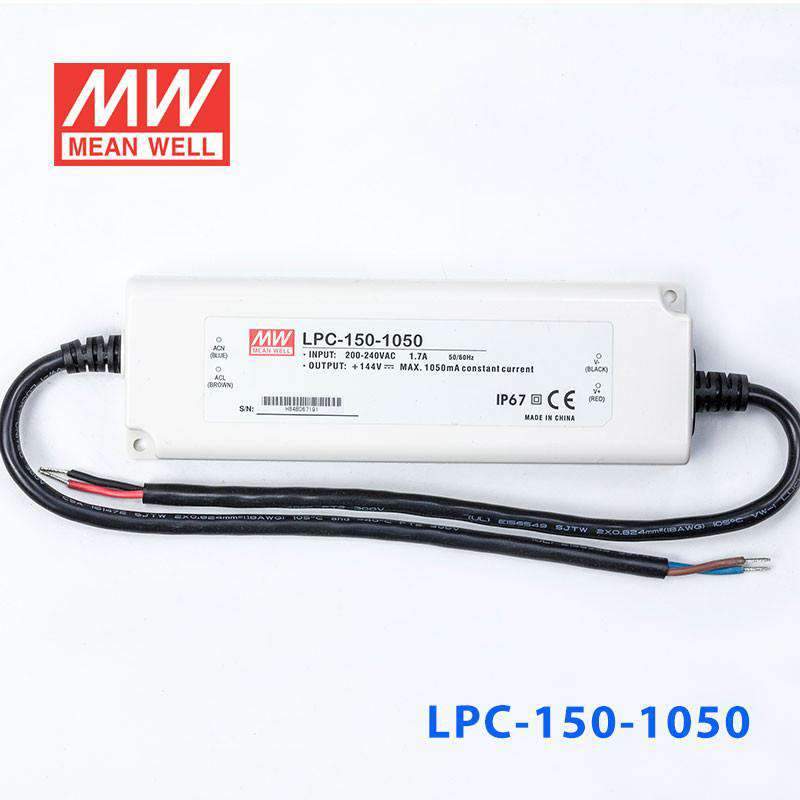

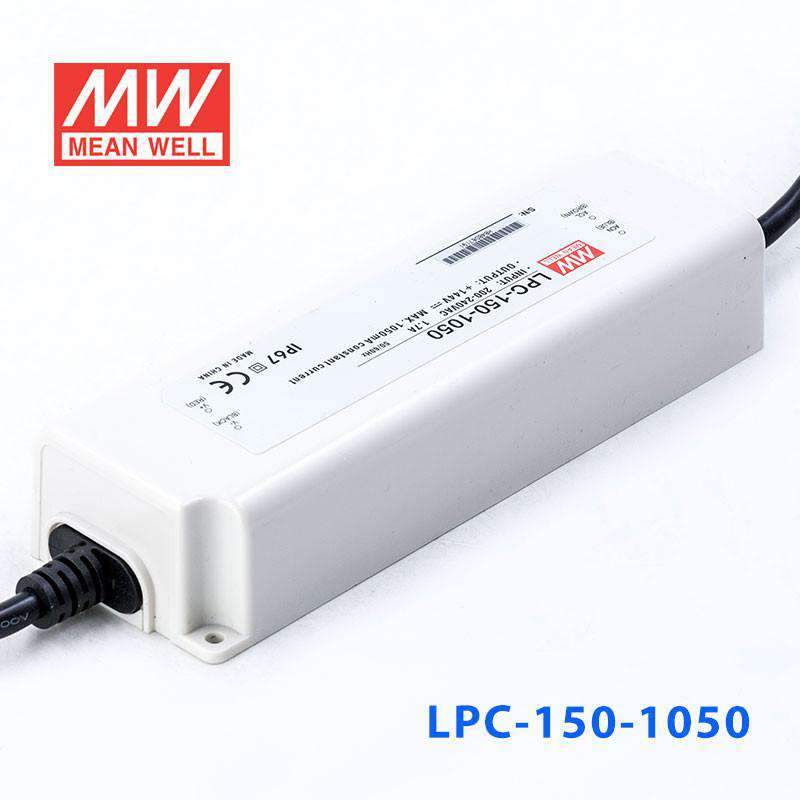

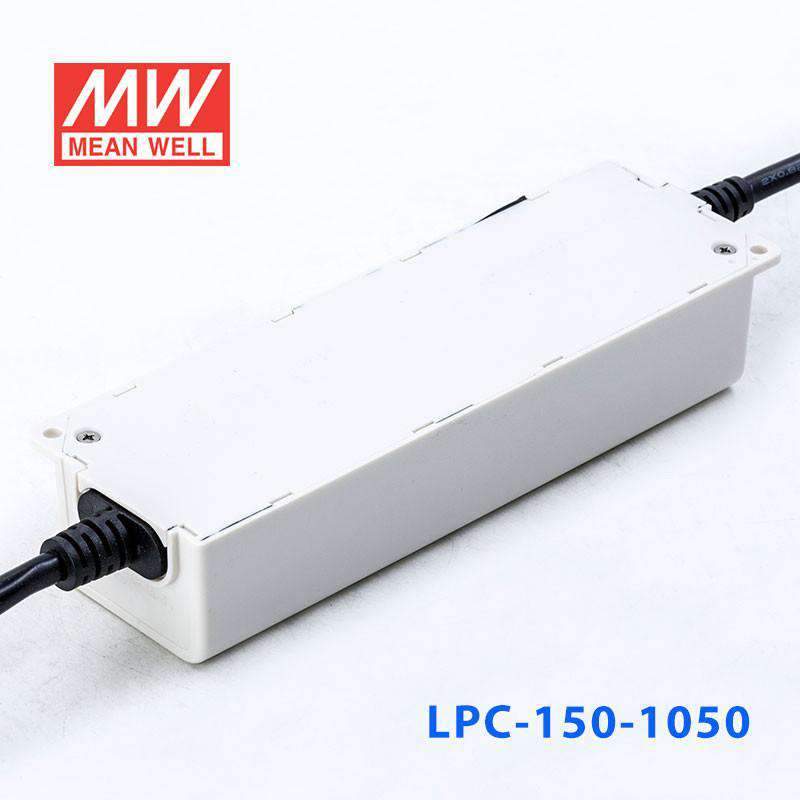

Mean Well LPC-150-1050 Power Supply 150W 1050mA

slim plastic case, economical, IP67

SKU:

LPC-150-1050

Model

35W 1050mA

SKU: LPC-35-1050

60W 1050mA

SKU: LPC-60-1050

100W 1050mA

SKU: LPC-100-1050

150W 1050mA

SKU: LPC-150-1050

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input/full rauge

Fully encapsulated with IP67 level

Protections: Short circuit / Over voltage

Constant current design

Withstand 300VAC surge input for 5 seconds

High efficiency up to 90%

Class II power unit, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	180~305VAC
AC inrush current	Cold start, 40A at 230VAC
Over voltage protection	105%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-25~+50°C
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	IP67 approved;Design refer to TUV EN60950-1
EMC standards	EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN55024
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL rated, SJTW 18AWGx2C (30cm)
Dimension (LxWxH)(mm)	191x 63x 37.5

Specifications

Brand

Mean Well
Series

LPC Series
Power Rating

151.2 Watt
Output Voltage

144 Volt
Rated Current

1.05 Ampere
Input Voltage

180V~305V
Standards Met

CE,EAC
Operation Mode

Constant Current
Operating Temperature

-25°C~50°C
Warranty

2 Year
Length

19.1 cm
Width

6.3 cm
Height

3.75 cm
Weight

0.74 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPC-150-1050 for a larger LED downlight fixture?

Yes, if the fixture is designed for a constant current input of 1050mA. The LED load must operate within the 72-144V constant current range, and the driver can supply up to 151.2W.

Is the LPC-150-1050 a good fit for higher-power signage modules?

It can be a fit for signage modules built around a 1050mA constant current input. This model supports higher-power LED assemblies up to 151.2W, provided the total LED forward voltage stays within 72-144V.

Can this model power a small LED array with a higher output than 100W drivers?

Yes, this driver is positioned for constant current LED arrays that need 1050mA and more headroom than a 100W class unit. Its 151.2W rating and 72-144V CC range make it suitable for larger series-connected LED arrays than lower-power siblings.

How do I know if my LED load is compatible with the LPC-150-1050?

Your LED load needs to be designed for 1050mA constant current and have a total forward voltage within 72-144V. This is not a constant voltage driver, and the number of LEDs depends on each LED's forward voltage rather than a fixed quantity.

Is the LPC-150-1050 suitable for damp or outdoor environments?

Yes, the enclosure is rated IP67, so it is built for wet and dusty conditions. It is also specified for operation from -25°C to +50°C, which covers many indoor and outdoor commercial lighting environments.
