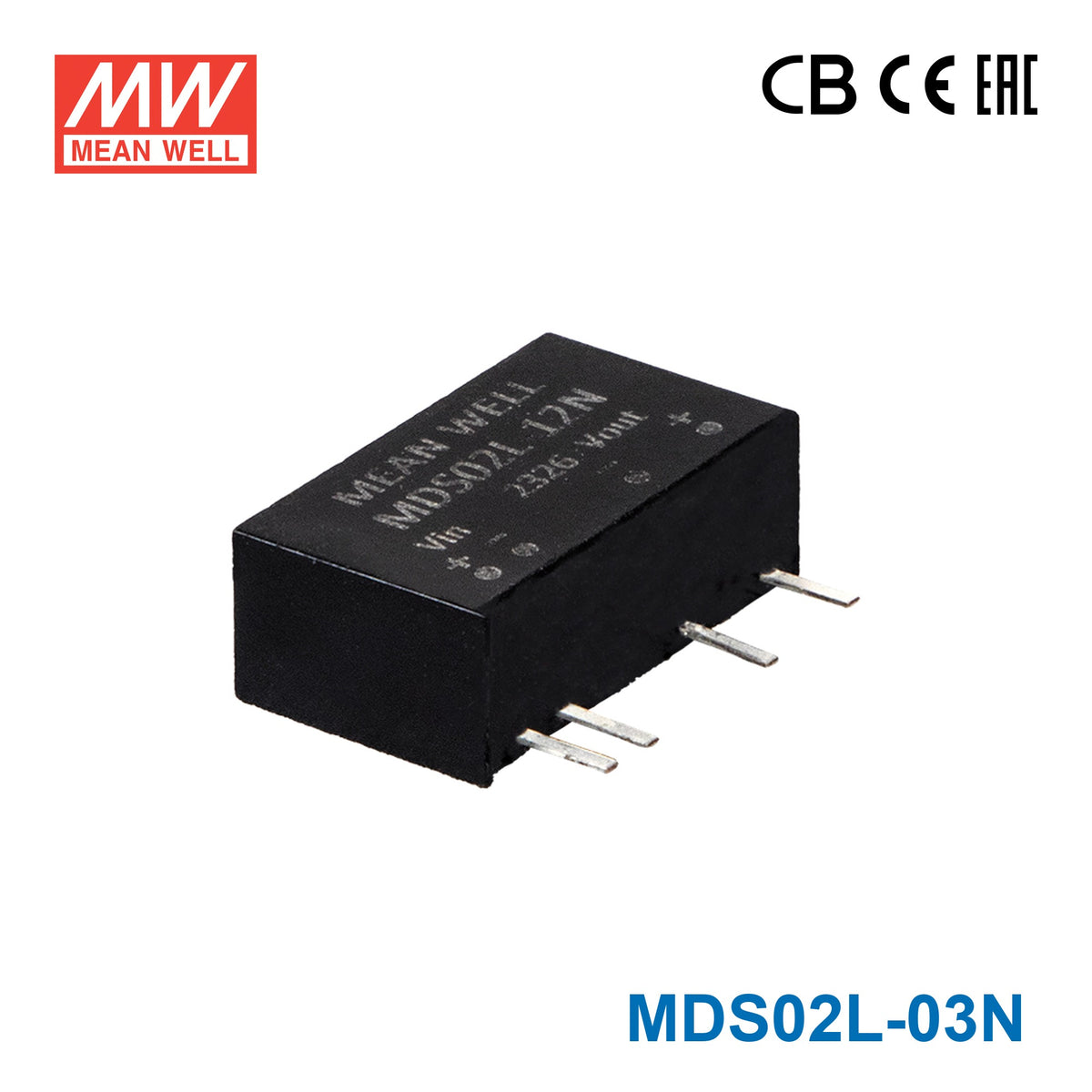

Mean Well MDS02L-03N SIP Package DC-DC Converter- 2W - 3.3V out 606mA

Input 4.5~5.5VSIP7 package with international standard pinoutmedical gradelow cost

SKU MDS02L-03N

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

MDS02L-03N is the 3.3V output model of this series: rated power 2W, typical efficiency 77%.

MDS02-N and MDD02-N series are 2W isolated and unregulated module type medical grade DC-DC converter with SIP7 package. It features international standard pins, a high efficiency up to 86%, wide working temperature range -40~+95℃, 6KVDC I/P-O/P high isolation voltage, short circuit protection, etc. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V /±12V/±15V for dual outputs, which are suitable for medical systems, ultra low leakage current or industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP7 package with international standard pinout
Operating temperature range -40 ~ +95℃
Comply with IEC/UL62368-1 and LVD IEC60601-1
Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
Low patient leakage current <2μA
Protections: Short circuit (Continuous)
6KVDC hight I/O isolation (Reinforced insulation)
Low cost
3 years warranty

Specifications

MDS02L-03NSpecifications from the official datasheet (2024-08-12 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 5V (4.5 ~ 5.5V)
INPUT CURRENT NO LOAD: 40mA
INPUT CURRENT FULL LOAD: 505mA
OUTPUT VOLTAGE: 3.3V
OUTPUT CURRENT: 61 ~ 606mA
EFFICIENCY (TYP.): 77%
CAPACITOR LOAD (MAX.)^{* For each output}: 1000μF

INPUT

VOLTAGE RANGE: 4.5 ~ 5.5Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 500mA Slow-Blow Type for all models

OUTPUT

VOLTAGE ACCURACY: ±5.0%
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: ±15% for 3.3Vo, 5Vo ; ±10% for others
SWITCHING FREQUENCY (Typ.): 20KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +95℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.02% / ℃ (0 ~ 90℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.6)

SAFETY STANDARDS: IEC62368-1 / UL62368-1, LVD IEC60601-1, EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:6KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION LEVEL: Primary-secondary: 1xMOPP / 2xMOOP when system input voltage is with 250VAC
ISOLATION CAPACITANCE (Typ.): 25pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032, BS EN/EN55011 Class A/B with external components
Radiated BS EN/EN55032, BS EN/EN55011 Class A/B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±4KV contact, Level 3, ±8KV air
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV / 5KHz
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line to Ground
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032, BS EN/EN55011	Class A/B with external components
Radiated	BS EN/EN55032, BS EN/EN55011	Class A/B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±4KV contact, Level 3, ±8KV air
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV / 5KHz
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line to Ground
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 12900Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.7*7.1*11.5mm (0.775*0.279*0.452 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 2.8g ; 24pcs/per tube, 2160pcs/90 tube/per carton

Test conditions and notes6

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.Patient leakage current(2μA max.) and reinforced isolation is based on a 250VAC, 50/60Hz system input voltage.
6.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

MDS02L-03N Mechanical Specification — Mechanical Specification

MDS02L-03N EMC Suggestion — EMC Suggestion

Typical applications

Downloads

::specification::

FAQ

What is the Mean Well MDS02L-03N designed for?

The Mean Well MDS02L-03N is a 2W SIP package, medical grade unregulated DC-DC converter for applications that need a 3.3V DC output in a compact module format. It is suited to space-constrained electronic equipment where reinforced isolation and certified safety performance are important.

What are the key electrical specifications of the MDS02L-03N?

This model is rated for 2W output power and provides a 3.3V DC output from a 5V nominal (4.5 to 5.5V) input. The output current range is 61 to 606mA, and the product belongs to Mean Well's MDS02-N series in a SIP package.

Is the MDS02L-03N suitable for medical or safety-sensitive equipment?

Yes. The sheet states medical safety approval to IEC60601-1 with 1xMOPP/2xMOOP and a patient leakage current of 2μA max. It is also approved to IEC62368-1/UL62368-1 and EAC TP TC 020/2011.

How much isolation does the MDS02L-03N provide?

The MDS02L-03N is specified with 6KVDC input-to-output withstand voltage. The sheet identifies its isolation as reinforced (based on a 250VAC system input voltage), which helps differentiate it from lower-isolation DC-DC converter modules.

What operating environment can the MDS02L-03N handle?

This converter is rated for an operating temperature range of -40°C to +95°C with free-air convection cooling and load derating at higher temperatures per the derating curve. That makes it suitable for demanding industrial and embedded environments where wide temperature tolerance is required.

Does the MDS02L-03N include built-in protection features?

Yes. It includes continuous short-circuit protection with automatic recovery, and Mean Well recommends an external 500mA slow-blow input fuse. These measures help support reliability in normal equipment operation.
