Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Illumax

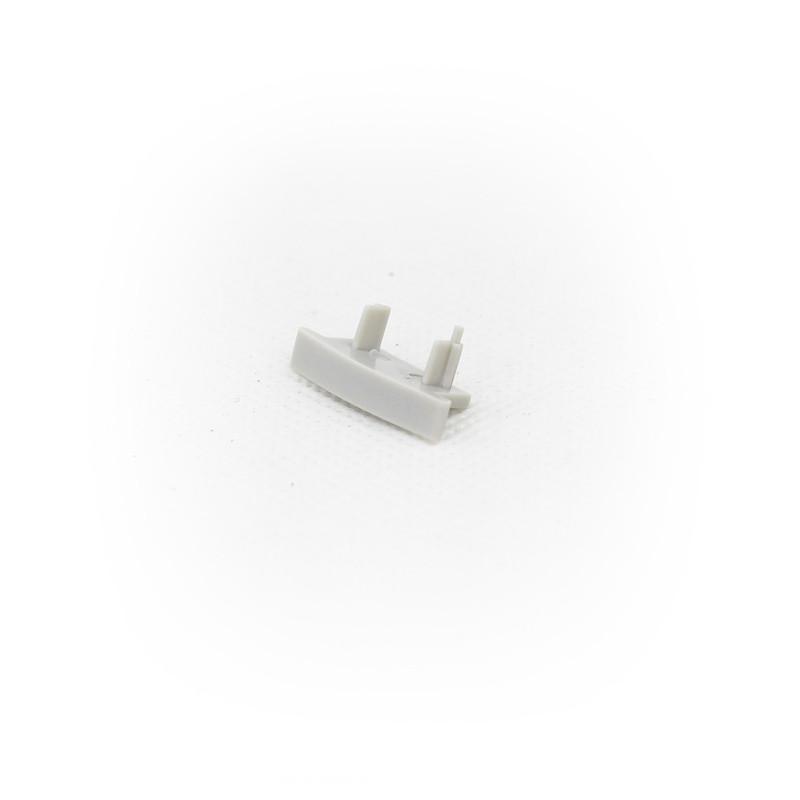

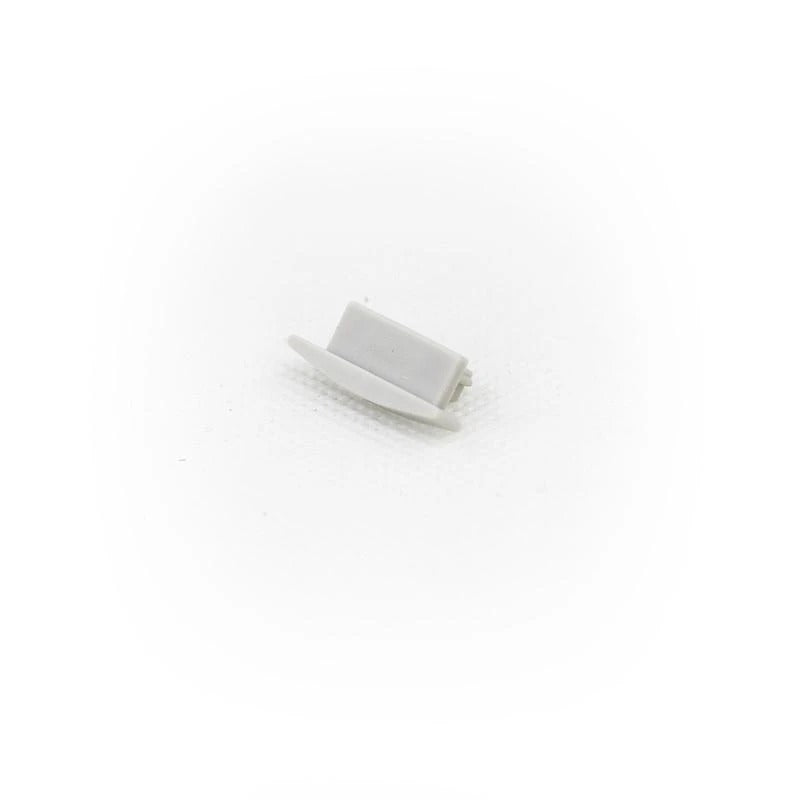

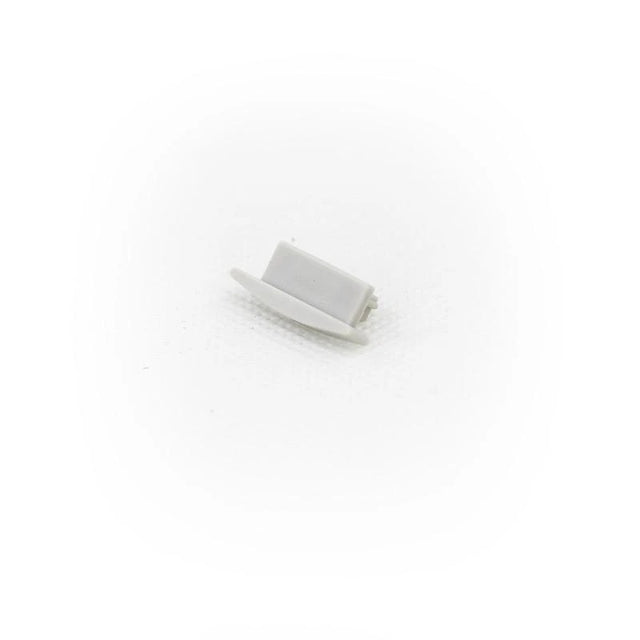

End cap (without hole) for Aluminum Extrusion -EXRS03

SKU ECRS03
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Specifications

ECRS03Specifications from the official datasheetDownload datasheet PDF

Specifications

Standard Length
2m
Body
Anodized Aluminium
Diffuser
PC( Pmma Opal Matte )
End Cap
PC
Mounting Bracket
PC

Illumax Strip Compatibility

ECO
•
ECO+
•
ULTRA
•
ULTRA+
•
ULTIMATE
•
RAINBOW
•
RAINBOW+
•
COLOR
•
Test conditions and notes2
  1. 1. ECLP04 with LED strip installed (*LED strip needs to be purchased seperately)
  2. 2. ECLP04 with Mounting Bracket installed (back view)

Technical drawings

ECRS03 Specifications
Specifications

Downloads

FAQ

What is the ECRS03 end cap used for?

The ECRS03 is an end cap designed for the Aluminum Extrusion model EXRS03. It is used as a finishing accessory for that extrusion profile on linear LED lighting projects. This version is the style without a hole.

Is the ECRS03 compatible with all aluminum extrusions?

No. The product name identifies it specifically for Aluminum Extrusion EXRS03. Buyers should match it to the EXRS03 profile rather than assume universal fit across other extrusion models.

What is the difference between this end cap and a version with a hole?

This model is the without-hole version, so it is intended for applications where a closed end cap style is preferred. The main distinction is the cap style stated in the product name. If you need a different end-cap opening style, you should choose the matching alternative model.

What are the basic specifications of the ECRS03?

The ECRS03 is made of PC (Polycarbonate). It is a lightweight accessory component designed for the EXRS03 extrusion family.
