Illumax

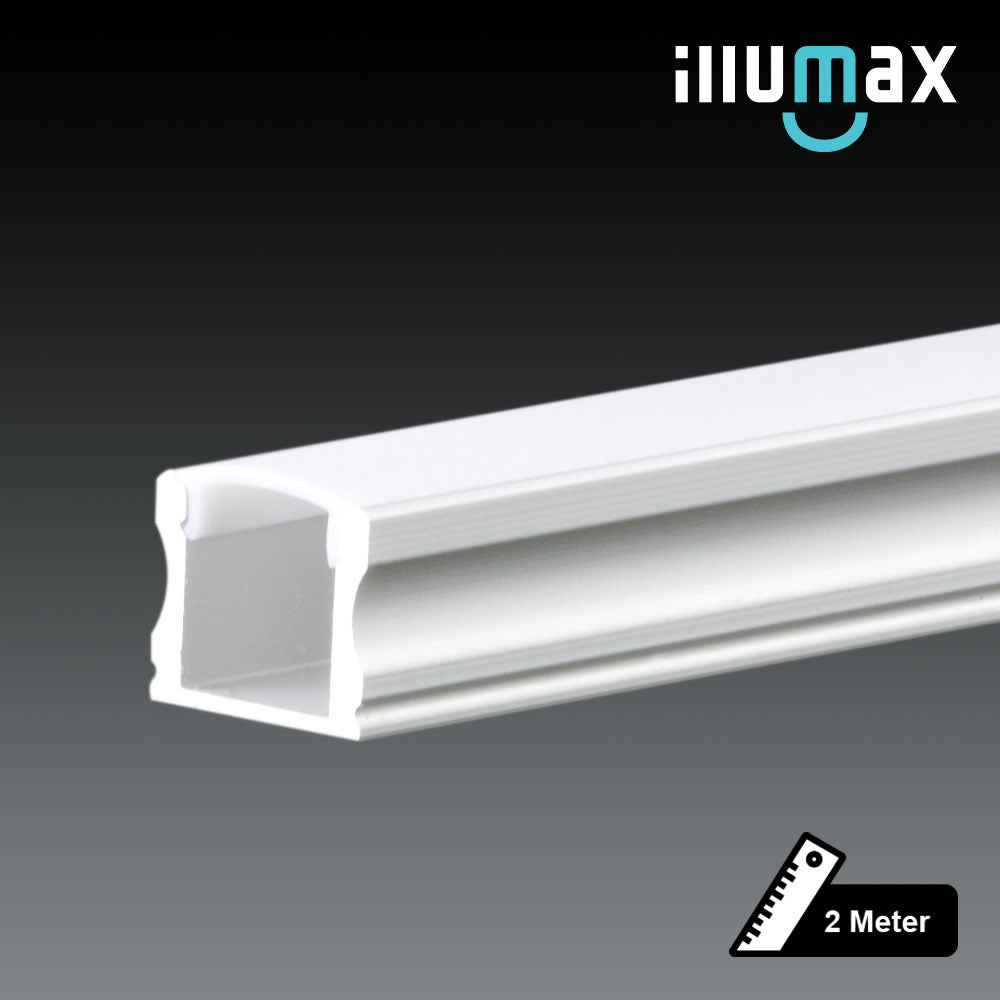

LED Extrusion EXLP02 Linear Profile

Linear SurfacePrice per Meter2M per Length
SKU EXLP02
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Specifications

EXLP02Specifications from the official datasheetDownload datasheet PDF

Specifications

Standard Length
2m
Body
Anodized Aluminium
Diffuser
PC( Pmma Opal Matte )
End Cap
PC
Mounting Bracket
PC

Illumax Strip Compatibility

ECO
•
ECO+
•
ULTRA
•
ULTRA+
•
ULTIMATE
•
RAINBOW
•
RAINBOW+
•
COLOR
•
Test conditions and notes2

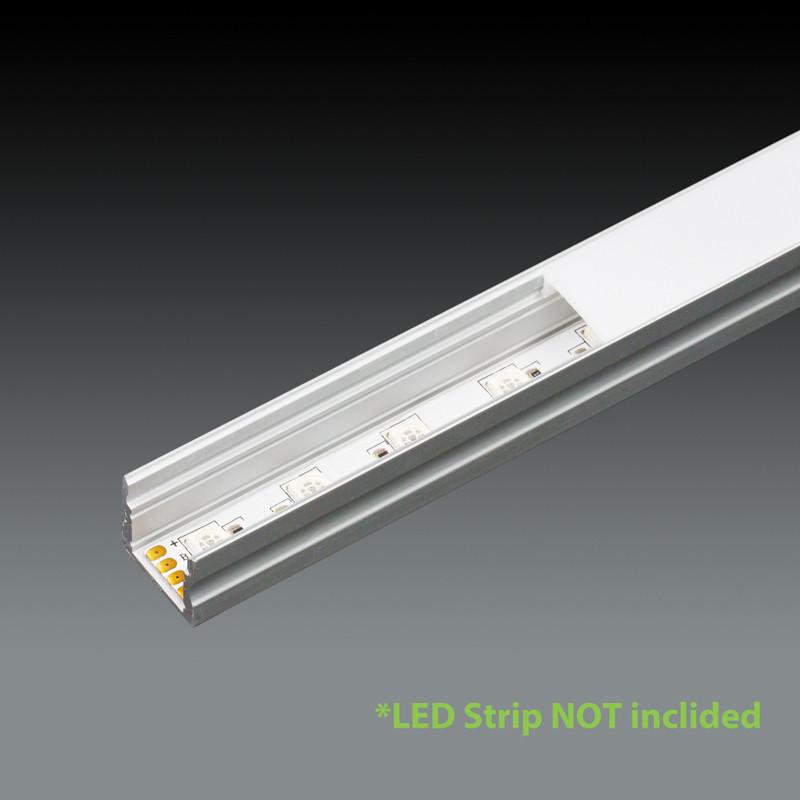

  1. 1. ECLP04 with LED strip installed (*LED strip needs to be purchased seperately)
  2. 2. ECLP04 with Mounting Bracket installed (back view)

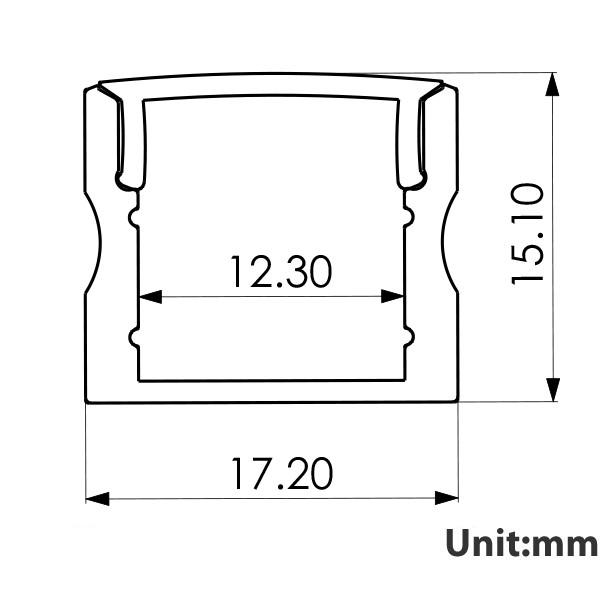

Technical drawings

EXLP02 Specifications
Specifications

Downloads

FAQ

What is the LED Extrusion EXLP02 Linear Profile used for?

The LED Extrusion EXLP02 Linear Profile is used to house and finish linear LED lighting runs in a surface-mounted profile format. It is suited to projects that need a clean aluminium channel with a diffuser for a more polished appearance on the product page.

What are the main material specifications of the EXLP02 profile?

This model uses an anodised aluminium body in a silver finish. It includes a PC diffuser listed as PMMA opal matte, along with PC end caps and a PC mounting bracket.

What length does the LED Extrusion EXLP02 come in?

The standard length for the EXLP02 is 2 meters. That makes it appropriate for linear lighting layouts where a consistent profile length is needed across a project.

What diffuser style is included with the EXLP02?

The EXLP02 includes a PC diffuser described as PMMA opal matte. This gives the profile a diffused, finished look rather than leaving the light source fully exposed.

Is the EXLP02 intended for surface-profile applications?

Yes. The product is categorized under surface LED extrusions, which indicates it is intended for surface-profile use rather than a recessed-only format. That makes it relevant for applications where the profile remains visible as part of the finished lighting design.

What warranty and product weight are listed for the EXLP02?

The LED Extrusion EXLP02 Linear Profile is constructed from anodized aluminium with a PC diffuser (PMMA opal matte), PC end caps, and a PC mounting bracket. It has a standard length of 2 meters and is compatible with all Illumax LED strip series.
